8 Port Riser Card PCI-E Express PCIE to COM DB9 RS232 Serial Controller Adapter with Heatsink Cable |

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } 8 Port Riser Card PCI-E Express 8 Port PCIE to COM DB9 RS232 Serial Controller Port Card Adapter with Heatsink Cable Feature:
1. PCIE to 8-port RS232 expansion card, 8-port adapter card, high-speed and stable transmission
2. PCI8 serial card, PCIEx1 to RS232 eight-port serial card, you can use the idle PCIEX1 socket of your motherboard to extend the 8-channel RS232 serial port for automation system manufacturing and system integration
3. High-speed transmission, the data transmission rate of each port can reach 921.6KBPS
4.8 standard RS232 serial port DB9 pin interface with 1 minute 8 braided wire, the connection is more convenient
5. Provide mediation control signals to ensure the compatibility of serial devices and peripheral devices, so that multiple serial cards can be installed in commonly used PCs or servers, the heat sink heat dissipation is more efficient, and it can work continuously
6. Higher transmission speed, PCIE slot conforms to PC-EXPRESS2.0 specification and is backward compatible with PC | -EXPRESS1.1
7. MC2348 can provide 8 RS232 serial ports to connect a variety of serial devices, such as PC terminals, modems, printers, scanners, fingerprints, password keyboards, display sns, etc.
Specification:
Product name: PCI to 8-port RS232 expansion card
Color: black + red
Material: PVC + PC board + metal

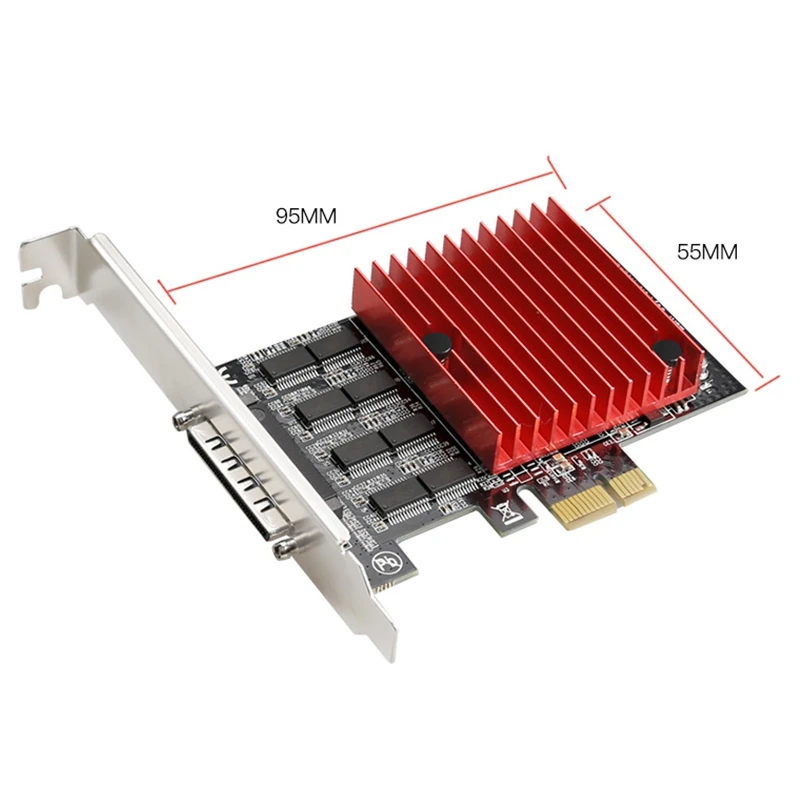

Motherboard size: 95 * 55mm
Package weight: about 117g
Package Contents:

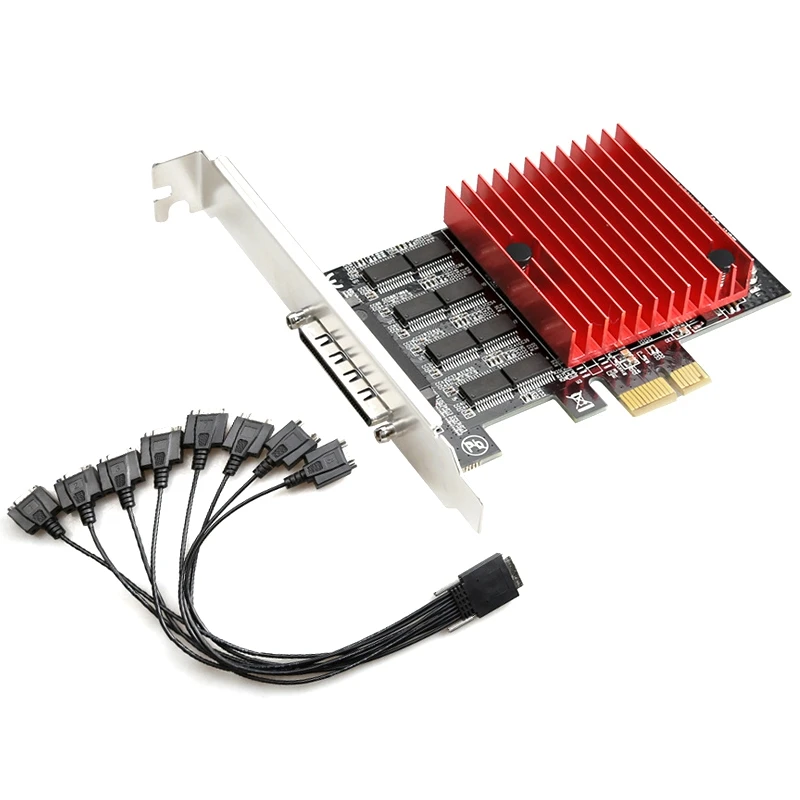

1*8 Serial port Adapter Card
1*8 Port Serial Cable
1*Heat Sink
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
