DC-DC 5V to 1.0V-24V USB Step Up/ Down Power Supply Module Adjustable Voltage Regulator Adapter Boost Buck Converter Red Green Side Button 3.3V 9V 12V 24V

Description:

XY-SUPA is a DC adjustable step-up / step-down power module with 3 Bit LED digital tube display. The output voltage is displayed in real time. Adjust the output voltage with two buttons. The output voltage meets the requirements. Can be used as a step-down power module for general use. Simple, efficient and practical.

Features:

1>. Low power module
2>. Wide voltage output
3>. Supports boost and buck
4>. Long handle potentiometer adjustment
5>. Support enable / disable output
6>. Parameter memory function
7>. Support calibration

Parameters:

1>. Product Name: XY-SUP DC-DC 3W USB Up / Down Power Module
2>. Product Numbers: XY-SUP
3>. Input voltage: DC 3.5V-12V
4>. Output voltage: DC 1.0V-24.0V
5>. Output power: 3W (maximum)
When the output DC is 1.0V ~ 2V, the maximum output power is within 2W;
The maximum output power is within 3W when outputting DC 2V ~ 24V;
6>. Conversion efficiency: 94%
7>. Working current: 30mA
8>. Voltage accuracy: +/- 0.5%
9>. Current accuracy: +/- 1%
10>. Operating temperature range: -20 ° ~ 85 °
11>. Operating humidity range: 0% -95% RH
12>. Size: 70 * 26 * 14mm


Key Functions:

1>. Short press any key to turn on / off the voltage output. On means that the output is enabled and the output voltage is displayed, "On" is displayed, then the output current is displayed. Off means disabled and "Off" is displayed on the second line.

2>. Press and hold any button for more than 3 seconds to adjust the output voltage. The screen flickers. Short press the “UP” button to increase the output voltage, and short press the “DOWN” button to decrease the output voltage. Each time the button is pressed, the voltage changes by 0.1V. The module supports long press to quickly adjust the output voltage. The setting parameters are automatically saved after 3 seconds.

Calibration Voltage:

1> .Calibrate Voltage: Press any button before the power is turned on, then turn on the power and release the button after 5 seconds. The calibration mode will automatically enter after 5 seconds. The voltage display will flash '8.8.8'. Short press the "UP" button 'DOWN' to adjust and calibrate the voltage. If you press any button for 2 seconds, enter the current calibration mode. If you press and hold the button for 5 seconds, the parameters are automatically saved and return to the normal display interface.

Use Steps:

1> .USB socket input voltage;
2>. Adjust the output voltage by the button to meet the required voltage;
3>. Remove the input voltage;
4>. Connect the load at the output;
5>. Turn the power back on and enjoy using it.

Note:

1>. Do not short the output.
2>. The maximum output power is 3W and cannot be exceeded.
3>. Support over power protection. The output voltage stops automatically. When the output power is greater than 3W, the screen displays "OPP".
4>. It supports undervoltage protection. If the output voltage is lower than 0.8V, it will automatically stop the output voltage and the screen will display “LVP”.
5>. It supports overcurrent protection. If the output current is greater than 2A, it will automatically stop the output voltage and the screen will display "OCP".
6>. The module does not support reverse connection protection. Please do not short circuit and reverse connection.
7>. The output current cannot be adjusted.
8>. Please read the instruction manual and instructions before use.

Application:

1>. Ordinary power supply;
2> .LED drive power;
3>. Instrument voltage display;
4>. Tester;
5>. Circuit test;
6>. Power conversion.

Package Included:

1x XY-SUPA DC-DC 3W USB Step Up Down Power Supply Module

Tips: Friend, if you want to know more Step Down 、Step Up Board Transformer Model or the Instructions, just feel free to contact with us, we will help you to solve it, thanks.

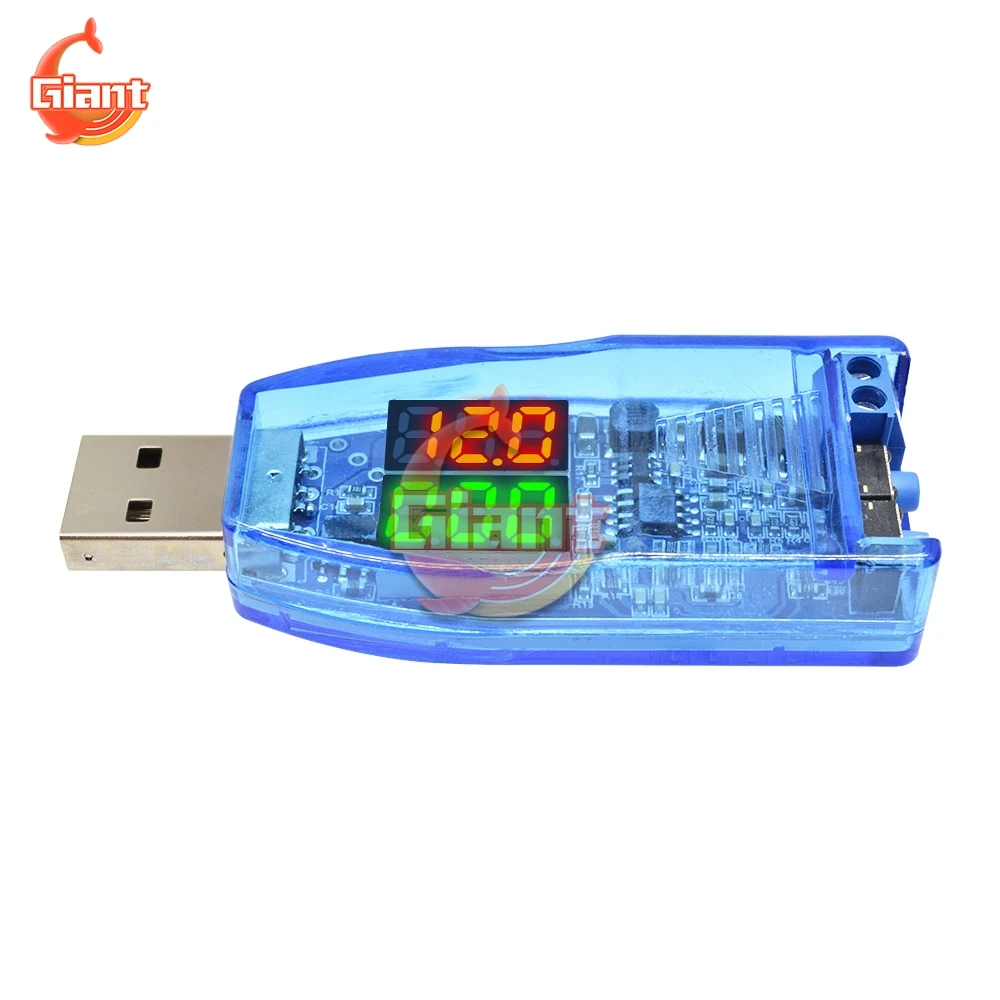

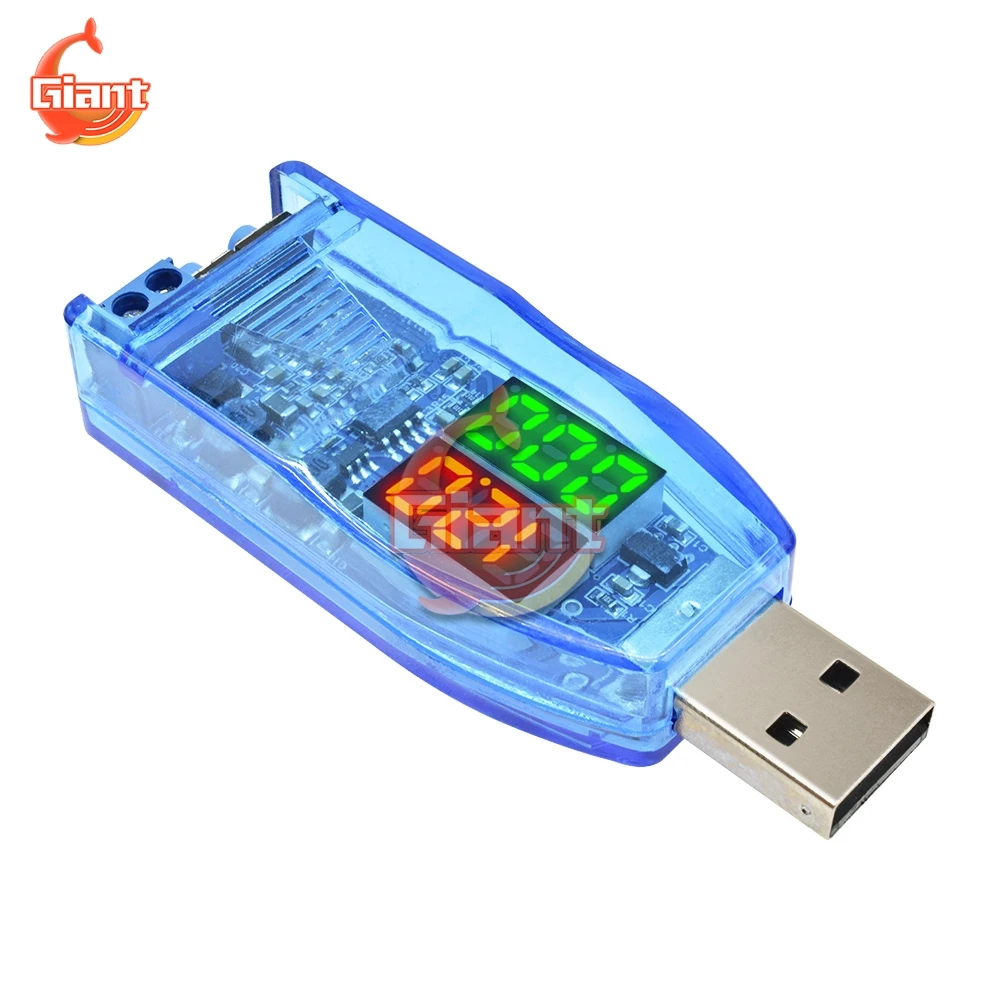

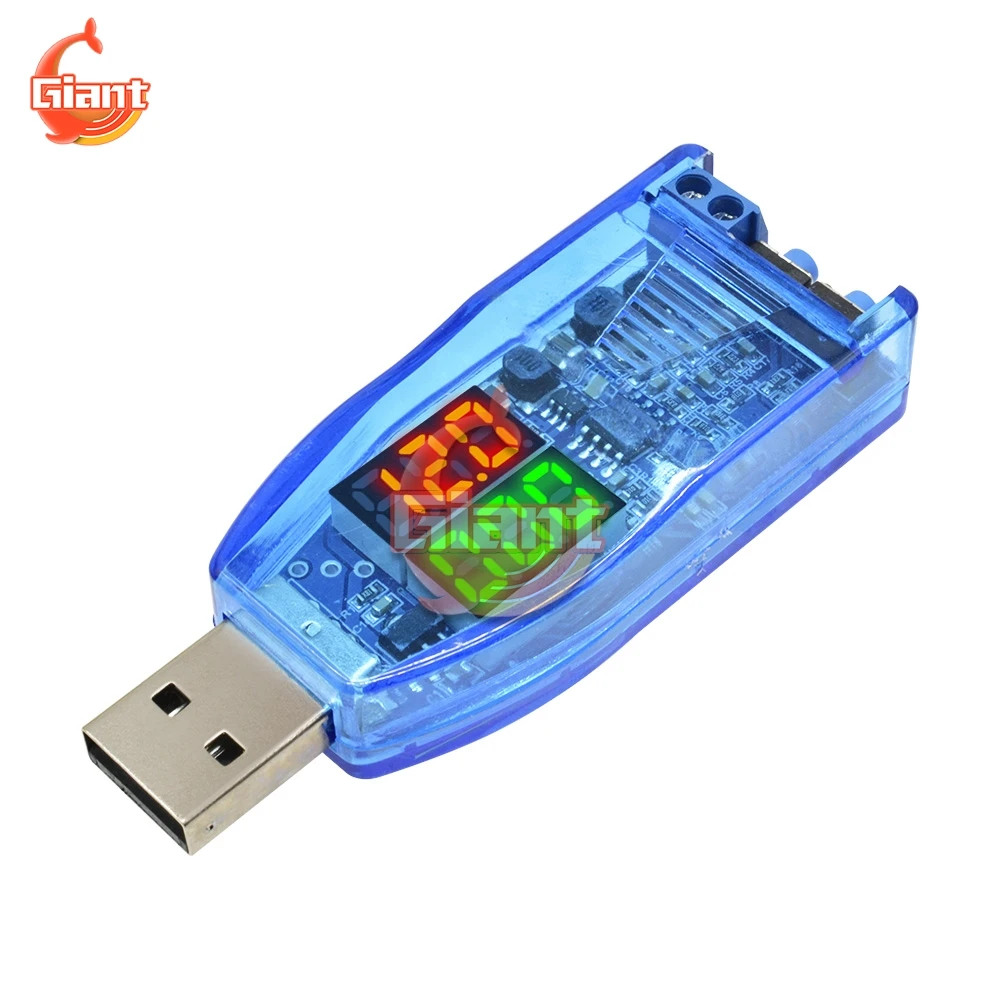

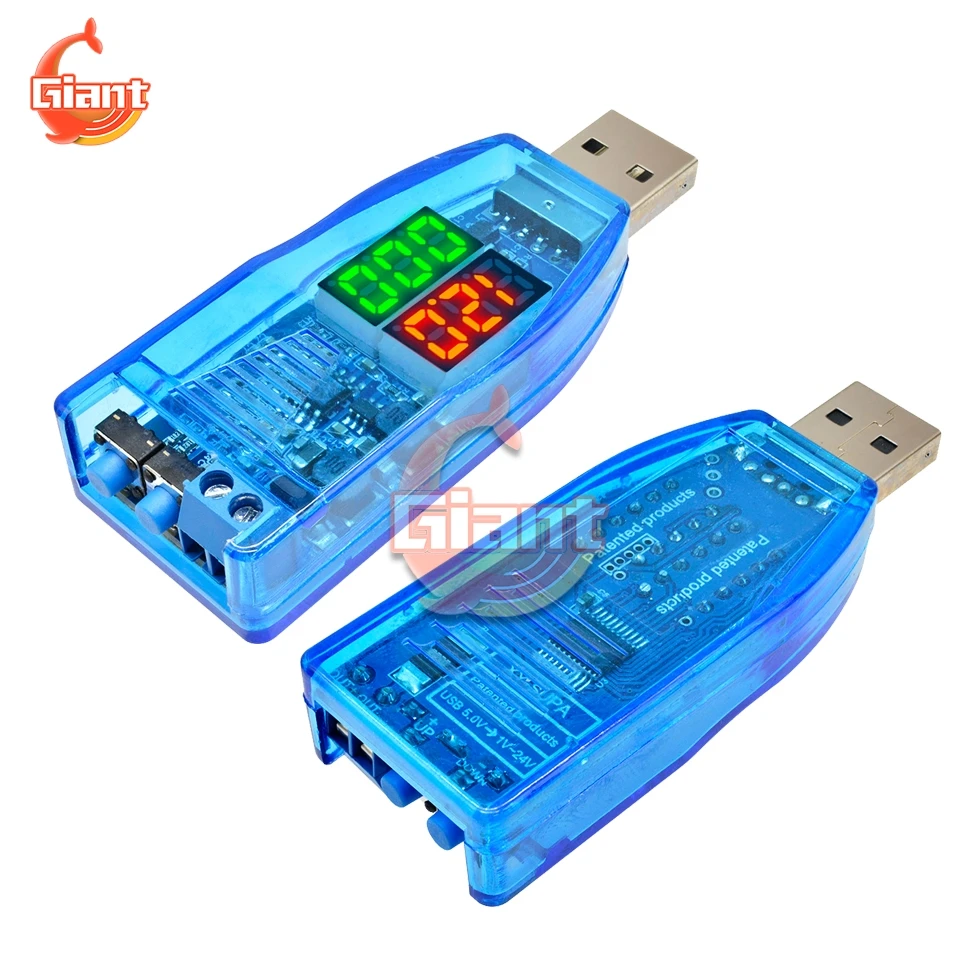

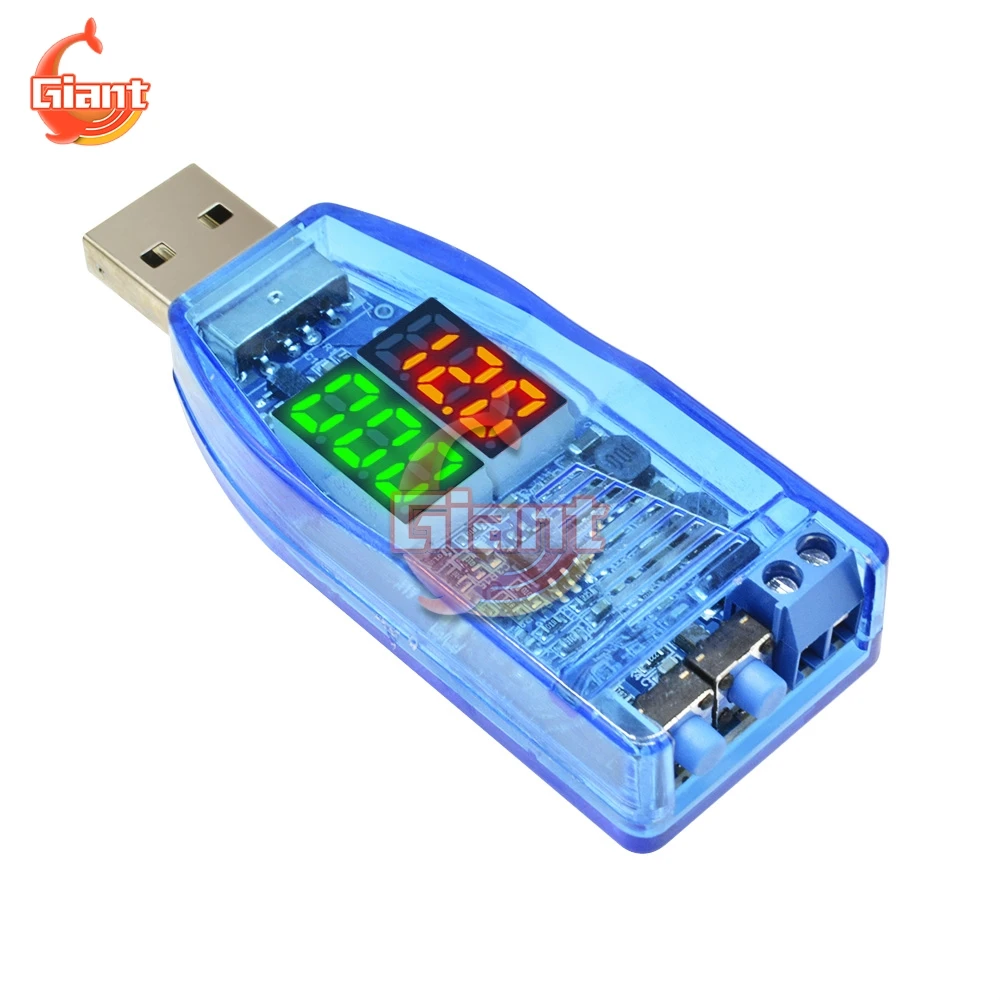

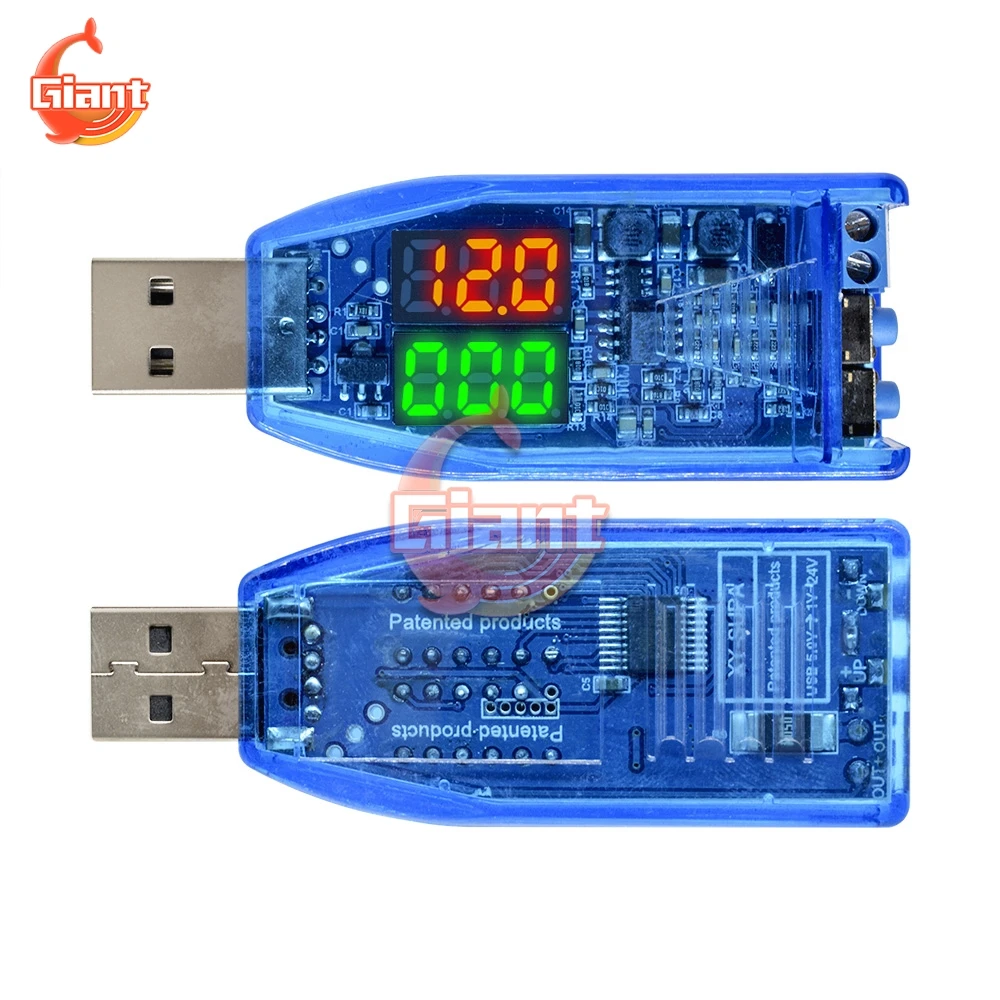

Product Pictures:
