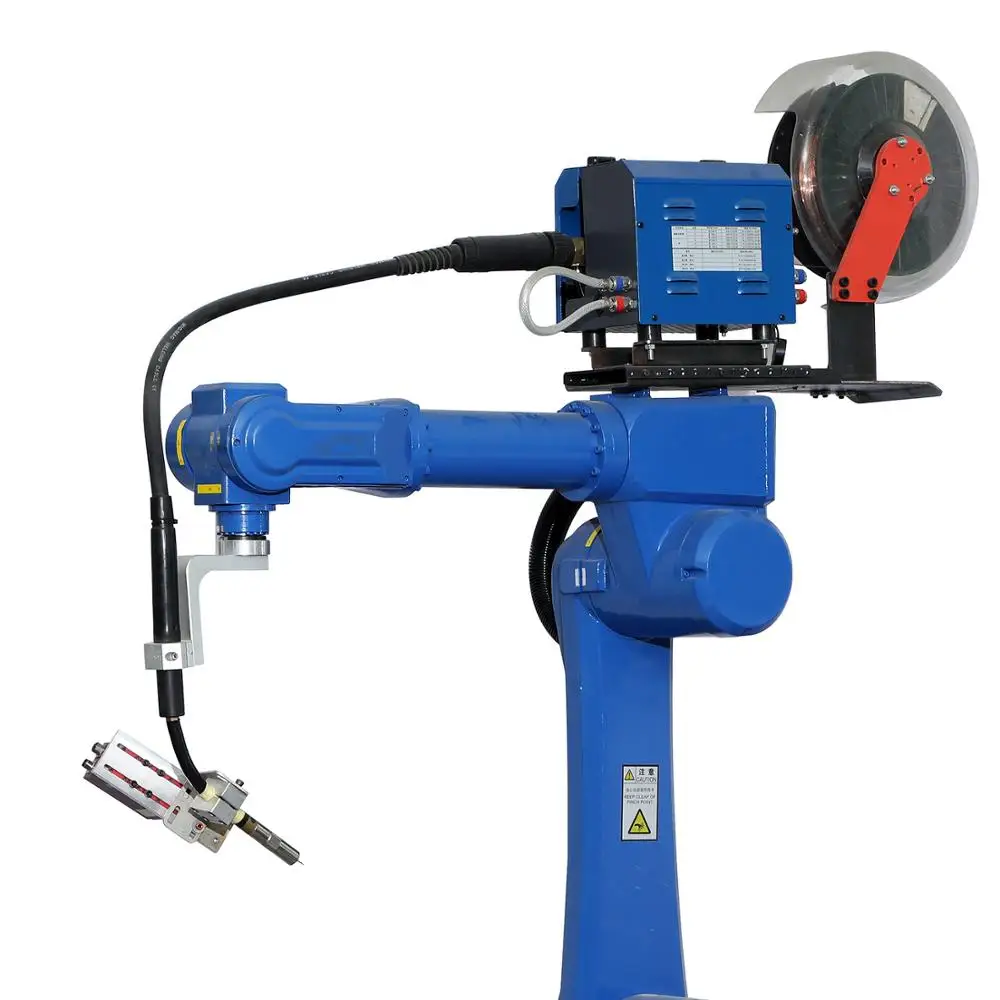

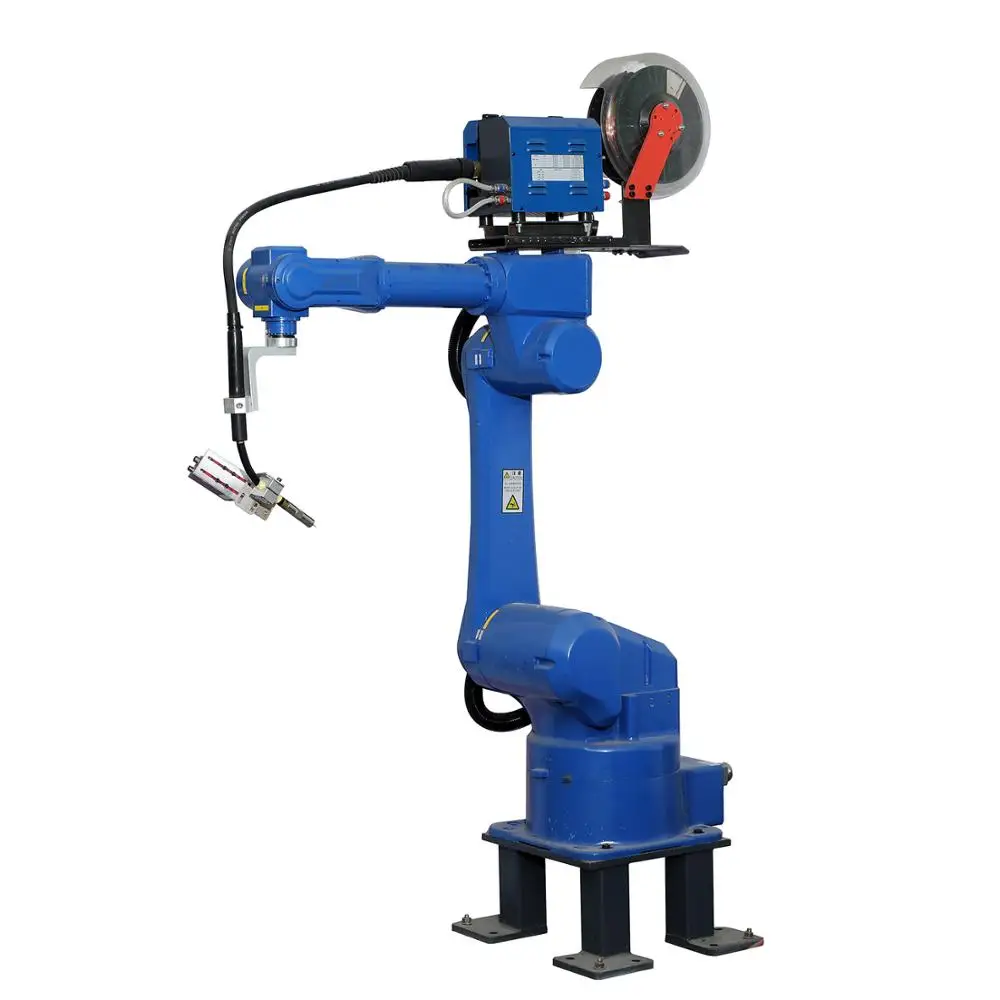

szgh New industrail 6 Axis Welding Robot Arm kit OEM robotic for TIG/MIG/MAG welding machine 1500MM load 6kg struction robot

Special Service

1. It can customize the standard color as you need!

2. It can customize your company logo!

​3. All the complete robot kit will be included as following, after you receiving it, it can help you to produce much benefits soon!!

Technical Parameter

The model is SZGH-H1500-B-6, it is with W350A welding power source, and with 1400mm reach.

Workspace

Robot Details

​

Application

1. Welding system: Panasonic  MIG or TIG welding machine with automatic wire feeding system. Stable performance.

2. Automatic alarm system: if any problem on the wire feeding or gas supply and so on, the welding robot will alarm and the welding will stop until you clear the alarm.

3. Welding gun system: famous brand TBI welding gun.

4. Welding gun cleaning and wire cutting system: TBI brand.

5. Working station positioner: It is designed with two sets of working table. Single table could achieve 3600rotation which is suitable for multi-angle welding. Two sets of positioner system could achieve 180°rotation through spindle motor. It could achieve alternative use so as to increase efficiency.

6. Work piece clamping system: the cylinders will push and clamp the work piece. Balanced and stable clamping force.

7. Arc light baffle: cylinder pushes automatic rotation. Use for preventing light pollution during working process.

8. Start control panel system: Manual/Automatic button platform with portable structure. Convenient for operation.

Welding Process

Robot Control System

●Structural optimization algorithm suitable for the body control of various types of structure.
