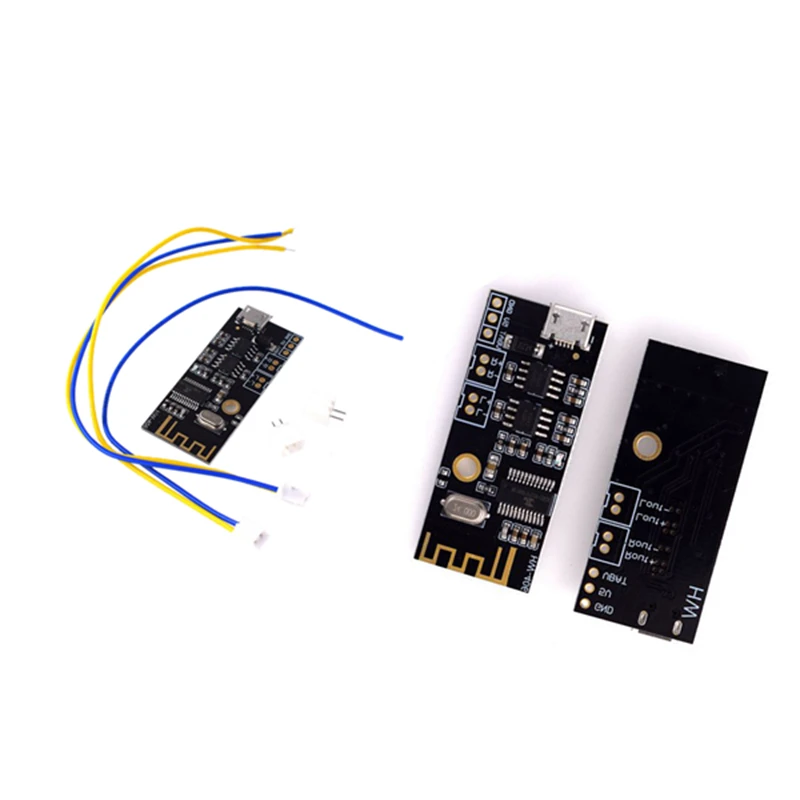

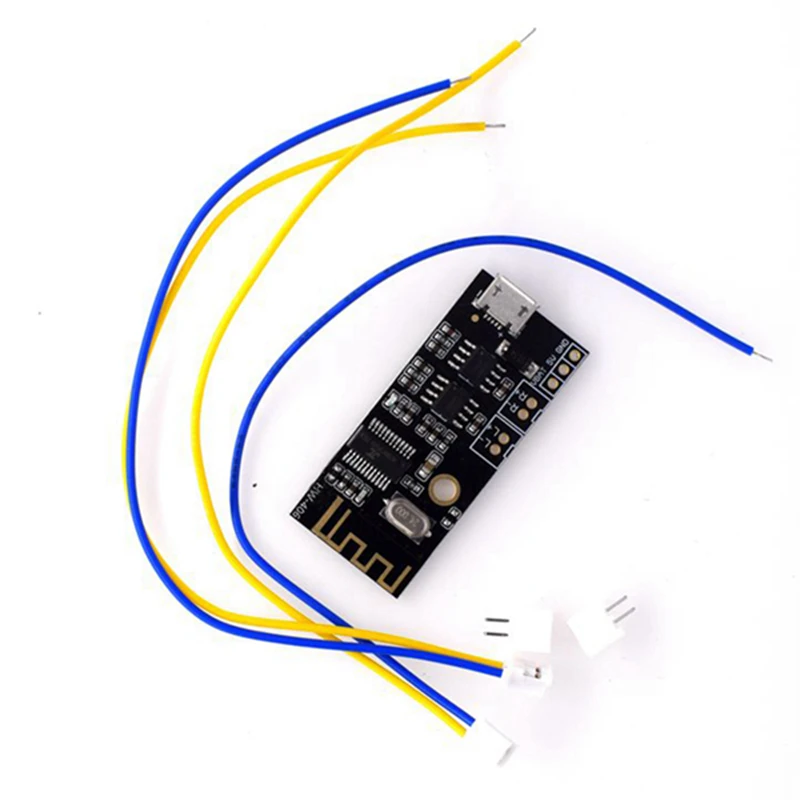

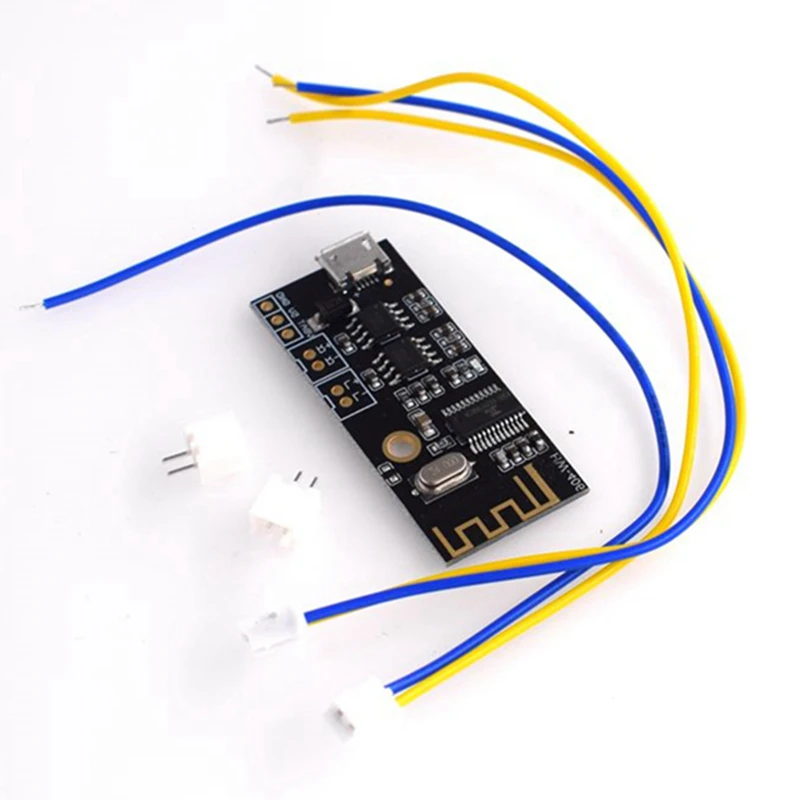

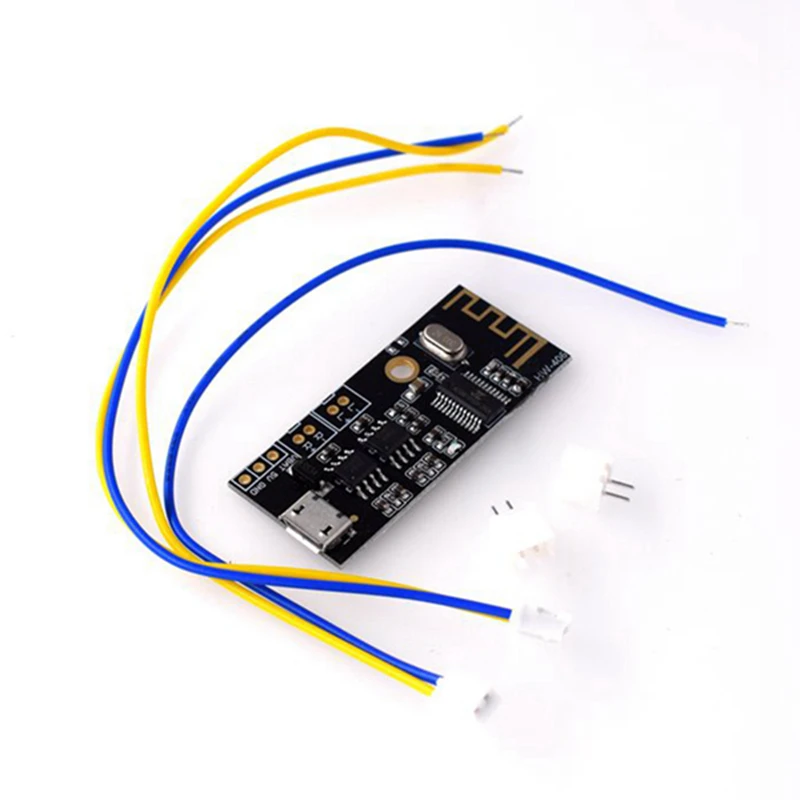

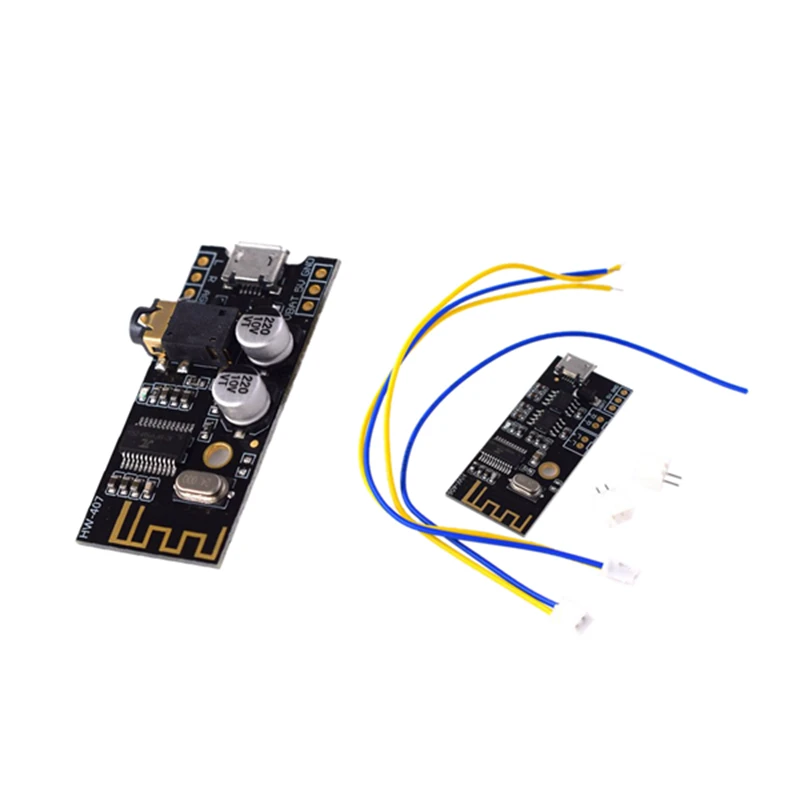

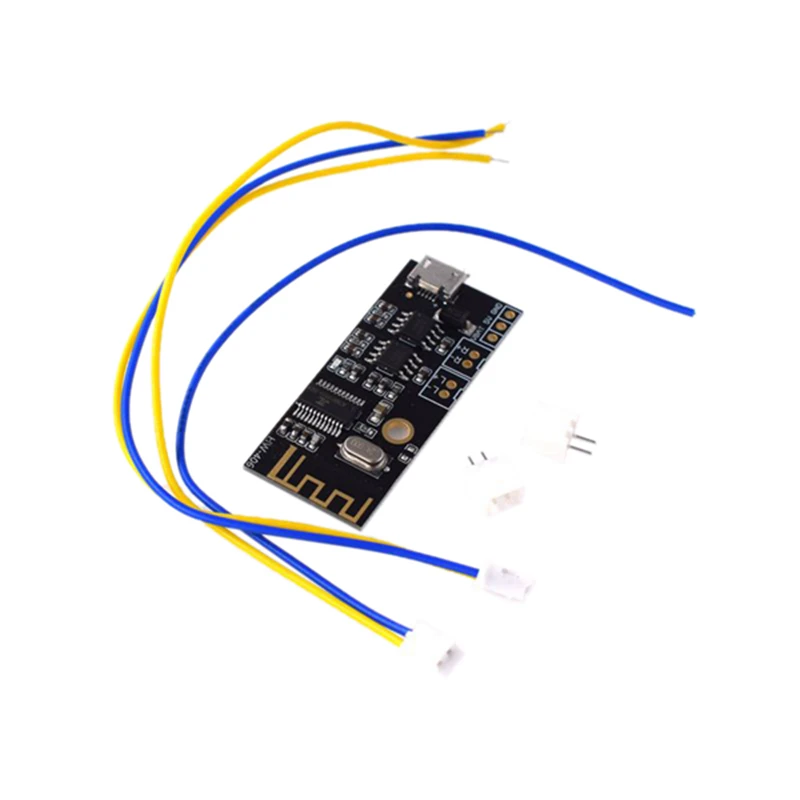

2 * Module: 1*a + 1*b
Power supply: It can be directly powered by the Micro- USB Android cable 5V, or it can be connected to a 5V power supply or a 3.7V lithium battery. Note that the 5V and 3.7V power supply interfaces are different. 5V is connected to 5V and GND, and the 3.7V lithium battery is connected to VBAT and GND.
The maximum operating current is 5V2A. It is recommended to use a regulated power supply of 5V2A for better sound quality.
Support USB sound card, free drive (plug and play). Connect the module to the computer with the USB cable, and the computer can play music through the module amplifier output.
o output: output left and right stereo o signals, which can be connected to two 2-8 ohm, 3-5W speakers, and 4 Euro 5W speakers. o output: The earphone can be directly connected to the 3.5mm o interface, or it can be wired for the o input of the power amplifier board (interface L/R/AGND can be directly wired).
This product is a low-power Bluetooth design solution, supports the latest Bluetooth 4.2 transmission, two-channel stereo lossless playback, and the module can be connected to Bluetooth to quickly realize Bluetooth wireless transmission, which is very convenient. In an open environment, the Bluetooth connection distance can be up to 20 meters.
Widely used in a variety of Bluetooth o reception, a variety of o DIY modification.
color: picture color
material: metal
size: 45*20*5mm
Package Contents:
2 * Module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
