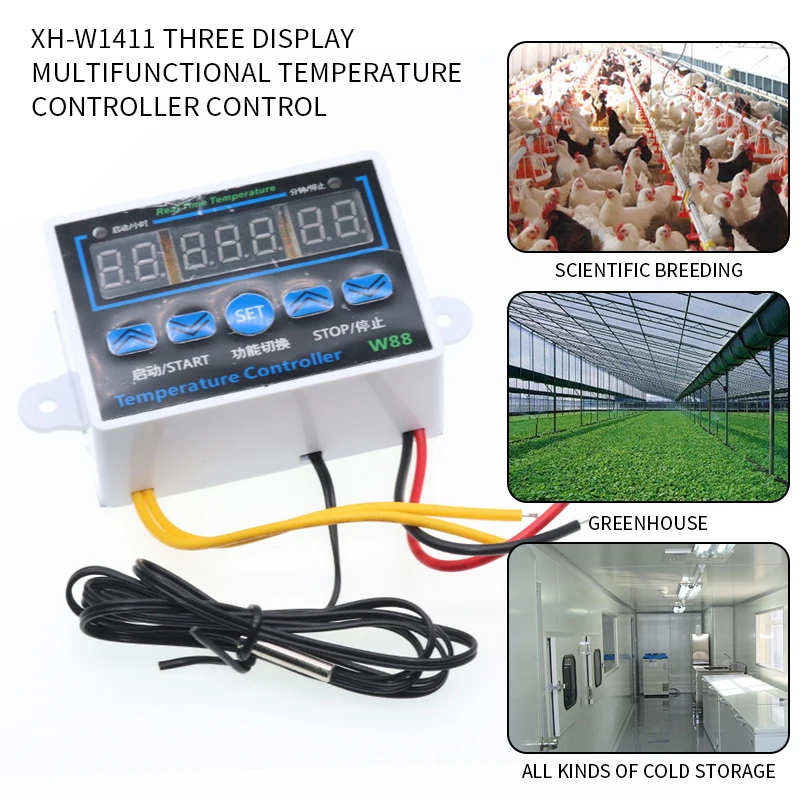

XH-W1411 White Shell Digital Thermostat Three Display Multi-Function Temperature Controller Output 10A 220V | Инструменты

XH-W1411 White Shell Digital Thermostat Three Display Multi-Function Temperature Controller Output 10A 220V | Инструменты

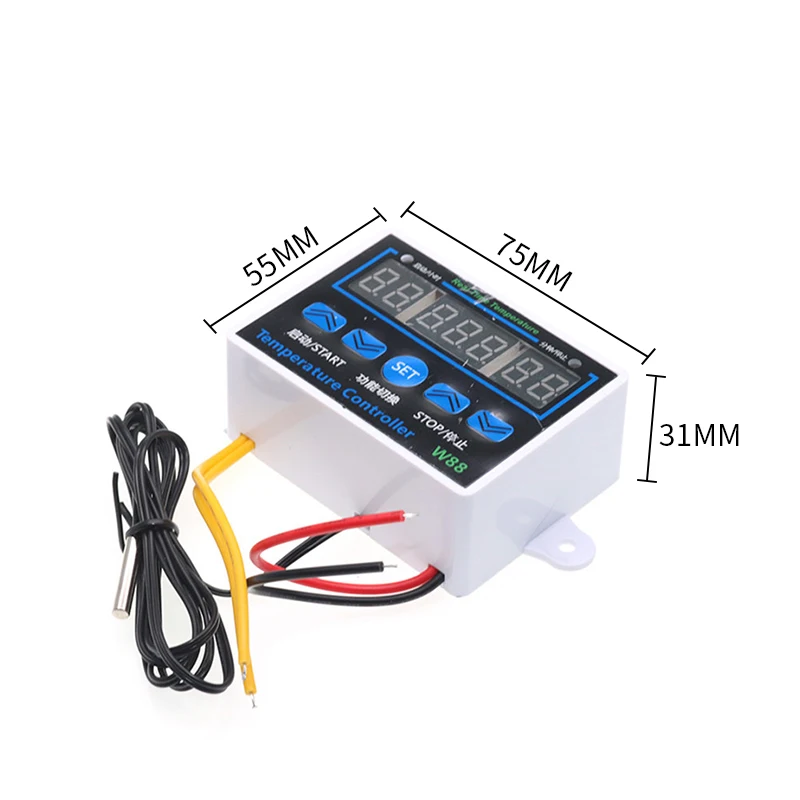

Size: 75*55*31mm
Color: black+white
Material: ABS
Voltage: 12V/220V
Temperature measuring range: -55~120℃, accuracy: +/- 0.3℃
Temperature control range: -19~99℃, accuracy: 1℃
Probe: NTC 10K waterproof probe L=1m
Environment: -15~55℃/20%~85%RH
Open hole distance: M3 (screw) 85mm

Featuress:
< Two modes: heating mode and cooling mode
< Easy to read: Digital display, clear and easy to read.
< 2P: Sensor has 2P terminal, can be replace easily.
< Good quality: ABS housing with 1.8mm thickness, anti aging and durable.
< Easy to use:

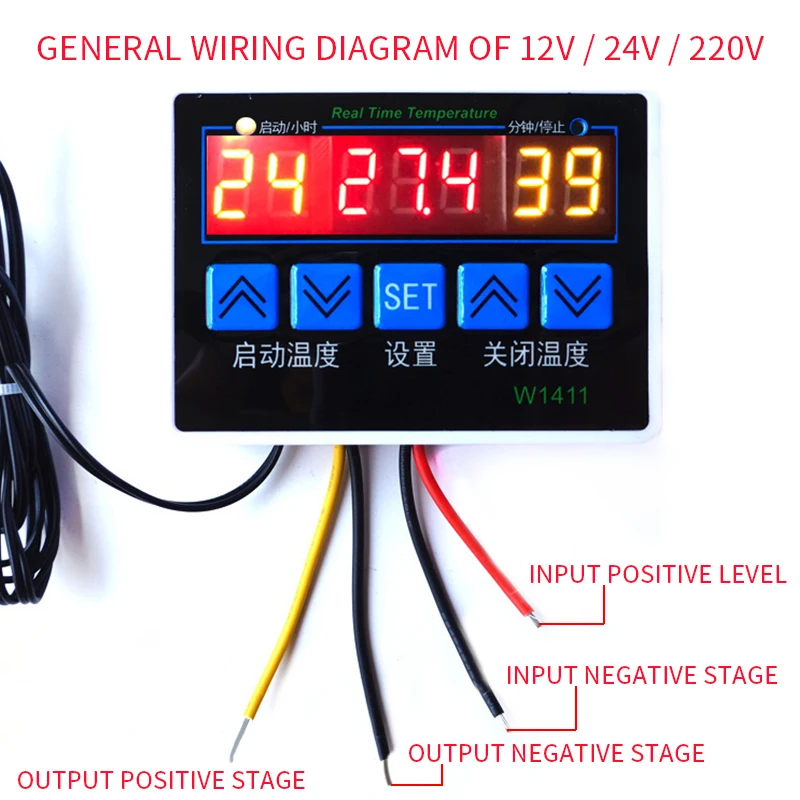

1. Screen display temperature on household socket, illustrate the power supply is connected correctly
2. Put the temperature probe need to temperature control, according to the need to set the start and stop the temperature
3. The heating or cooling equipment power supply plug on the thermostat outlet temperature control can be realized
Four, instructions:
After power on if the temperature in the range, immediately start output, to the set point to stop
Start temperature < stop temperature: heating mode

Notes:
1. Please allowed 1-3mm differences due to manual measurement, thank you for your understanding!
2. Due to the difference between different monitors, please understand that the picture may not reflect the actual color of the item.
