Main Application:

Metal engraving and milling, low speed and high torque. can engrave on gold,silver,copper, aluminium,steel,Pb etc soft metal surface working.

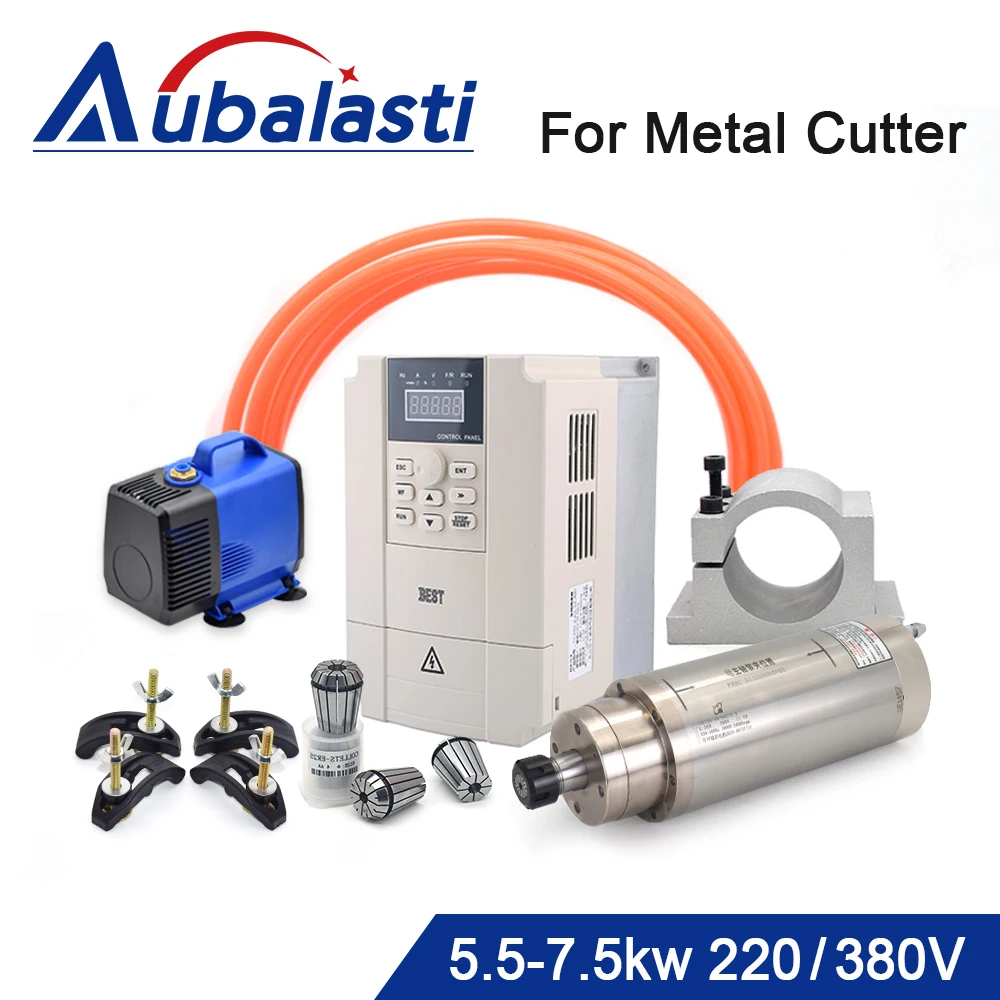

Product Features:

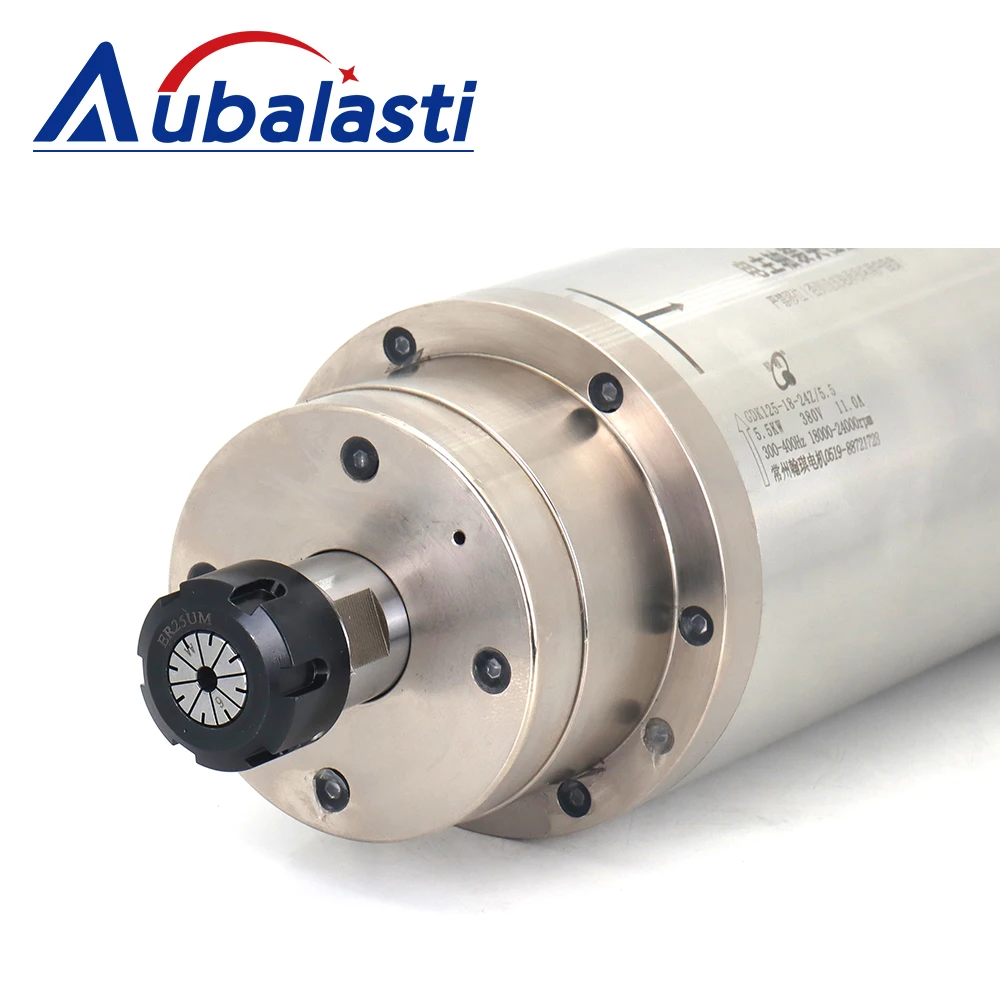

1. 5.5KW 380V (11A) / 220v (19A) ER25Water Cooled Spindle 4bearings

6.5KW380V (13A) / 220v (22.5A) ER32 Water Cooled Spindle 4bearings

7.5KW380V (16A) / 220v (28A) ER25 Water Cooled Spindle 4bearings

2. 5.5kw / 6.5kw / 7.5kw 220V or 380V VFD Inverter

3.Quantity: 8Pcs(ER25)  /  8Pcs(ER32)

(If you want to change to another caliber, please contact us)

4. 4Pcs Plate

Features:

1. P4 angular contact bearings ,2×7002C P4 DT & 2×7002C P4 DT,increase spindle life. (New type,4 bearings)

2. Longer length make the torque bigger,more powerful.

3. Carefull assembly make the spindle more precisional.

4. Precision 0.01mm.Coaxial degree less than 0.0025mm

5. We have certificates and high-quality products can stand the test! ! !

Application:

Constant Torque spindle motor is adapted for wood, stone and soft metal materials.

Specification:

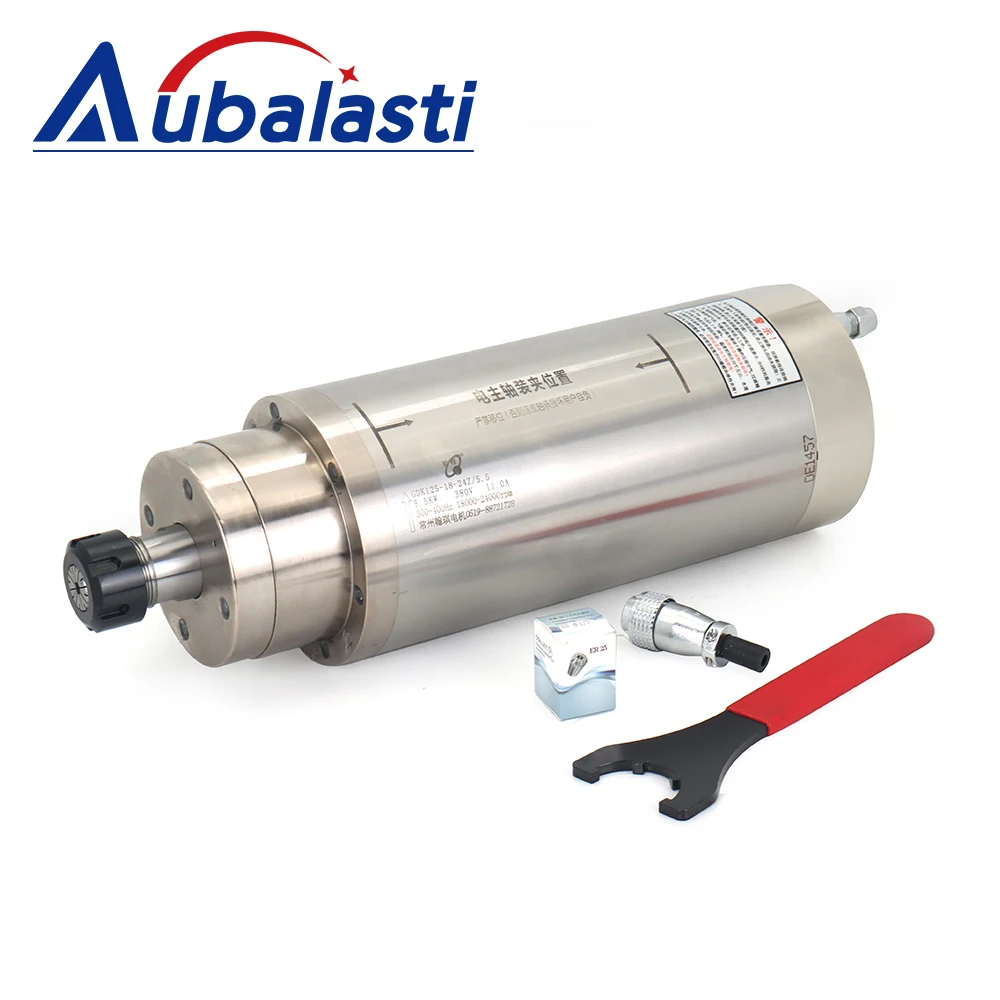

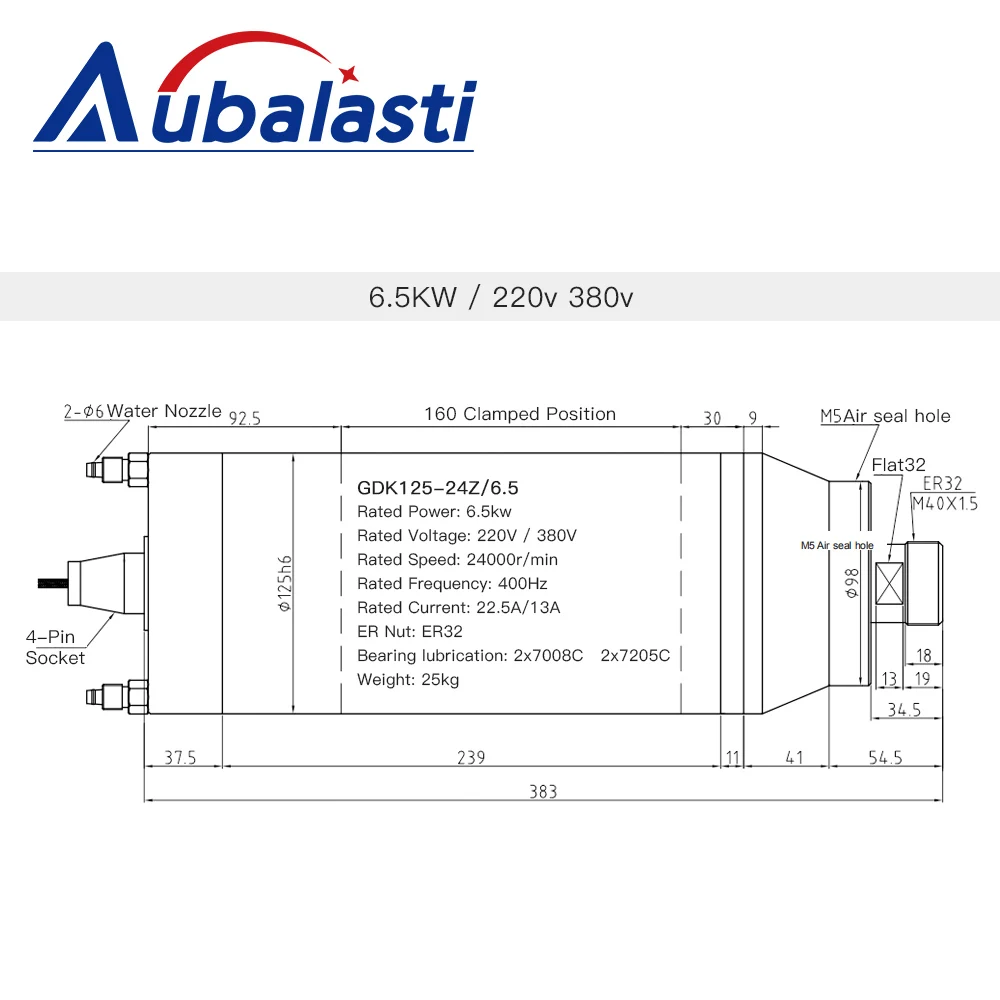

Model: GDK125-24Z-6.5/7.5KW

Power: 6.5kw and 7.5kw

Speed: 24000rpm

Frequency: 400Hz / 900Hz

Voltage: AC 220V / 380V

Current: 22.5A / 13A

Diameter: 125mm

Collect: ER25 / ER32

Bearing: 2*7008C P4  2*7205C P4

Cooling Method: Water cooling

Features:

Power Interface: Optional H20-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.

Longer length make the torque bigger,more powerful.  Carefull assembly make the spindle more precisional.

1. Our Ceramic ball bearings spindle use 4 pcs ceramic ball bearings.

2. Ceramic ball bearings are resistant to high temperatures and low heat , usually 3-5 degrees lower than steel ball bearings during using .

3. Ceramic ball bearings have low friction, low noise and long service life.

4. If you want to use the spindle for aluminum, hard wood, then ceramic ball bearings better than steel ball bearings.

Power: 5.5kw / 6.5kw / 7.5kw

Input Voltage（Phase）: 220v（1 Phase）/380v（3 Phase）

Output Voltage（Phase）: 220v（3 Phase）/380v（3 Phase）

Input Frequency: 50/60Hz

Input Current: 220v(15A) 380v(8A)

Output Current: 220v(22A) 380v(12A)

Output Frequency: 400Hz

Control Method: V/F control; Open-loop flux vector control

Features:

1. Control Mode is SPWM,it is very easy to use and convenient

2. Protection functions are very strong,

3. Fin over-heat protection,

4. Overload protection,

5. Fuse protection,

6. Restart after instant stop,stall protection.

7. Powful function

Type: ER25 / ER32 High accuracy collet

Material: Steel

Quantity:8Pcs(ER25)  /  8Pcs(ER32)

Precision: ≤ 0.008mm

Hardened & Precision ground

Widely used in boring, milling, drilling, CNC milling machine wire tapping,engraving spindle machines,machining centers and other processing.

Notice:

(If you want to change to another caliber, please contact us)

Features:

1. Adopt full sandblasting appearance treatment

2. Slot design, easy to lock the spindle

3. The cast aluminum has higher precision and is more durable

4. Scientific casting, stronger earthquake resistance

Product Parameters:

Diameter: 125mm

Material: Cast Aluminium

1. Compared with the aluminium profile fixture,the accuracy is much higher , and it is hard to deform.

2. Inner wall is very smooth, outer walls is sandblasted, relatively fine uniform, but not very smooth.

3. Cast aluminium fixture is much heavier than aluminium profile fixture. Cast aluminium fixture is mainly used for fixation of ancillary products, thereby ensuring the verticality of balancing and ancillary products, ancillary products to improve running accuracy, reduce noise, reduce the accumulated error.

Parameters:

1. Power: 80w

2. Maximum Flow: 3500L / H

3. Lift: 3.5m

4. Voltage: 220V

5. Frequency: 50Hz

6. Nozzle: 6 / 8mm(Send by default 8mm, if you need other caliber, please note or contact us)

Features:

1. High Lift ，Large Flow Rate

2. Highly Durable

3. Excellent Insulation

4. Can cool the machine quickly

5. Good quality and long life

6. Big strong power

The shell is made of high quality plastic, which is anti corrosive and high durable.Pumps have excellent insulation thanks to the motor bearing completely sealed.Pumps combione pumping, filtered,oxygen and fountains in one.

Note: Must be used in the water.

Must cut off the electricity once the product works improperly and must maintain it after lifting it from the water.
