Jeatone 7"Video Intercom Touch Button Monitor +Waterproof Large Doorbell Camera Security Video Door Phone Kit Entry System |

Jeatone 7"Video Intercom Touch Button Monitor +Waterproof Large Doorbell Camera Security Video Door Phone Kit Entry System |

Notice:

Our Product Just Works Well With Our Own Intercom System. At Present. We Could Not Guarantee It Could Be Compatible With Other Brand Indoor Monitor/Outdoor Camera. If You Need To Connect Other System ,Please Contact Us For Technical Support Before Buying.

This Video Door Phone Set Supports a Ladder Two Households. It Mesns Two Families Can Share With One Outdoor Call Panel. There Are Two Call Buttons On The Call Panel, When The Vistor Presses One Call Button, The Monitor Connected With The Call Button Will Ring, And The House Owner Can Monitor The Visitors And Unlock The Door Aferwards, If You Wanna Have More Monitors In The House, You Can Connect The Monitor To Monitor By Wires In a Series. In This Way, One Outdoor Call Panel Can Support Max. Four Indoor Monitors And Family Can Have Four Indoor Monitors At Most.

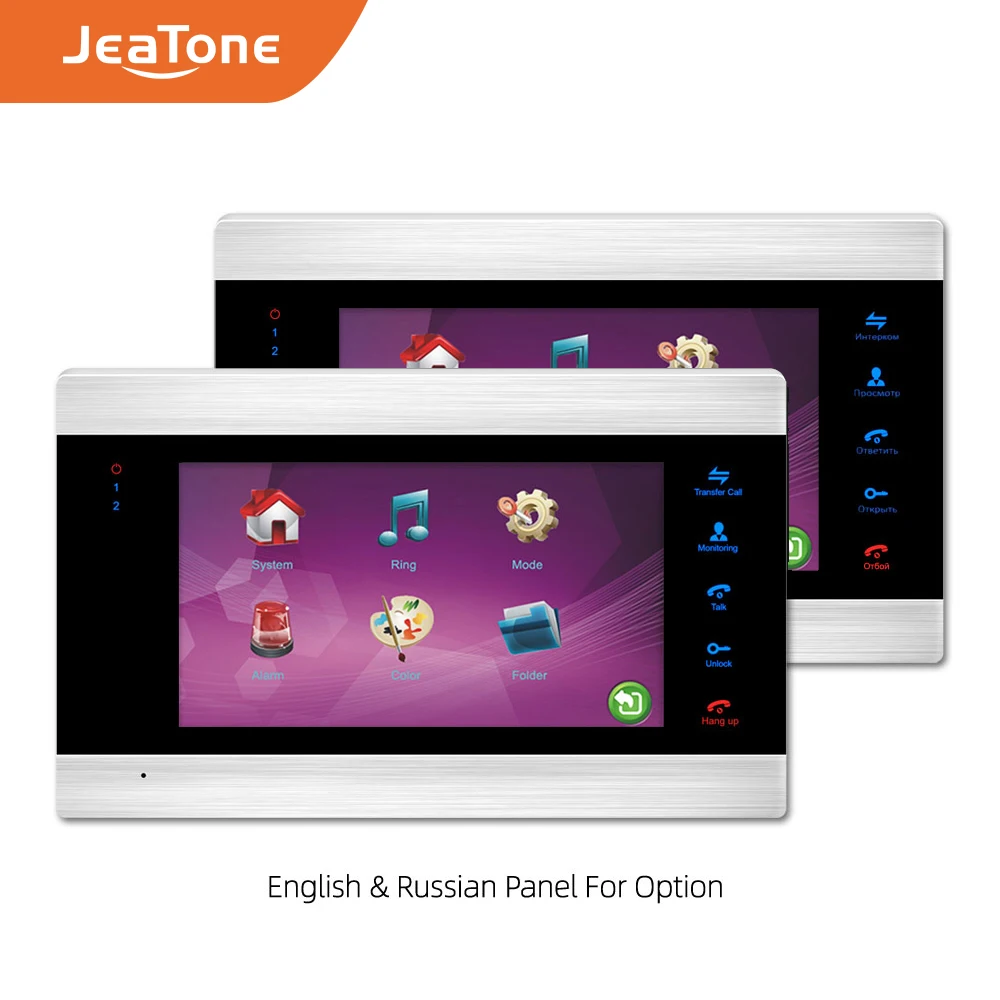

The System Supports Six Different  Languages: English, Russian, French, Arabic, Spanish, Japanese.

With This New Function, You Can Consider The Indoor Monitor as a Clock Hanging On The Wall. It Always Shows The Time As Long As You Plug In Power For The Monitor.

1200TVL High Resolution HD CMOS, See Sharper And More Details Than 800TVL/600TVL.

Our 7" Video Door Phone Set Supports Connecting With PIR Detector, Analog Camera And Electronic Lock. It Can Protect Your Home And Property In All Aspects.

​Please Notes:

PIR Installation Separately Can Be For Alarm Prompt only, Work With Camera Together Can Alarm And Video Recording.

This Item Is Hands-free And Available For Dual-way Communication. It Supports Communication Between Indoor Monitor And Outdoor Camera, But Also Supports Communication Between Monitor And Monitor.

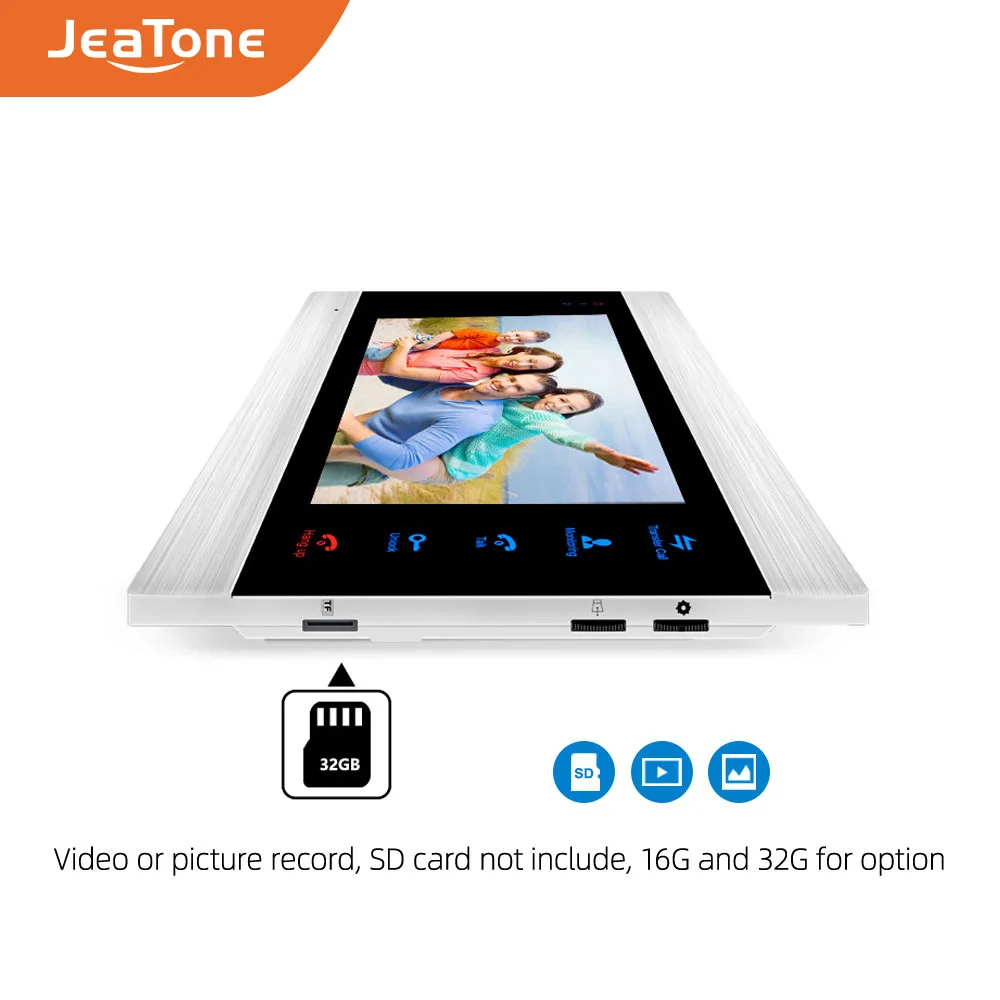

When Someone Rings The Doorbell, The Monitor Inserted With SD Card Will Record Picture or Video Automatically. If The SD Card Doesn't Applied, The Monitor Will Just Only Record Picture. The Built-in Memory Could Save 86 Pictures, With SD Card, You Can Set The Recording Mode To Video. When The SD Card Is Fulled, The Earliest Recorded Video Will Be Deleted Automatically.

The Outdoor Camera Is Equipped With Rubber Gasket Ring, There Is No Way To Leak. It Also Can Works Well Even In Bad Weather.

It Helps You Identify The Visitors Even In The Dark Night.

Fashionable Appearance

♦1200TVL Camera

♦ IR LEDs For Night Vision

♦Adjustable Intercom Volume

♦Dual-way Intercom

♦IR Sensor, Turn On/off IR LEDs Automatically

♦Easy To Install And DIY Installation

♦Rust-proof Aluminium Alloy Anti Vandal Panel

♦IP65 Weatherproof

Product Specs-Outdoor

Camera Sensor

1/3" CMOS, 1200TVL-Line High Resolution

Lens

Night Vision

IR Light, 3pcs IR LEDs

Electronic Lock

Support

Power Consumption

200mA Max.

Power Supply

Supplied From Indoor Monitor

Material

Aluminum Alloy panel

Waterproof

IP65

Operation Temp

-40°C +50°C

Installation

Surface Mounted

Excellent Performance

♦7"TFT Display, Acrylic Wire Drawing Panel.

♦Touch Button,With Storage

♦Room to Room Intercom

♦Door Answering, Monitoring And Unlocking

♦Adjustable Color, Brightness and volume

♦Built-in Memory Can Save 86 Pictures, Support External Max.32GB SD Card

♦6 Ringtone For Choice


Product Specs-Monitor

Monitor & Resolution

7" TFT LCD, 800*480

Memory

Built-in Memory Can Save 86 Pictures, Support External Max.32GB SD Card

Intercom Code

Hands-free Dual-way Communication

Delay Calling Time

120s

Keypad

Touch  Button

Power Input & Consumption

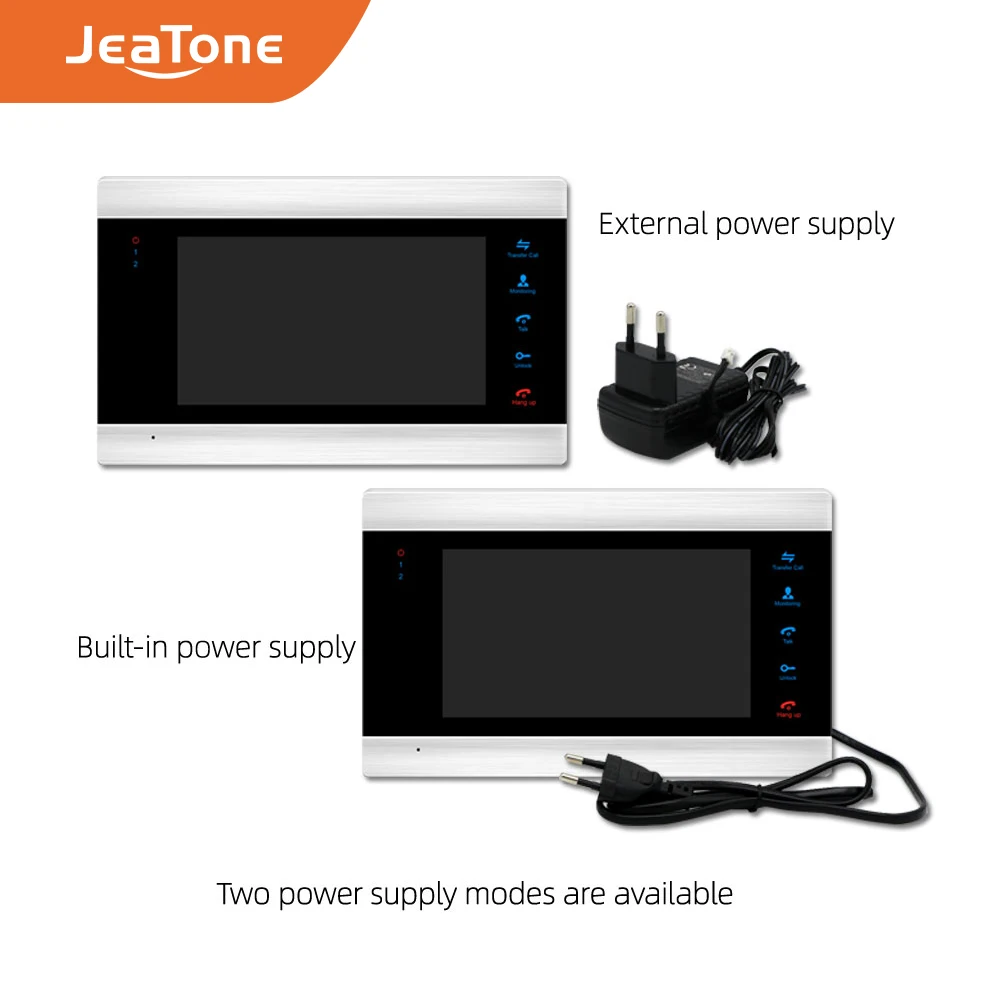

External Power DC 12V; Standby:3W; Working:5W

Material

Recording

Picture: Jpeg Format; Vide: Avi Format

Support

2 Call Panel +4 Indoor Monitor + 2 Analog Camera & 2 PIR

Operation Temp

-10°C +60°C

Installation

Surface Mounted

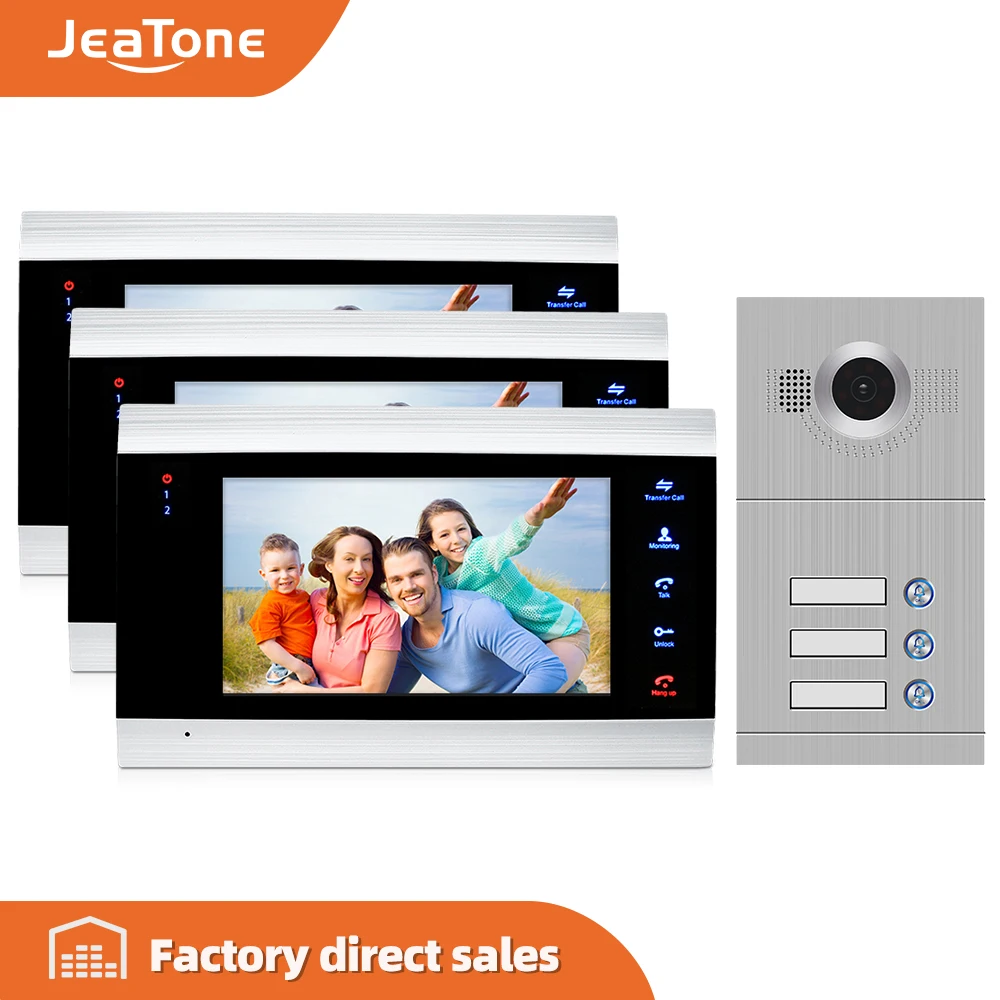

3x Indoor Monitor

3x Monitor Mounting Plate

3x Power Adapter

15x 200mm 4 Pin Connerctor

4x Gurantee Card

4x User Manual

1x Outdoor Call Panel

1x Call Panel Mounting Plate

3x 200mm 2 Pin Connector

4x Screw Bag

4x Qualified Certificate

1x Rain Cover

The Extension Cable(5m,15m,25m) Is Not Included, You Need To Buy It Separately According To Your Needs.(Input:100V-240V)

  We Will Send Applicative Power Adapter To Your According To Your States

PIR Sensor And CCTV Camera Installed To Work Together Can Alarm and Video Recording (Camera with individual power).
