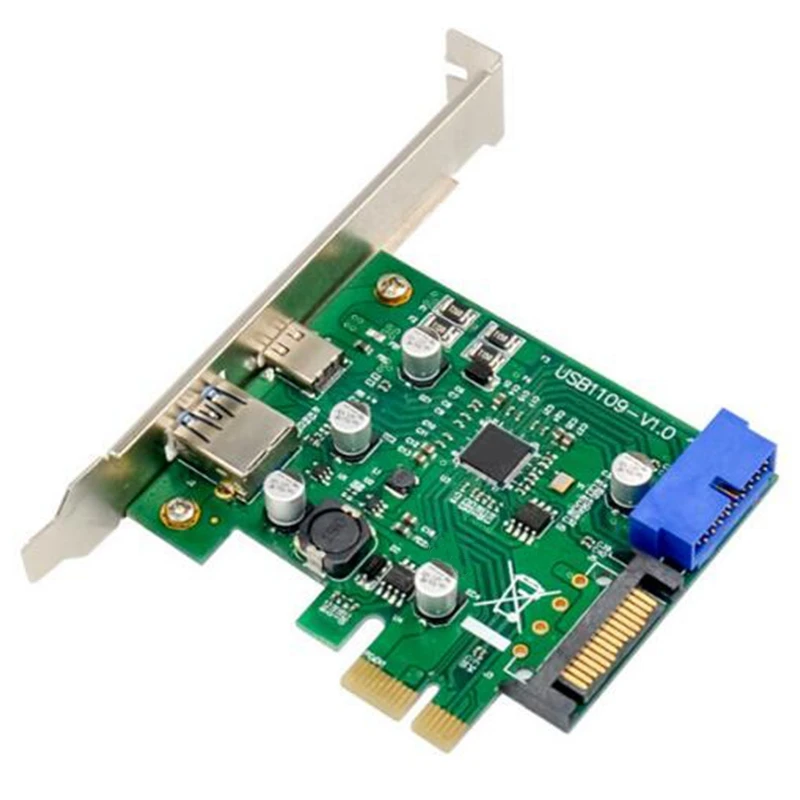

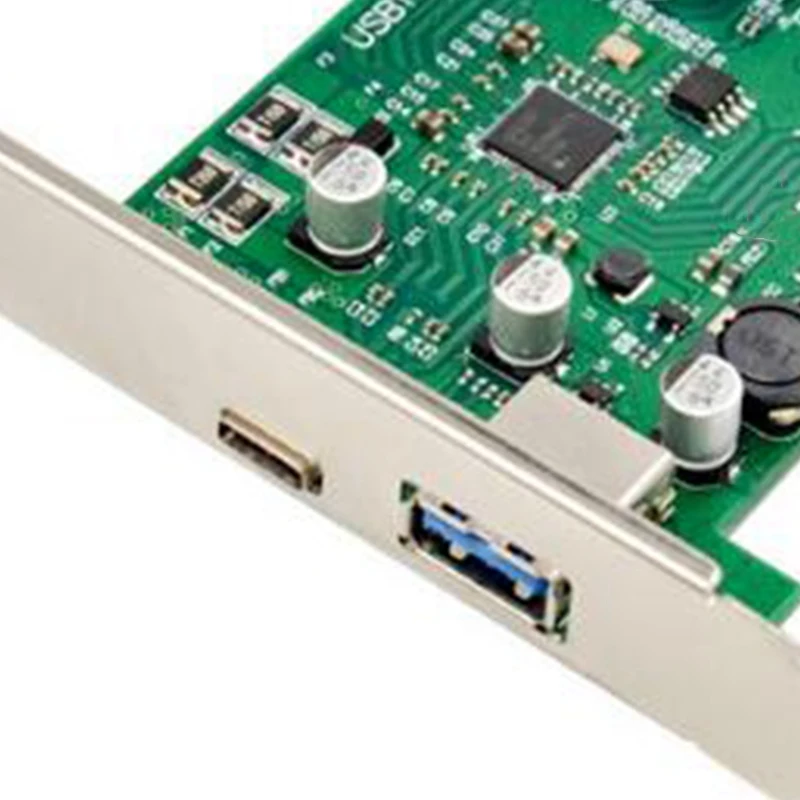

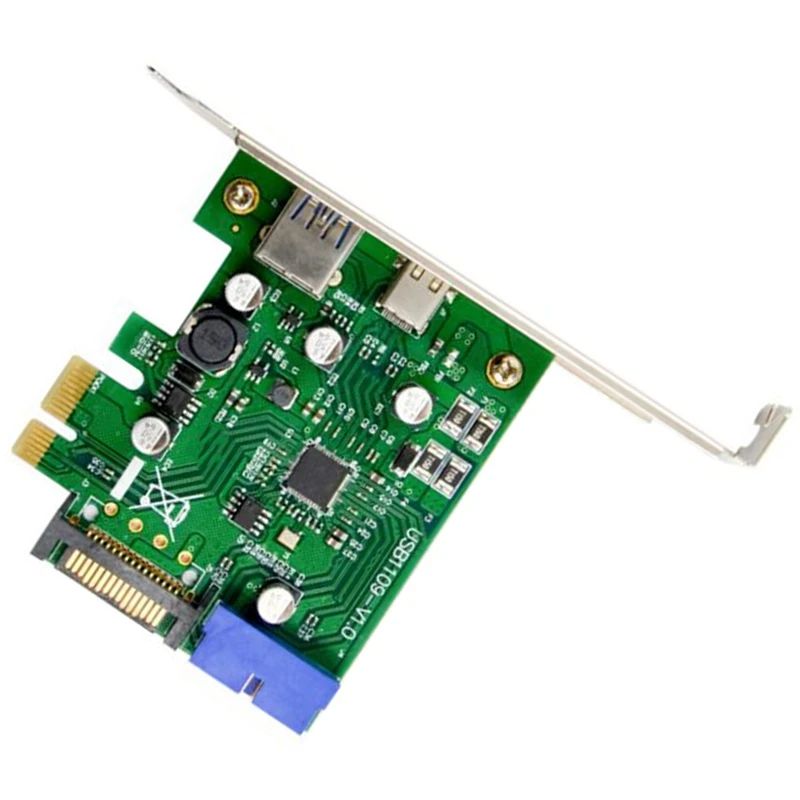

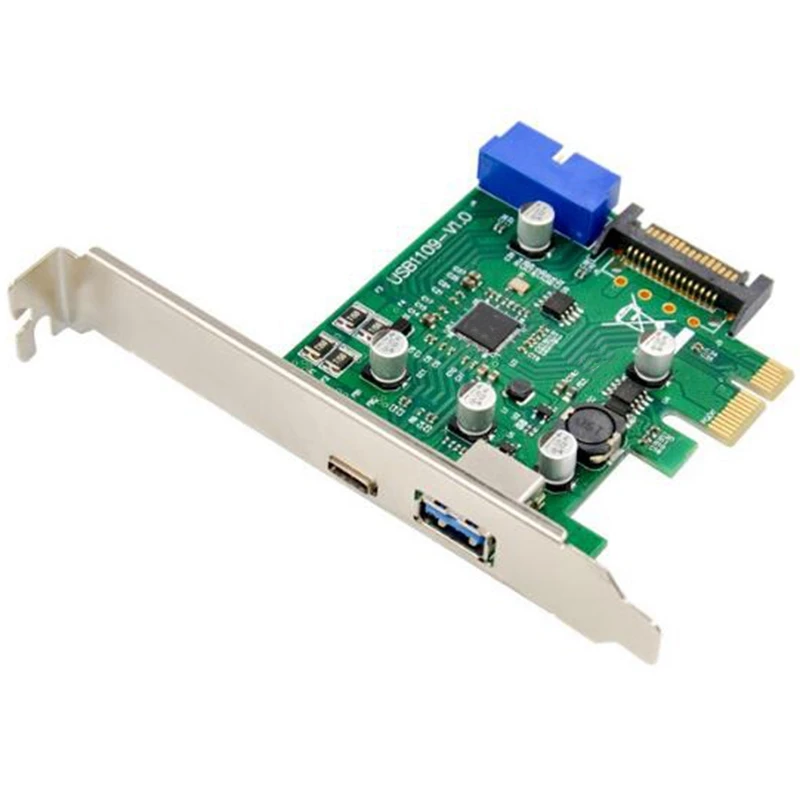

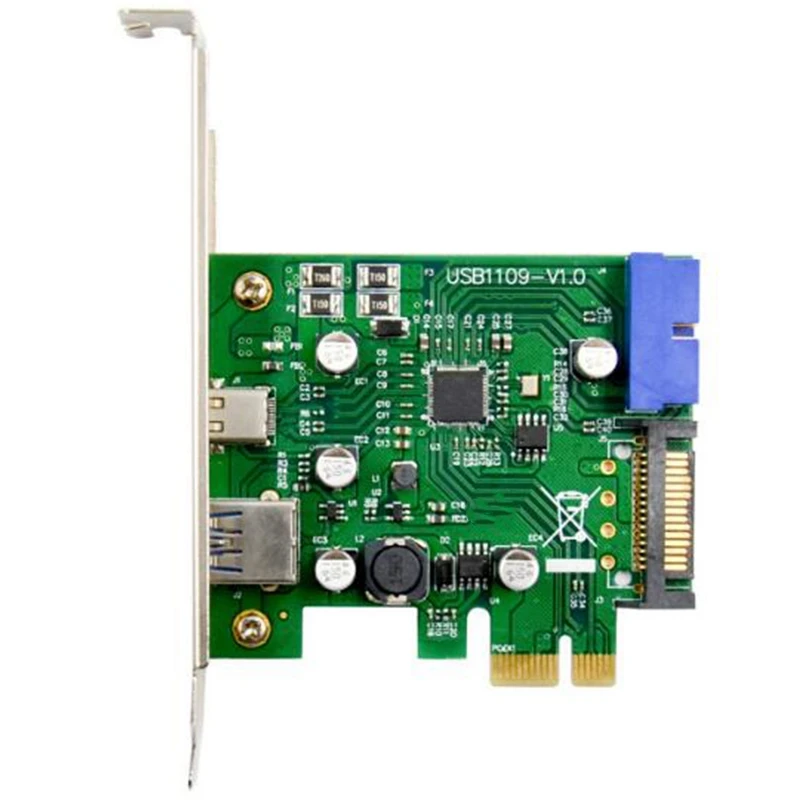

body { font-size: 100%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } 1.NEC720201 Type-C + A is a dual-port super-speed PCI-E USB3.1 add-in card, dual external USB3.1 Super-Speed ​​+ Type-A ports on the expansion system, in line with PCI-E 2nd generation (single channel x1) specification
2. When connected to a USB 3.1 compliant peripheral device, it can transfer data at up to 10Gbps while maintaining compatibility with existing USB peripheral devices
3. USB3.1 performance is 2 times faster than USB3.0, and connection speed is 20 times faster than USB2.0 connection. It can output effective power to USB devices without additional power adapter connection
4. Support to run multiple USB 3.1, 3.0, USB 2.0 and USB 1.1 devices at the same time, support USB data transfer rate of 10G / 5G / 480/12 / 1.5 Mbps, users can easily connect the mass storage device to be used, printer, scan Instruments, hubs, cameras and any other USB devices
5. Each USB port provides a maximum + 5V DC / 900mA power output to the USB device, and each USB port has a built-in overcurrent protection function
6. Support remote wake-up function of the device via USB keyboard or mouse, hot-swap function allows to connect / disconnect the device without turning off the system power
7. Support Windows Server2003 / Vista / Win 7 / Win 8 / Win 8.1 / Server2012 R2 x64 (32 & 64bit), one available PCI Express x4 or x16 slot (recommended PCI Express 2.0)
Name: 2 port expansion card
Bus type: PCI-E rev2.0, single channel x1-Lane, Serial ATA rev3.1 Gen2
Main chipset: NEC720201
Media interface: 1*USB Type-C port
1*USB Type-A port
1*15-pin SATA connector
Transmission rate: super high speed + (10Gpbs), super high speed (5Gpbs), high speed (480Mbps), full speed (12Mbps), low speed (1.5Mbps)
Compatible devices: Universal Serial Bus USB3.1 / USB3.0 / USB2.0 / USB1.1
IRQ & IO: assigned by the system
Working temperature: 0 ~ 60 ° C (32 ~ 140 ° F)
Working humidity: 5% ~ 95% RH
Storage temperature: -20 ~ 70 ° C (-4 ~ 158 ° F)
Motherboard size: 94*61mm
colour:green
Material:ABS + Metal
Package Contents:
1 * 2 Port Expansion Card
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
