Are you still worried about intruders being disturbed at home and losing property?
And worried about the beasts invading outdoors?
There is no need to purchase an expensive CCTV system.
Safe companion family safety motion detector alarm/motion sensor alarm to protect your family and property.
This sensor uses infrared sensing to detect any movement in the range, used in long or hidden private links. You can give you a reminder before the guest (or intruder) arrives.
When the motion is detected, the infrared sensor will send a signal to the receiver. The sensor and the alarm have a sensing range of 118 meters. For the receiver, you can choose to wake you up with a high or low volume ringtone or alarm , You can also adjust the volume of the alarm.

1. With a sensing range of 5-8m
2. Four sounds, adjustable volume
3. Easy to install, can be used with any doorbell kit
4. Flashing light alarm, do not disturb nap children
5. The protection level of the remote control transmitter is less than IP44, which can be used outdoors
6. The sensor and the alarm have a 118-meter sensing range and strong signal penetration

Power receiver DC: 6V or 1.5V 3 * C battery (not included)
Transmitter DC: 9V. 6F22 (not included)
Movement detection range: 5-8 meters
Working range: 118 meters
Ringer volume: 1-120 dB

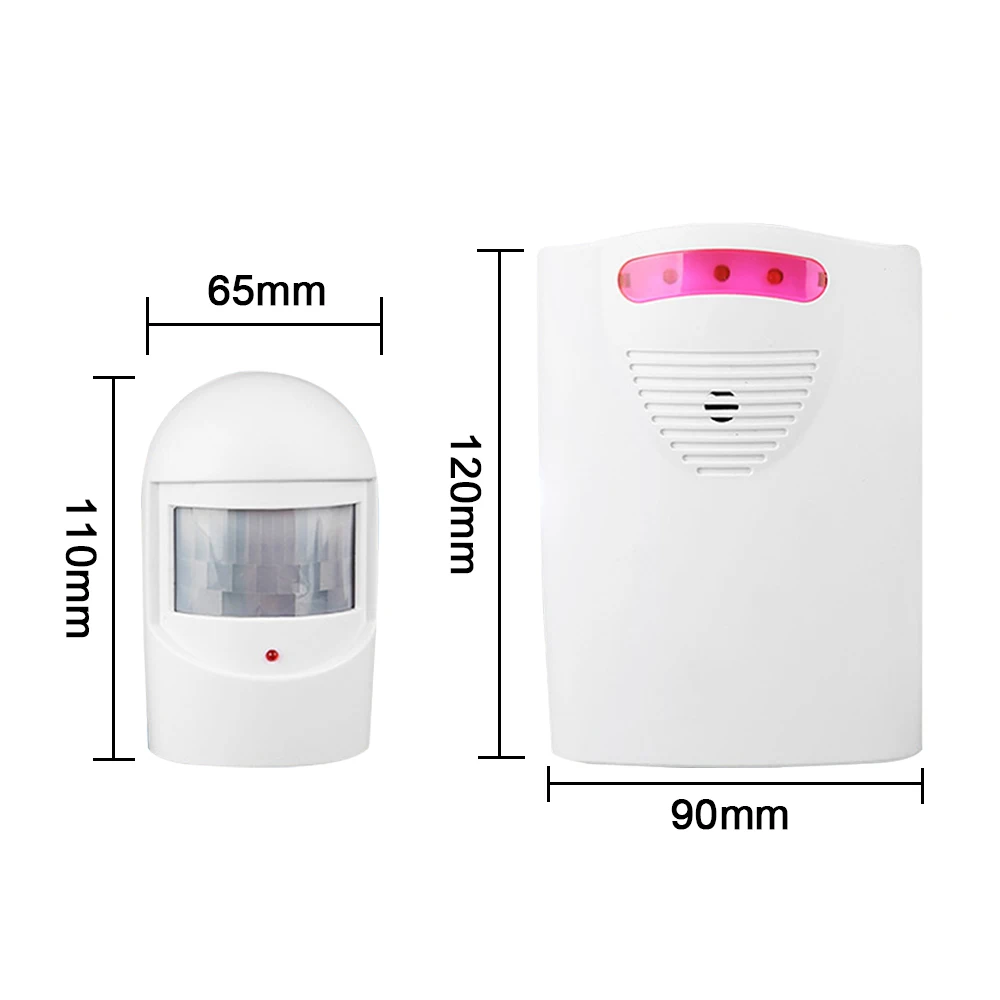

Product size transmitter: 110×65×45mm
Product receiver: 120×90×30mm
Sound options:sounds of Dingdong

Installation requirements
●Remote control infrared warning device should be able to look directly at the protected area without obstacles.
●When installing, avoid infrared warning devices close to cold and heat sources, such as hot and cold air outlets, air conditioner air outlets, electric heaters, coolers, etc., and avoid direct door.
●Remote control infrared indicator should be at an angle of 10~30 degrees with the wall. At this time, the detection distance is the farthest. Adjust the installation angle according to the situation during actual installation.
●Because the remote infrared warning device has the highest infrared detection sensitivity when the human body moves laterally with respect to the lens, but the longitudinal motion sensitivity is poor, so the angle and height of the horizontal plane of the detector should be paid attention to during installation, which has a great impact on the protective area.

Instructions
1. Turn on the power switch and the power-on indicator lights up once, indicating that the self-test is normal.
2. The remote infrared indicator will have a standby delay of 10 seconds immediately after it is turned on. It will not detect the alarm signal within 10 seconds. You must leave the detection area of the alarm within 10 seconds.
3. After 10 seconds, if someone enters the detection area of the infrared alarm, the remote infrared alarm will have a delay of 5 seconds, which is convenient for the owner to identify.After 5 seconds, if there is no signal to identify the remote control, it will send out A 30-second alarm sound, the alarm volume is 105DB. 5 seconds after the end of the alarm sound, if another person touches the remote infrared alarm, it will alarm again, and it will start again and again.
4. When the remote infrared warning device alarms, you can use the remote control to turn off the power switch to end the alarm.

Installation guide
1. The probe should avoid directly facing the door window to avoid false alarms
2. The tilt angle of the detector should be adjusted so that the detection distance is the farthest
3. The lens of the probe should be kept clean, and there must be no obstruction
4. The probe should be far away from cold and heat sources, such as air conditioner vent, heating, air conditioner, etc.
5. Enter the alert state within 10 seconds of starting up, and detect someone alarming for 30~50 seconds
6. Open the battery cover and install the 4*AA battery according to the logo inside the battery box
7. When installing and using, avoid direct sunlight, car lights and probes, and consider the false alarm caused by the floating curtains
8.Installed on the corner or wall surface, it is recommended that the installation height be 2 meters away from the ground, and adjust the view angle to prevent false alarms of small animals
9. Fix the remote-control infrared warning device on the universal seat, and turn the infrared warning device to make it meet the installation requirements and detection needs.

Precautions
●When the remote control distance is shortened, please replace the battery.
●When the battery is installed in the detector, regularly check whether the battery leaks.
●It is recommended that you regularly check whether the infrared alarm is working properly to avoid missing alarms.
●The detector should be protected from rain, wind, and sunlight. Indoor heat sources such as air conditioners and stoves should be avoided to avoid false alarms.
●When the power-on indicator is dark when the power is turned on, the alarm sound becomes smaller, and the false alarm rate of the infrared alarm is higher, the battery voltage is generally insufficient, and the battery should be replaced in time.

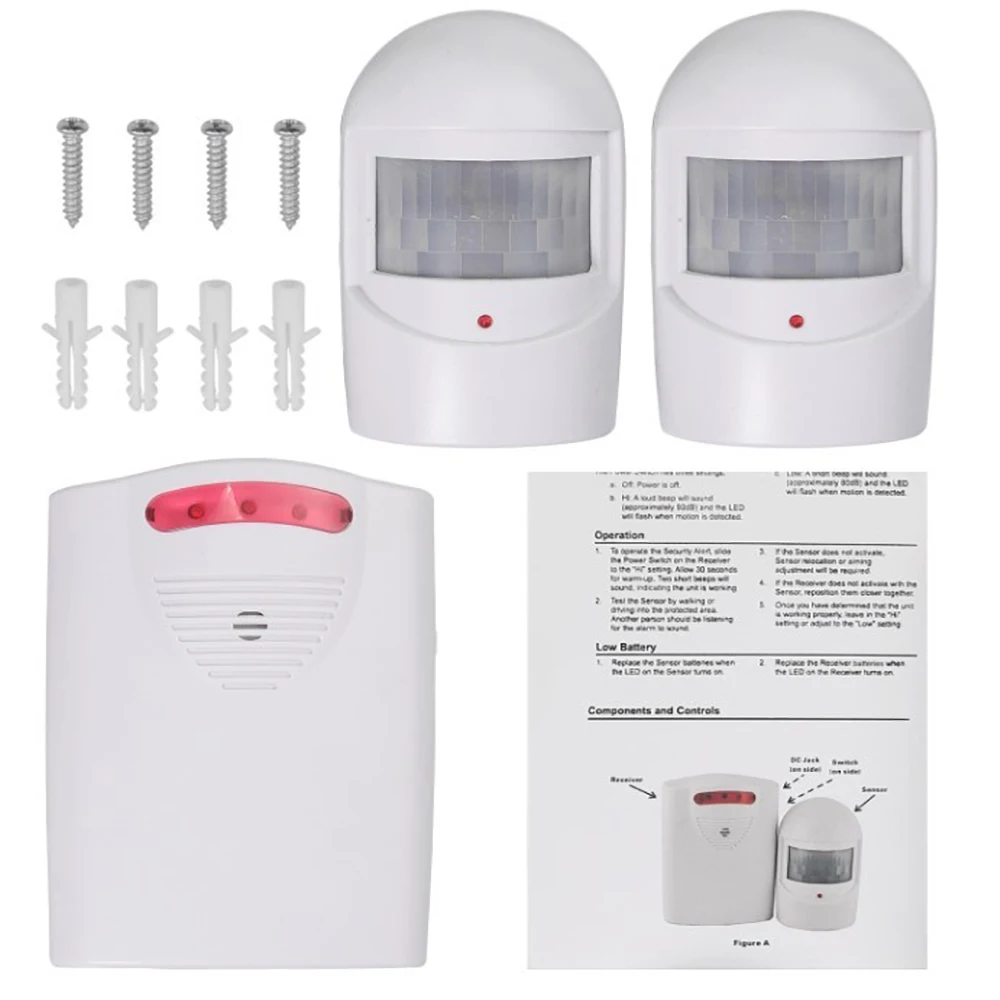

Package included:
2 * Infrared Warning Device
1 * Receiver
