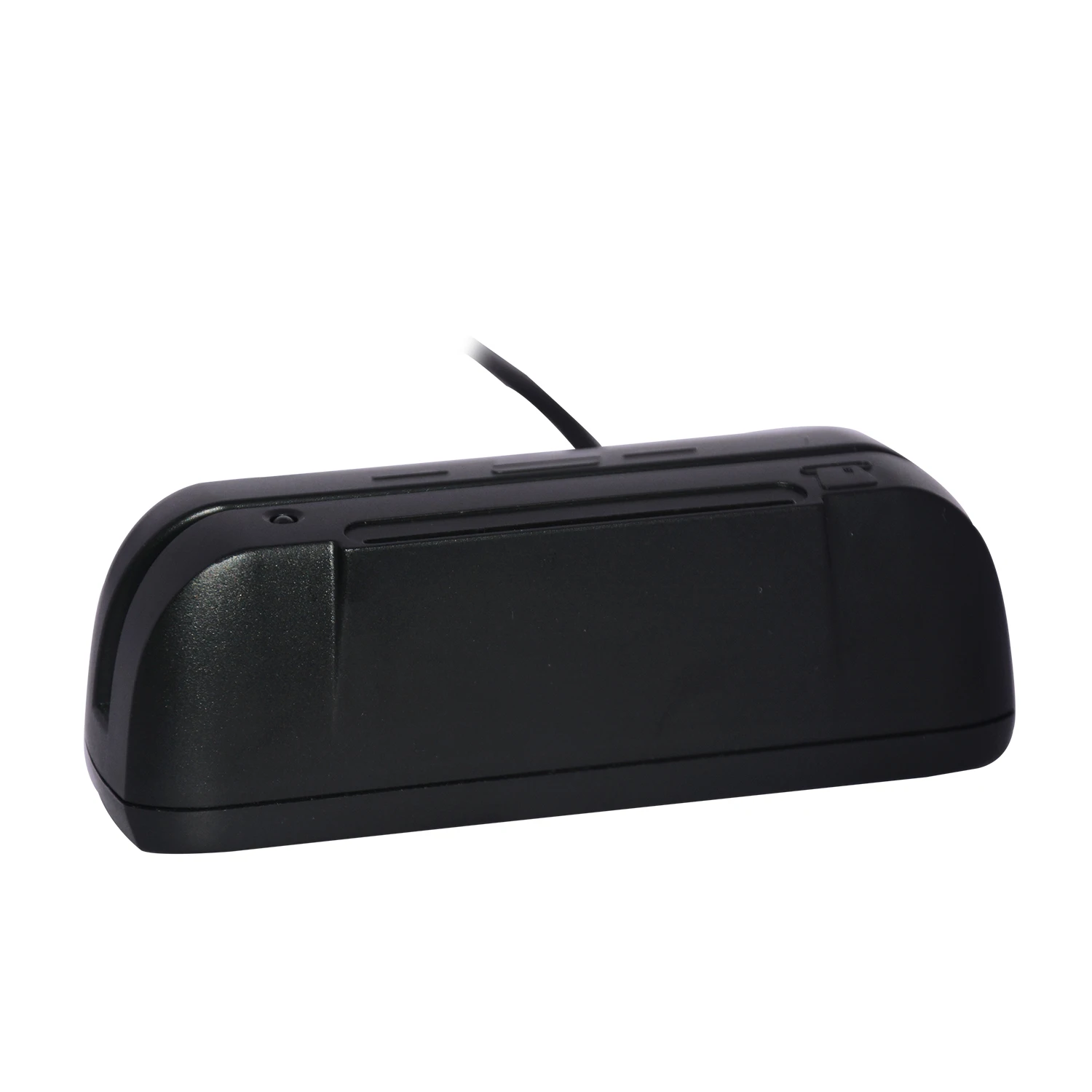

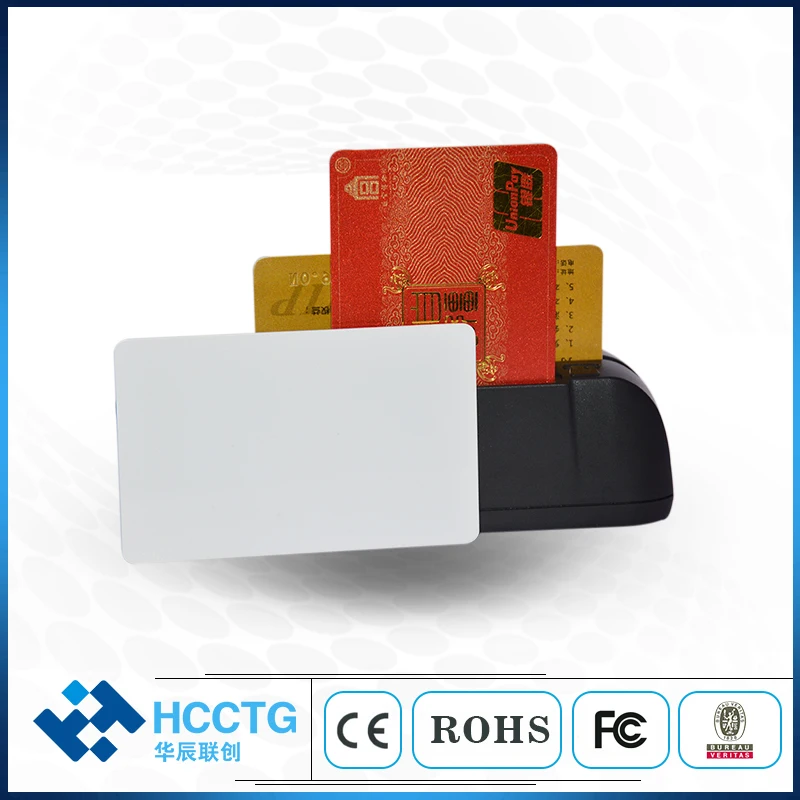

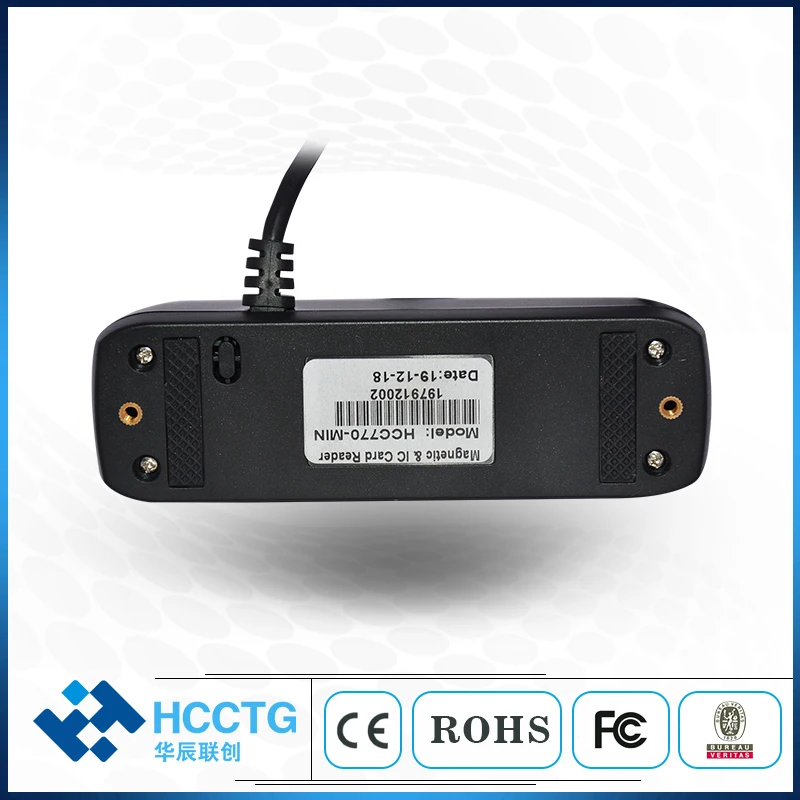

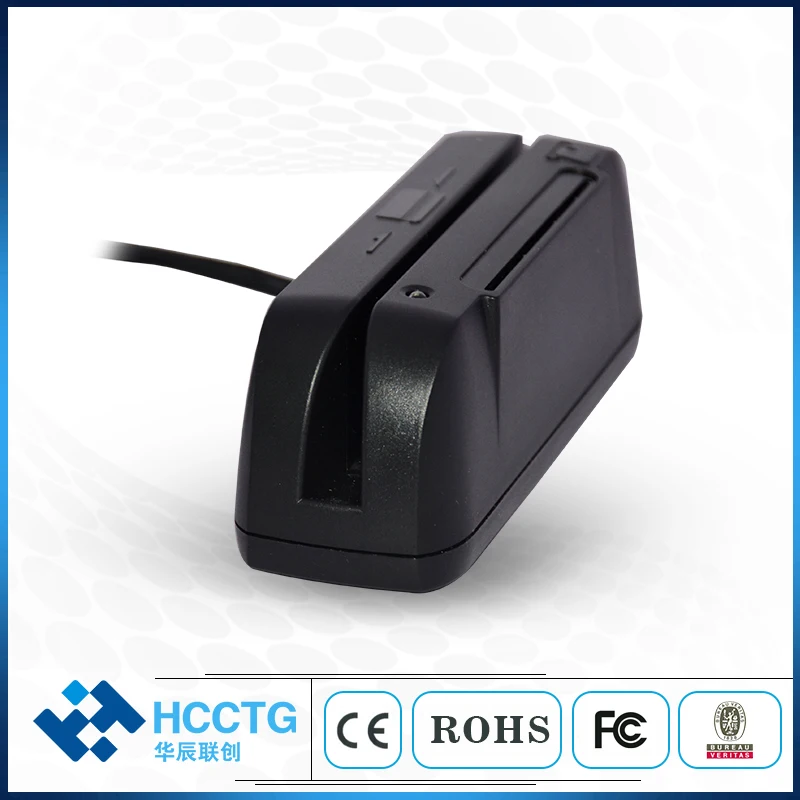

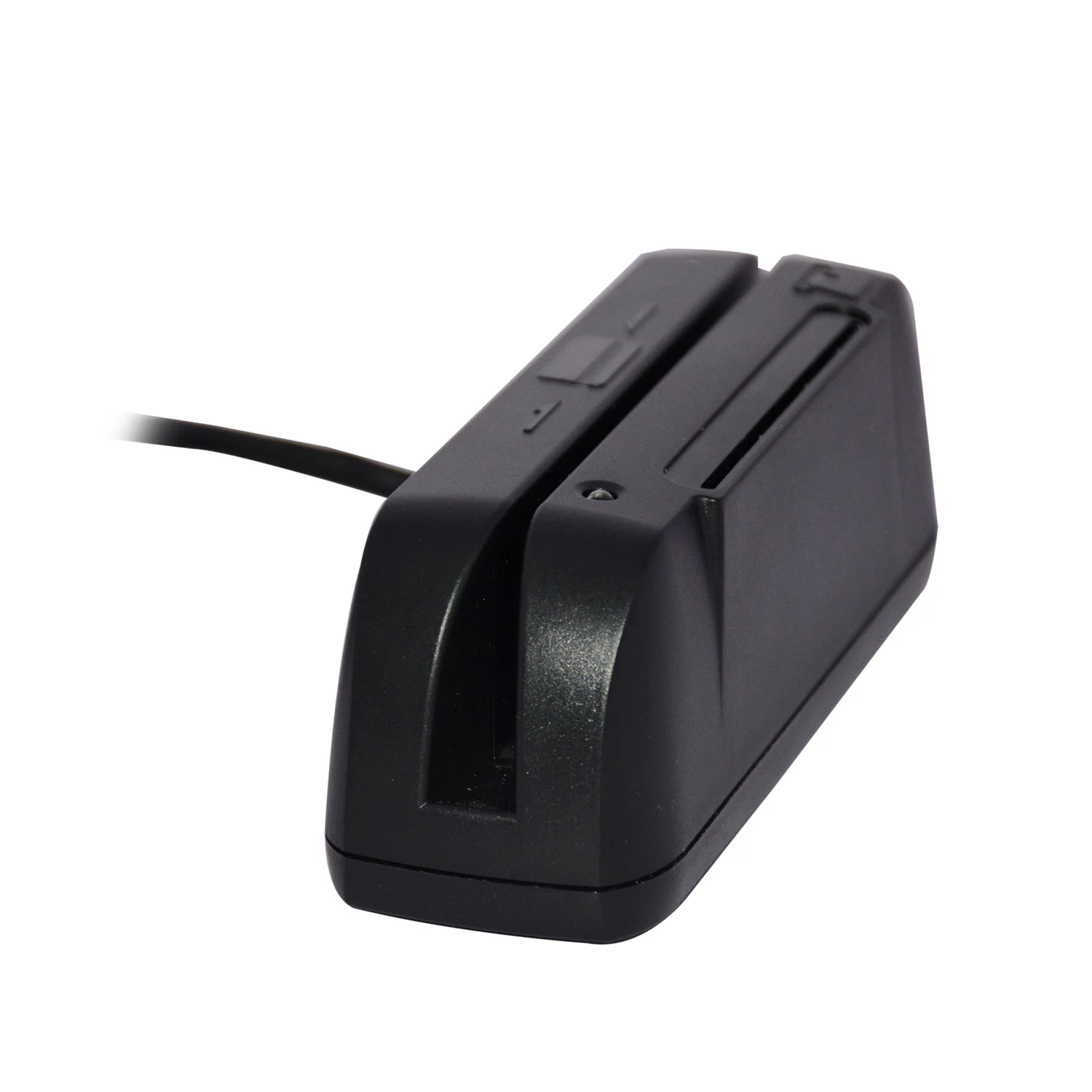

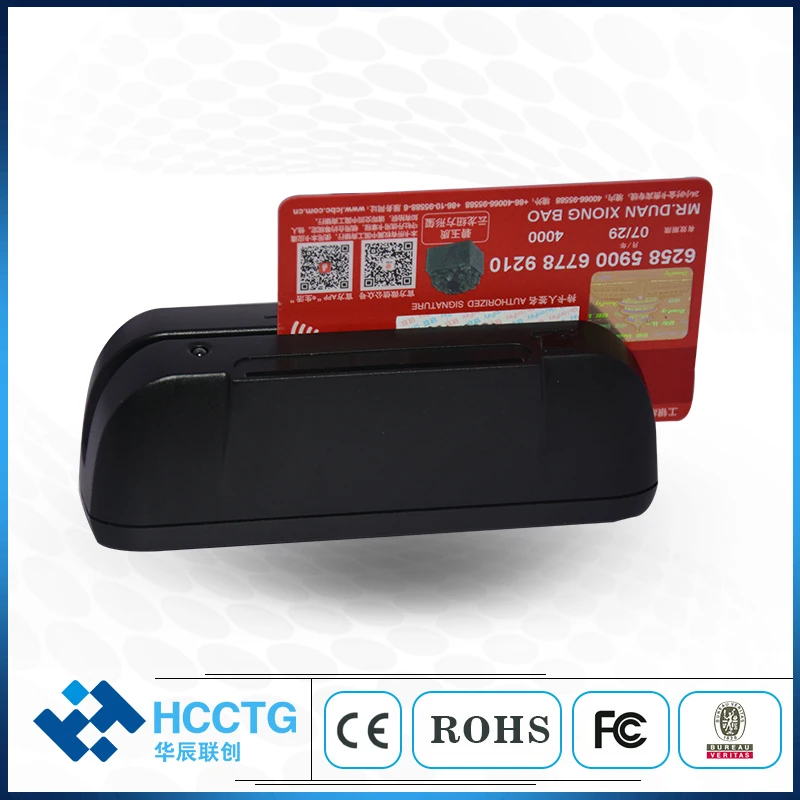

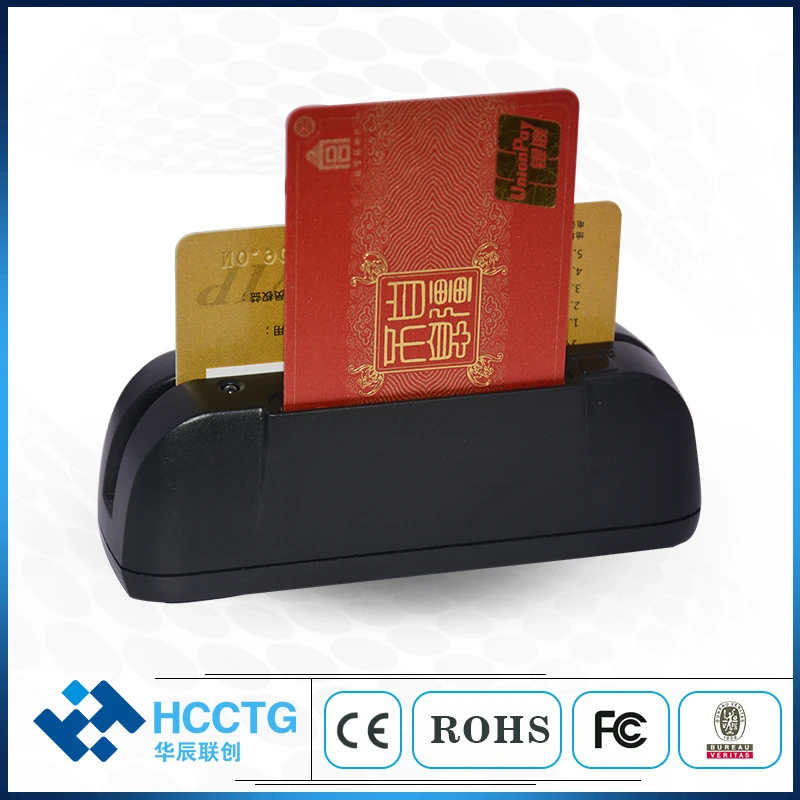

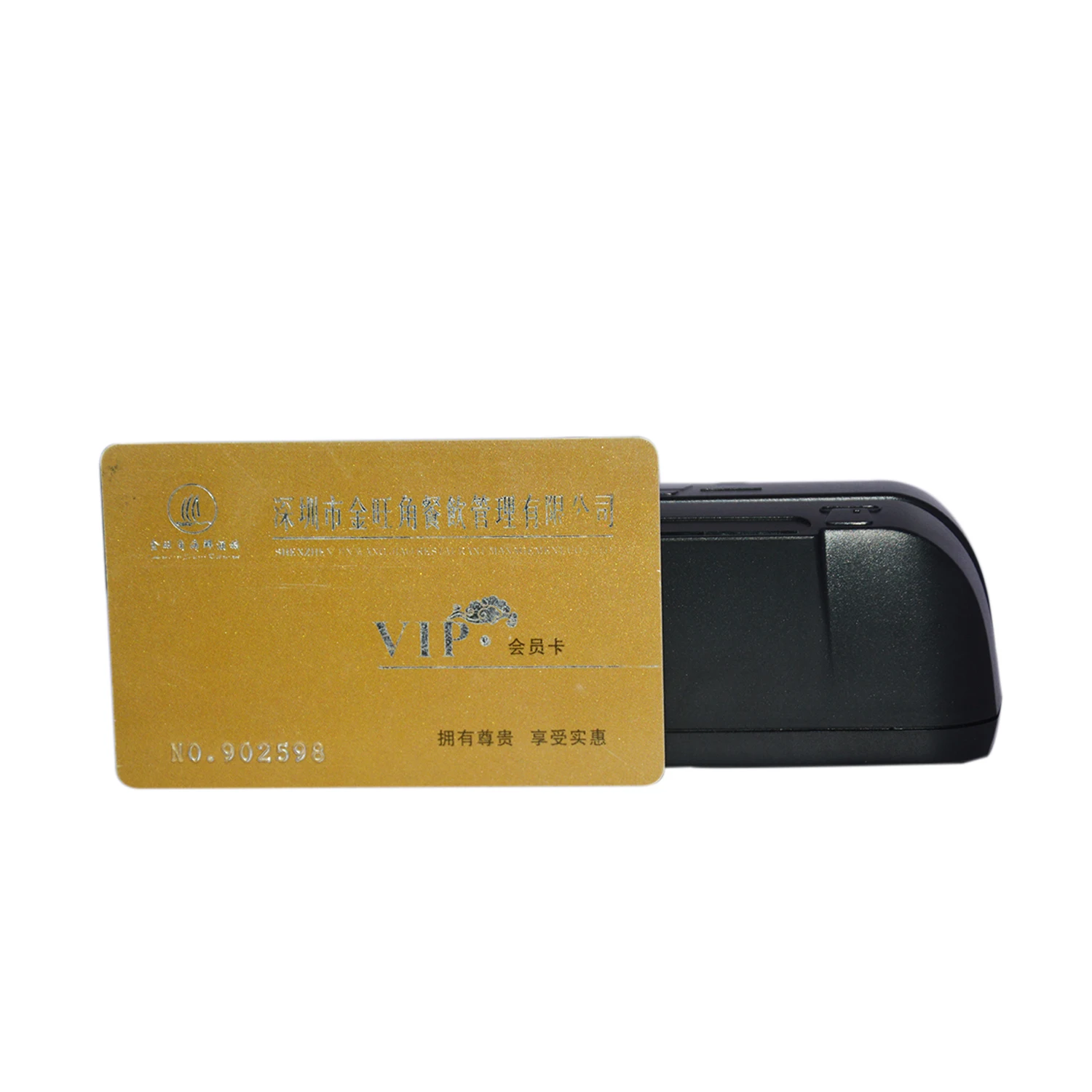

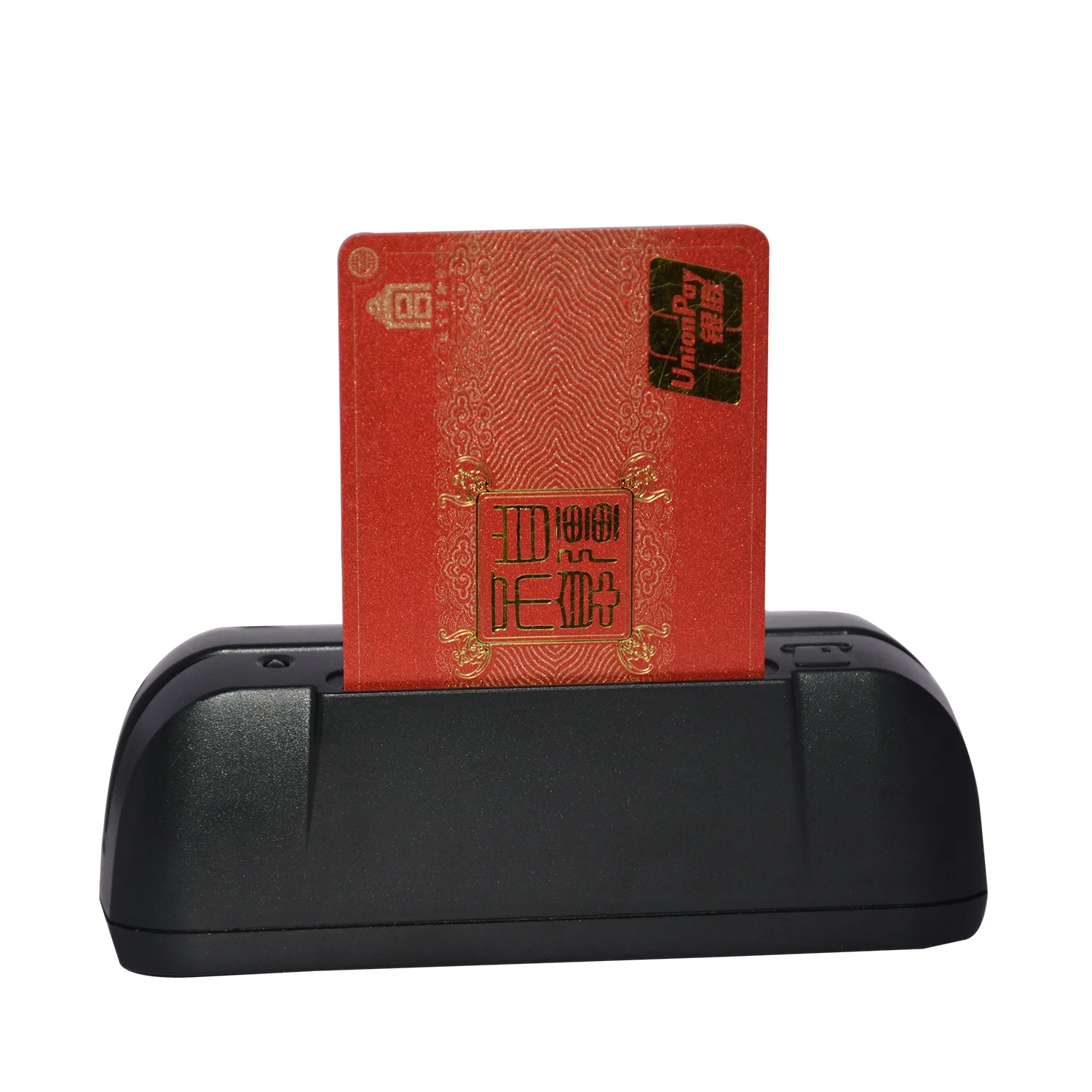

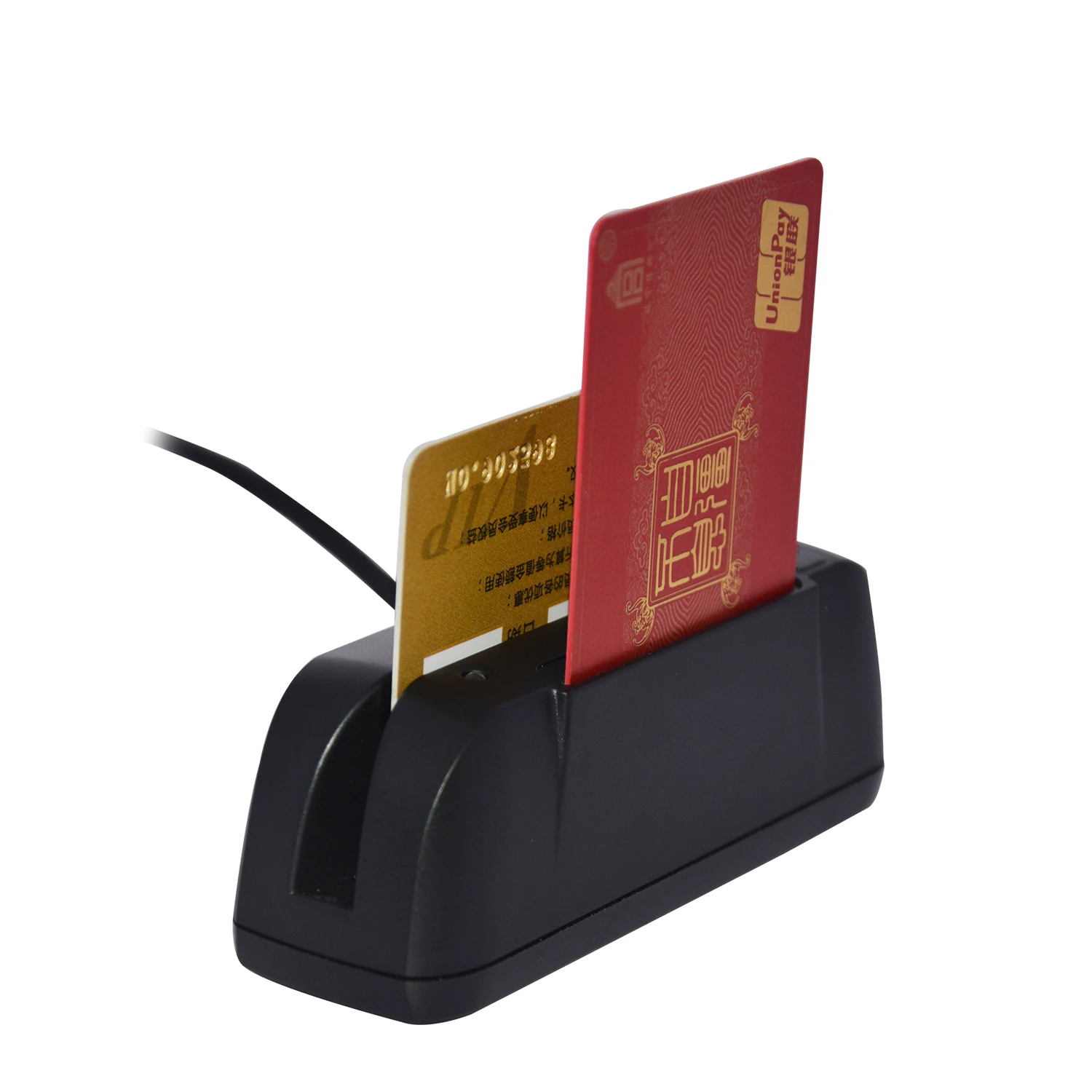

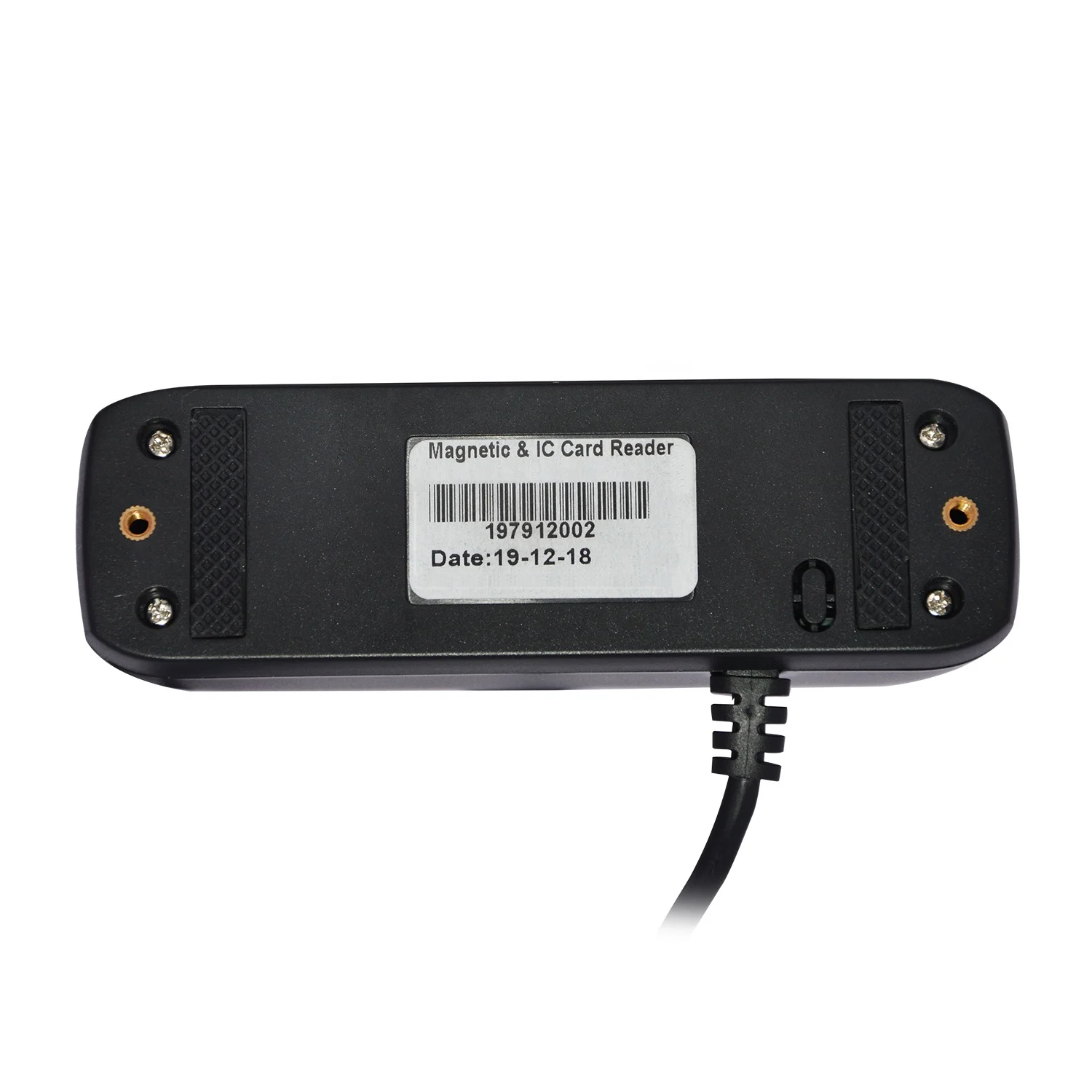

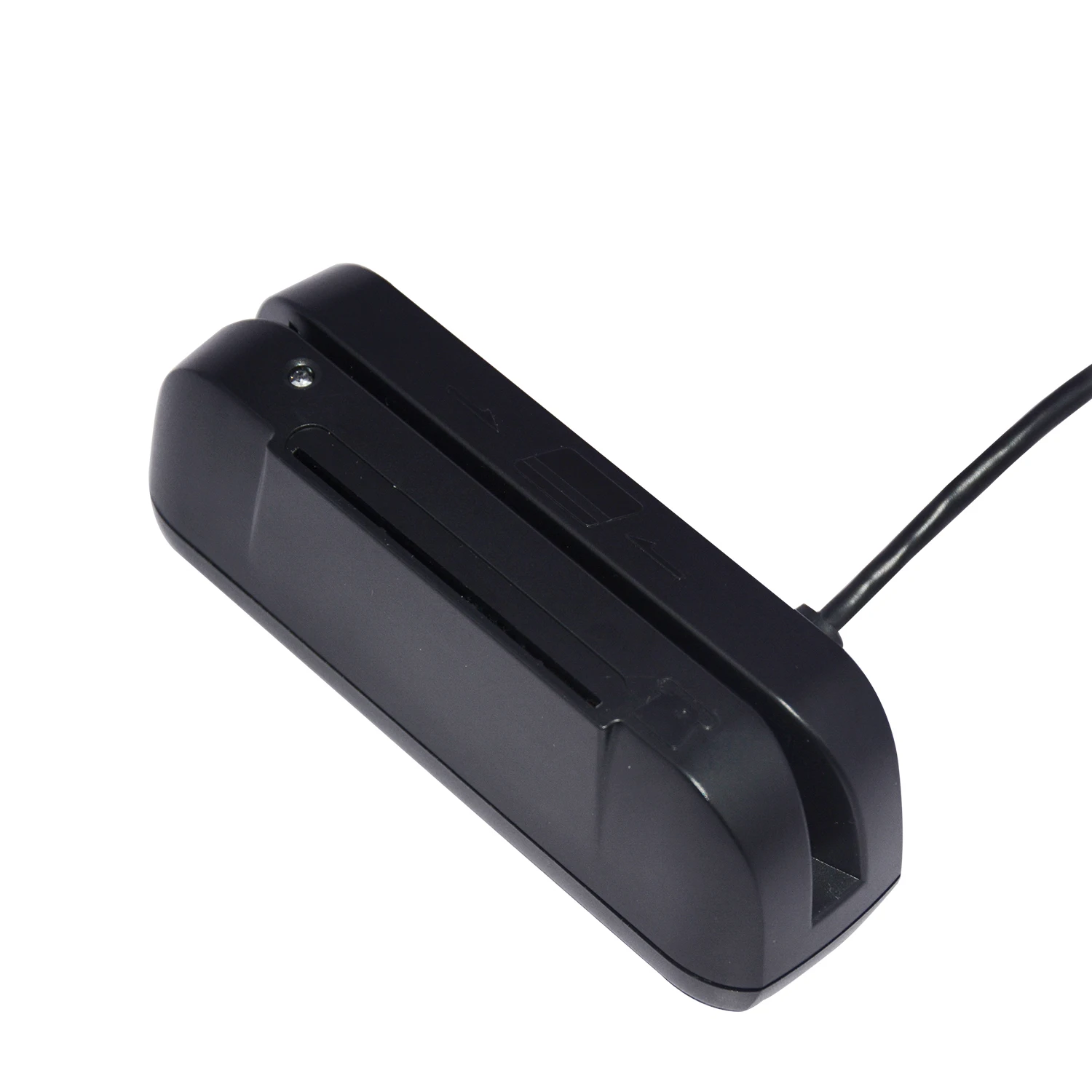

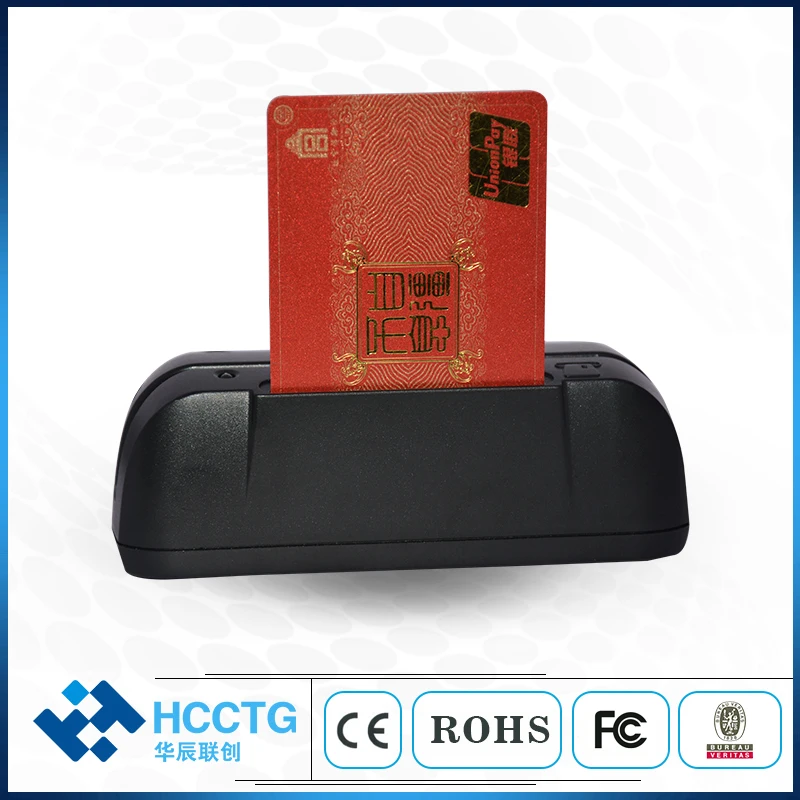

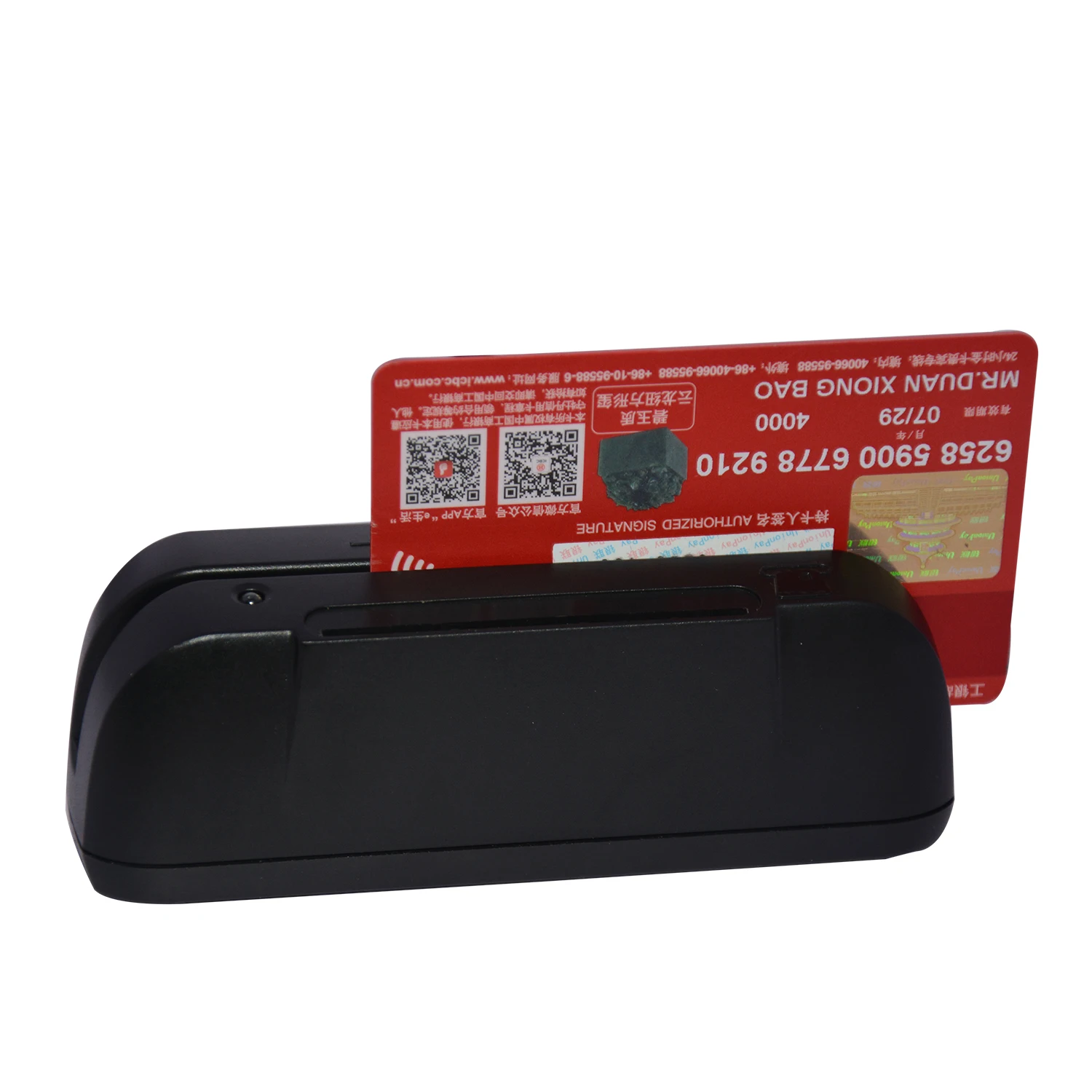

Dual Head USB Magnetic Stripe Mifare IC Chip Multi Card Reader HCC790U-SF | Безопасность и защита

Product Paramenters Model Description HCC790U-SI MSR & IC chip card combo USB interface HCC790U-SN MSR and RFID combo USB interface HCC790U-SF MSR & IC chip & Mifare card combo USB interface Main Technical Feature Power Supply USB Bus / DC: +5V±10% 500mA. Consumption Current/operating Typical 350mA Max Outline 116L*36W*38.4H mm Temperature Operation: -10ºC to 60ºC; Storage: -30ºC to 70ºC Humidity Operation: 10 to 85%; Storage: 10 to 90%, Noncondensing Magnetic Stripe Technical Feature Standard ISO7810 Read Card Track 1 Track 2 Track 3
Interface Mode 1: RS232 - 9600 Baud, None Parity, 8 bits Mode 2: USB-Keyboard Mode 3: USB-Virtual Serial COM - 9600 Baud, None Parity, 8 bits Register density 210bpi / 75bpi options for all tracks. Bit per Char 5~7bit / char Media Speed 10~100cm/s Media Coercivity Read: 300~4000 Oe Mag. Card Head Life >500,000 passes for both read & write head IC Technical Feature
Interface Mode 1: RS232: 9600 Baud, None Parity, 8 bits Mode 2: CCID - PC/SC on USB. Mode 3: USB Virtual Serial COM - 9600 Baud, None Parity, 8 bits Contact IC Standard ISO7816 / EMV2000 Level 1 / PBOC 3.0 Card Voltage 5V / 3.3V / 1.8V Protocol T=0 / T=1 IC Holder 8 contacts, short circuit protection, pressure: 0.4n ± 0.1n. Holder life: > 200,000 times Communication rate 9600bps~38400bps, support PPS Contactless IC Standard ISO14443TYPE-A&B / EMV2000 Level 1 / PBOC 3.0 Protocol T = CL Frequency 13.56MHz Effective range 0~5cm Communication rate 106K/212K/424K bps, support PPS Optional Dual head for MSR
RS232 interface Details Images Recommend Products Recommended by seller   Cheap 3 Tracks USB Magnetic and Magstripe Card Reader Writer With Free SDK HCC750U-06 $14.00 - $20.00 / Unit 1 Unit   Optical EMV Swipe Card Magnetic Stripe Reader HCC110 $46.00 - $60.00 / Piece 1 Piece   Mobile Portable 3 in 1 EMV Bluetooth Mpos NFC IC Magnetic Card Reader MPR110 $23.00 - $30.00 / Piece 1 Piece   CCID USB Contact IC Chip NFC RFID Smart Contactless Card Reader with PSAM HD5 $31.00 - $40.00 / Unit 1 Unit Company Profile Shenzhen HCC Technology Co., Ltd, established in 2008 year, is a professional manufacturer engaged in the research,
