WiFi Smart Curtain Switch Module Roller Blinds Shutter Motor Smart Life Tuya APP Remote Control Work with Alexa Google Home

WiFi Curtain Switch with new function of setting percentage to open or close on App

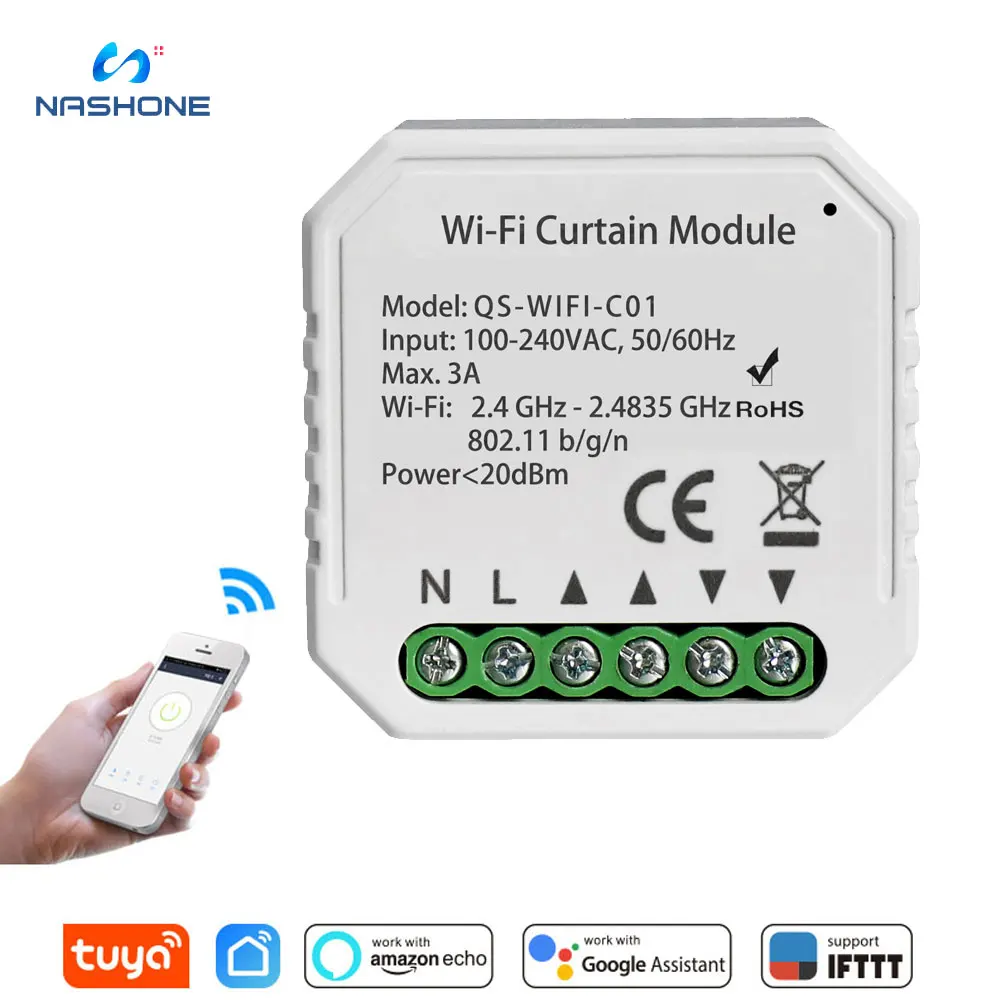

Wifi blind switch Specification

Input voltage: 220-240VAC, 50 / 60Hz Wiring: Neutral Wire, L1, L2, Earth Wire Max Load: 300 W Wi-Fi Standard: 2.4 GHz 802.11 b / g / n (Not support 5Ghz Wi-Fi) Standby Consumption: below 0.5W Dimensions: 48mm * 47mm * 22mm

Wifi blind switch Features

●Voice control: once you have this switch, you can connect it with Amazon Alexa or Google Home for voice control. ●APP remote control: user can use a smartphone to remotely open/close curtain or electrical door at anytime and anywhere via ●APP as long as the smartphone has 3G/4G/WiFi network, enjoy the convenience of intelligent life. ●Shared device: this intelligent switch can have multiple control sites shared by different family members. One phone can also control multiple switches. ●Set timer: you can set a schedule to open or close your curtain.

Roller shutter control wifi, Smart APP Remote Control

Take full control of roller blinds shutter wherever you are on your phone.Control in advance with ease when you are away from home.

Switch Connected Roller Shutter With More Smart Features

◆ APP Control ◆Remote control ◆2.4GHz WI-FI ◆Device Share ◆Timer and schedule ◆Group function

Shutter Switch Wifi Group Function and Device Sharing

◆Venetian blind ◆Vertical blind ◆Honeycomb shade You can create group in the APP to manage all the blinds in your house and share the device to all your family members.

Module Roller Shutter Multi-scenario Matching

Match different kinds of curtains such as window blinds/roller blinds /venetian blinds

Roller Shutter Switch wifi APP REMOTECONTROL

User can use a smartphone to remotely open/closo curtain or electrical door at anytime and anywhere via APP as long as the iOS!Android phone has 3G14GMIFl network， enjoy the convenience of intelligent life

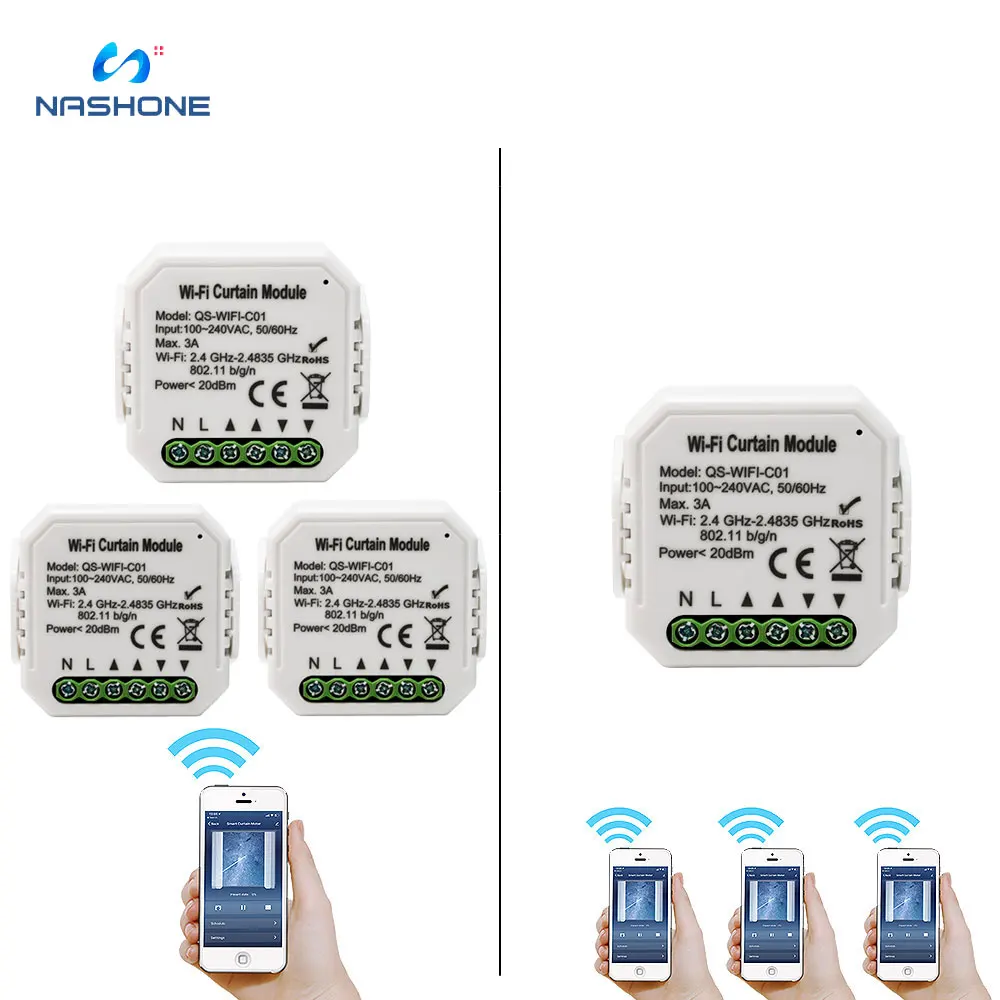

Family Sharing Control

Google Drive Hands-free Voice Control Smart Blind Switch

”Alexa， turn on the livingroom curtains” Amazon Alexa, Google Home voice control to turn on and turn off the curtains. Automatically tum room curtains on and off by planning App Control in Android/IOS Smart phone

Set Your Times

◆Open the curtains ◆Close the curtains

WIFI CURTAIN MODULE MID LLE

◆Voice control-work with google home ◆Device Sharing ◆Voice control-work with Amazon Alexa ◆Schedule timer

Switchbot Boots Installation

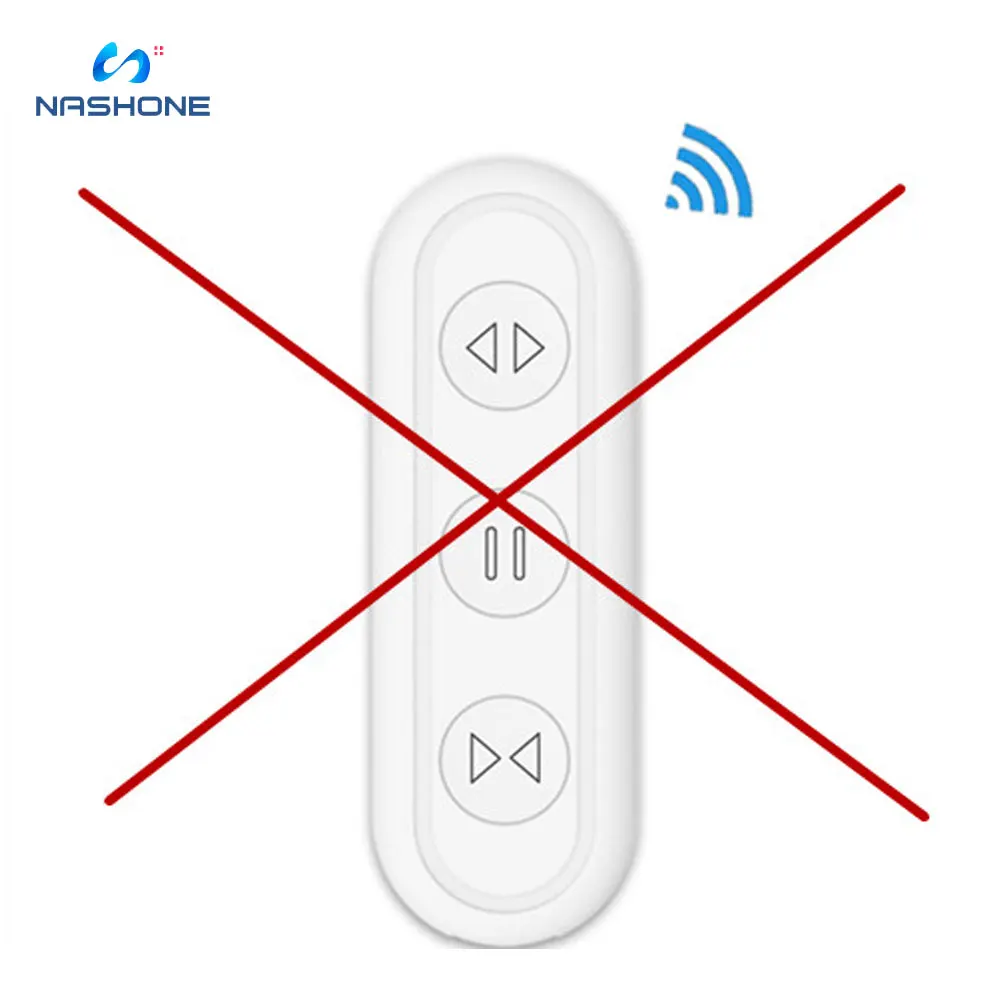

This product is a Wi-Fi switch module only, not with RF, so it can't work with the RF remote in our store.

Manual Override

The switch module terminal reserves the access of manual override function for the end-user to switch on/ off. ◆Switch on/off for permanent on/off function. Notes: 1)Both the adjustment on APP and switch can overwrite each other,the last adjustment rema ins in memory . 2)The APP control is synchronized with the manual switch .

How to Set up:

1.Scan the QR code or search "Tuya Smart" at APP store to down load APP. 2.Register or log in the APP,and chick "create family ". 3.After connected well ,press the tradition switch to turn ON/OFF cycle for 5 times until the indicator light flash quicjly. 4.Select"+",choose "Electrical" and"Curtain Switch" 5.Make sure your smart phone and WIFI curtain module are under same WIFI net-work.

Q&A:

1.What should i do if i cannot configure the curtain module? A.please check whether device is powered on; B.Make sure your mobile and curtain module are under same 2.4GHz WiFi network; C.whether it's in good internet conditons; D.make sure the password entered in App is correct; E.make sure the wiring is correct. 2: What device can be connected to this WI-FI switch module ? Most of your household electrical appliances can be ,such as lamps ,laundry machine ,coffe maker etc. 3: What happens if the WIFI goes off ? You can still control the device connected the switch module with your traditional switch and once WIFI is active again the device connected to module will connect automatically to your WIFI network. 4: What should i do if i change the WIFI network or change the password? You have to re-connect our WI-FI switch module to the new WI-FI network acc ordingly as per the APP user manual . 5 :How do i reset the device ? Power on/off device for 5 times until the indicator light flash.

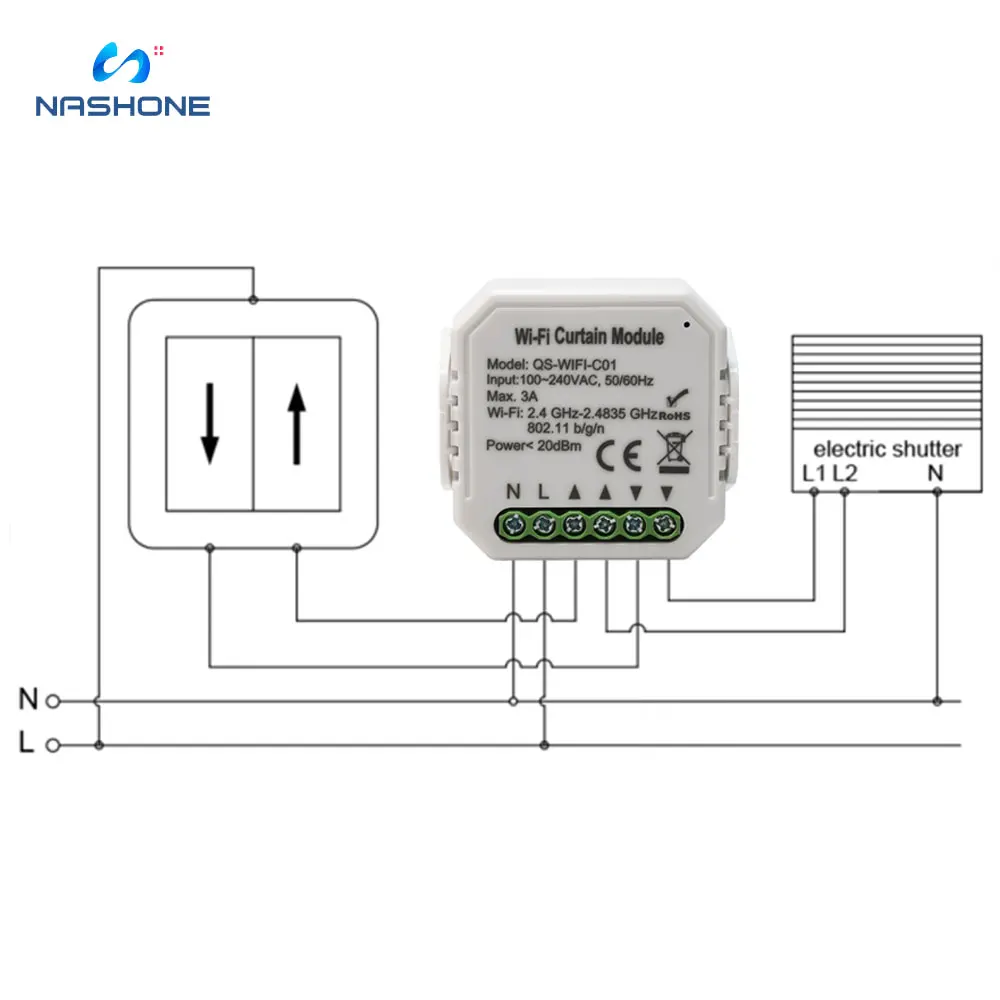

Wiring Instructions And Diagrams

1.Turn off the power supply before carrying out any electrical installation work . 2.Connect wires according to the wiring diagram . 3.Insert the module into the junction box. 4.Turn on the power supply and follow switch module configuration instructions.

NOTES:

Take your smartphone close to the switch module when you are configuring ,and make sure you have min.50%WI-FI signal.

After Sale

Please provide us with the proof of video if products have any problem after receiving the parcel within 7 days, we will offer replacement or refund after confirming the problem. We offer 12-month hardware warranty for each product without personal error use.
