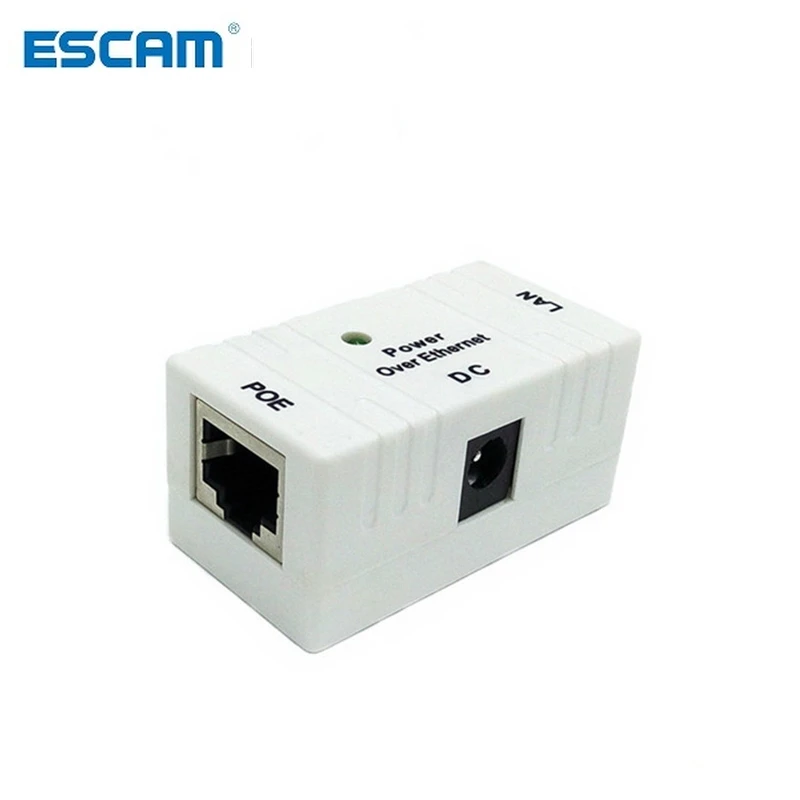

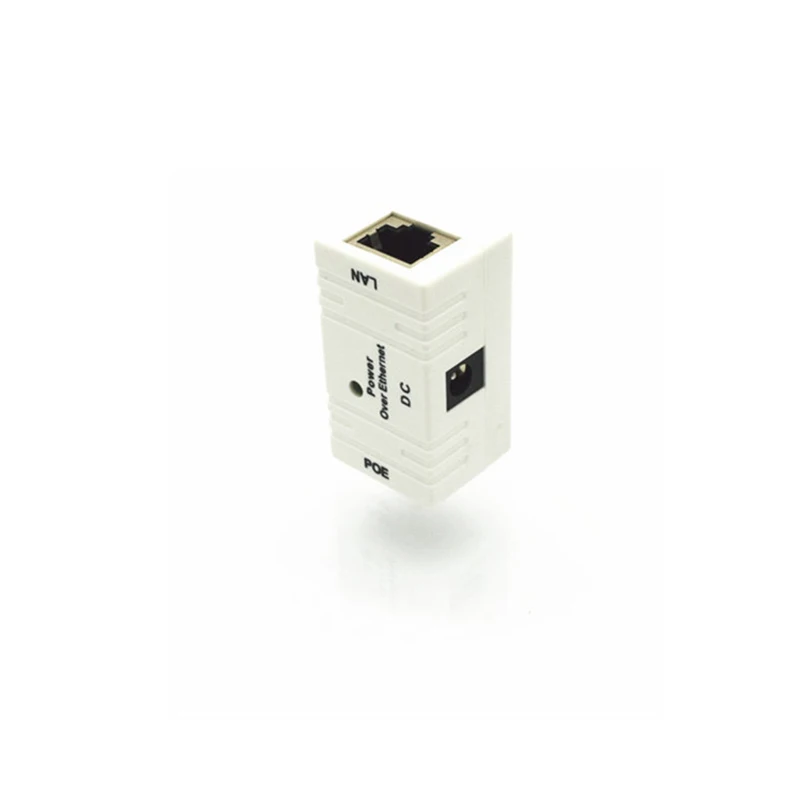

ESCAM Manufacturers supply white Poe separator network power module Ethernet circuit breaker | Безопасность и защита

ESCAM Manufacturers supply white Poe separator network power module Ethernet circuit breaker | Безопасность и защита

working temperature:-15+85 (c)

Simple POE power supply support 100M network transmission

Power supply mode: the power supply is not first detected by the power supply side of the input voltage is equal to the output voltage

Fast POE power combiner separator is described in detail:
1 POE data transmission of the separator will be used more than Cat5 (1/2; 3/6) Pin transmission, and POE power is used (4/5; 7/8) Pin transmission technology to operate.
2. With easy wall, simple connection, is not easy to set up power provides a better solution for and provide a simple installation and can save unnecessary wiring costs for complex environment.
3.DC external anode 5.5* cathode 2.1mm power supply, can be through the voltage DC 5 ~ 48V
4 maximum current POE; 2000mA power synthesizer is also called the circuit breaker (not including the power part); port number: 2 Port

5 tape shield RJ45 interface

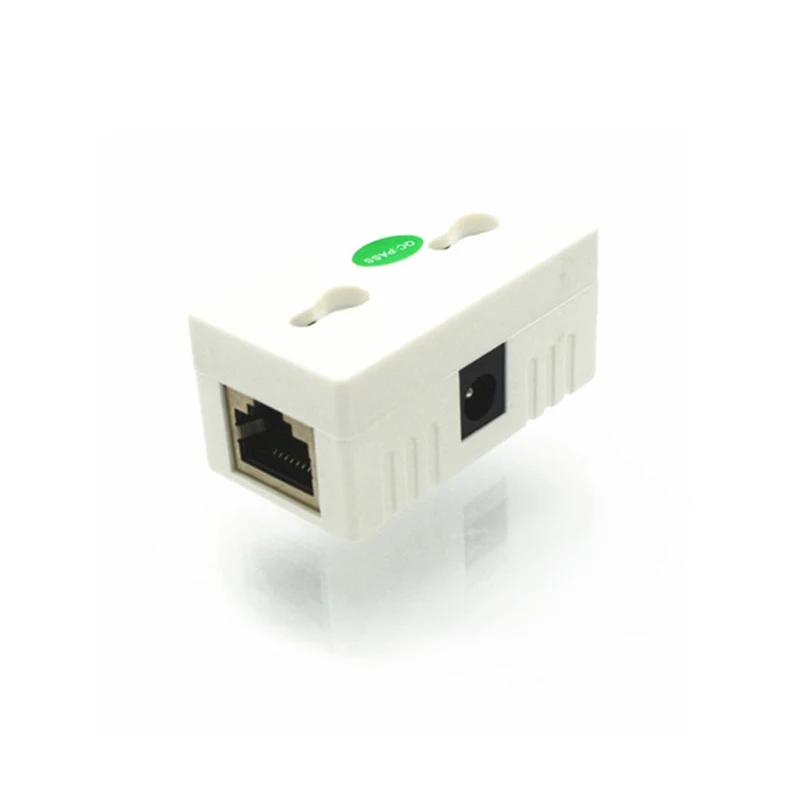

6 you can use self tapping screws fixed to the wall, with the ear can also be free to use double-sided adhesive on the wall, simple installation

7 optional with LED lights to display to ensure that there is voltage and current

8 all products are original factory production, guarantee the quality of high bandwidth transmission, the factory 100% full inspection!

9 packaging: PC film bag

Suitable for Internet telephony, network video head, AP, POE bridge, network switches, power supply cable etc.

POE port = power supply (78- 45+) + data (1236)

LAN port = data (1236)

POE port: connect the bridge AP CPE equipment WAN interface

LAN port: connect to the router switch or directly connect to the computer host network interface

Cable equipment to do the line standards:

Through 568B, mainline, straight line, 568B standard: both ends of the line order, from left to right line sequence is: orange and white. Orange. Green and white. Blue. Blue and white. Green. White and brown. Brown)
