DC 12V 4CH релейный модуль приемника + 4-канальный 1527 обучающий код Радиочастотный

DC 12V 4CH релейный модуль приемника + 4-канальный 1527 обучающий код Радиочастотный

1. Brief introduction

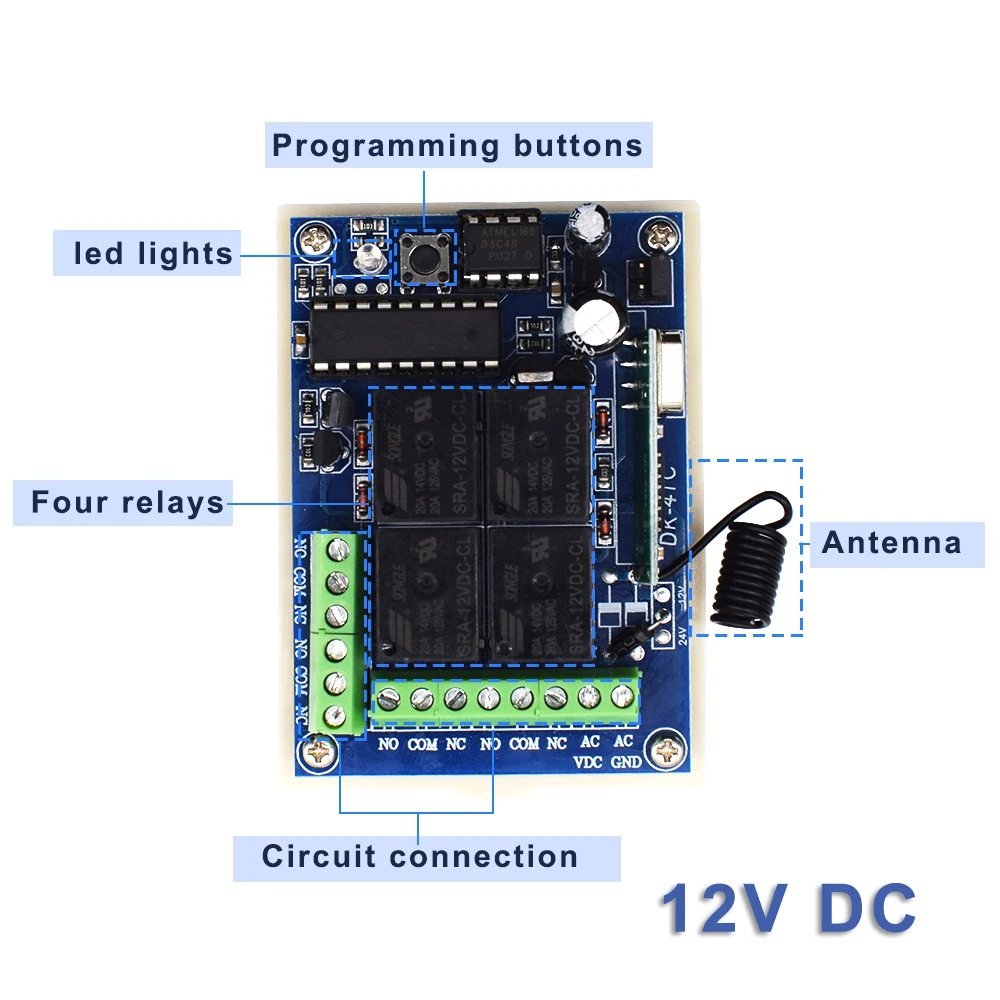

Our factory design and produce the four circuit wireless intellect receiving control what can provide switch signal to the four relays, so it can meet many requirements such as: control motor’s Tcorotation T and reversal, the connection and lock of the switch and other special control programs. This kind of wireless intellect receiving control main apply to auto door, curtain, lifting appliance, gate way,lifter,industrial control and security line. This kind of wireless receiver is high confidentiality, large memory space, stable characteristics, low power consume and very convenience, it is unnecessary adopt the traditional wire jumper or dip switch code but only receive and store the wireless signal from the remote control, and The lost learn control can not work if you delete the memory message of the receiving control, however it could learning again by the owner if want to obtain the right of use. There are four kind of output ways- Signal self-locking, Signal interlock , Signal inching and 2 self-locking，2 inching.

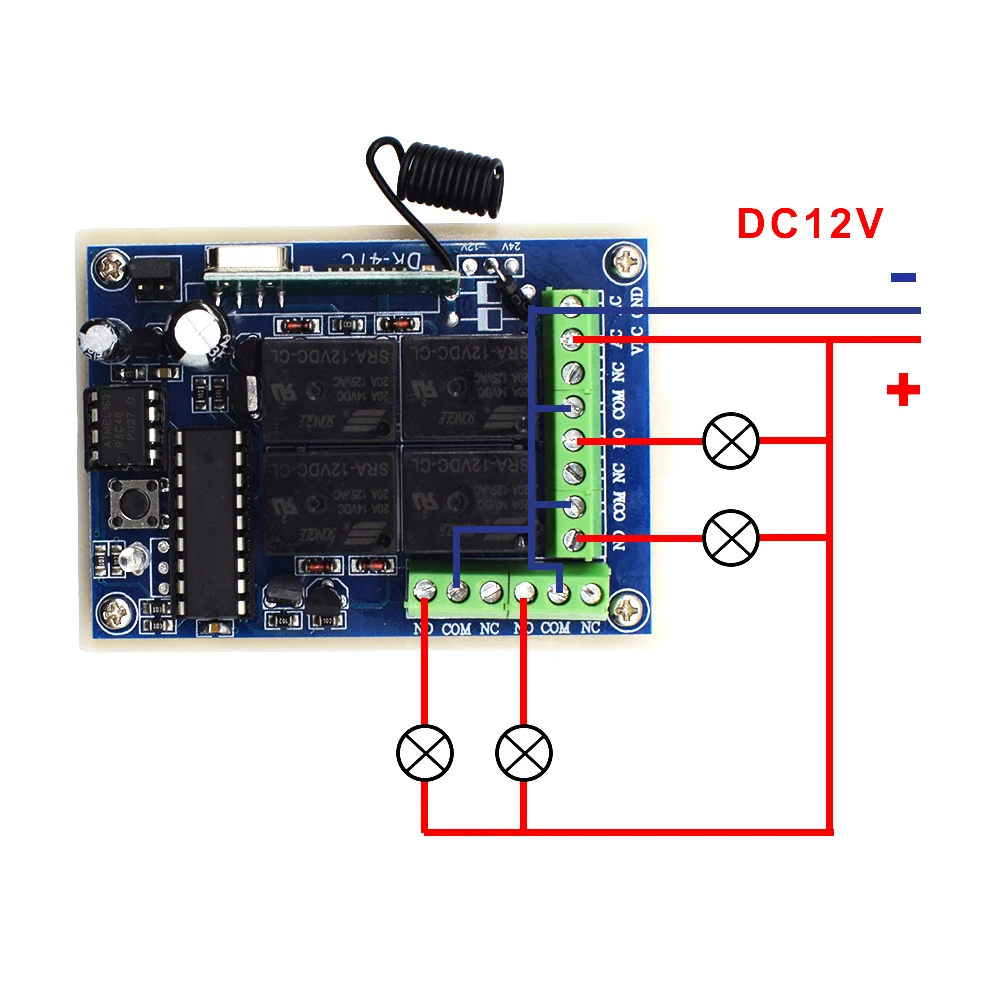

2. The way of output

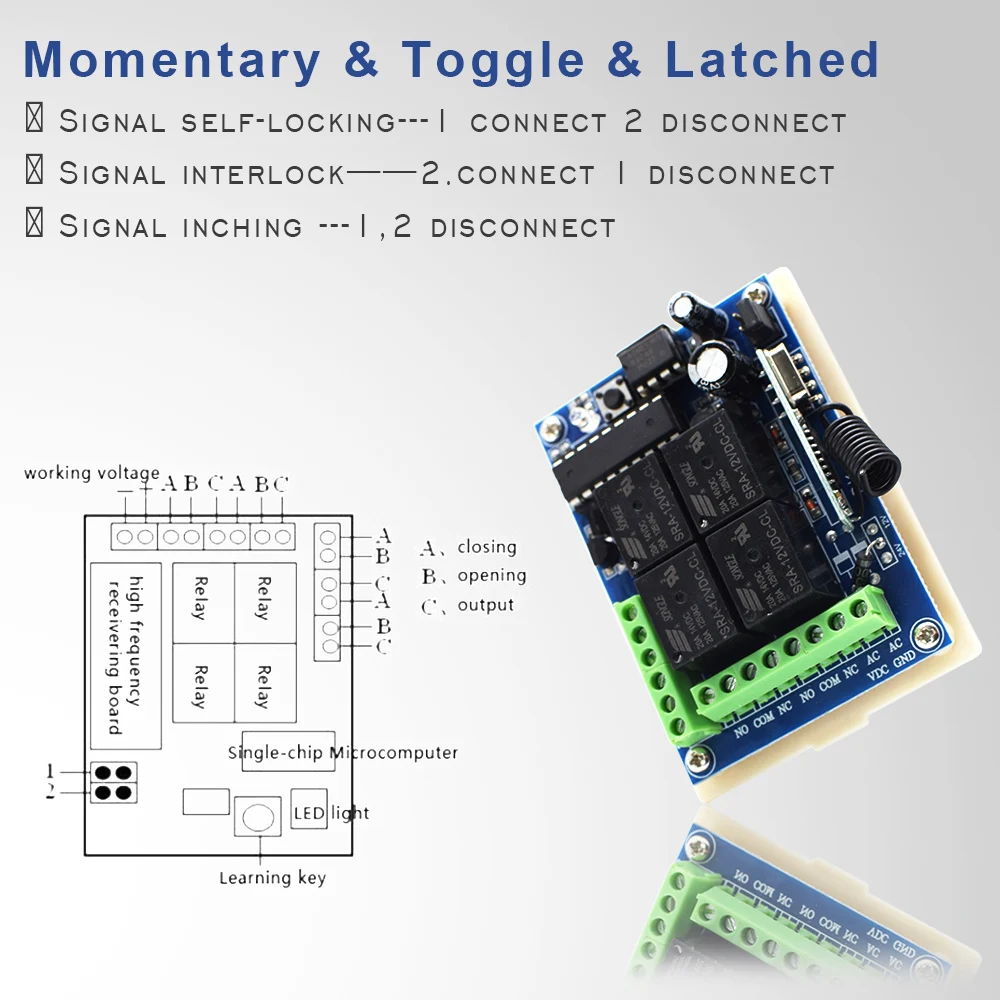

 Signal self-locking---1 connect 2 disconnect  Signal interlock——2.connect 1 disconnect  Signal inching ---1,2 disconnect

3. Learning way and steps

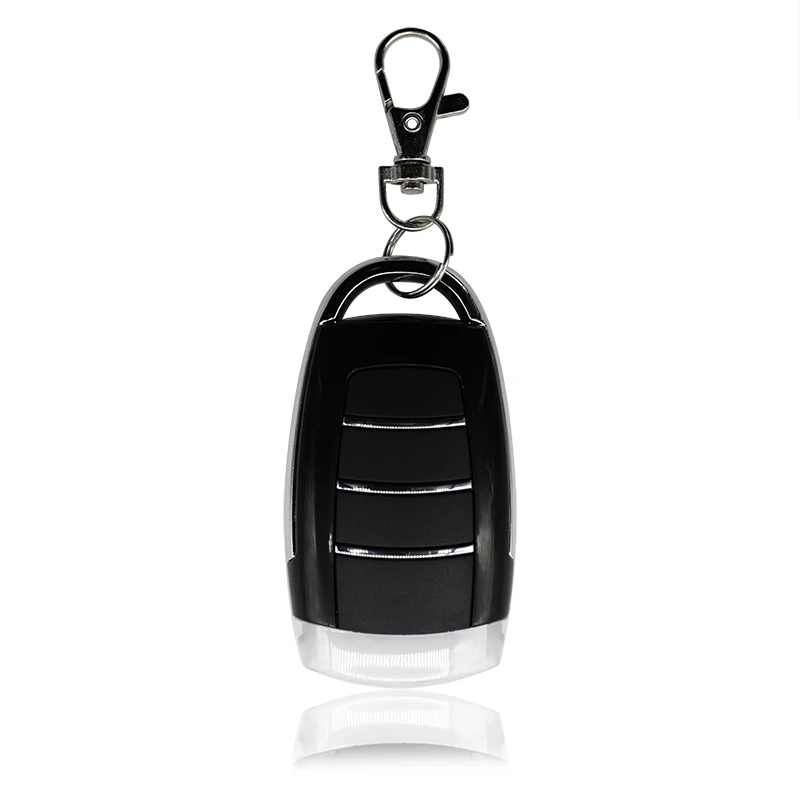

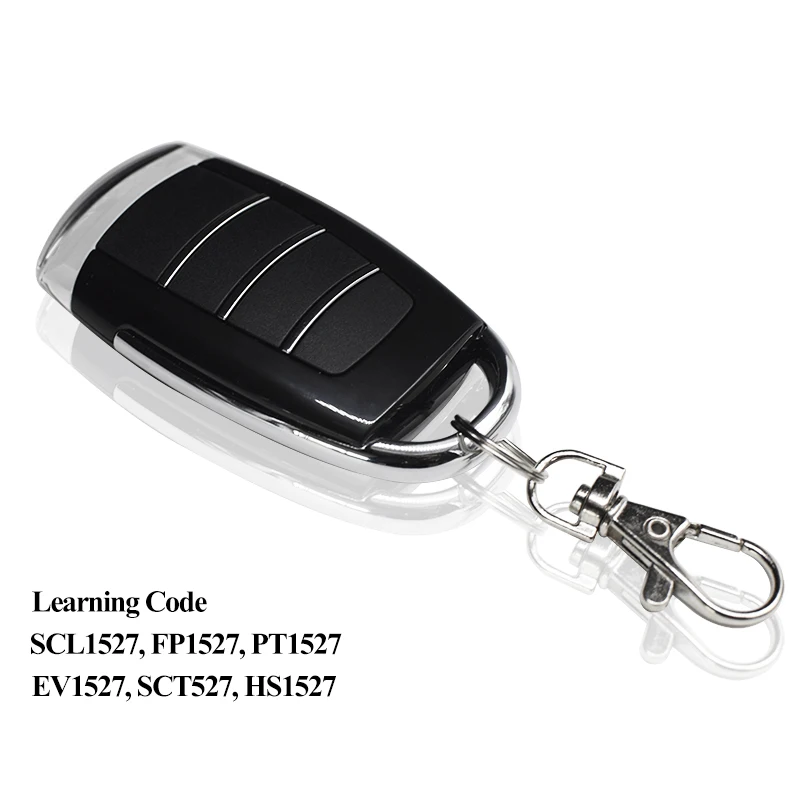

1. Press learning key of receiver-indicate enter into the status of learning as you hear the sounds of buzzer. 2. Press any button of the remote control-indicate learning success as you hear the sounds of buzzer.

4. Delete memory message

Press the learning button of the receiver about 7 second until the LED light is extinguished, which indict success to delete the memory message.

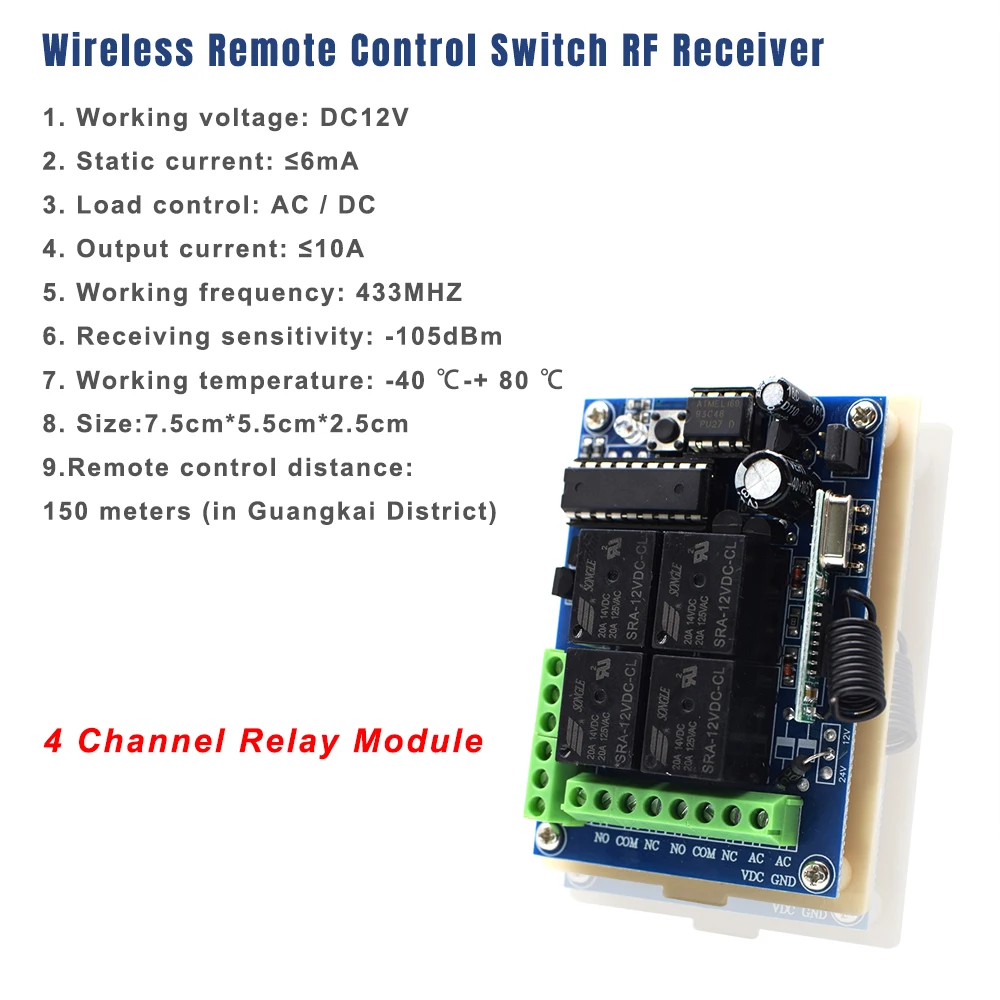

5. Main Technique Data

Working voltage DC12V Static working current ≤7mA Working temperature -40℃ - +80℃ Receiving sensitive ≥-105dBm Working frequency 315MHz、433MHz Output voltage alternating current or direct current Output current ≤10A Size 74.5mm*54.5mm*27.5mm
