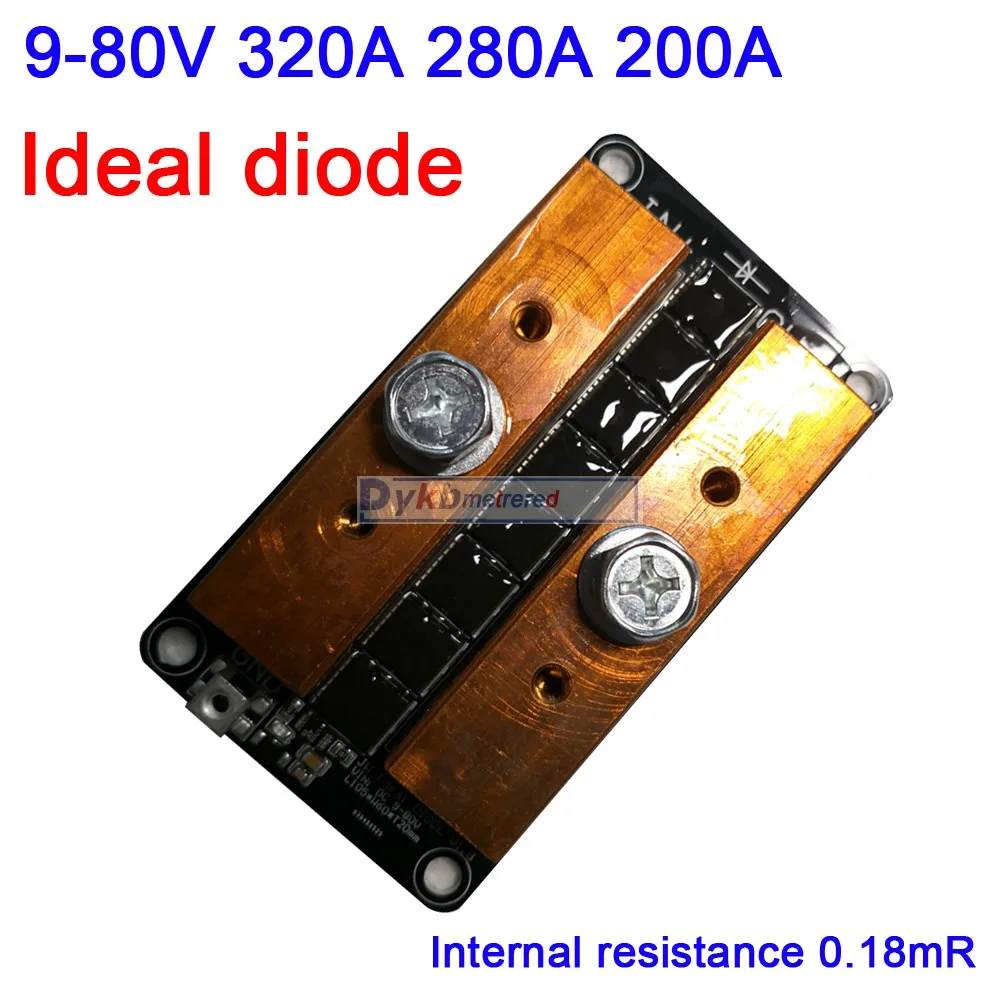

Ideal Diode 9V-80V 280A 250A 350A 0.18mR Module Current Solar photovoltaic Base Station Engineering Control Prevent backflow | Электроника

Ideal diode 0.18mR 80V280A current photovoltaic solar energy base station industrial control redundant switching

    　   Description: Features:




Allowable working voltage range: 9-80V

Allow long-term continuous working current:

80V6MOS version equivalent internal resistance 0.25mR lasts 200A

80V8MOS version equivalent internal resistance 0.18mR lasts 280A

9-40V8MOS version equivalent internal resistance 0.0875mR lasts 320A

Without radiator, allow continuous working current: 100A



The average overcurrent of a MOS is only less than 35A. We use a 300A MOS. The real real standard current allows long-term work with load



Static working current: 0.6-1.5 mA,

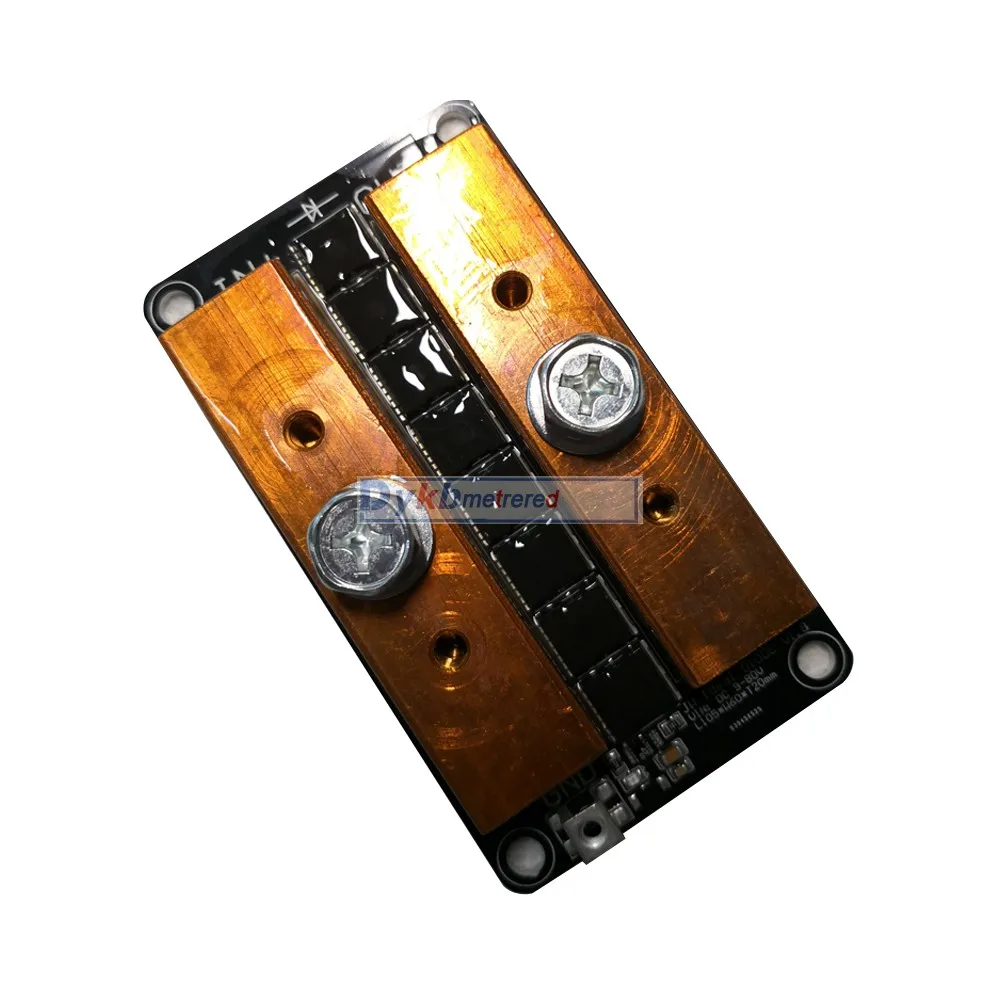

Infineon 1.5mR * 8MOS array, aluminum substrate heat dissipation integrated conduction internal resistance 0.1875mR (note the unit is milliohm)

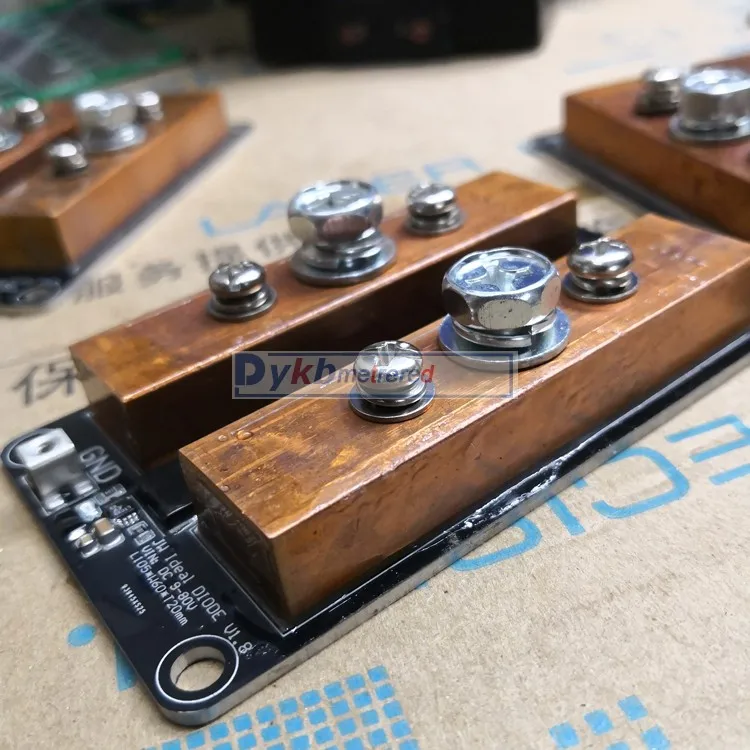

The bottom plate is directly attached to a 20 * 12mm thick copper bar


Copper foil thickness: 3oz thickened

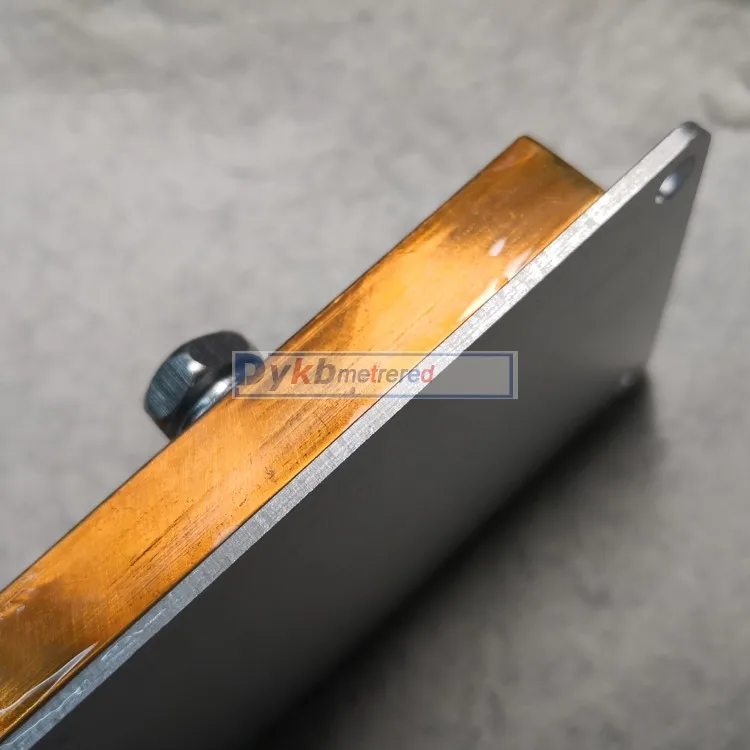

The aluminum substrate PCB trace copper foil layer and aluminum base layer are insulated withstand voltage of 1000V, without worrying about breakdown problems, and the thermal conductivity is 20 times faster than FR4 glass fiber.



Original brand new Infineon high voltage 100V MOS tube, the internal resistance of the conduction is only 1.5 milliohms!



Package Contents
100% Brand New
1 XIdeal diode 0.18mR 80V280A current photovoltaic solar energy base station industrial control redundant switching
