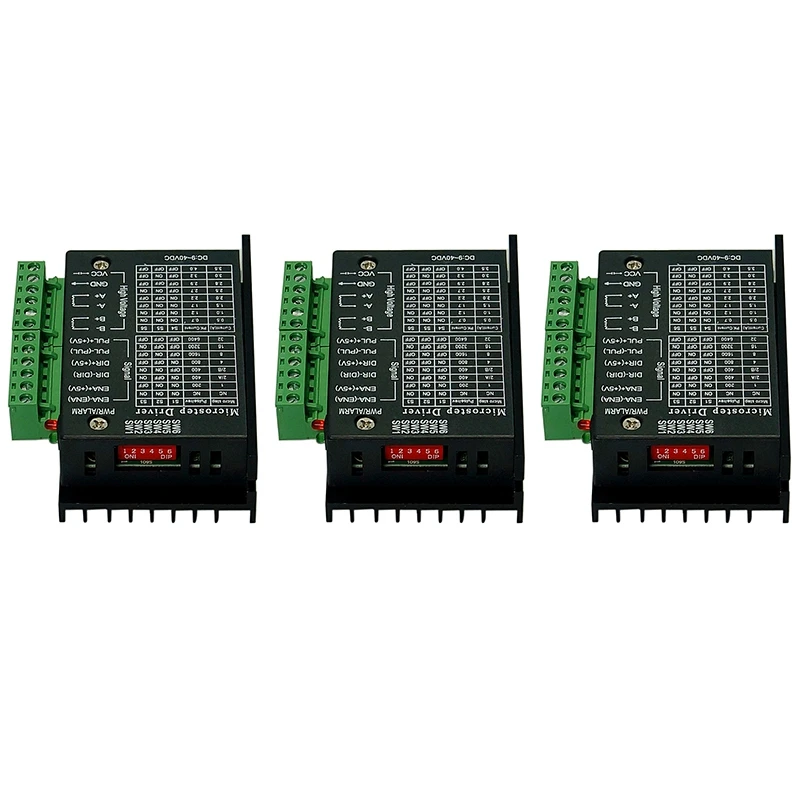

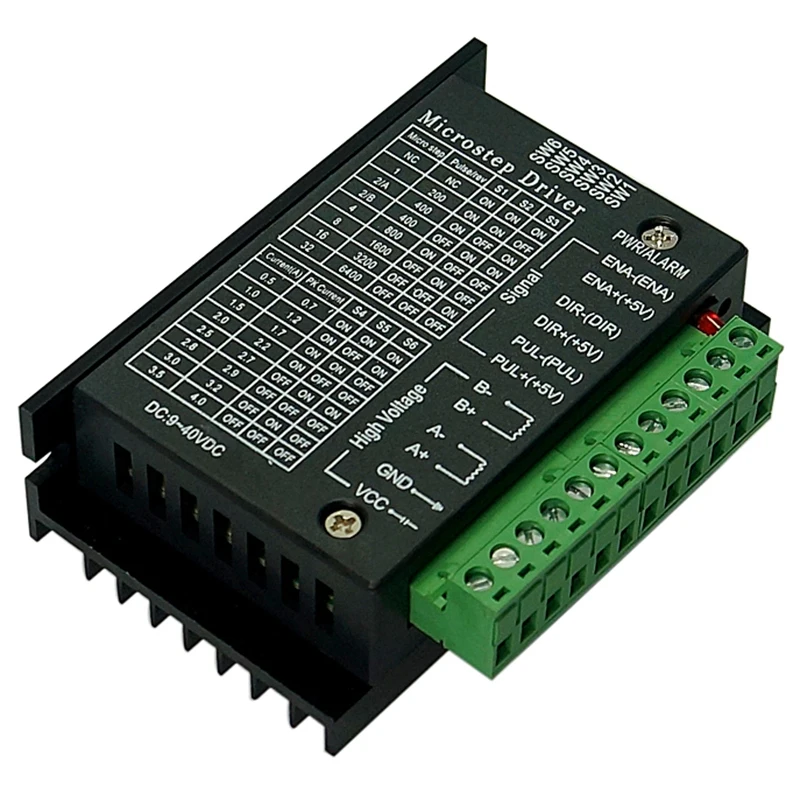

3Pcs 42/57/86 Tb6600 Stepper Motor Driver 32 Segments Upgraded Version 4.0A 42Vdc for Cnc Router | Обустройство дома

This drive is an upgraded version of the TB6600, the breakdown of heightening to 32 segments,
for high segmentation purposes. Applicable stepper motor: 42,57,86 type of 2-phase 4-phase (4-wire 6 wire line 8)
9V-42V DC power supply;
H-bridge bipolar constant-phase flow-driven;
the maximum output current of 4.0A eight optional;
up to 32 segments of six kinds of sub-modes available;
the input signal is high-speed optical isolation;
standard common anode single pulse interface;
offline hold function;
semi-enclosed chassis can accommodate more demanding environment;
provide energy semiautomatic current lock function;
built-in thermal protection and overcurrent protection.
colour:black
Material:plastic
Package Contents:
3 * motor driver
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
