JYKB-150-DC24V-GH (150 flames)

JYKB-150-DC24V-GD (150 plasma)

JYKB-200-DC24V-GH (200 flames)

JYKB-200-DC24V-GD (200 plasma)

JYKB-150-BJ057-G

JYKB-200-BJ057-G

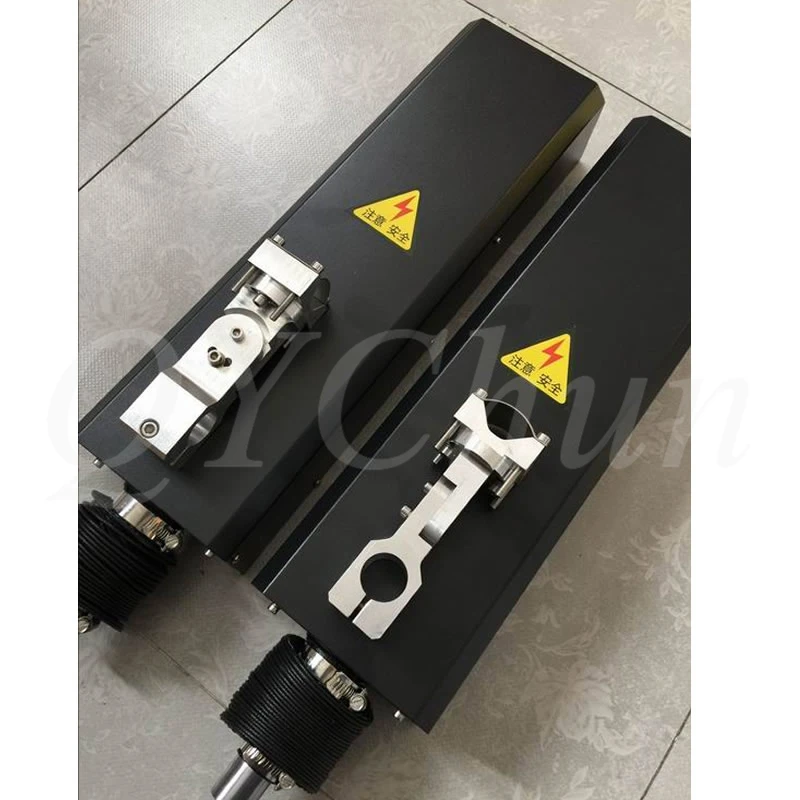

CNC flame plasma lifting body

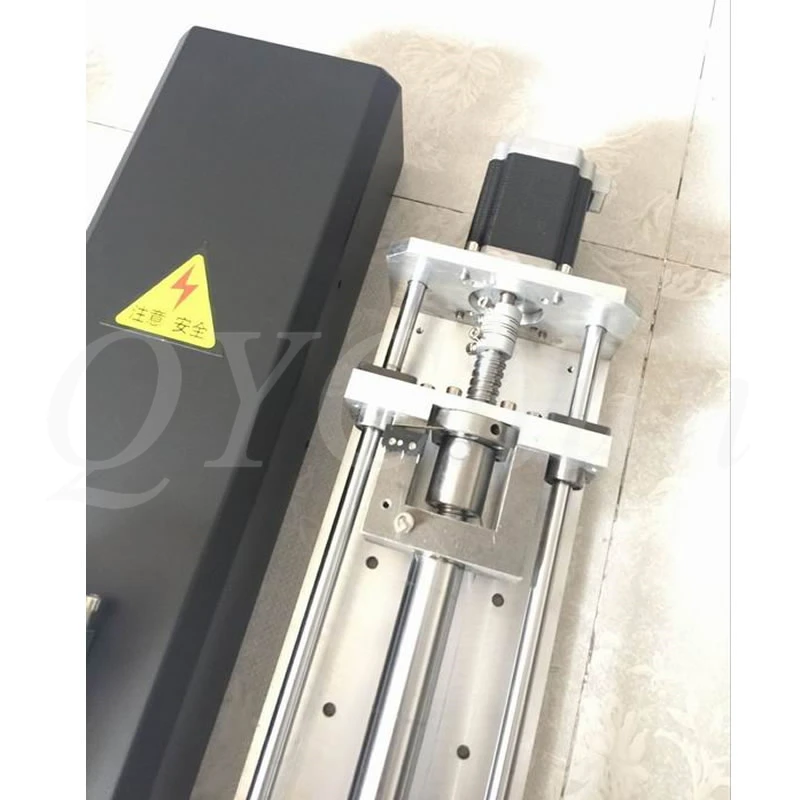

Lifting adjustment device: The lifting device of fine plasma cutting machine equipment is the first preferred product in the industry. The numerical control lifting body uses a decelerating DC motor to drive the cutting torch to move up and down. Turn on the switch. The internal lifting drive of the elevator adopts Taiwan TBI ball screw. The optical axis and linear slider are used at both ends. The cutting torch shaft is bearing steel and is stabilized by the linear slider up and down. So as to ensure a smooth and reliable vertical operation in the up and down direction. Simple description: Used for ascending and descending transmission mechanism during flame and plasma cutting; the whole is made of aluminum material and refined by the machining center, the accuracy is very high, and the positioning switch and limit switch are made in Taiwan HIGHLY (after 3C certification and CE certification).

Model: JYKB-150-DC24V-GH is suitable for flame and plasma cutting) 1250mm / min

Model: JYKB-150-DC24V-GD is suitable for plasma cutting) 2150mm / min

Model: JYKB-200-DC24V-GH suitable for flame and plasma cutting) 1250mm / min

Model: JYKB-200-DC24V-GD is suitable for plasma cutting) 2150mm / min

JYKB-150-BJ057-G (stroke 150 stepper motor lifting body)

JYKB-200-BJ057-G (200 stroke stepper motor lifting body)

Related parameters

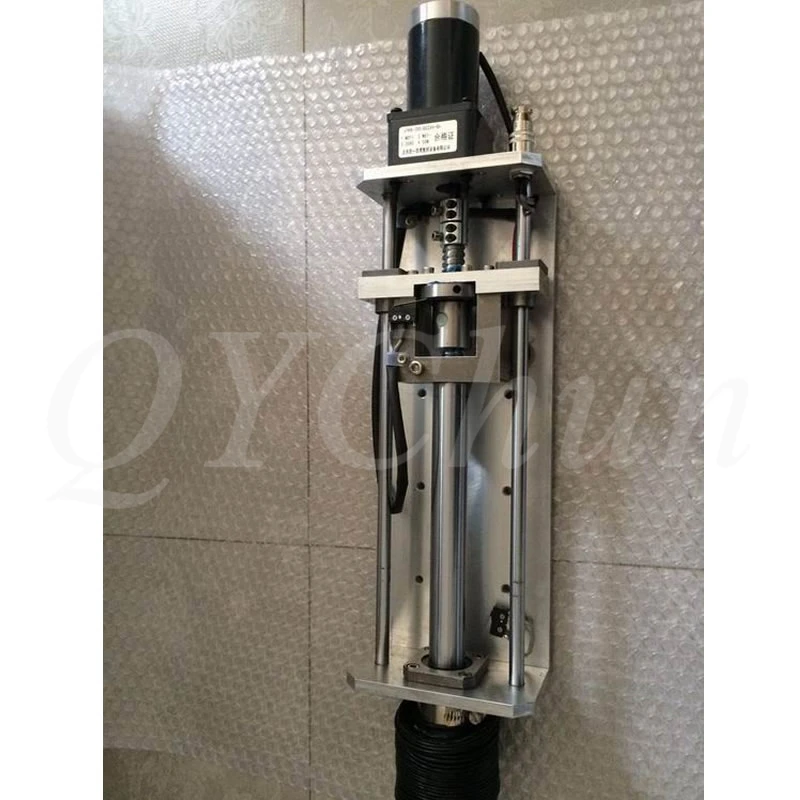

Taiwan TBI ball screw

CNC flame and plasma anti-collision gun function

Plasma positioning micro switch inside the lifting body

Four-core aviation plug

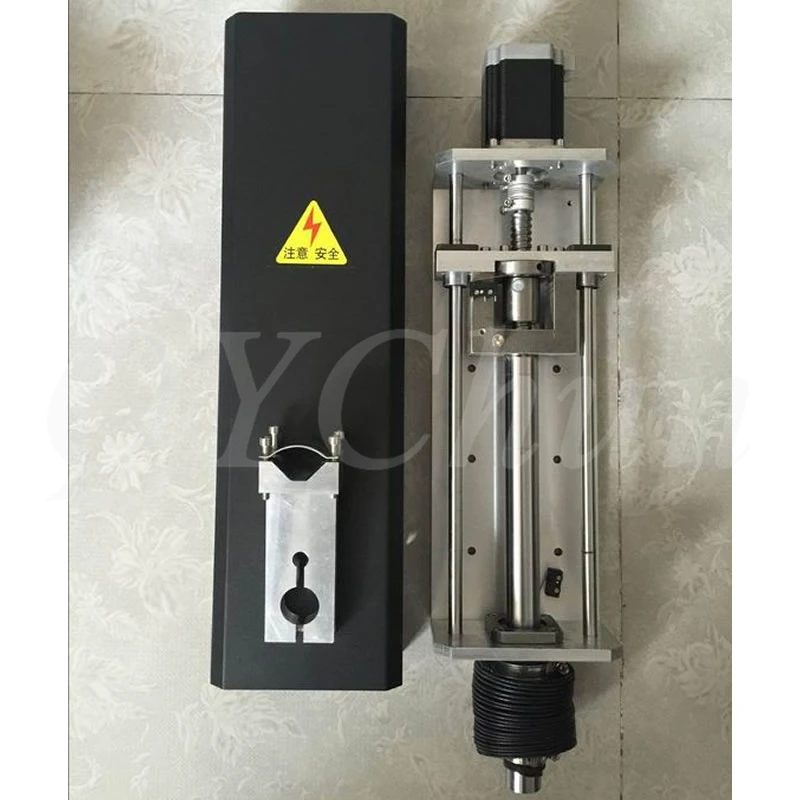

Telescopic shaft is stable with optical axis and linear slider

Color: Black shell (spray)

Working stroke: 200mm

Working voltage: DC24V (DC 24V motor)

Weight: about 7 kg (without packaging)

Carrying weight: 10 kg

Clip gun hole: 20mm-40mm (angle can be fine-tuned)

Telescopic cover: high temperature resistant material

Size: length 490 * width 130 * height 80

Mounting hole size length 70 * 70 * 70 width 66

Definition of aviation control plug:

1 foot--MOT +; (positive motor)

2 feet--MOT-; (negative motor)

3 feet-Zero; (positioning normally open zero signal output)

4 feet-COM; (positioning normally open COM signal output)

Note: The built-in limit of the lifting body (using 10A reverse diode) does not bother you to connect again

The details of the lifting body are as follows:

JYKB-200-DC24V-GH \ GD one lifting body

4 core holes, one plug

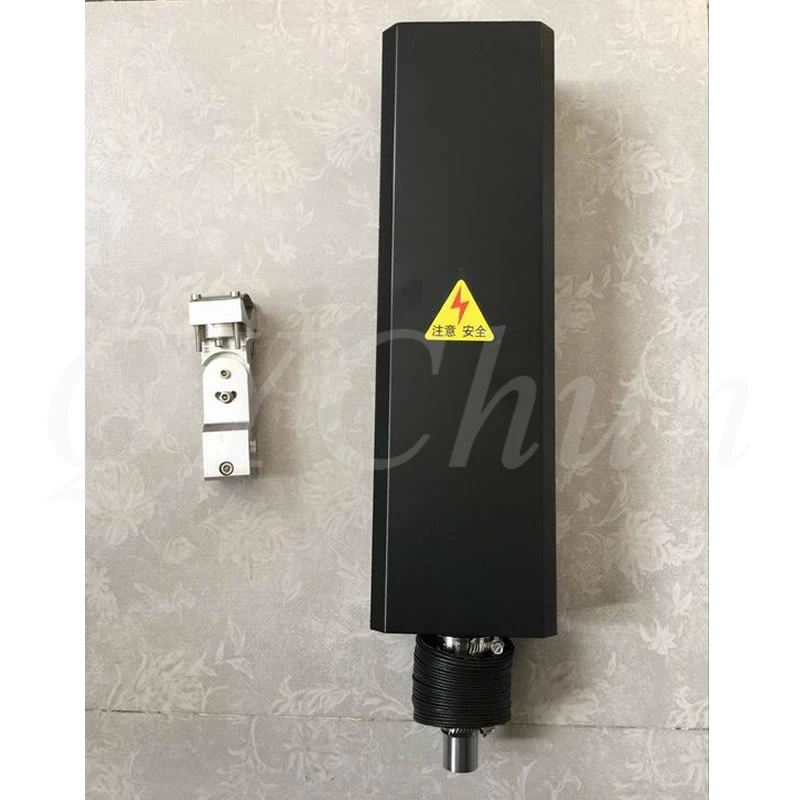

One fixture (including screws)
