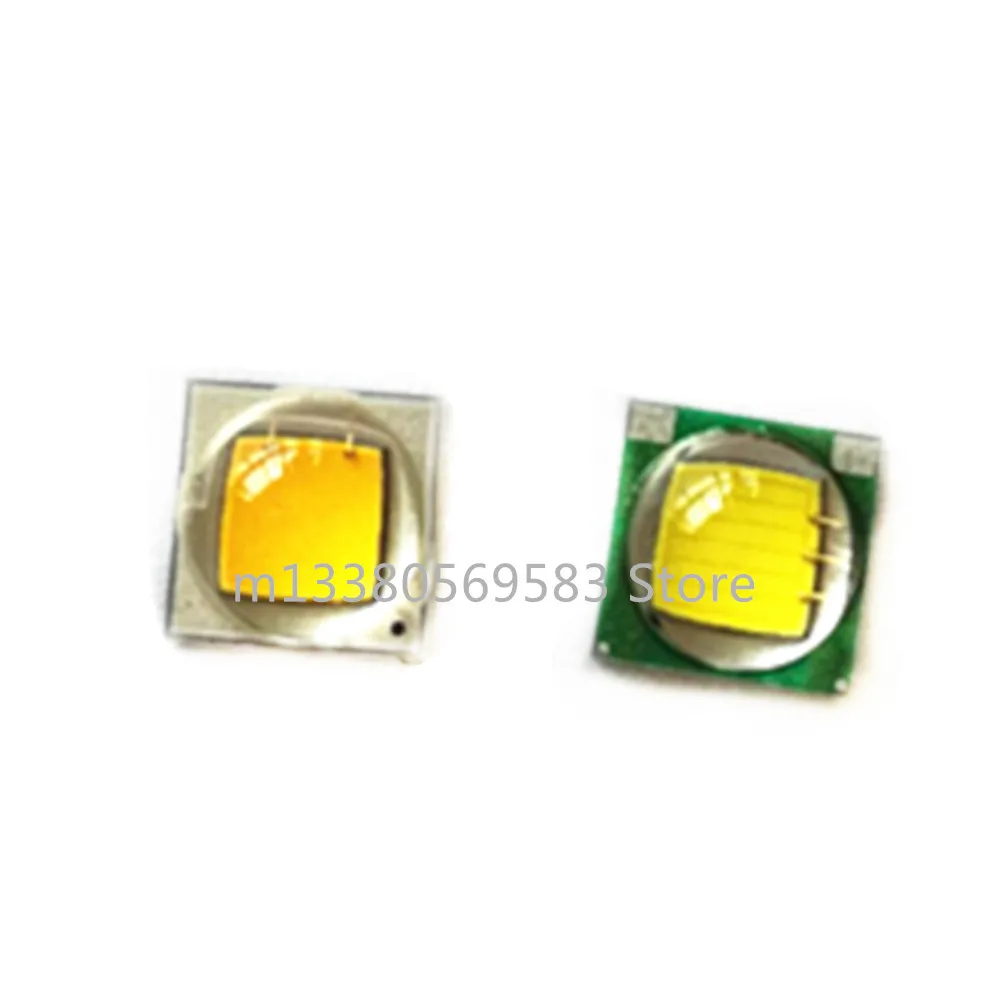

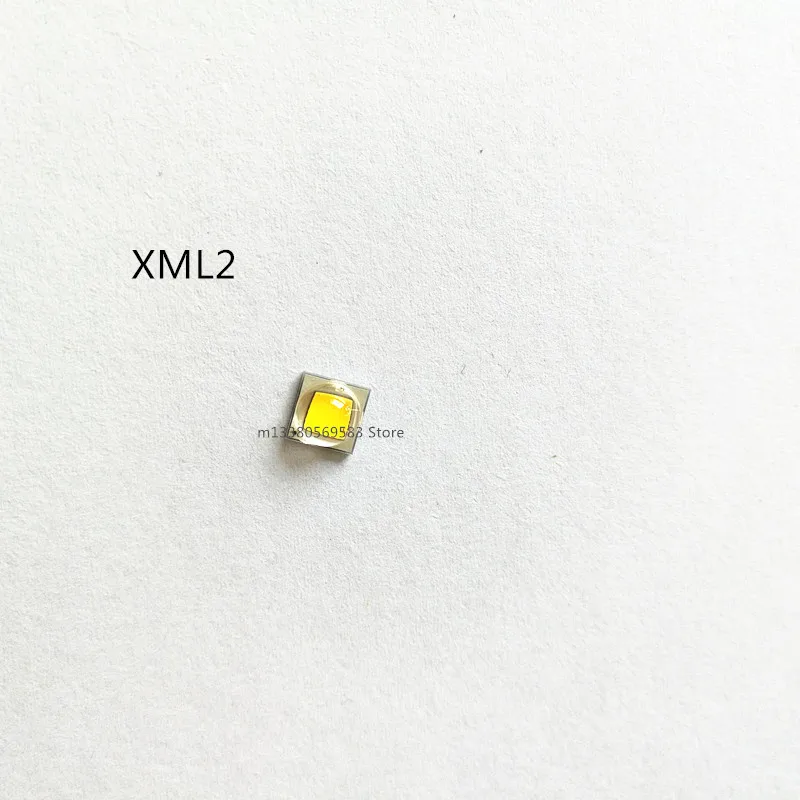

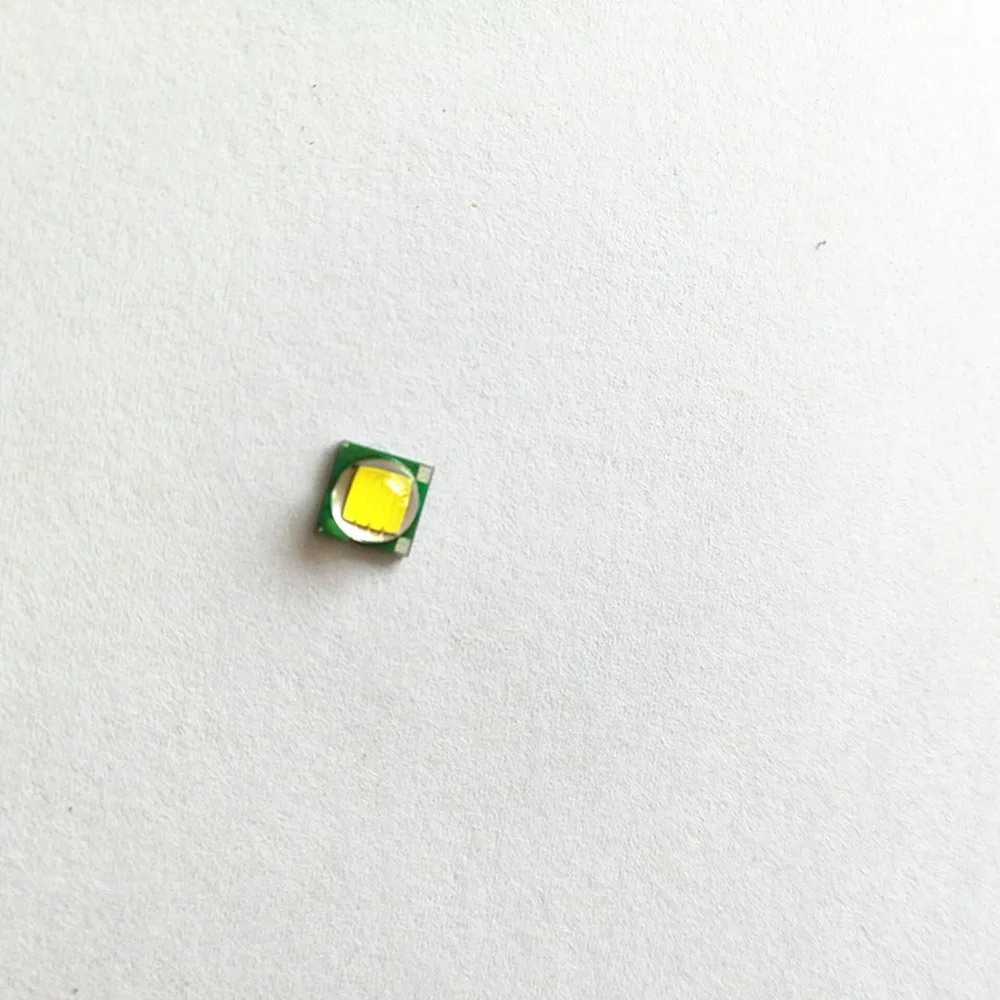

10PCS CREE XML XM-L T6 XML2 LED U2 10W WHITE /Warm white High Power chip | Освещение

10PCS CREE XML XM-L T6 XML2 LED U2 10W WHITE /Warm white High Power chip | Освещение

Delivering breakthrough lumen output and efficacy in the XM package, the XLamp XM-L2 LED is the highest-performing, commercially available, single-die LED. Built on the SC³ Technology Platform, the XLamp XM-L2 LED delivers up to 20% more lumens and lumens-per-watt and double the lumens-per-dollar of the original XM-L. The XM-L2 LED offers the unique combination of high efficacy and high lumen output at high drive currents, delivering an unprecedented 1198 lumens at 116 lumens-per-watt efficacy at 3 A, 25°C.

Features:
Maximam drive current: 3000mA
Low thermal resistance: 2.5C/W
Maximum junction temperature: 150C
Viewing angle: 125'
ANSI-compatible chromaticity bins
Unlimited floor life at <30C/85% RH
Reflow solderable-JEDES J-STD-020C
Electrically neutral thermal path

Technical Parameters:
Quantity:1pcs
Model Type: Cree XML-T6
Emitted Color :White
Color Temperature: 6500-7000K/3000-3500K
Viewing Angle: 110 Degree
DC Forward Voltage (VF): 2.9-4Vdc
DC Forward Current (IF): 3.0A
Power: 10W
Low thermal resistance: 2.5°C/W
Maximum junction temperature: 150°C
Viewing angle: 125°
Diameter :12 14 16 20mm
ANSI-compatible chromaticity bins
Unlimited floor life at ≤ 30oC/85% RH
Reflow solderable - JEDEC J-STD-020C
Electrically neutral thermal path
