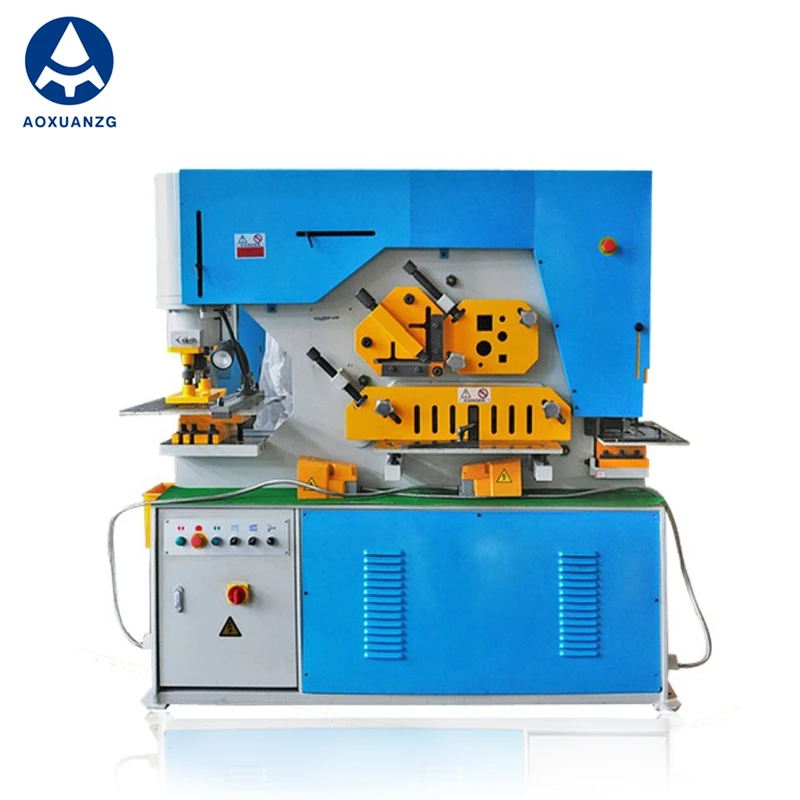

Q35Y-20 Series Hydraulic Ironworker , Iron Worker CE , Hydraulic Metal Process machine

1. Robust and accurate steel frame

2. Large punch table with scales

3. Removable bolster for punching flanges and channel and beam

4. 2 independent hydraulic cylinders

5. 2 shielded foot controls

6. 2 Separate Die Openings for over sized punching

7. 5 working stations for wide applications

8. power inching on all 5 work stations

9. plate shear support table and notching table

10. adjustable stroke controls with indicators on both cylinders

11. punching machine: Movable work light

12. overload protection on hydraulic system

13. electric back gauge

14. optional bending attachment

Q35Y-20 Series Hydraulic Ironworker , Iron Worker CE , Hydraulic Metal Process machine

Brief Introduction

Industrial-grade hydraulic ironworker featuring multiple functions, including: round hole, square hole, oblong hole punching; steel plate, flat bar, angle steel, C-channel, H-beam punching; steel plate bending; angle steel shearing, notching and bending; flat, round, square bar, C-channel, I-beam, T-bar shearing/cutting; angle bending and pipe notching.

The machine comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more. With its multifunction, Q35Y series hydraulic ironworker is your first choice among the counterpart machine. Besides, all the components are of the highest quality in the matter of safety, function, capability and maintenance.

Our machine is designed via the most advanced technology and has the virtues of easy operation, low consumption and low maintenance cost.

Q35Y-20 Series Hydraulic Ironworker , Iron Worker CE , Hydraulic Metal Process machine

Optional tooling:

The automatic holding system can be chosen to set up in angle steel shearing and plate shearing work position. Additionally, the holders will fix the position of work piece in order to save time and improve working efficiency.

When the machine is working, you can read the temperature of oil through the monitoring screen. If the oil temperature goes higher than 55 degree which is the default configuration, the inside cooling system will run automatically to decrease oil temperature in order to protect hydraulic system.

parameter details

Q35Y-20 Series Hydraulic Ironworker , Iron Worker CE , Hydraulic Metal Process machine

Application

Q35Y-20 Series Hydraulic Ironworker , Iron Worker CE , Hydraulic Metal Process machine

Certification

Our Service

Pre-sales.

* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.

In-sales.

* We will provide you with the latest progress in the product assembly, packaging and transportation.

After-sale.

* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.

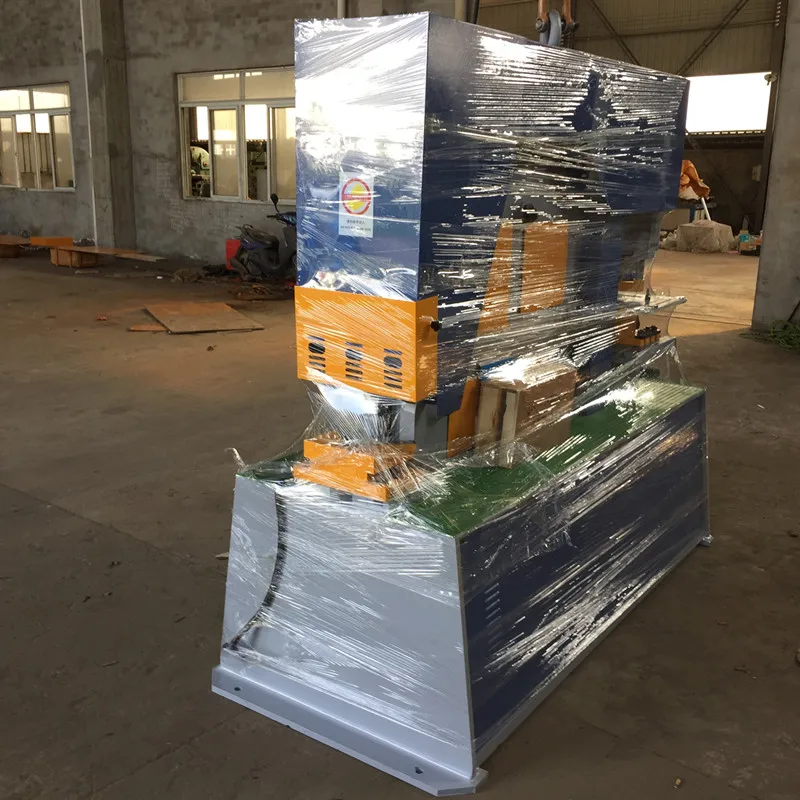

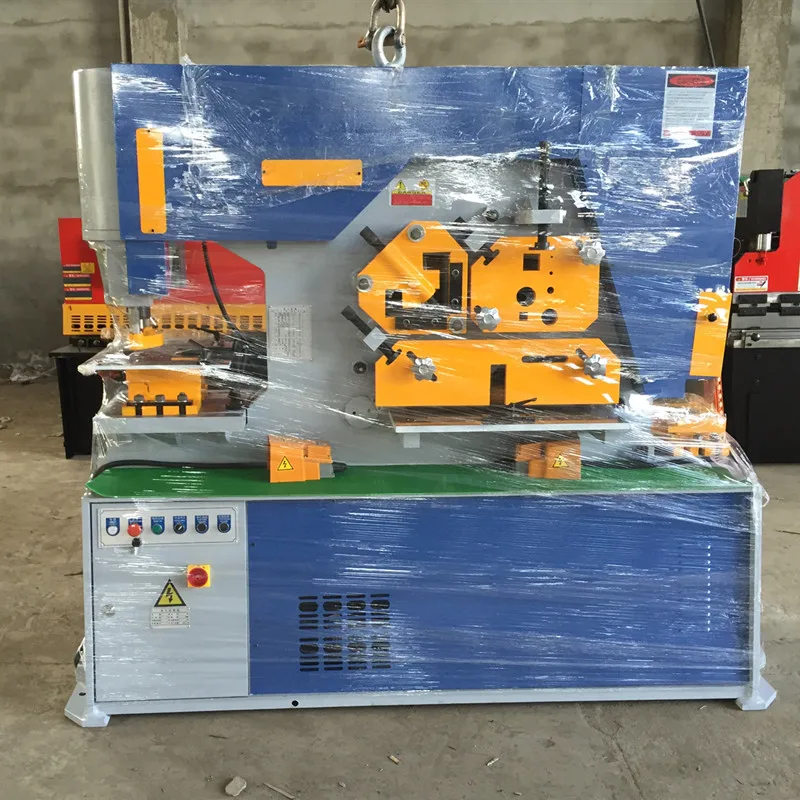

Packing&Shipping

Packing Details
1. LCL Loading Packaging: Steel pallet and plywood case
2. FCL Loading Packaging: Steel pallet with plastic film
3. Shipping: by sea
4. As customers demands
