6KW Plastic Injection Moulding Machine For Molding Industry | Инструменты

6KW Plastic Injection Moulding Machine For Molding Industry | Инструменты

Technical Parameters

​

Item

Technical Parameters

rated power

Single-phase

Rated input current

6KW  (20-22A)

Rated output current

6KW  (20-30A)

Rated voltage frequency

AC 220V/50Hz

Voltage adaptation range

100V ~ 260V, constant power output at 210 ~ 260V

Adapt to ambient temperature

-20ºC~50ºC

Adapt to environmental humidity

≤95%

Power adjustment range

20% ~ 100% stepless adjustment(That is: adjustment between 0.5 ~ 5KW)

Heat conversion efficiency

≥95%

Effective power

≥98%(Can be customized according to user needs)

working frequency

5~40KHz

Main circuit structure

Half-bridge series resonance

Control System

DSP-based high-speed automatic phase-locking tracking control system

Application mode

Open application platform

monitor

Programmable digital display

start time

<1S

Instantaneous overcurrent protection time

≤2US

Power overload protection

130% instantaneous protection

Soft start mode

Fully electrically isolated soft start heating / stop mode

Support PID adjustment power

Identify 0-5V input voltage

Support 0 ~ 150 ºC load temperature detection

Accuracy up to ± 1 ºC

Adaptive coil parameters

6KW   10 square line, length 13m, inductance 65uH

Coil to load distance(Thermal insulation thickness)

20-25mm for circle, 15-20mm for plane, 10-15mm for ellipse and within 10 mm for super ellipse

rated power

Single-phase 6KW

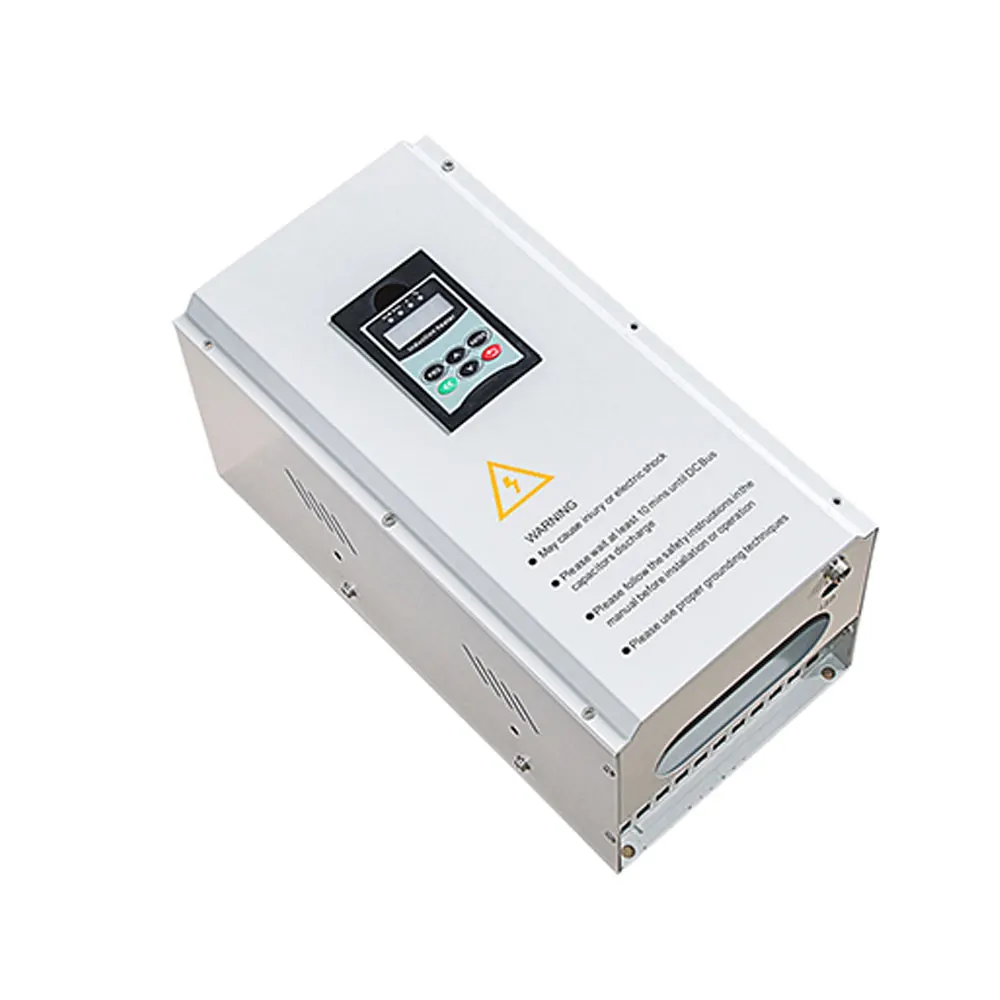

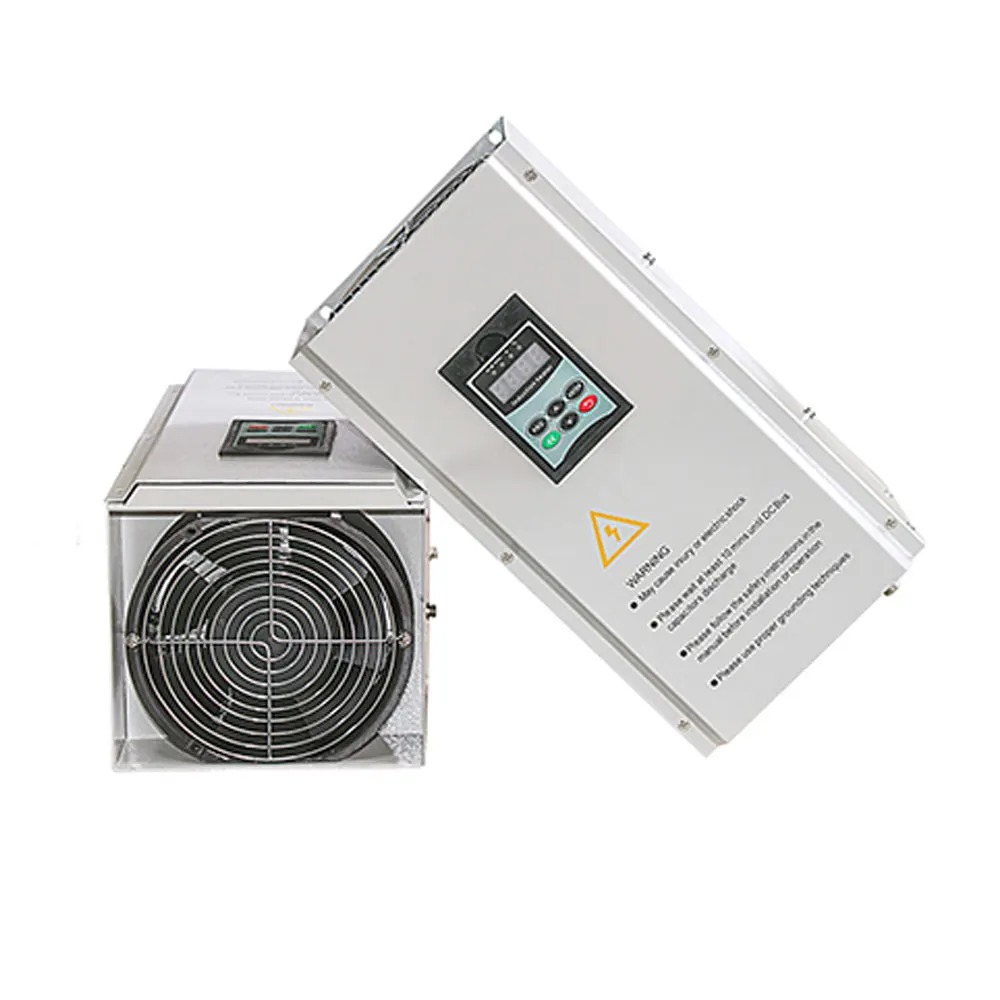

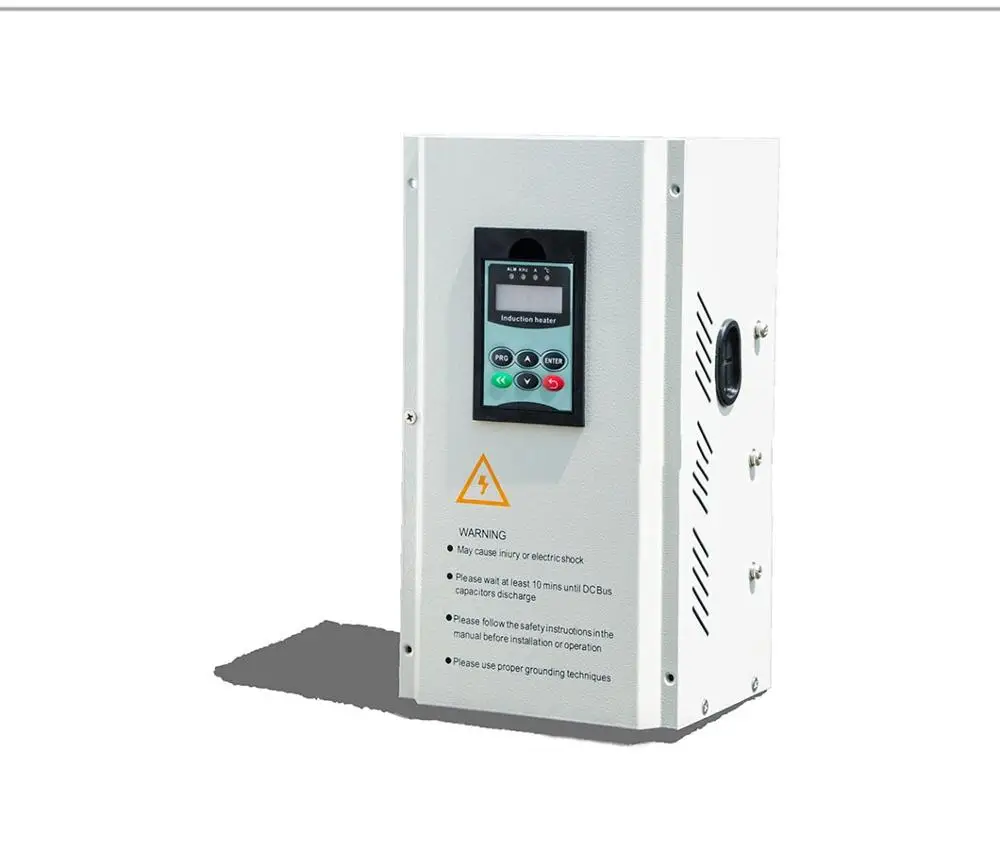

6KW 220V digital electromagnetic heating controller is a multi-purpose high-efficiency heating and energy-saving product. It has significant power saving effects, fast heating speed, high thermal efficiency, and lower production environment temperature. This product adopts the company's fifth-generation digital processing platform technology, an embedded 32-bit processing system, and full digital phase-locked tracking processing. The motherboard has rich interfaces and supports the standard modbus RTU communication protocol, which can easily realize touch screen man-machine dialogue and remote control. In addition, it has the advantages of fast tracking speed, high precision, strong adjustability, strong coil adaptability, easy installation, and simple debugging. It can be widely used in high-efficiency heating equipment such as plastic machinery, food machinery, and commercial induction cookers.

FAQ

Q: Is it easy for a new operator ?

A: Yes, this device easy operate and you will love it!

Q:Can I watch the heating test video before place order ?

A: Yes, you can!

Q: Do you have any Certification for entry EU market ?

A: We have CE certification, you can chat with me and get it.

Q:I see the price is including shipping cost. which Express you are use?

A: Shipping to EU market, we usually use DHL HK Shipping to Russia Market, We usually use EMS Shipping to Mid-east, we usually use DHL HK or Aramex. We use all Express hopefully you can get goods within one week after place order and safety delivery.

More other question, you can leave me message
