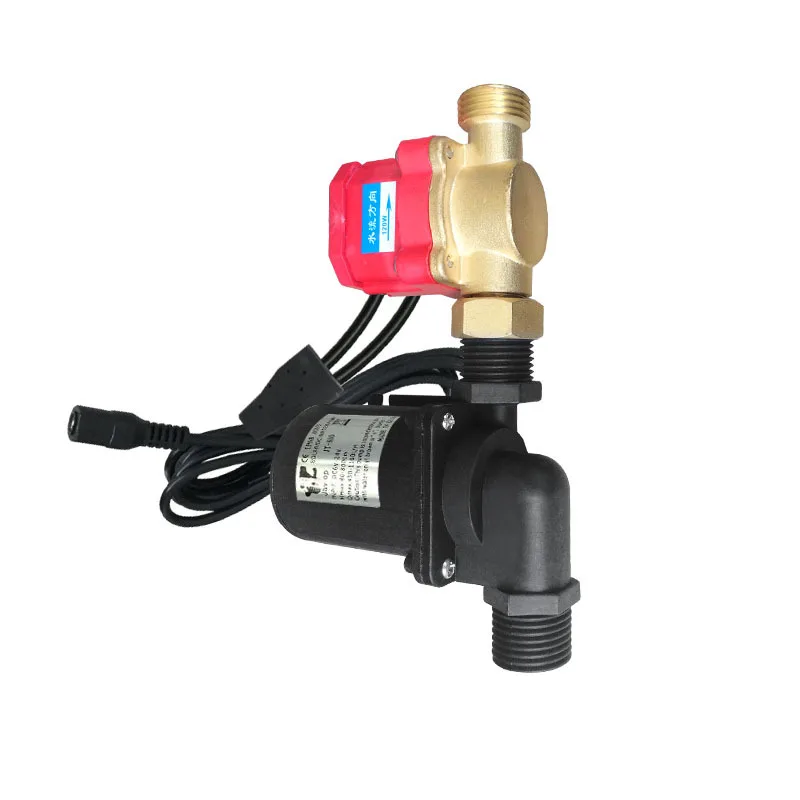

Brushless 24V Booster Water Pump Automatic Hot Water Circulation Pump 24V with Flow Switch Sensor

Specifications:
Housing material: ABS
Voltage: DC24V
Max Output: 1000L/H
Max Lift: 7.5M
Inlet/Outlet: 1/2" BSP thread
Ceramic glaze shaft
Life Span: about 30000 hrs
Working: Continuous
Cable length: 1m
Heat Resistance: -40°C~100°
Self-priming: No
Noise: 40db MAX

Automatic flow control switch

Intelligent control board set modern micro-control technology, flow technology in one of the technology products. When the flow sensor detects the flow of water flow switch automatically opens. The switch automatically shuts off when no flow is detected by the flow sensor.
Technical Parameters:
1. Rated voltage: DC12-24V three lines, respectively, positive, negative, control the output pole (negative),
The red line input positive white line is the input negative black line is the control output negative
2. Rated current: 5A
3. Maximum power: 100W
4. The maximum working pressure: 1.2MPa
5. Start water flow: ≥ 1.0 L / MIN
6. Body length: 58mm
7. Interface:Outlet: Male thread (G1 / 2")
8. Body material: nylon fiberglass
Spool material: PET
10. Flow switch temperature 100 degrees.
11. Flow switch with epoxy package, 100% waterproof, submersible, waterproof IP68.

Features:
BLDC motor, also known as EC motor; Magnetic Driven;
Small size but strong; Low consumption & High Efficiency;
Long time continuous working, lifespan about 30000 hours;
Safety - no spark, Explosion - proof; Low noise about 40dB;
Amphibious pump, 100% waterproof; Max Working Temperature: 100 degree;
Variety Power: DC electric source, Battery or Solar Panel;
