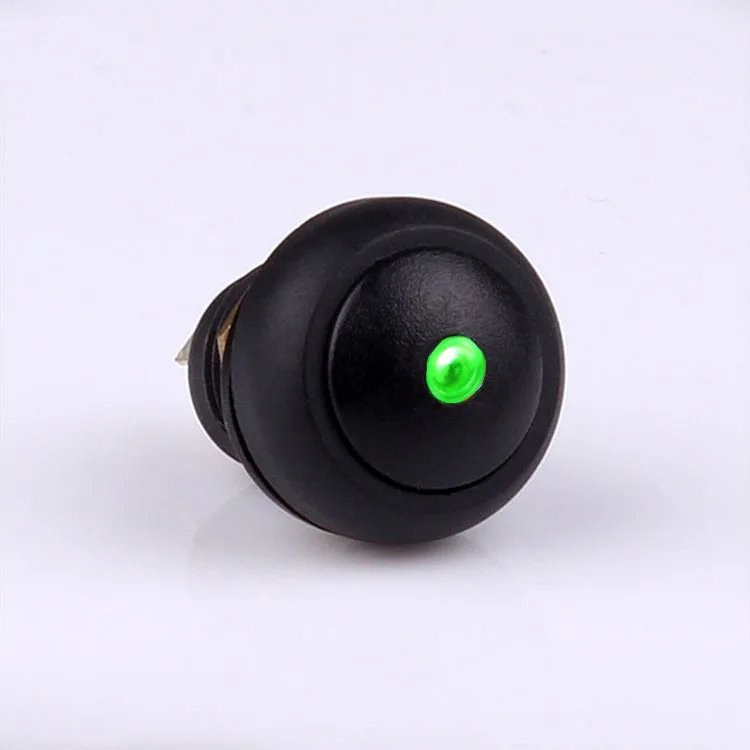

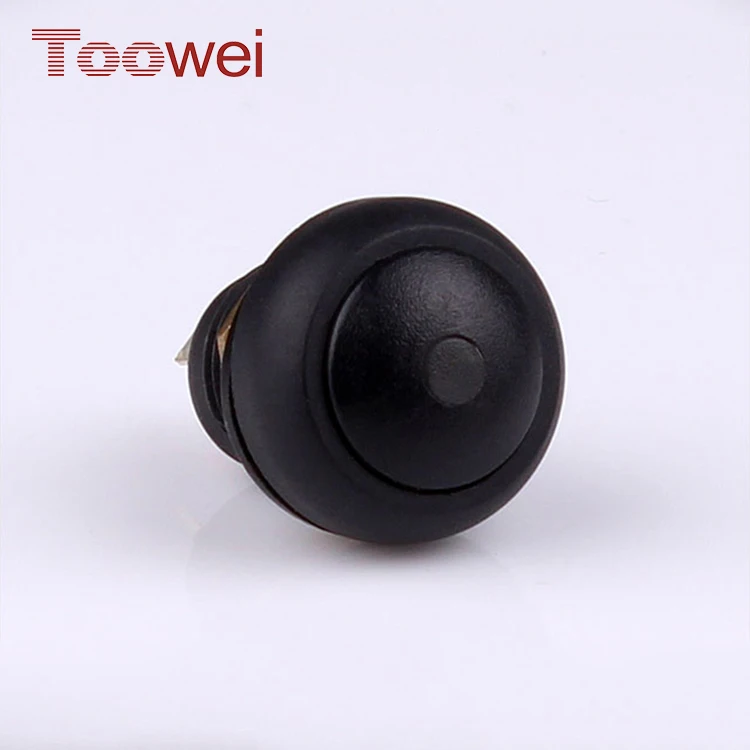

dot led 5A 250VAC Factory Supply black latching self locking or momentary 12mm IP67 LED Water Resistant Button Electric Switch |

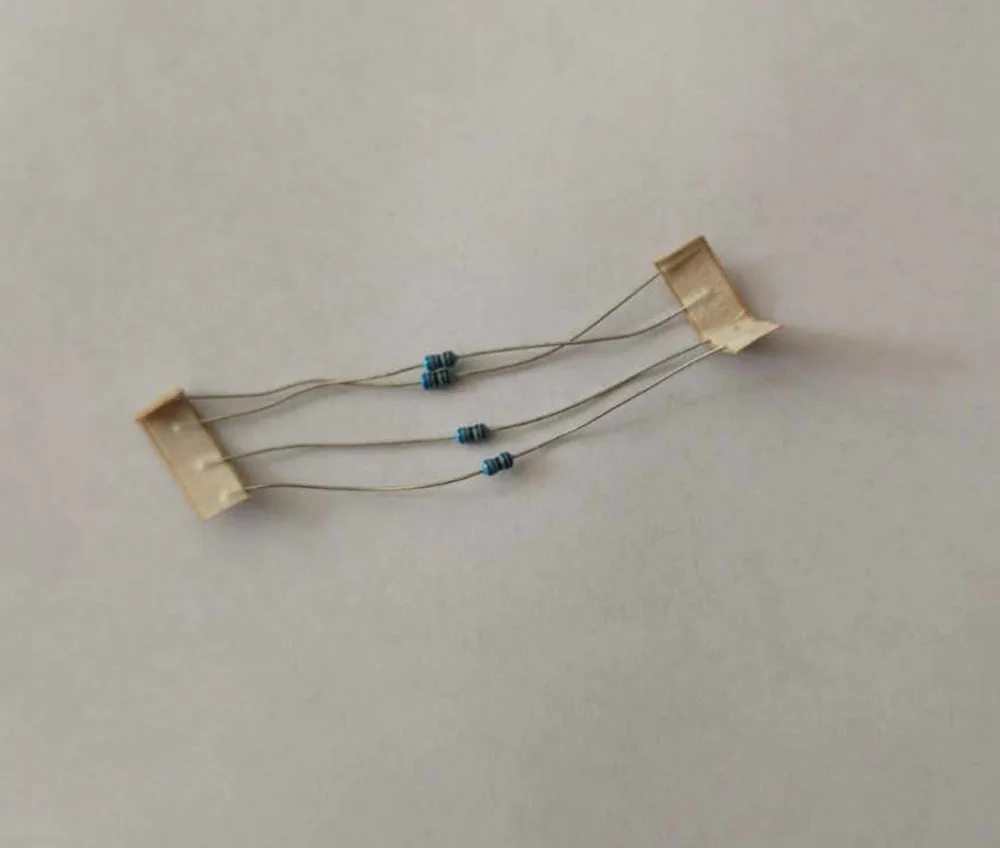

Blue led 5A 250VAC Factory Supply black latching or momentary  12mm IP67 LED Water Resistant Button Electric Switch Note:Resistor not inside ,should soldering resistor outside when operation.

LED voltage 2.4V does not has the outside resistor

Momentary: Means that when you push switch and then move your finger, the actuator will back to the original position.

Latching: Means that when you push switch once it will change state and stay in this pushed-down position and will not come back to original position unless you push it again.   Specification Waterproof Button Switch with Dot-illumination Model 4126.8114.18/4126.8214.18 Rating Value 5A 250VAC Button Color Light Color Blue Red/Green/Yellow/Blue/White Ambient Temperature -25 °c to +80 °c Founction  ON-OFF/(ON)-OFF  Dimension Diameter 12mm+0.2 Protection Degree IP67 Product Description Feature

1.  A4126 series waterproof pushbutton switch , metal waterproof  pushbutton switch , overall waterproof pushbutton switch protection degree up to IP67 .

2.  Mounting Dimension:12mm

3.  Material : Plastic or Matel

4.  Function:Self-locking or momentary

  Model and Meaning

* Metal button type only have round button.

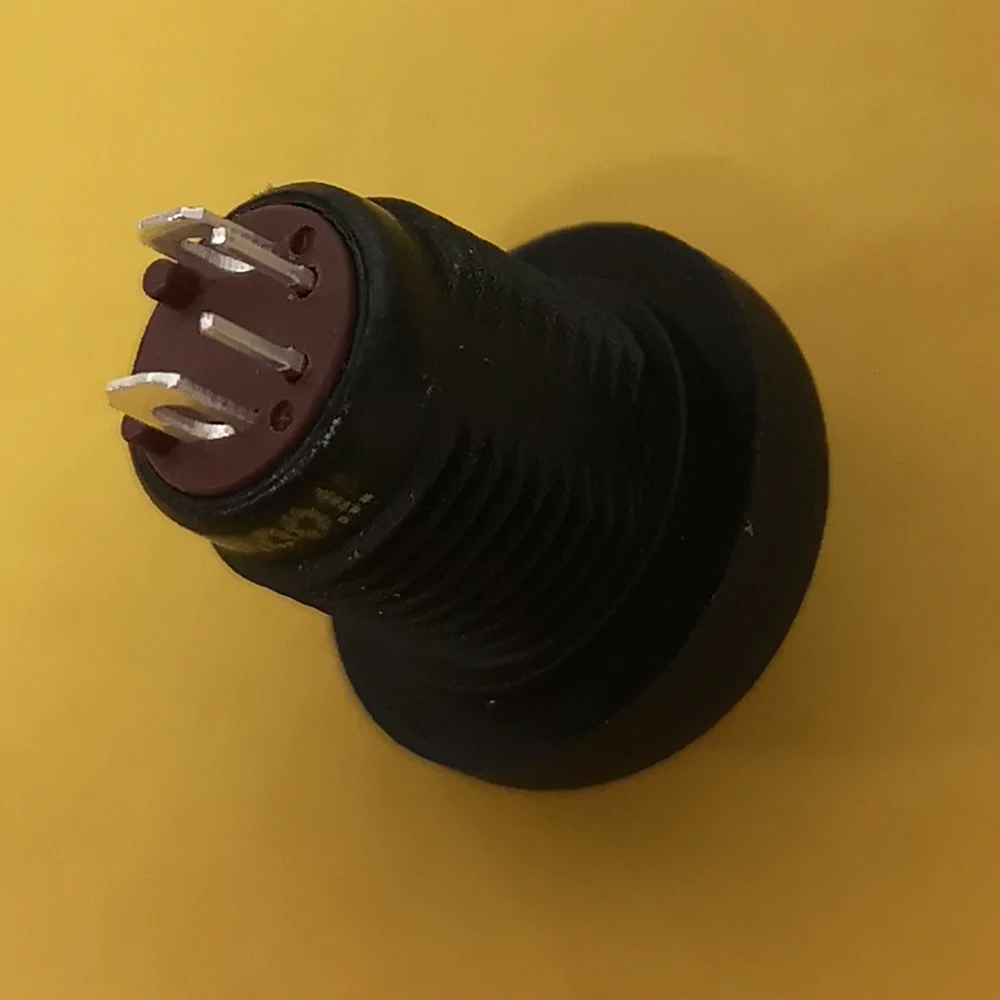

A4 12 □ □ □ □ □ □ A4126 code Dimension Terminal Shape Form Function Led Light Color Button Color Shell Material & Color Waterproof Pushbutton Switch 12:Φ12mm 6: Soldering 7:With Wiring 8: Round 9 : Square 1.Self -locking 2.Momentary(Non-self locking 0: No light 1:Red 2.Green 3. Yellow 4.Blue 5:White 1:Red 2.Black 3.Gray 4:Blue 5:Orange 6:Yellow 7:Green 8:White 9:Metal 5:Metal (Bright) 6:Metal :(Matte) 7:Black Matel 8:Black Plastic
