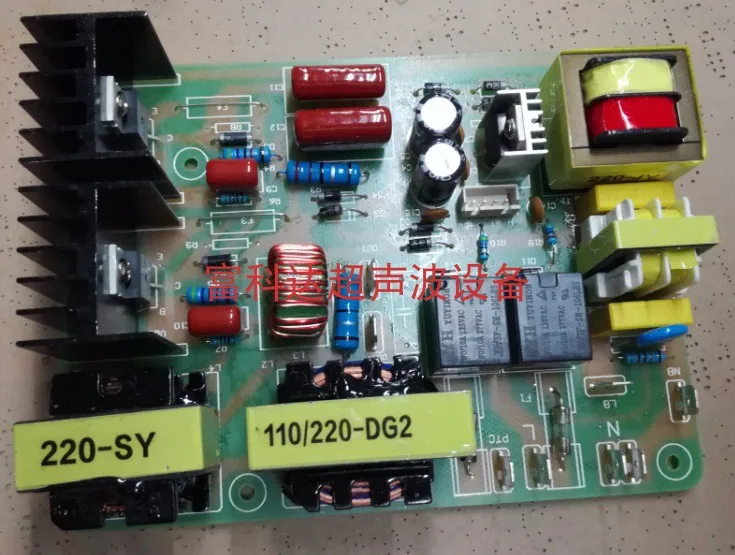

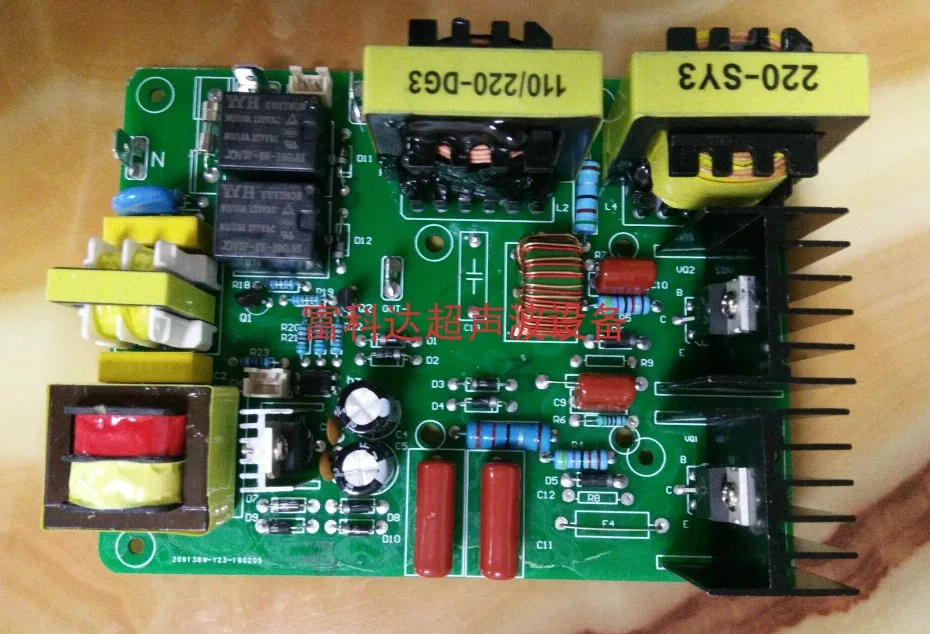

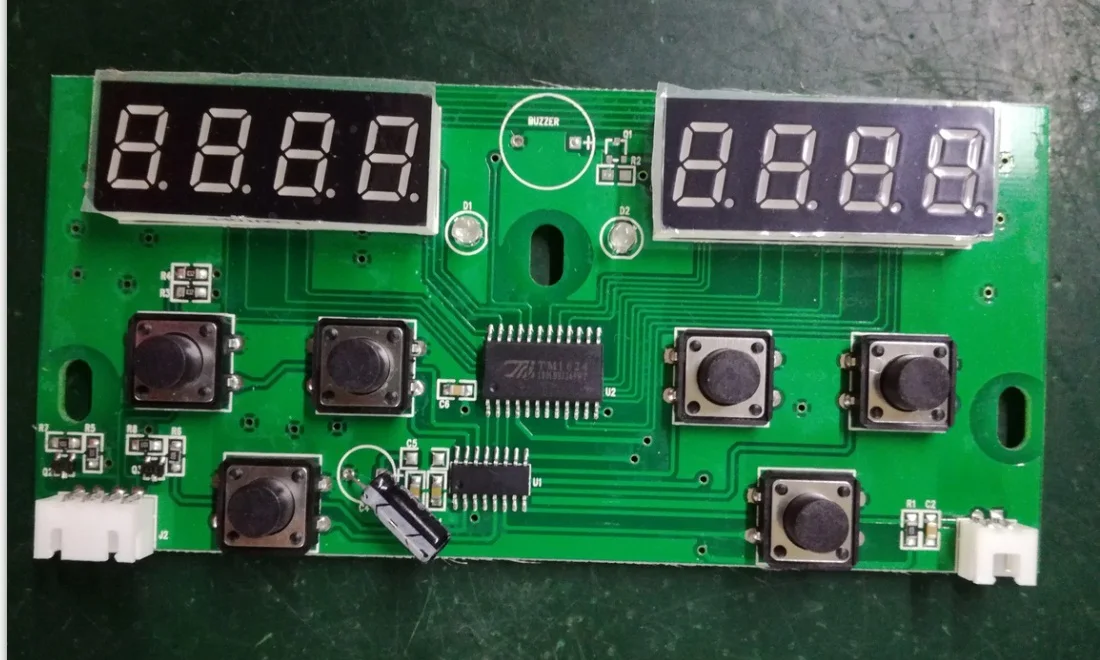

Main circuit board parameters:

Power requirements: AC 110V (-15 ~ +10 PPT), 50Hz(to be customized)

AC 220V (-15 ~ +10), 50Hz

Ambient temperature: -10℃ ~ 40℃

Ambient humidity: 35 ~ 85 %

Installation size: about 110x105x40mm

Transducer frequency: 40KHz

Product advantages:

1. Power tube: imported power tube;

2. PCB: 2 ounces on both sides;

3. Stable performance;

4. Large radiator, fast heat dissipation

5. 40 KHZ frequency

Wiring instructions for circuit board and shock head:

1. Circuit board in principle can not be energized without load;

2. When the installation of cleaning in the absence of any cleaning fluid in the case of power had better not more than a minute;

3. The 60W drive plate is a shock head and connected to the circuit board terminal. A circuit board and a shock head are used together.

4. The 120W drive plate is two shock heads and connected to the circuit board terminal. One circuit board and two shock heads are used together.

5. The 180W drive plate is three shock heads and connected to the circuit board terminal. One circuit board and three shock heads are matched

When the OUT+ connection is made with the positive and negative electrodes of the transducer (shaper), please remember not to connect them incorrectly.

(note:the voltage of the output terminal on the circuit board is about 400V. Please pay attention to safety. It is better to have leakage protection switch on the input power supply to ensure safety!)
