Feature:
*1.It is an indispensable bicycle tool that can be used to measure and straighten the misaligned transmission hanger, solving most of the shift problems.

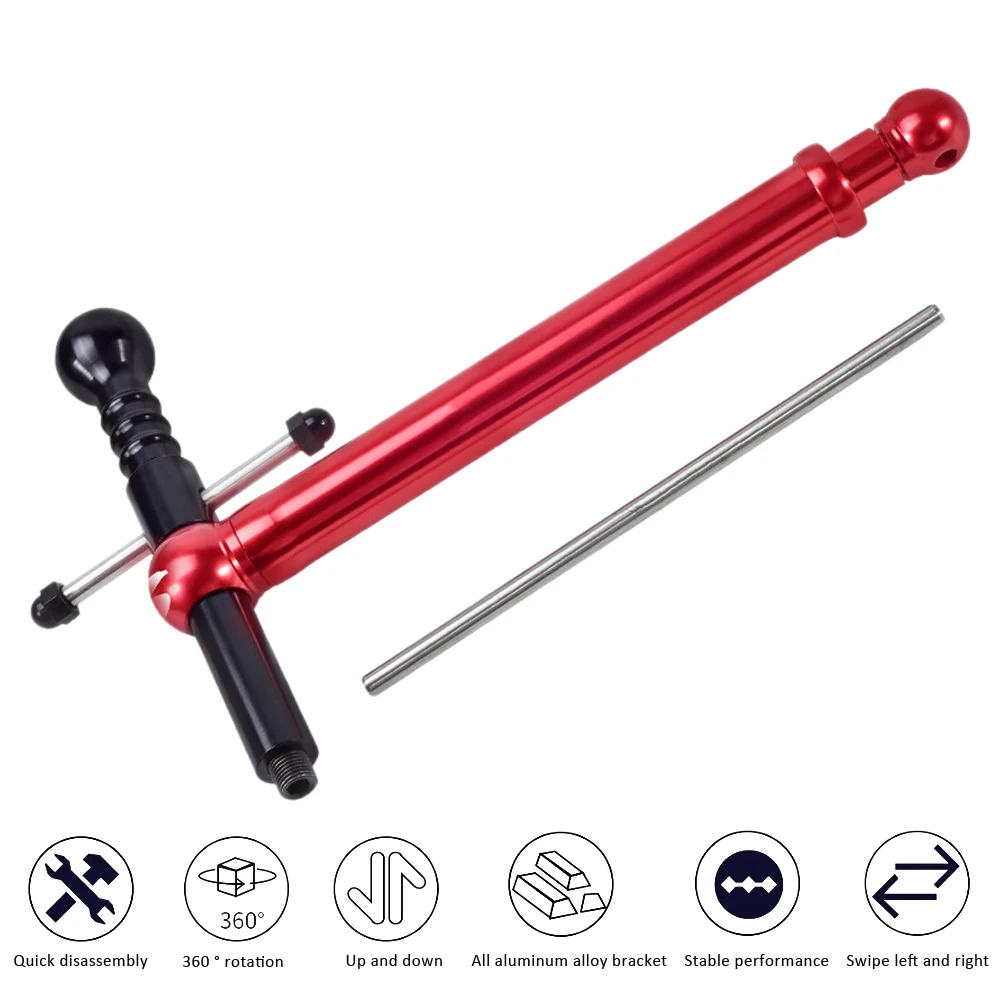

*2.The main body is aluminum alloy, CNC cutting process, integrated forging processing, not easy to rust and deform, not only beautiful appearance, but also high abrasion resistance, non-dissipating and non-shedding.
*3.The wheel replaceable threaded tip is upgraded after the large inner axle increases the strength tolerance more strictly, improves the accuracy of the improved clearance and extension range to accommodate more frame/hanger combinations, including low clearance through the shaft transmission hanger.
*4.For the calibration of variable lugs for many variations of speed, especially for postpositioning variable speed systems.

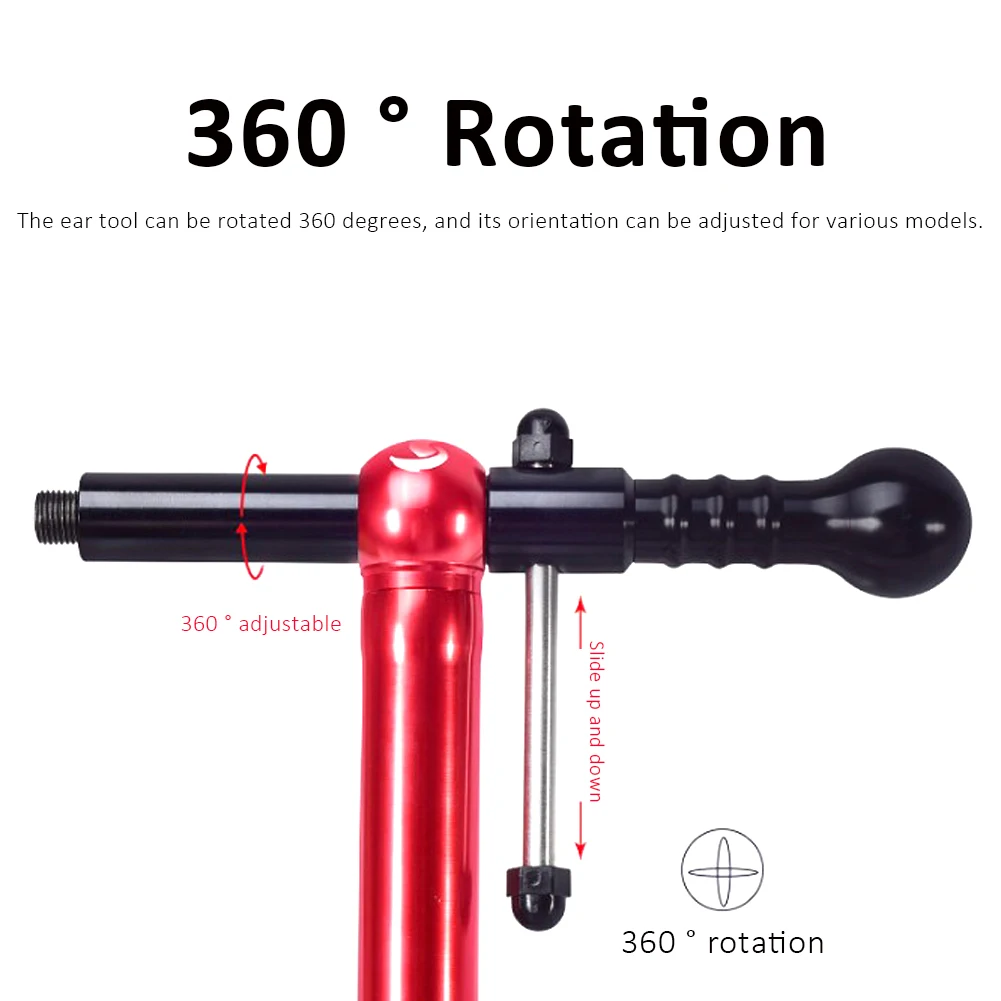

*5.The lifting ear tool can rotate 360 degrees, can adjust the orientation, and the humanized design is convenient for various models.
*6.Essential for bicycle lovers.

Specification:
Material: Aluminum Alloy + Stainless Steel
Color: Red (As Pictures Show)

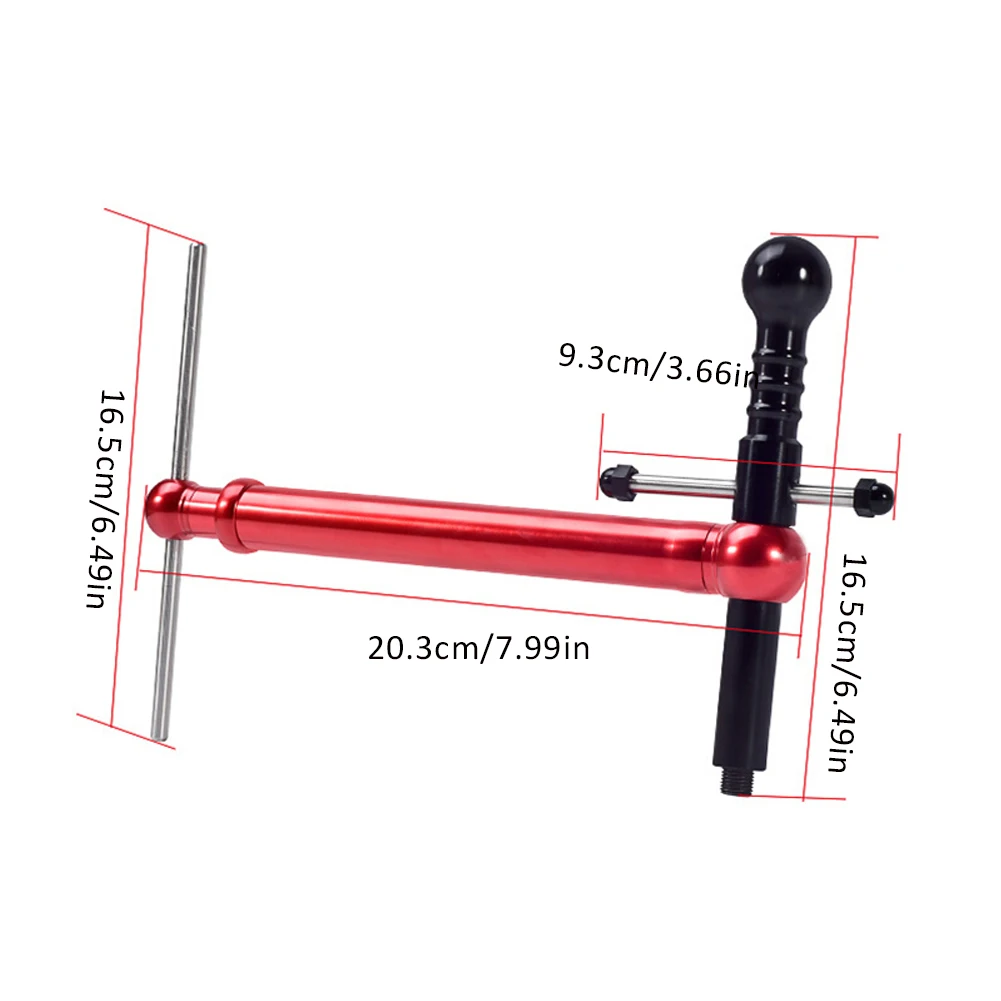

Size: As Pictures Show
Scope of use: 26/27.5/29/700C

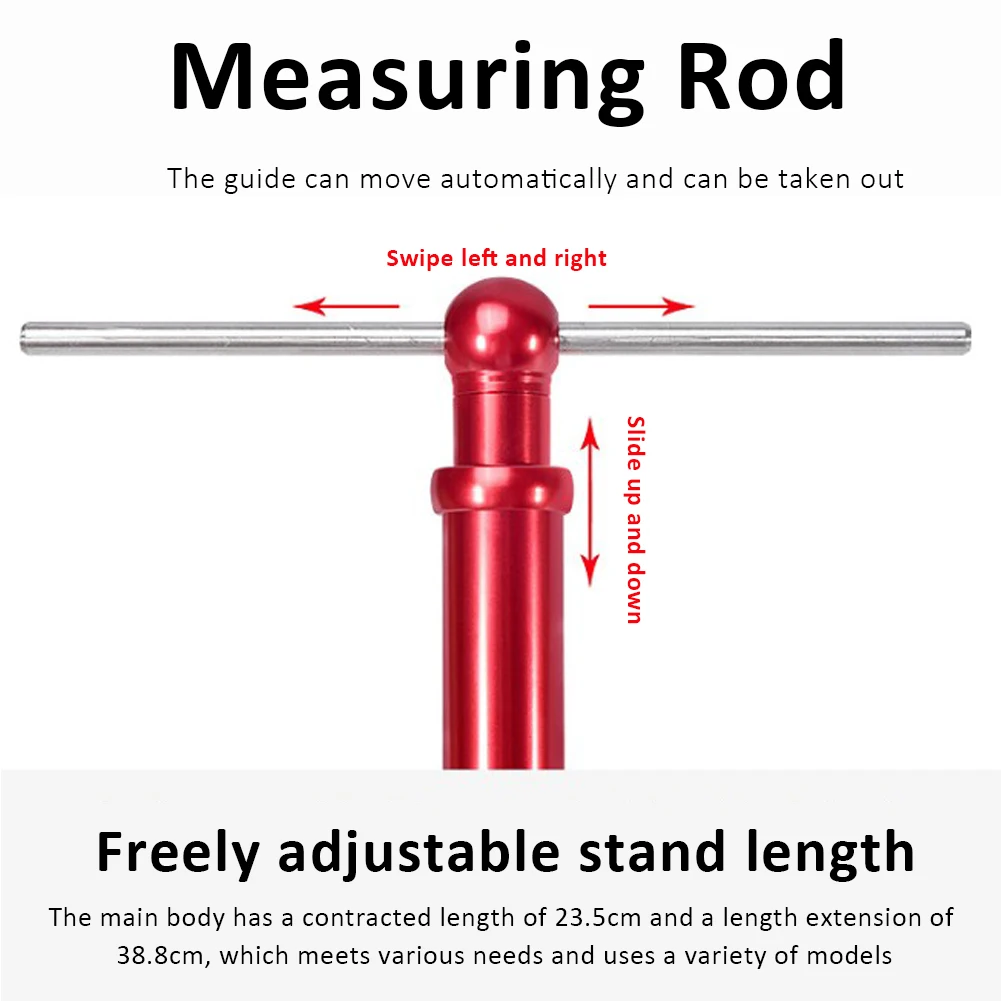

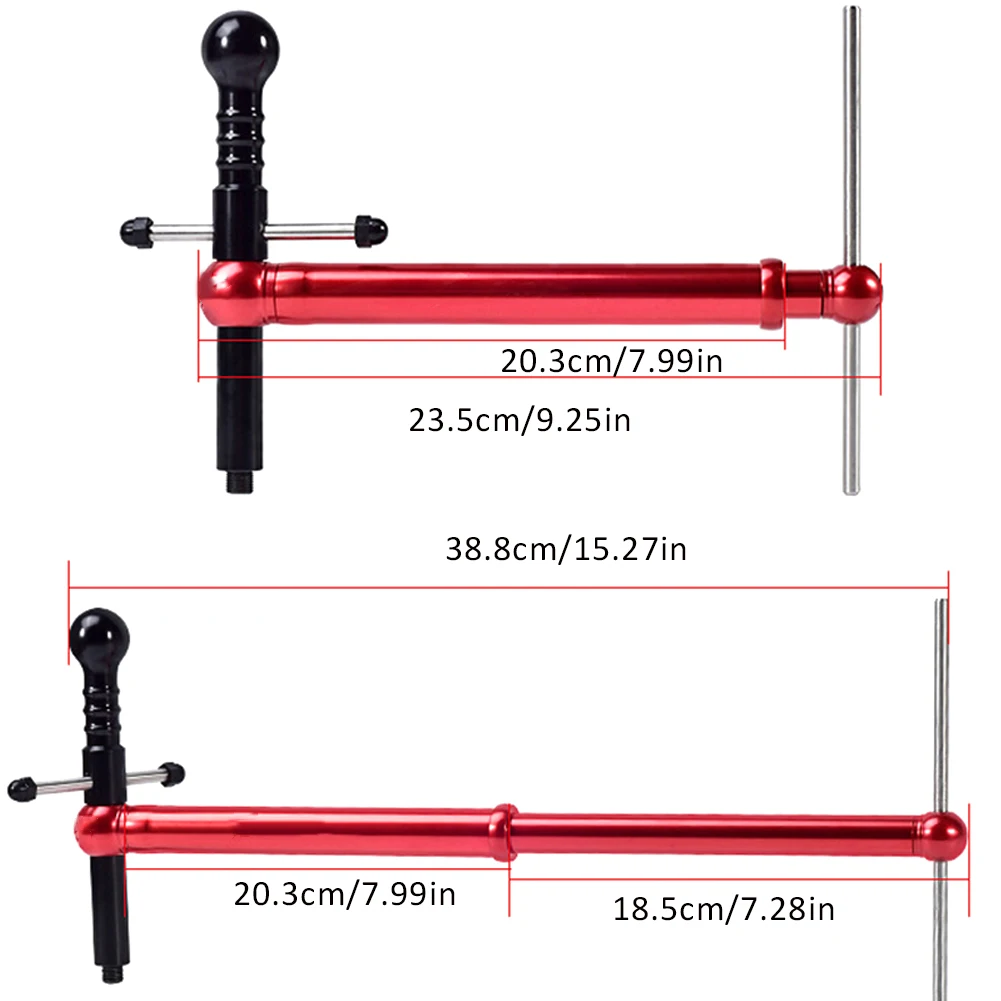

Storage height:235mm (Approx)
To top height:388mm (Approx)

Install:
1.The part 1 into the indicator bracket corresponding end.
2.Sliding handle into the part 1 corresponding position lock good nut.
3.The part 3 into the corresponding position of part 4,set such as O-ring.

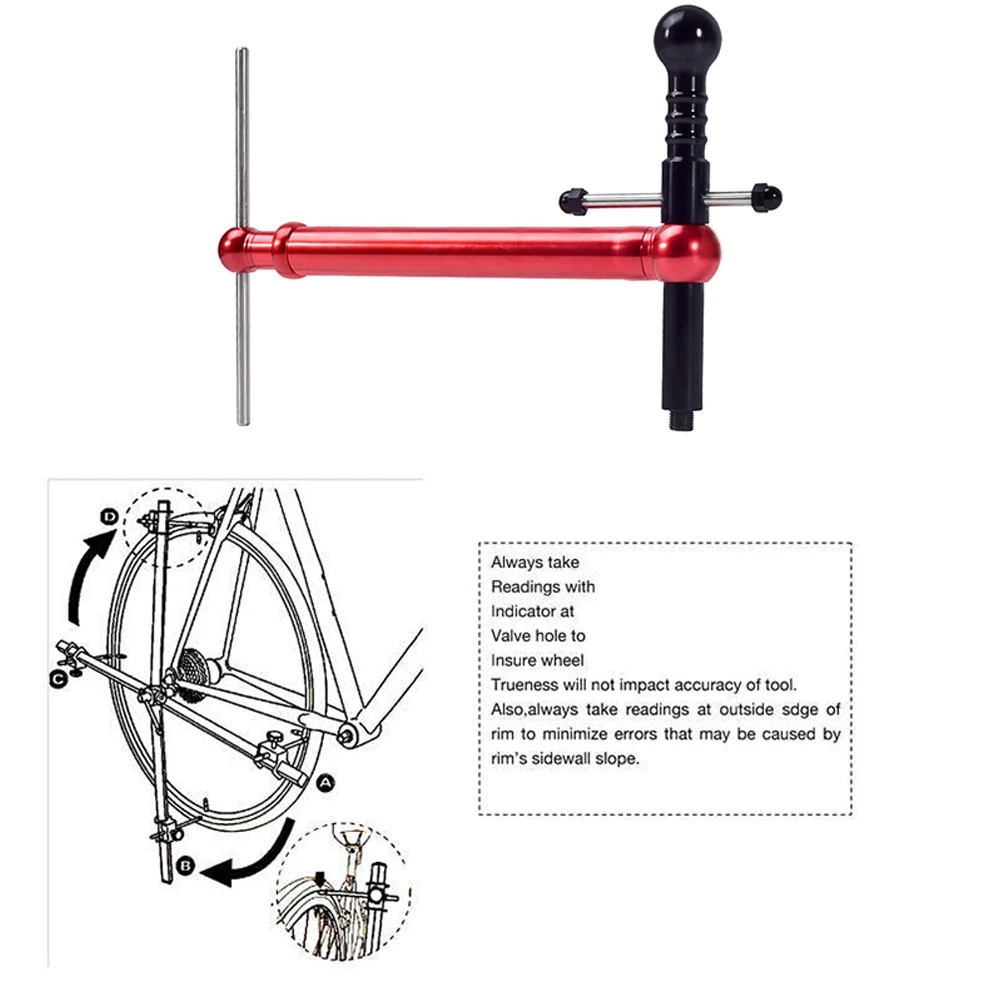

Instructions:
1.Install wheel in frame.Make sure rim is Correctly centered in frame.
2.Remove derailleur from derailleurHanger.
3.Thread inside shaft(Ref# 1)into derail-Leur mounting hoie.
4.move indicator so tip of indicator contacts outside Edge of rim(position A).
5.Move sliding bracket so indicator is clear of rim.Then rotate tool 180 degrees to position C.
6.Move sliding bracket and indicator to outside edge Of rim.If tip of indicator iswitin 4mm of outside,Edge of rim,the hanger is aligned horizontally.If tip Of Indicator is 4mm or more away from rim,or if indicator presses against rim,the hanger is missal-igned.Move slid-ing bracket and indicator so they are clear of rim.Then Inner shaft and correction correction handle(Ref# 1)as a lever to bend hanger into alignment horizontally.Repeat checking and bending betweenpositins A and C until clearance is less than 4mm.
7.After achieving correct horizontal alignment,keep indicator In same position and rotate to position B.lf
clearance.Between outer edge of rim and tip of indicator is lees than 4mm,rotate tool to position D.If clearance is greater than 4mm,Or if indicator presses against rim at position B or D,use Inner shaft and correction correction handle As a,lever to align hanger vertically.
8.With properly aligned hanger,tip of indicator should just contact Outer edge of rim at one position and have no more than 4mm Clearance at any of the other positions.Check and align all four Positions until is accomplished.

Package Content :
1 Set of Rear Derailleur Hanger Alignment Tool

Reminder:
1.All pictures are professionally color-coded, but due to the different ambient light and different display device settings, there may be some deviations between the pictures you see and the items themselves. Please understand.
2.The data is measured manually, there may be some deviation, but it does not affect the use.
