Scooter Motherboard Mainboard Hoverboard Control Board for 6.5 Inch 2 Self Balancing Electric Skateboard Overboard | Автомобили и

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } 1. Suitable for 6.5~10inch balance scooters.
2. Low battery protection, and tilt protection.
3. Power indicator for turn signal and pedal indicator light.
4. Safety tips: low power tips, overspeed tips (the speed reaches 8km/h and the pedal gradually picks up).
5. Maximum speed: 12km/h(when the speed reaches 8km/h, the front starts to rise; when the speed reaches 10km/h, the alarm starts).
Type: third gear debugging motherboard
Colour: Black
Material: PCB board
Maximum speed: 12km/h
Maximum range: 20km (depends on terrain, temperature, driving mode and load)
Maximum load bearing: 120kg
Maximum climbing Angle: 15 degree
Minimum turning radius: turn in place /zero
Maximum current: 15A on each side
Charger voltage: 42V 2.0A
Charging requirements: 100-240V 50 or 60Hz
Light indicator: power indicator for turn signal and pedal indicator light
Safety tips: low power tips, overspeed tips
Tilt protection: before and after are 80degree, more than 80degree electric machine stop operation
Low power protection: turn on with the remaining 10% of power
Package Included:

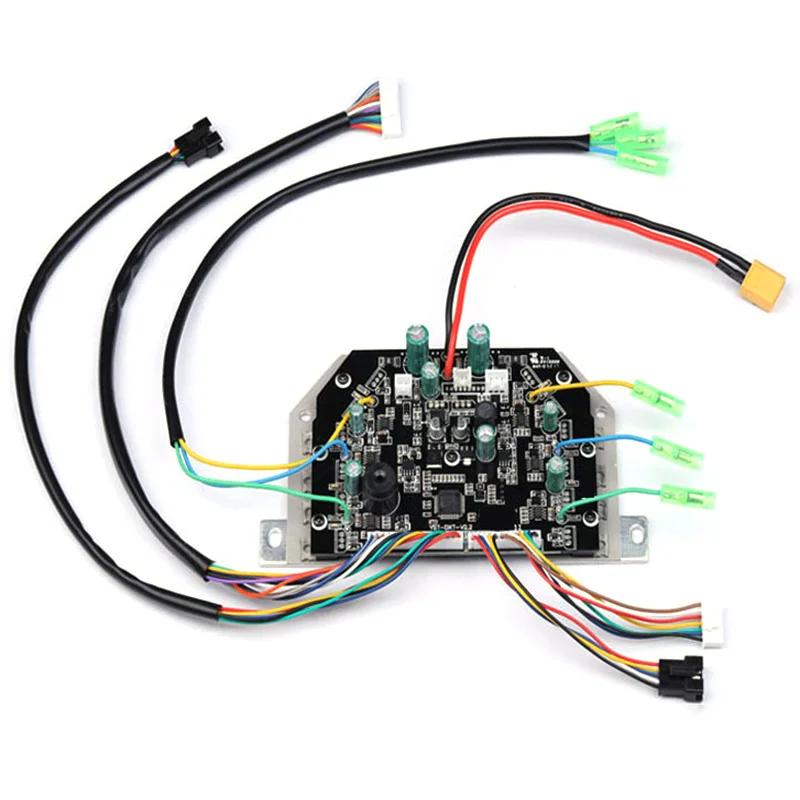

1PC * Motherboard

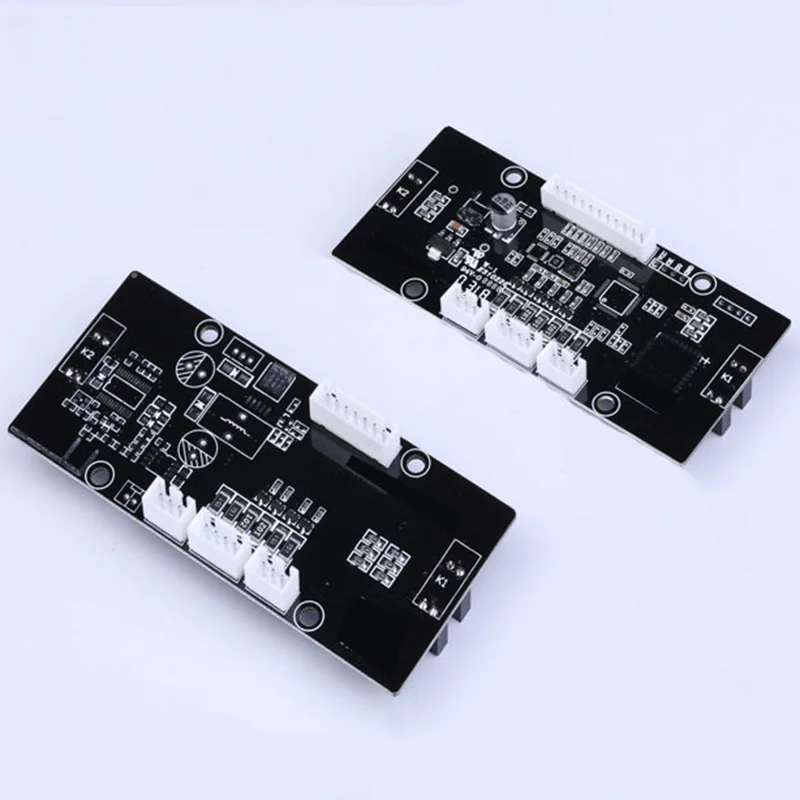

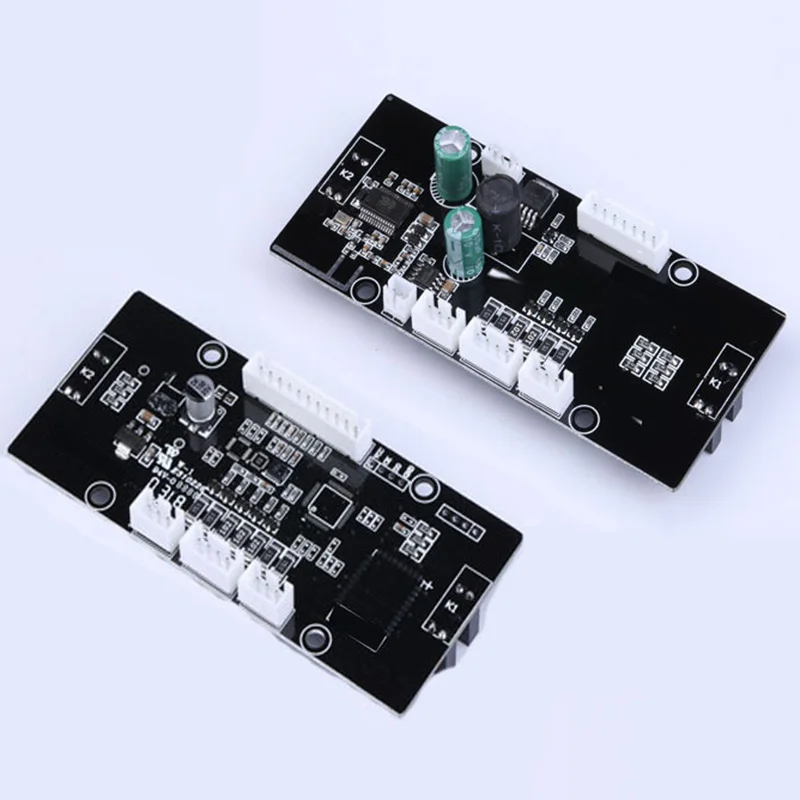

2Pcs * Gyro board

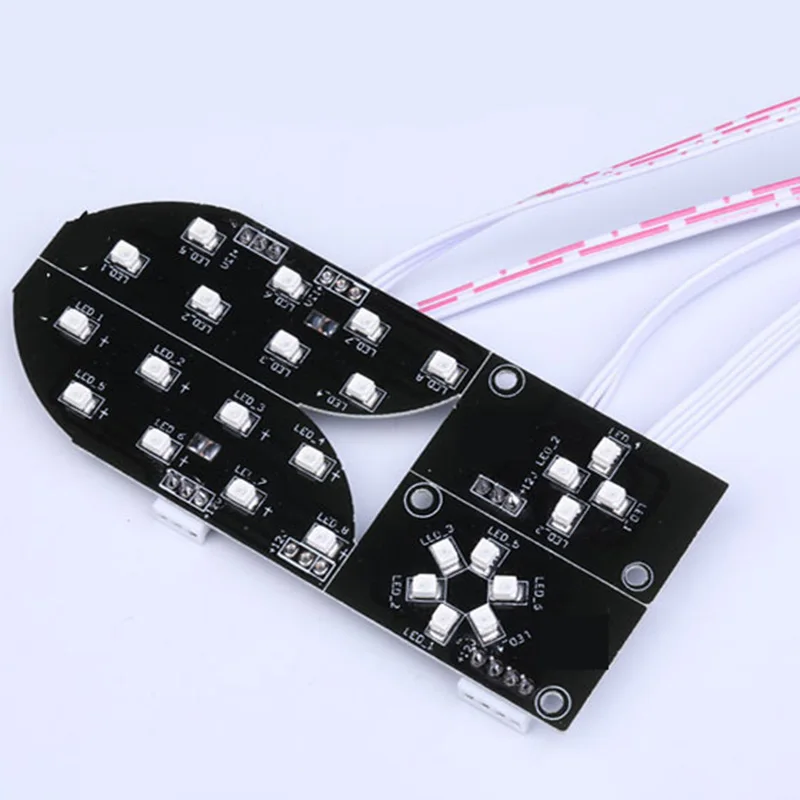

1PC * L LED Light Indicators
1PC * R LED Light Indicators
2Pcs * LED Light Circle(4 LED and 6 LED)

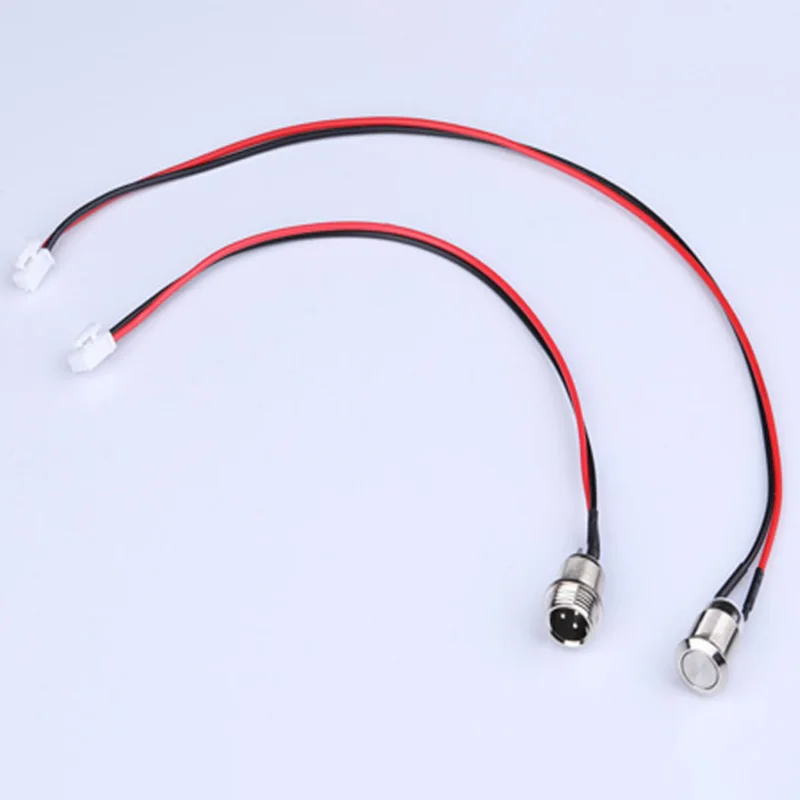

1PC * LED Supply Switch
1PC * Charging Socket Cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
