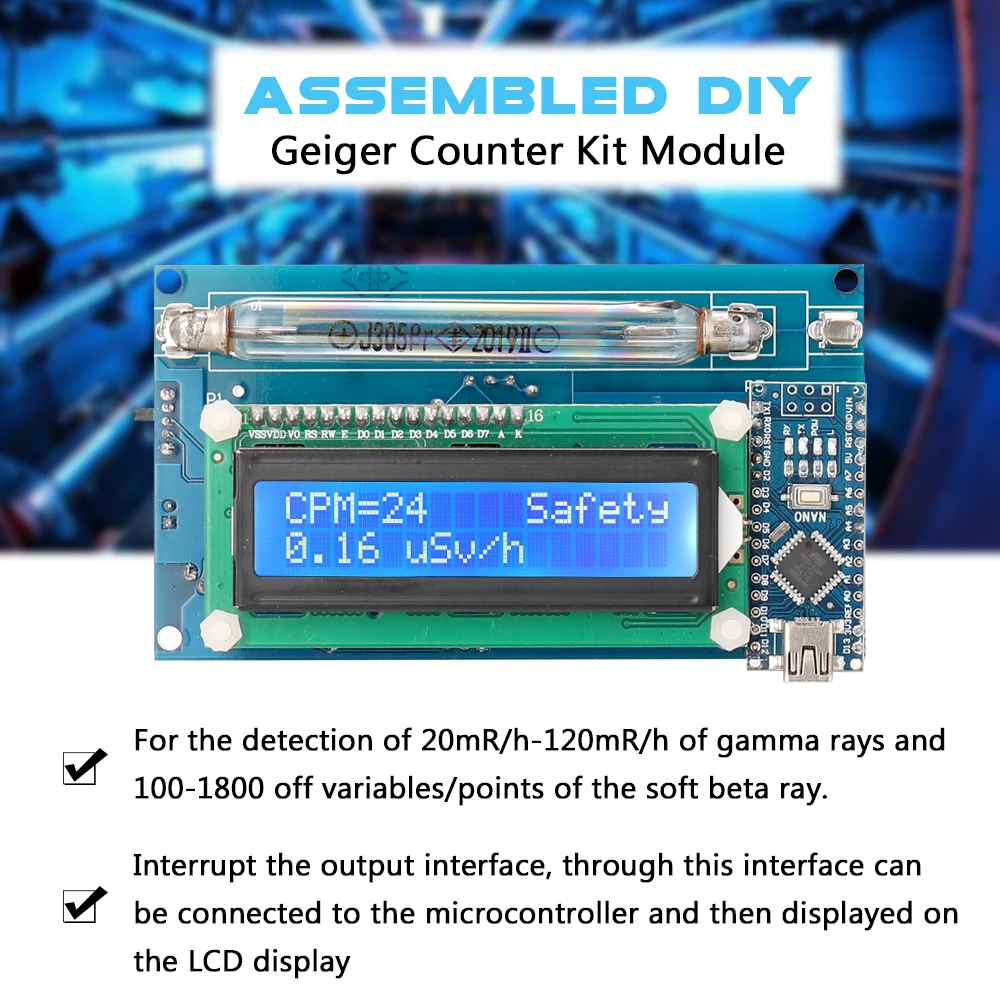

This is a kind of fine quality nuclear radiation detect module, Plug it and  you can directly measured nuclear radiation. For the detection of 20mR/h-120mR/h of gamma rays and 100-1800 off variables/points of the soft beta ray. You can have a try.

Features:
For the detection of 20mR/h-120mR/h of gamma rays and 100-1800 off variables/points of the soft beta ray.
Equipped with sound and light alarm.
Interrupt the output interface, through this interface can be connected to the microcontroller and then displayed on the LCD display.
Supports most of the Geiger tube: M4011, STS-5, SBM20, J305, etc. (the 330-600V operating voltage of the Geiger tube can be supported).
Support the computer (PC) data acquisition, Matlab analysis and processing.

Specifications:
Model: GC-1602-NANO

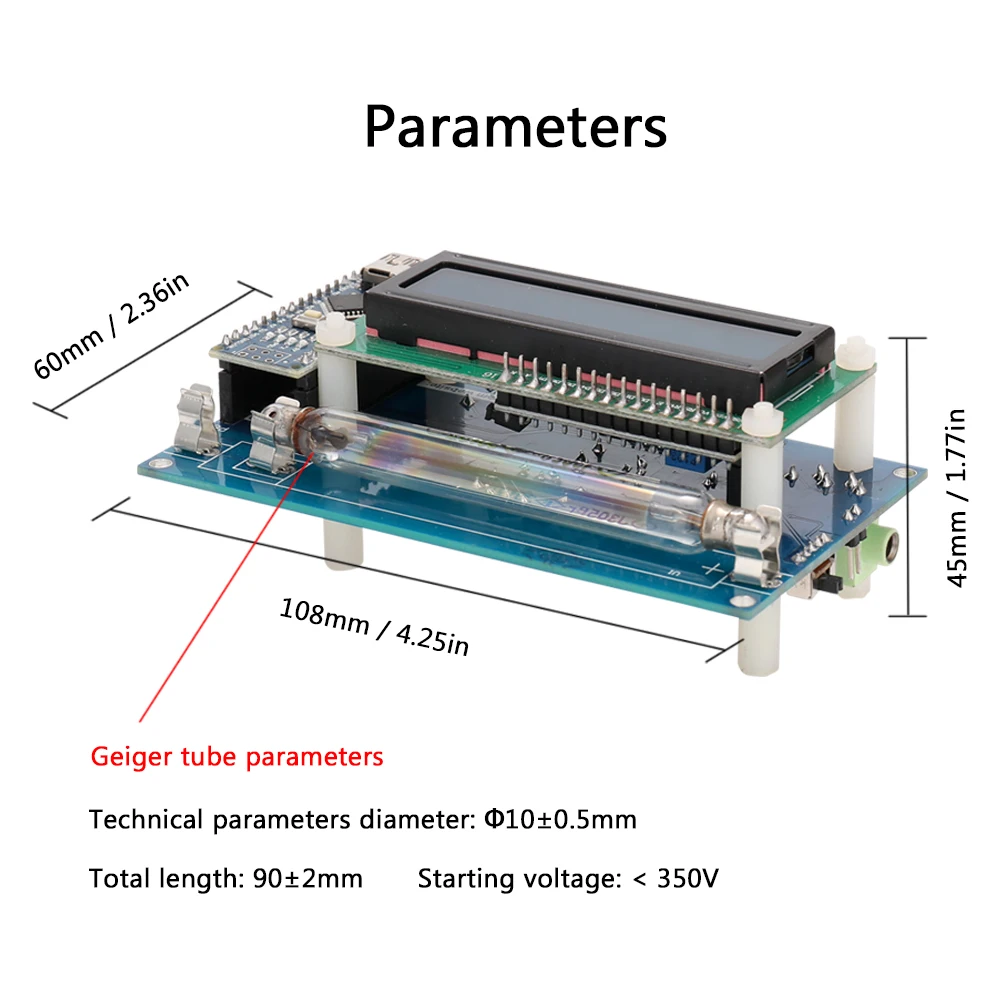

Geiger tube parameters:
Technical parameters diameter: Φ10±0.5mm
Total length: 90±2mm
Starting voltage: < 350V
Recommended operating voltage: 380V
Minimum plateau length: 80V
Maximum plateau slope: 10%/80V
Extreme operating voltage: 550V
The maximum count rate: 25 times / min
Life: > 1 * 10^9 pulse
Medium temperature: -40-55 ℃
Item size: 108 * 60 * 45mm / 4.25 * 2.36 * 1.77in
Item weight: 83g / 2.93ounce
Package size: 150 * 85 * 110mm / 5.91 * 3.35 * 4.33in
Package weight: 215g / 7.58ounce

Package list:

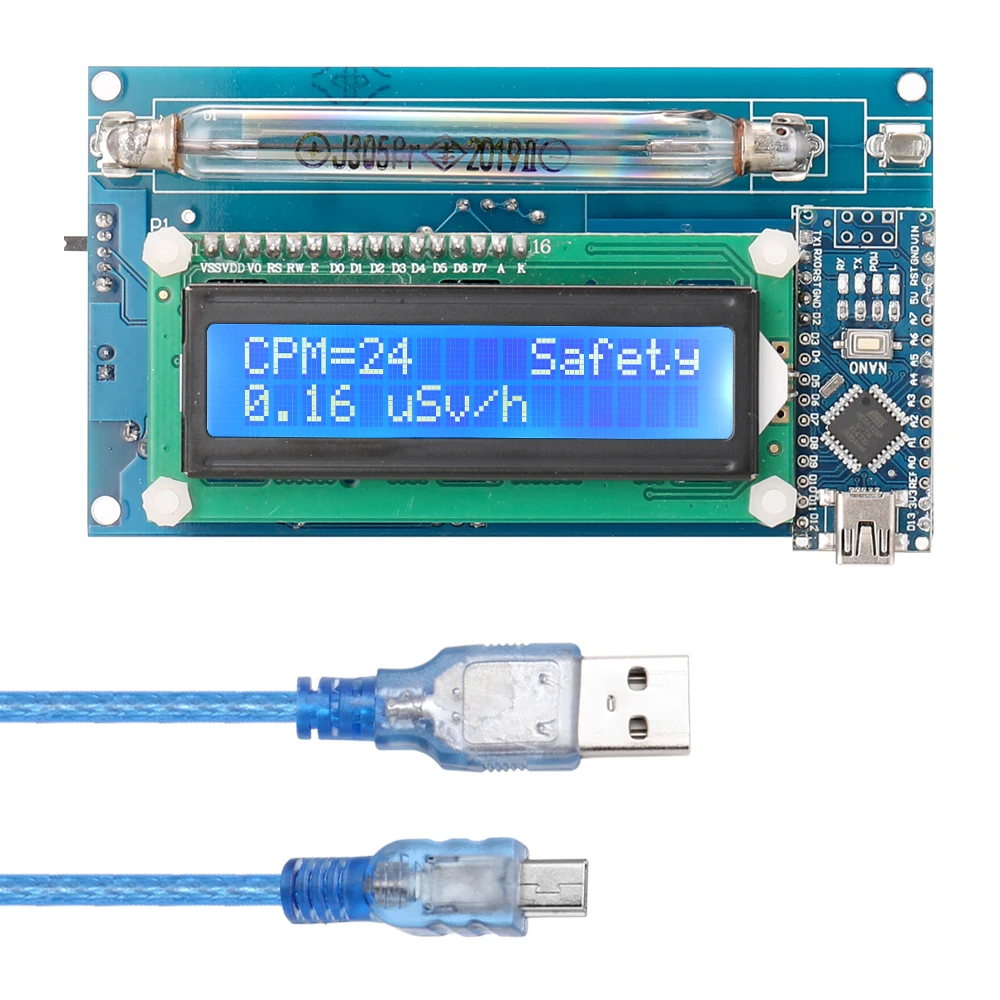

1 * Assembled Radiation Detector System(with LCD and Arduino Nano)
1 * USB Cable
