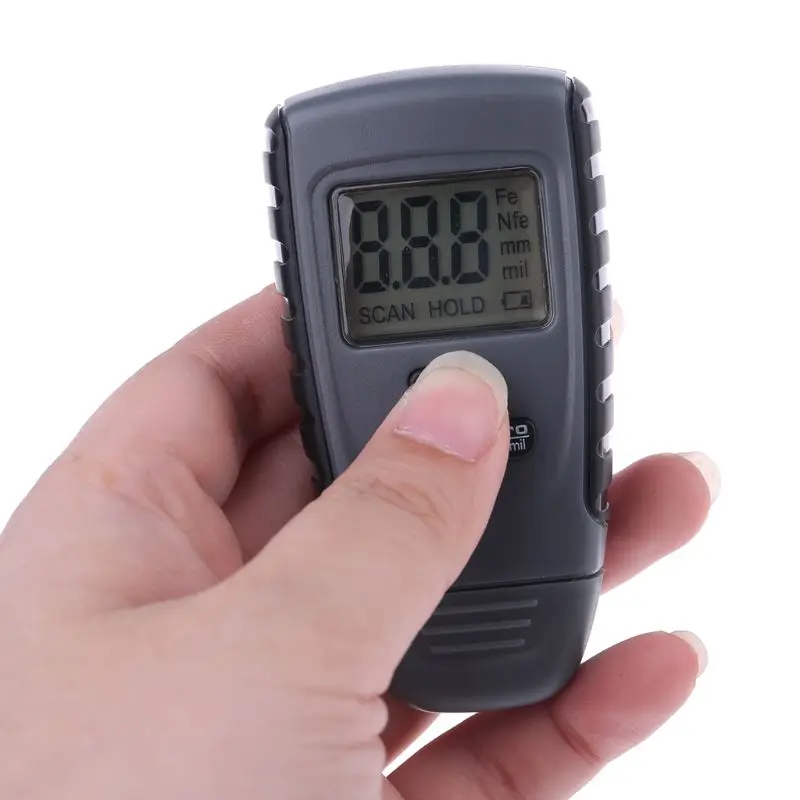

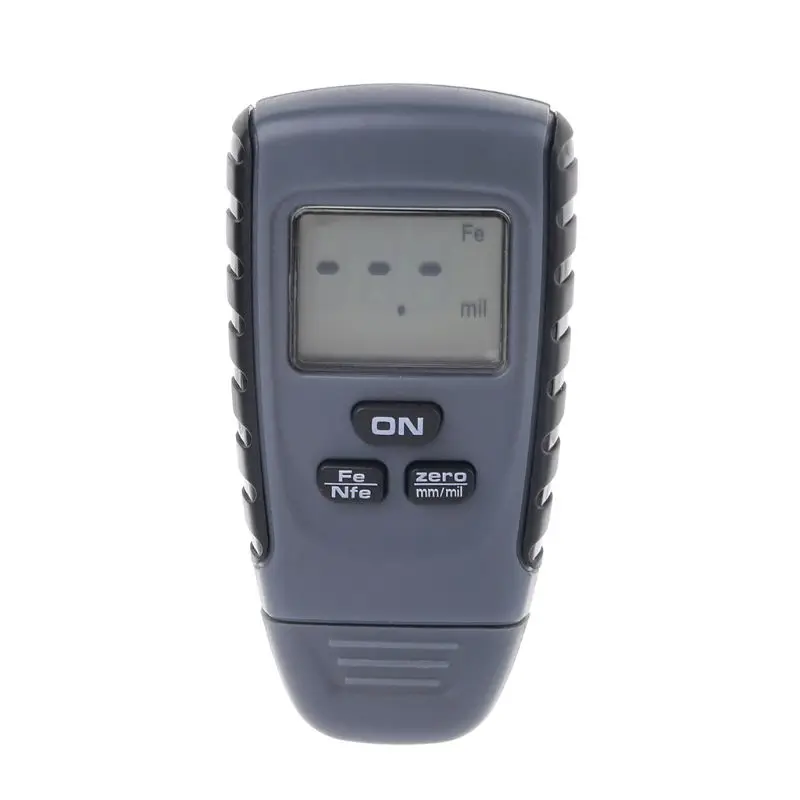

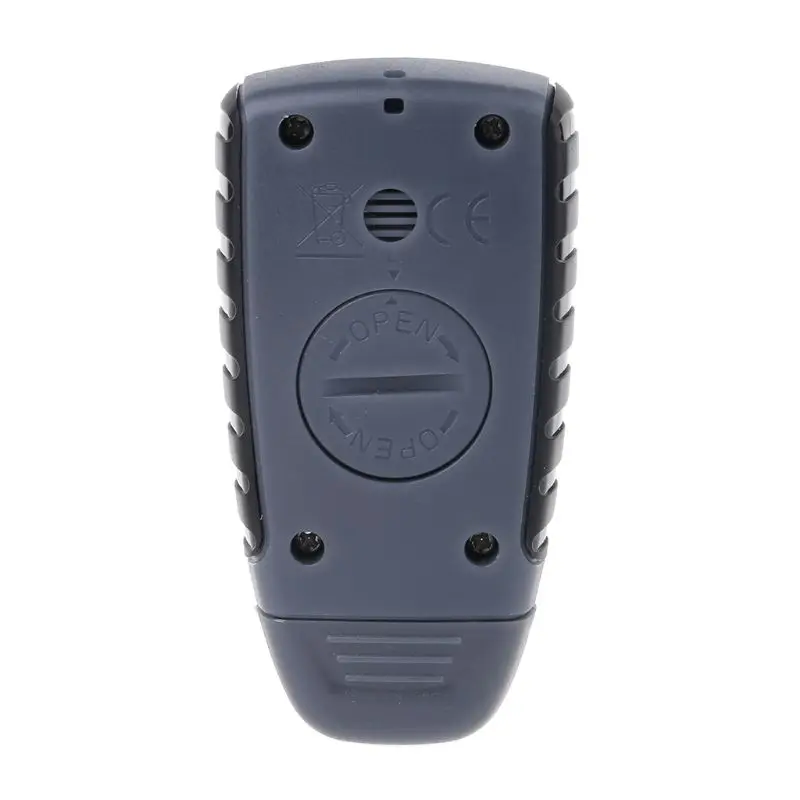

RM660 Paint Coating Thickness Gauge Digital Tester Meter Instrument Iron Aluminum Base Metal Car Automotive Non-Metal 0-1.25 mm |

RM660 Paint Coating Thickness Gauge Digital Tester Meter Instrument Iron Aluminum Base Metal Car Automotive Non-Metal 0-1.25 mm |

Features:

Perfectly used to measure the thickness of non-metal coating over the metal matrix

Digital LCD display

Data HOLD function

Zero calibration

Comes with iron base and non-iron (aluminunm) base

Portable, user friendly and easy to carry even in pocket

Low battery indication

Auto shut-off if no operation in 1 minute

Measuring Range: 0 ~ 1.25mm , Precision Measurement: 2%

Ideal for manufacturing company, metal machinery industry, chemical industry, and commodity

Specifications:

Target Measure: Non-metal coating thickness on the metal surface

Measuring Range: 0~1.25mm nonmetal coating on metal surface

Precision Measurement: 2% RDG 0.02mm [2% RDG ±1mil (steel and aluminum only)]

Power Supply: 1 x 3V CR2032 button battery(NOT INCLUDED)

Working Current: <10mA

Auto Power off time: No actions in 1 min if leave the measured object

Minimum base diameter: 10mm

Critical base thickness: 0.5mm

Display resolution: 0.02mm/1mil

Operating Environment

Temperature: -5~40°C

Humidity: 5~95%RH non condensing

Storage Environment

Temperature: -20~60°C

Humidity: <85%RH

Material: ABS

Dimensions: 80 x 42 x 24mm

Color: as shown

​Warmly Note: Must do the calibration before proceed measurement.

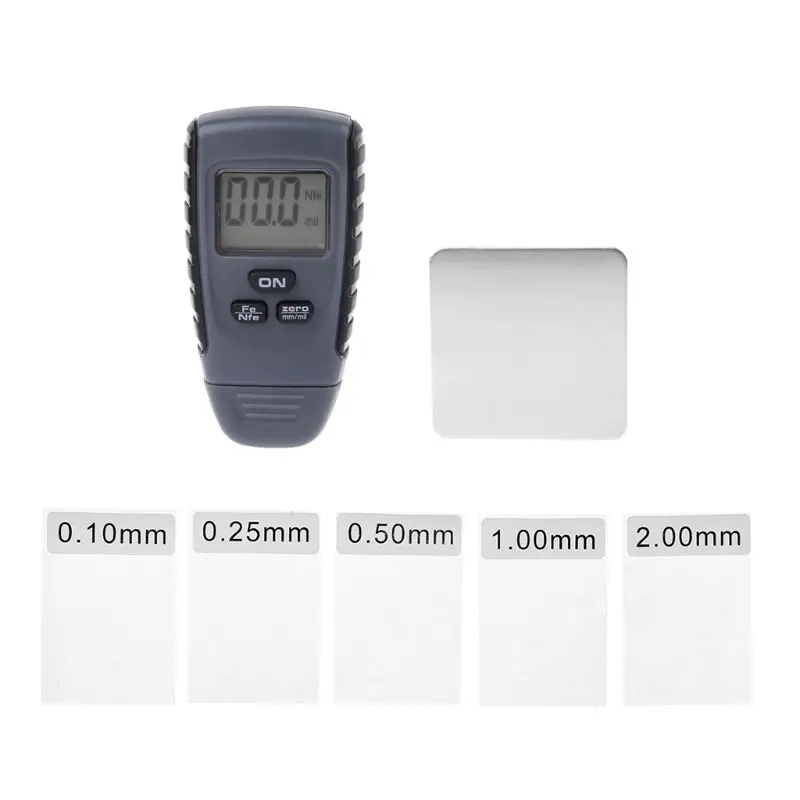

Package Includes:

1 x Thickness Meter

5 x Standard foils (0.10mm, 0.25mm, 0.50mm, 1.0mm, 2.0mm)

1 x Non-iron (aluminunm) base

1 x User manual
