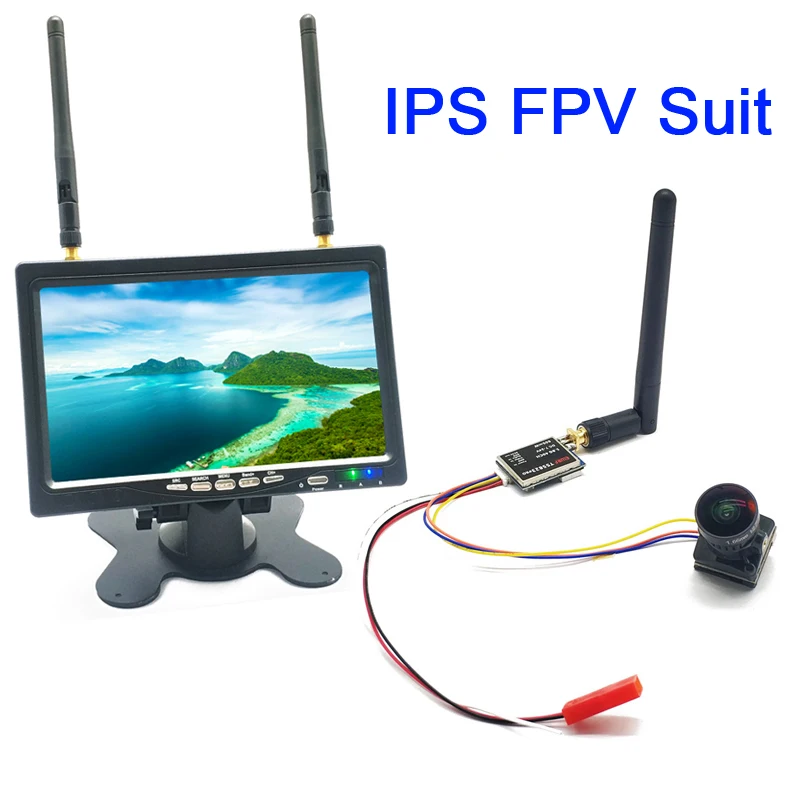

5.8G 40CH 7-дюймовый HD IPS 1024*600 монитор с передатчиком мощностью 600 мВт + камера Starlight HDR OSD 1.66 мм 1200TVL для RC-дрона.

5.8G 40CH 7-дюймовый HD IPS 1024*600 монитор с передатчиком мощностью 600 мВт + камера Starlight HDR OSD 1.66 мм 1200TVL для RC-дрона.

Gift for 3D printing bracket

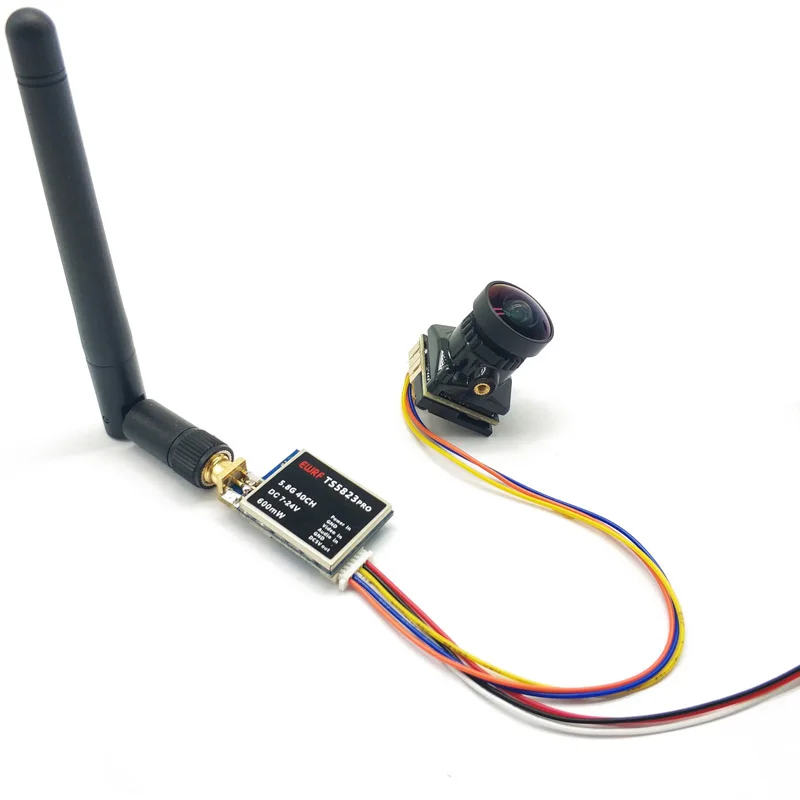

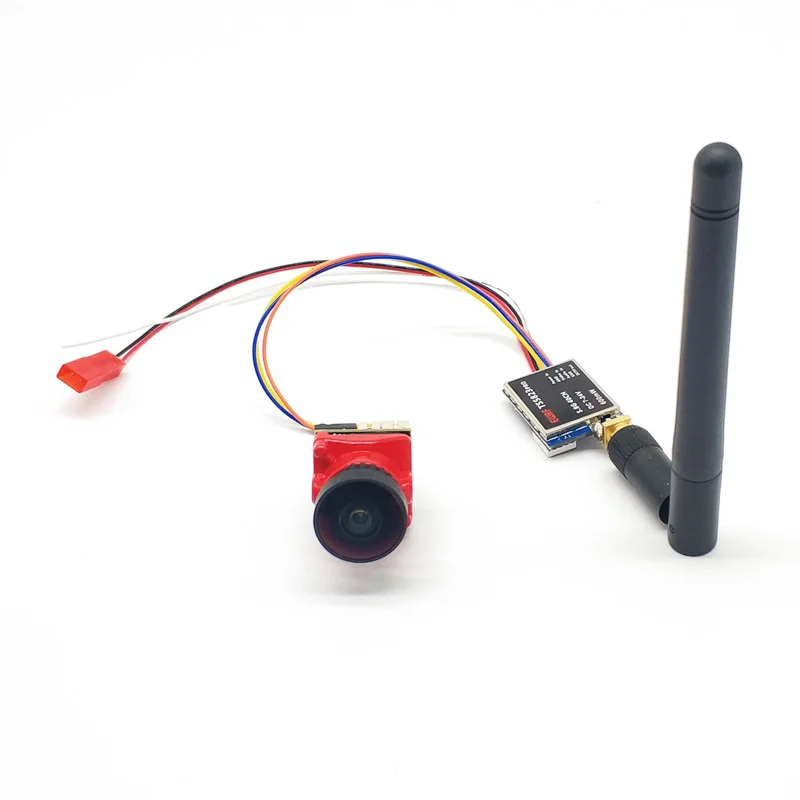

1/1.8'' Starlight HDR OSD 1200TVL NTSC/PAL 16:9/4:3 Switchable 1.66mm Lens FPV Camera For RC Models Multirotor Parts

Description:
Item Name: FPV Camera
Color: Red, Black (optional)
Lens: 1.66mm
Image Sensor: 1/1.8" Inch starlight HDR sensor
Horizontal Resolution: 1200TVL
FOV: 150 Degree
Min. Latency: 8ms
TV System: NTSC & PAL (changeable)
Image: 16:9 & 4:3 (changeable)
WDR: WDR (HDR)
Min. Illumination: Starlight
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio: >60dB (AGC OFF)
Video Output: CVBS
Camera OSD: Separate OSD
DNR: 3-DNR
Day/Night: Auto/Color/B&W/EXT
Language: Chinese/English
Dimensions: 19mm*19mm*19mm
Wide Energy Input: DC 5-40V
Work Temperature: -20℃~+60℃
Work Humidity: 20%~80%
Weight: 8g (N.W.)/ 40.5g (G.W.)


Features:
- 1/1.8" inch sensor starlight camera
- 8ms low latency, 0.0001lux illumination
- Red and black two colors optional
- NTSC/PAL switchable, 16:9/4:3 changable
- Separate OSD


Package Included:
1x FPV Camera
1x 5D-OSD Menu Board
1x FPV Silicone Cable A (3-pin port for both side)
1x FPV Silicone Cable B (2-pin port for both side)

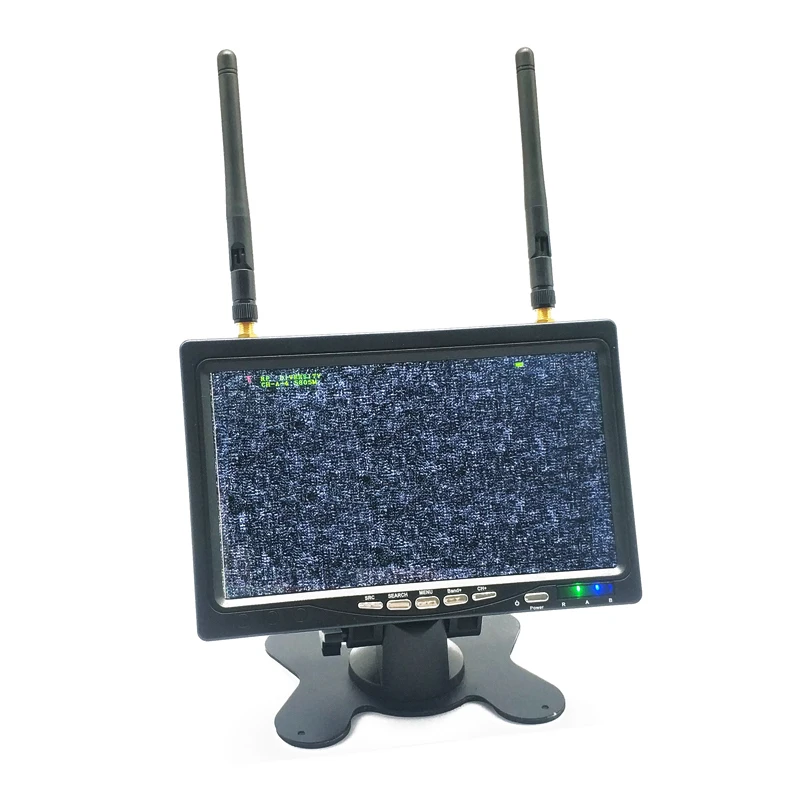

5.8G FPV 7 Inch TFT LCD Screen IPS FPV Monitor for fpv drone

Screen size: 7 inches
Screen type: TFT LCD screen / long life, LED backlight
Resolution: 1024 * 600
Brightness: 600 cd/m2

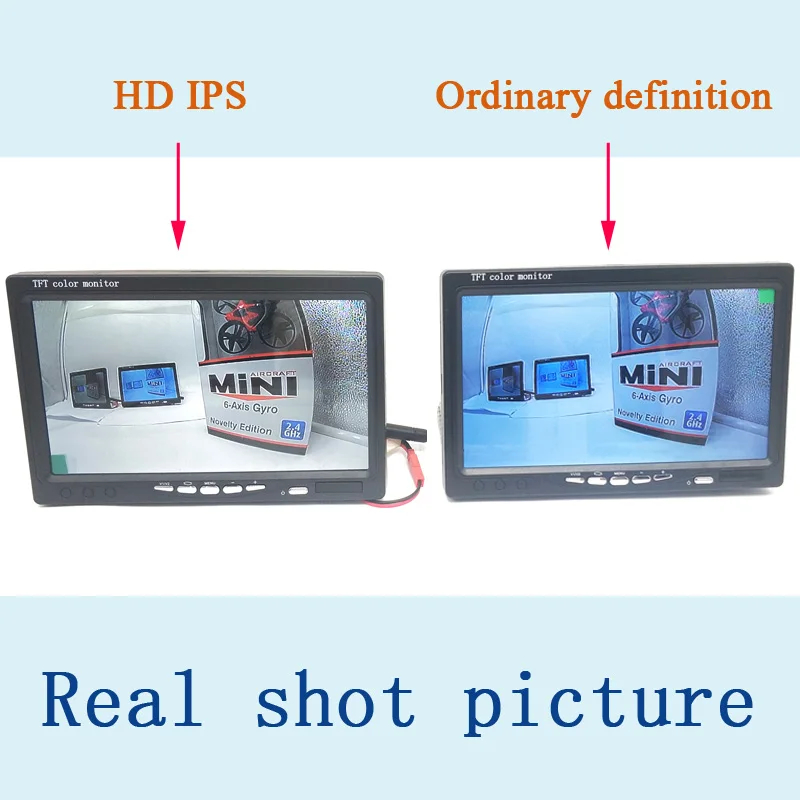

Viewing angle: IPS HD
Size: 173 mm x 113.7 mm x 23 mm
Working voltage: DC 7 ~ 16 v
Working time: 2 hours
Standby current: <5μA
Power consumption: max 500 mA @12V
Working temperature: -10℃~ + 65℃
Antenna：RP-SMA（inner hold）

Features：

Built-in dual receiver module
Have AV output, AV output is screen display connected to RF module
Will not affect 2.4 ghz R/C radios
AV receiver with multiple inputs
Small，light weight，durable
48 channels
Built-in 1800 mah / 7.4 v battery, with charger
Automatic signal search, simple operation
Working status display: Please always pay attention to the working status of the equipment.
OSD display of battery working status: RSSI signal; indicator; channel indication

Charging indicator: The red light is on when charging, the red light is off when fully charged, and the red light flashes to indicate an abnormal situation.

Note: It cannot receive two different channels at the same time
