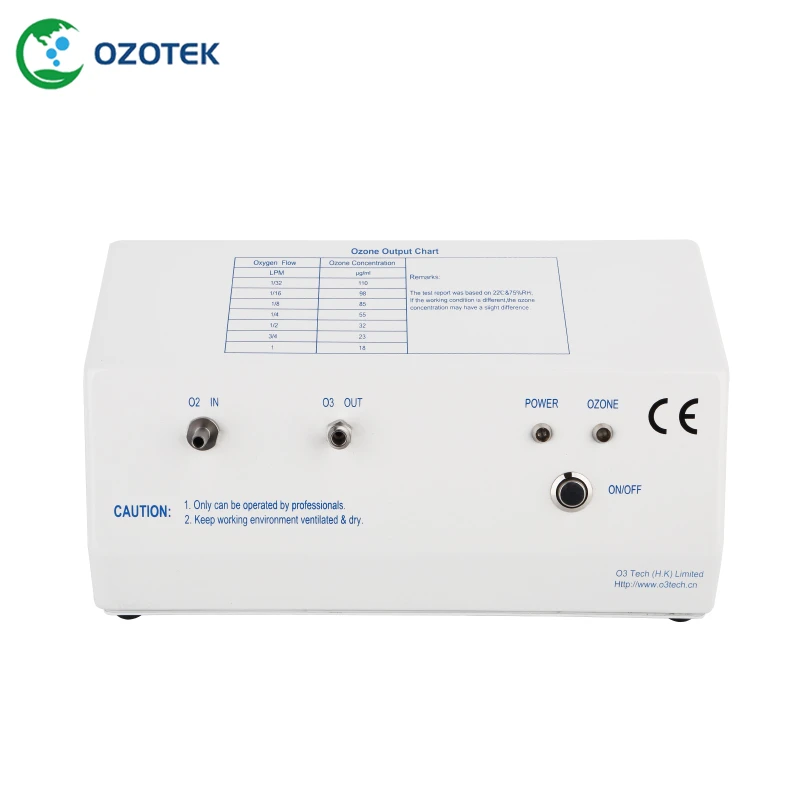

ozone therapy machine MOG004 for ozone therapy

18-110ug/ml (Oxygen regulator optional)

Product Specification

Product name: Ozone Generator

Model: MOG004

Ozone concentration: 18-110ug/ml(via O2 Tank)

Oxygen flow: 1/32-1.0 LPM

Output connections: Luer fitting φ5 mm

Cooling system: Air cooling; In-built a 15CFM fan

Technology: corona discharge

Input voltage: 100-240V; 50/60HZ

Working voltage: 12VDC

Power consumption: 12W

Operating temperature:   -0 ~ +40 ℃

Unit size: 21.5 (L) x 11 （W) x 9.5 (H)

Net weight: 1.2 KGS

Packing size: 27 (L) x 16.5 (W) x 22 (H) CM

Gross weight: 2.0KGS

Product Advantages:

1. Smart & nice design, easy operation;

2. High quality glass ozone tube & 99.99% pure Titanium electrode;

3. Stable and high ozone concentration 110ug/ml in max;

4. Ozone concentration chart has been calibrated by ozone analyzer, marking on the top of the device; Need to adjust the oxygen flow to get the target

concentration.

5. Providing pure & safe & clean ozone since all material of the product including all the spare parts are 100% friendly to ozone;

Free Accessories

1. One AC100-240V to DC12V adapter

2. Luer hose connector (used for ozone outlet luer fitting to hose connection)

3. Two meters silicone hose for oxygen inlet or ozone outlet

4. Operation manual

Ozone Concentration Chart

Ozone concentration chart has been calibrated by ozone analyzer (Model: UVO3-4400), the end-user need to adjust the oxygen flow to get the target concentration of ozone gas.

Oxygen Tank & Oxygen Flowmeter (Oxygen Regulator)

In order to create high quality ozone gas (High concentration & high purity) or when used on medical application (SPA, Ozone steam saunas, Ozone insufflations, Foot diabetic, Dental therapy, Blood inject, and etc.), You need choose oxygen tank as source (O2 purity 98-99%);

When used on ozone therapy, the low flow ozone shall be required ; To create low flow ozone , it need oxygen regulator to set the oxygen flow (1/32, 1/16, 1/8, 1/4,1/2, 3/4, 1.0 LPM) for ozone generator; Reference to the “Ozone concentration & Ozone Output Chart”, you will see the ozone concentration will be different under the different oxygen flow.

The end-user must select the right type oxygen regulator based on the valve specification of oxygen tank. Normally, CGA540 & CGA870 are popular in the worldwide.

Product Operation:

Before switch on, please check that:

1. Plug  in; make sure it connects the power well then the “POWER” light will show red;

2. Connect “O2 IN” with oxygen tank or oxygen concentrator (Pic.1);

Manual Turn ON/OFF the ozone generator:

a. Press the “ON/OFF” then the “OZONE” light will shows green, then the machine starts working, you can get ozone from “O3 OUT” by syringe or use luer- hose        conncetor to connect hose to end user.

b. Press the “ON/OFF” again, the machine will stop working.

Product Application:

1.    Could be used to treat infections, wounds anddisinfect extra corporeal blood samples of HIV.

2.    It could also be used for Dental Hygiene.

3.    It could be used to treat diseases such as diabetes, lumbar disc herniation and etc.

4.    Widely used in ozone therapy and ozone treatment home and abroad.

5.    Mainly used in the medical industry, such as the hospital ward, operating room, medical apparatus ,instruments and sterile room, etc.

6.    Used in the university laboratory.
