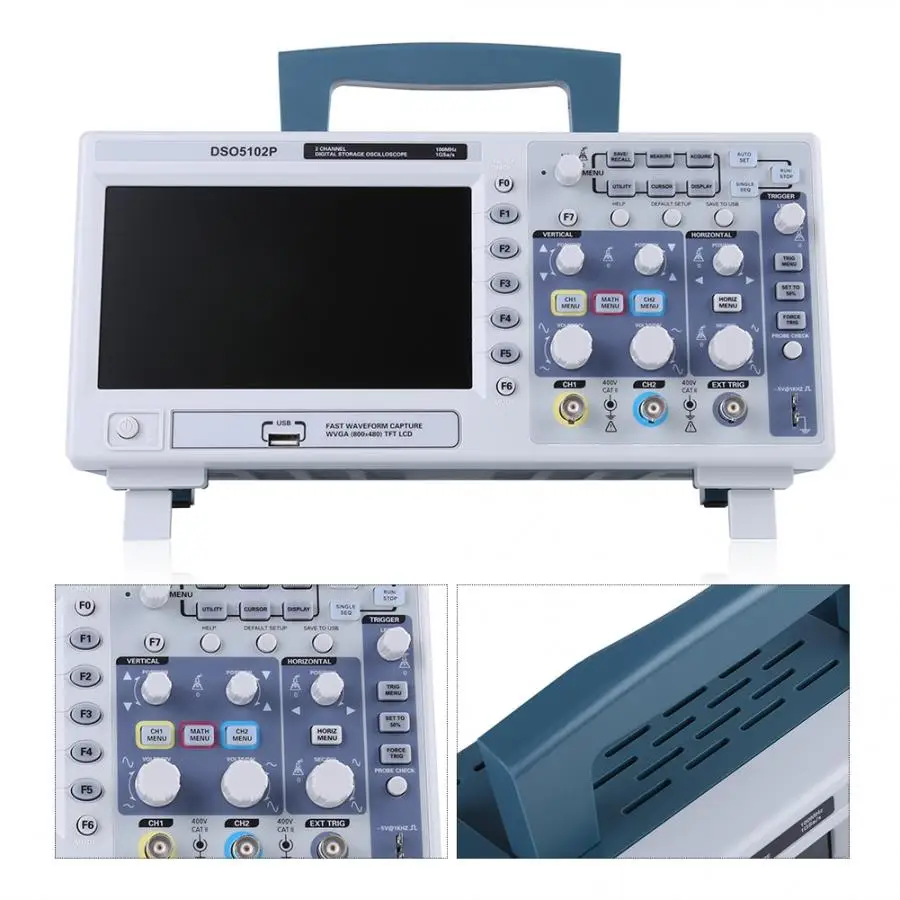

110-240V DSO5102P Digital Oscilloscope 100MHz 2 Channels 1GSa/s 7Inch TFT LCD

Features:

100MHz bandwidths. 1GSa/s Real Time sample rate. Large (7.0-inch) color display, WVGA(800x480). Record length up to . Trigger mode: edge/pulse width/line selectable video/slop/overtime etc. USB host and device connectivity, standard. Multiple automatic measurements. Four math functions, including FFTs standard. Provides software for PC real-time analysis.

Specifications:

Size: 14 x 11x 32cm/5.51 x 4.33 x 12.60inch

Weight: 2900g

Model
DSO5102P
Acquisition
Sample Rate

Real-Time Sample: 1GS/s

Equivalent Sample: 25GS/S

Acquisition Modes

Normal
Normal data only
Detect
High-frequency and random glith
Average
Waveform Average, selectable 4.8.16.32,64,128
Inputs
Inputs Coupling
AC, DC. GND
Inputs Impedance
1MΩ±2%ll20pF±3pF
Probe Attenuation
1X,10X
Supported Probe Attenuation Factor
1X,10X,100X,1000X
Maximum Input Voltage
CAT I and CAT II: 300VRMS (10x), Installation Category;
CAT III: 150VRMS(1x);
Installation Category II: derate at20dB/decade above 100kHz to 13V AC at 3MHz* and above. For non-sinusoidal waveforms, value must be less than 450V. Excursion above 300V should be of less than 100ms duration. RMS signal level including all DC components removed through AC coupling must be limited to 300V. If these values are exceeded, damage to the oscilloscope may occur.
Horizontal
Sample Rate Range
500MS/S - 1GS/S
Waveform Interpolation
(sin x)/x
Record Length

SEC/DIV Range

Sample Rate and Delay Time Accuracy
±50ppm (at over any ≥1ms time interval)
Position Range

20ns/div to 80us/div; (-8divx s/div) to 40ms;

200us/div to 40s/div; (-8divx s/div) to 400s

Time Measurement
Accuracy
(Full Bandwidth)
Single-shot. Normal mode:± (1 sample interval +100ppm x reading + 0.6ns); >16 averages:! (1 sample interval + 100ppm x reading + 0.4ns);
Sample interval = s/div / 200
Vertical
Vertical Resolution
8-bit resolution, all channel sampled simultaneously
Position Range
2mV/div to 200mV/div, ±2V 200mV/div to 5V/div, ±50V
Bandwidth
100MHz
Rise Time at BNC( typical)
3.5ns
Analog Bandwidth in Normal and Average modes at BNC or with probe. DC Coupled
2mV/div to 20mV/div, ±400mV; 50mV/div to 200mV/div,±2V 500mV/div to 2V/div, ±40V; 5V/div, ±50V
Math
+, - ,x,  /, FFT
FFT
: Hanning. Flatop. Rectamgular, Bartlett. Blackman; 1024 sample point
Bandwidth Limit
20MHz
Low Frequency Response (-3db)
≤10Hz at BNC
DC Gain Accuracy

±3%for Normal or Average acquisition mode. 5V/div to 10mV/div;

±4% for Normal or Average acquisition mode. 5mV/div to 2mV/div

DC Measurement Accuracy, Average Acquisition Mode When vertical displacement is , and N s16:± (3% x reading + 0.1div+ 1mV)only 10mV/div or greater is selected;
When vertical displacement is not , and Ns16: ± (3% x (reading + vertical position) +1% of vertical position + 0.2div); Add 2mV for settings from 2mV/div to 200mV/div; add 50mV for settings from 200mV/div to 5V/div Volts Measurement Repeatability, Average Acquisition Mode
volts between any two averages of si 6 waveforms acquired under same setup and ambient conditions
Trigger System
Trigger Types
Edge. Video. Pulse. Slope. Overtime. Alternative
Trigger Source
CH1f CH2, EXT, EXT/5, AC Line
Trigger Modes
Auto, Normal, Single
Coupling Type
DC, AC, Noise Reject, HF Reject. LF Reject
Trigger Sensitivity (Edge Trigger Type)
DC(CH1.CH2):
1 div from DC to 10MHz; 1.5div from 10MHz to 100MHz; 2div from 100MHz to Full; DC(EXT):
200mV from DC to 100MHz; 350mV from 100MHz to 200MHz;
DC(EXT/5):
1Vfrom DC to 100MHz; 1.75V from 100MHz to 200MHz;
AC: Attenuates signals below 10Hz;
HF Reject: Attenuates signals above 80kHz;
LF Reject: Same as the DC-coupled limits for frequencies above 150kHz; attenuates signals below 150kHz
Trigger Level Range
CH1/CH2: ±8 divisions from center of screen; EXT:±1.2V;
EXT/5:±6V
Trigger Level Accuracy( typical)Accuracy is for signals having rise and fall times ≥20ns
CH1/CH2:0.2div x volts/div within ±4 divisions from center of screen; EXT: ± (6% of setting + 40mV);

EXT/5: ± (6% of setting + 200mV);
Set Level to 50%(typical)
Operates with input signals ≥50Hz

Video Trigger

Video Trigger Type

CH1, CH2: to amplitude of 2 divisions;

EXT: 400mV;

EXT/5:2V
Signal Formats and Field Rates. Video Trigger Type
Supports NTSC, PAL and SECAM broadcast systems for any field or any line
Holdoff Range
100ns ~10s
Pulse Width Trigger

Pulse Width Trigger Mode
Trigger when (<,>, = , or non =); Positive pulse or Negative pulse
Pulse Width Trigger Point
Equal: The oscilloscope triggers when the trailing edge of the pulse crosses the trigger level.
Not Equal: If the pulse is narrower than the specified width, the trigger point is the trailing edge. Otherwise, the oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width.
Less than: The trigger point is the trailing edge.
Greater than (also called overtime trigger): The oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width
Pulse Width Range
20ns ~10s
Slope Trigger

Slope Trigger Mode
Trigger when (<,>, = , or non=); Positive slope or Negative slope
Slope Trigger Point
Equal: The oscilloscope triggers when the waveform slope is equal to the set slope.
Not Equal: The oscilloscope triggers when the waveform slope is not equal to the set slope.
Less than: The oscilloscope triggers when the waveform slope is less than the set slope. Greater than: The oscilloscope triggers when the waveform slope is greater than the set slope.
Time Range
20ns ~10s
Overtime Trigger

Over Time Mode
Rising edge or Falling edge
Time Range
20ns ~10s
Alternative Trigger

Trigger on CH1
Internal Trigger: Edge. Pulse Width, Video, Slope
Trigger on CH2
Internal Trigger: Edge. Pulse Width, Video, Slope

Trigger Frequency Counter
Readout Resolution
6 digits
Accuracy (typical)
±30ppm (including all frequency reference errors and ±1 count errors)
Frequency Range
AC coupled, from 4Hz minimum to rated bandwidth
Signal Source
Pulse Width or Edge Trigger modes: all available trigger sources The Frequency Counter measures trigger source at all times, including when the oscilloscope acquisition pauses due to changes in the run status, or acquisition of a single shot event has completed.
Pulse Width Trigger mode: The oscilloscope counts pulses of significant magnitude inside the 1s measurement window that qualify as triggerable events, such as narrow pulses in a PWM pulse if set to < mode and the width is set to a relatively small time.
Edge Trigger mode: The oscilloscope counts all edges of sufficient magnitude and correct polarity.
Video Trigger mode: The Frequency Counter does not work.
Measure

Cursor Measurement
Voltage difference between cursors: AV Time difference between cursors: AT Reciprocal of AT in (1/AT)
Auto Measurement
Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean. Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF
Display
Display Type
7 inch 64K color TFT (diagonal liquid crystal)
Display Resolution
800 horizontal by 480 vertical pixels
Display Contrast
Adjustable (16 gears) with the progress bar
Probe Compensator Output
Output Voltage( typical)
About 5Vpp into ≥1MΩ load
Frequency(typical)
1kHz
Power Supply
Supply Voltage

100-120VACRMS(±10%), 45Hzto 440Hz, CATII

120-240VACRMS(±10%), 45Hzto 66Hz, CATII

Power Consumption
<30W
Fuse
2A, T rating, 250V
Environmental

Temperature
Operating: 32°F to 122°F (0℃ to 50℃); Non operating: -40°F to 159.8°F (-40℃ to +71℃)
Cooling Method
Convection
Humidity
+104°F or below (+40℃ or below): ≤90% relative humidity; 106°F to 122°F (+41℃ to 50*C): ≤60% relative humidity
Altitude
Operating: Below 3,000m (10,000 feet); Non operating: Below 15,000m(50,000 feet)

Package Included:

1 x Oscilloscope

2 x probes

2 x adjust tool

1 x power cable

1 x USB cable

12 x color circles

2 x probe
