DT-1130：

Features:

Excellent design for a measurement of electromagnetic field radiation levels around power lines, home appliances and industrial devices.

Used widely in electrical equipment, electromagnetic radiation measurement, phones, computers, TV set copy machine, fax machine, AC, refrigerator and so on.

Suitable for most measuring effects of radiation products, presentations, and personal understanding of radiation.

Designed to meet CE. Simple operation, highly sensitive, and 50Hz-2000MHz frequency range.

Accurate and safety to use. Portable and stable.

Specifications:
Material: Plastic
Color: Black
Sn: LCD
Frequency Range: 50Hz-2000MHz
Reacting Time: 0.4S
Voltage: 9V
Battery Model: 6F22 9V(Battery is NOT included)
Size: 132MMx69MMx29MM/5.20 x 2.72 x1.14Inch
Weight: 157G

Package includes:
1 x  Electromagnetic Radiation Detector

How to detect:

Switch on the device.

Close to the object slowly until contact it. The closer the distance is, the stronger power of electromagnetic radiation is. Remind: Do not close to the object with high voltage.

Change the angle during detecting until get the maximum data.

When the object is power off, the reading will be restored to 0 unless there are other electromagnetic radiation disturbings.

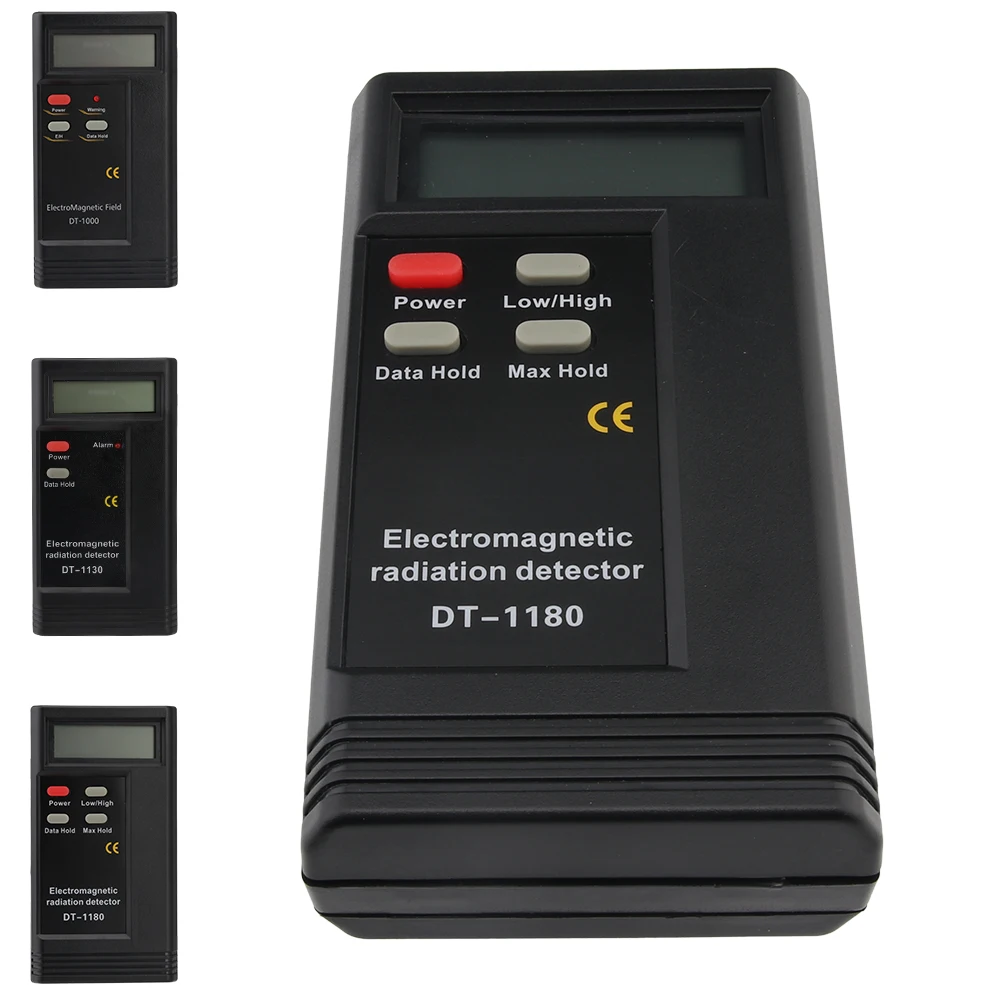

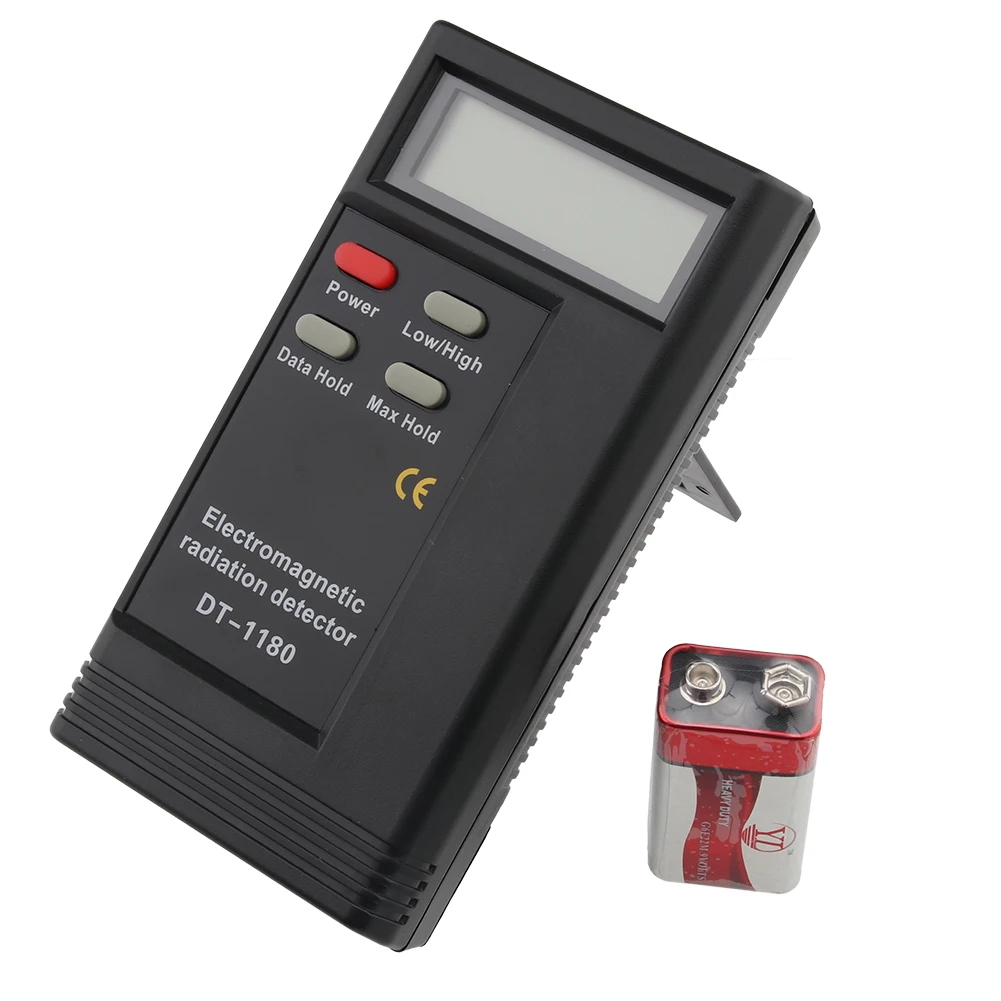

DT-1180：

Specification
. Size: 132mm X 69mm X 29mm
. Dimension: 13.5cm x 7cm x 3cm.
. Display readings: three semi-liquid crystal display, maximum reading low-frequency .
. 1999V/M/High
. Frequency: 1999uW/cm2.
. Level: low-frequency 5HZ-400KHZ V/m, high-frequency: 30MHz-2000MHz
. Measurement time intervals: 0.3 seconds.
. Operation voltage: ( 6F22)9V (not included)
. Operation temperature: -15 degree to +60 degree.
Highlights
. Easy operations. Can detect the power of electromagnetic radiation around home electronics.
. Wide range of detectable frequency.
. Value for money, easy to carry.
. Designed to meet CE industrial standard.
. Measurement time intervals: 0.3seconds.
Applications
It can measure the intensity of electromagnetic radiation for home appliances, wires and industry equipment.
Package included
. Electromagnetic Radiation Detector *1
. User manual*1

DT1000：

Features:

Easy to use, low cost.

Simple operation and fast measurement.

Data locking, one-key lock of the radiation value.

LCD display of the values for easier reading.

Wide test band width from 5Hz ~ 3500MHz

Designed to meet CE industrial standard. Great for home, office, computer room, control room,etc.

Compatible with the electric field and the magnetic field radiation measurement.

Specifications:
Color: Black (Shown as the pictures)
Size: 132 (length) x 69 (width) x 31mm (thick) / 5.20 x 2.72 x 1.22''
Package weight: 216g
Readings display: 3-1 / 2 bit LCD display
Level: electric field - V / m (volts / m); magnetic field - μT (micro Tesla)
Accuracy: electric field: 1V / m;
Magnetic field: 0.01μT Range:
Electric field: 1V / m-1999V / m;
Magnetic field: 0.01 μT to 19.99 μT
Alarm threshold: electric field: 40V / m;
Magnetic field: 0.4μT
Test bandwidth: 5Hz-3500MHz
Sampling time: about 0.4 seconds
Sensor head: single axis (instrument top)
Overload warning: LCD display "1"
Operating temperature: -15 ℃ - +60 ℃
Operating humidity: relative humidity below 80%
Operating voltage: 9V
Battery: built-in 9 V 6F22 battery

Application Scope:
1. Outdoor environmental electromagnetic radiation testing: substation, high voltage lines, transformers, power distribution rooms, cables, TV signal towers, radio signal towers and other sources of measurement.
2. Indoor environment electromagnetic radiation testing: computer, TV, copier, fax machine, air conditioning, refrigerator, audio, washing machine, wire, power supply, mobile phone, wireless router and other power sources of test analysis

Note:
Please allow 1-3mm error due to manual measurement and there will be different color as different display, please understand. Thanks.
