Power line carrier module

Using the power line to transmit signals for communication, without additional wiring, free from the influence of the space environment, communication distance.

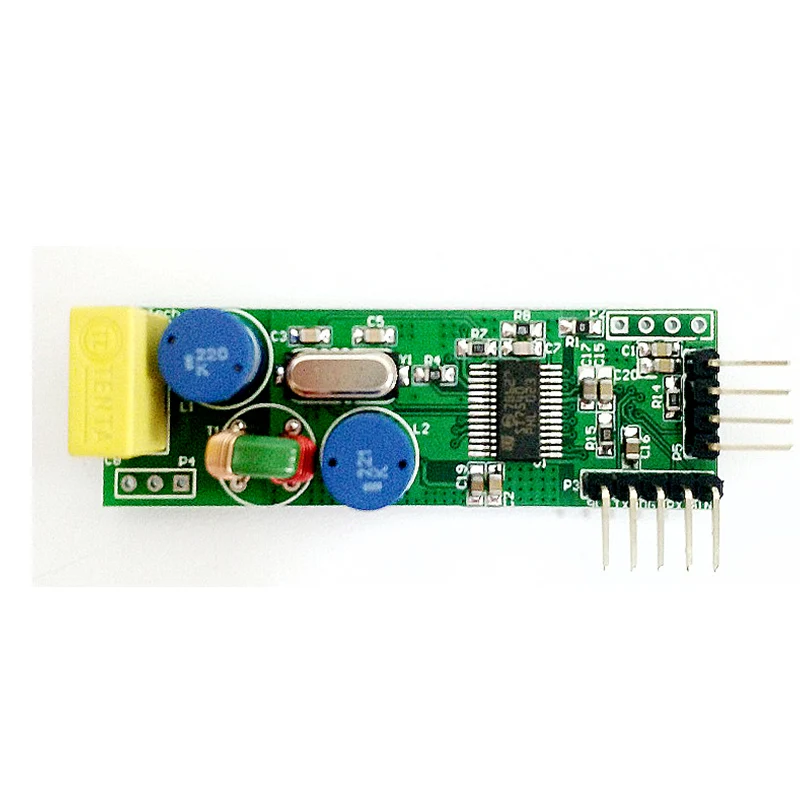

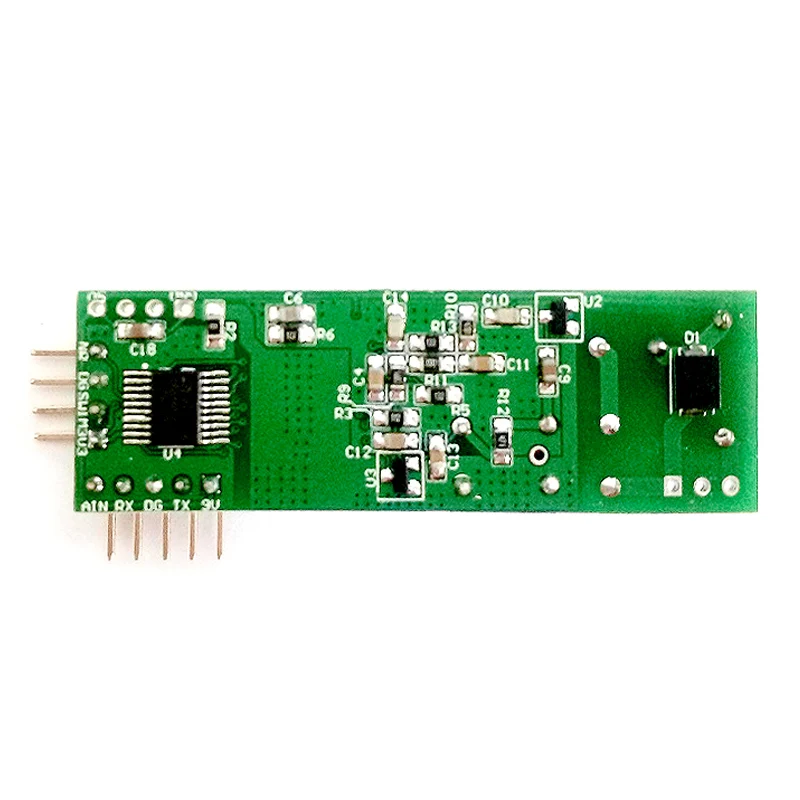

ST7540 development board is a new board, ST7540+STM8 structure, the volume is very small, is the smallest carrier communication module on the market. With this module, users can conveniently carry out carrier communication in the environment below 220VAC or 350VDC. The serial port baud rate, carrier baud rate and carrier frequency can be configured. After the new board, the module in the anti-interference ability, work stability, module volume, the use of convenience has been comprehensively improved. It is the most stable and reliable module in the same modulation mode.

ST7540 chip adopts FSK modulation mode, half-duplex communication, the highest communication rate of power line is 4800BPS, it is the power line communication chip widely used and with the most reference design. This module is based on ST7540 chip and controlled by STM8 microcontroller to achieve complete serial port pass-through function. At the same time, the program download interface, AD interface for user debugging and secondary development. After purchase, confirm receipt and praise, you can get the information package of schematic diagram and PCB diagram (PDF version), which is the best choice for rapid product development.

Module power supply: 8vdc-13vdc module communication environment: below 220VAC or 350VDC, non-energized wire is available, three-phase electrical connection in the same phase is available. Single chip microcomputer: STM8SO03F3P working frequency: 16MHZ interface type :TTL level UART serial interface RXD, TXD rate programmable) power line communication chip: ST7540(compatible with ST7538 ST7537) communication distance :1000m(varies with application environment)

Module power supply: 8vdc-13vdc

Module communication environment: under 220VAC or 350VDC, non-energized wires are available, three-phase electrical connection in the same phase is available.

MCU: STM8S003F3P

Operating frequency: 16MHZ

Interface type :TTL level UART serial interface RXD, TXD, rate programmable control)

Power line communication chip :ST7540(compatible with ST7538 ST7537)

Communication distance :1000m(varies with the application environment)

Serial communication rate :1200, 2400, 4800, 9600, 14400, 19200, 28800, 38400, 57600,115200, 230400, 460800BPS

Power line carrier frequency: 60k, 66k, 72k, 76k, 82.05k, 86k, 110k, 132.5khz

Power line communication rate :600, 1200, 2400,4800BPS

Mode of modulation and demodulation: FSK operating temperature :-20℃~+70℃

Dimensions :60mmx 20mmx 16mm(LxWxH)

Aplication:

Home appliance controller, centralized meter reading system, security monitoring system, street lamp monitoring system, industrial field data transmission, cable break monitoring system, intelligent home appliance control, parking lot management system, remote lighting control, fire and security system, stage lighting and sound control, etc.

\\

\\

\\

'
