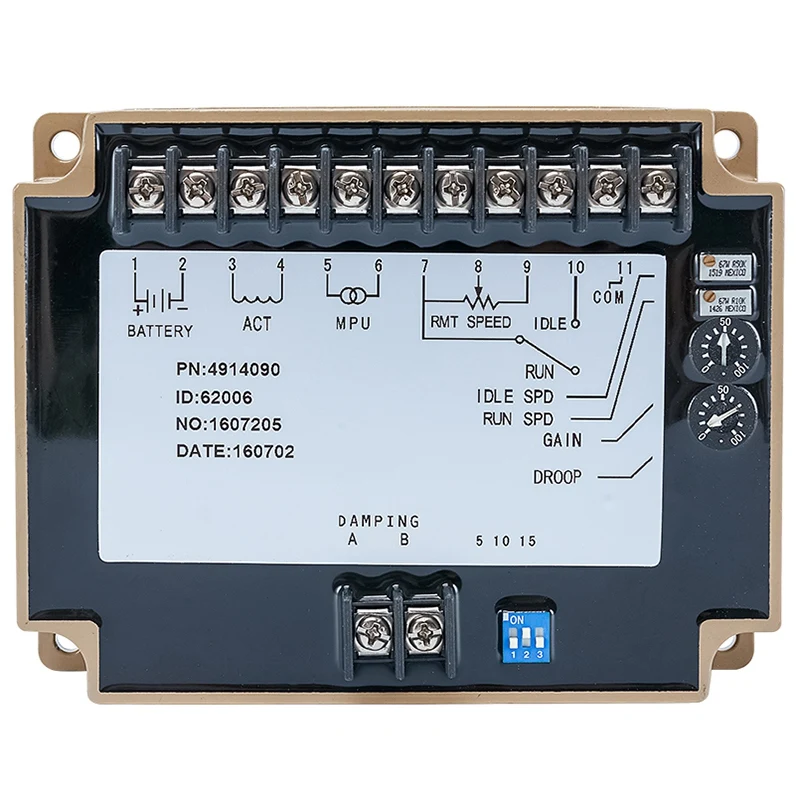

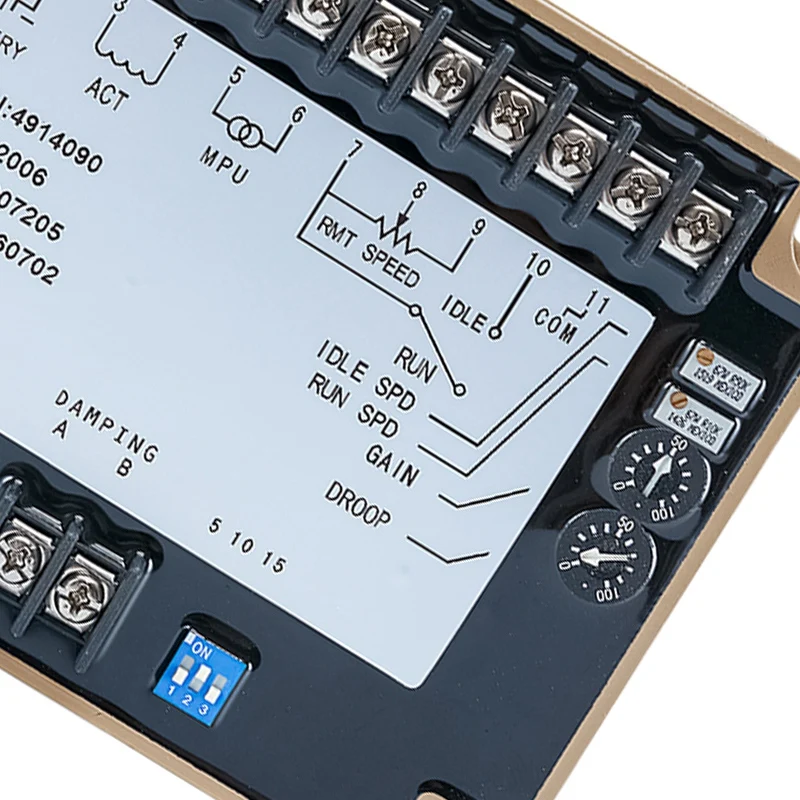

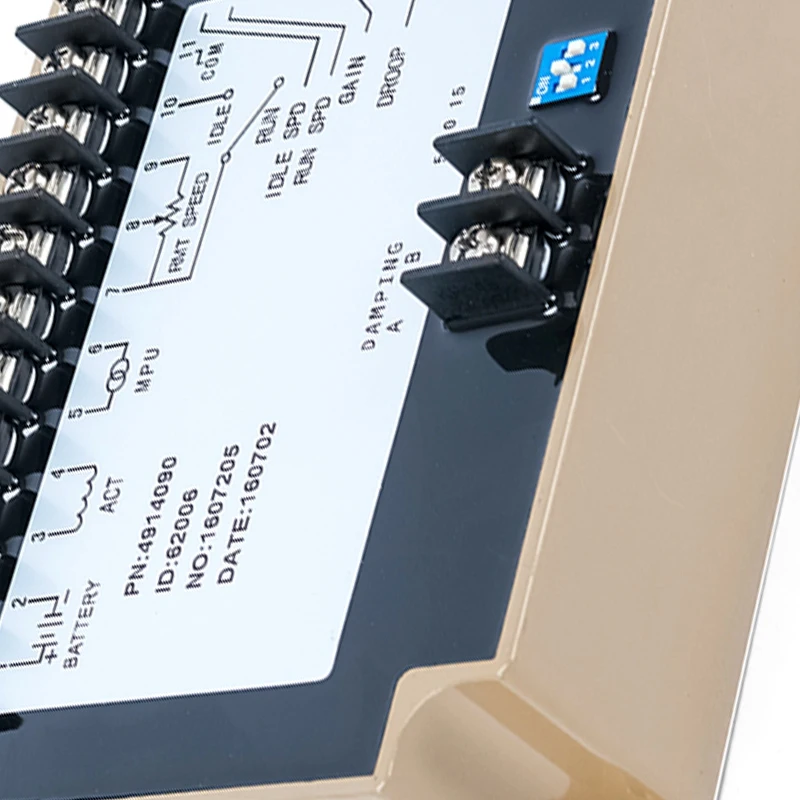

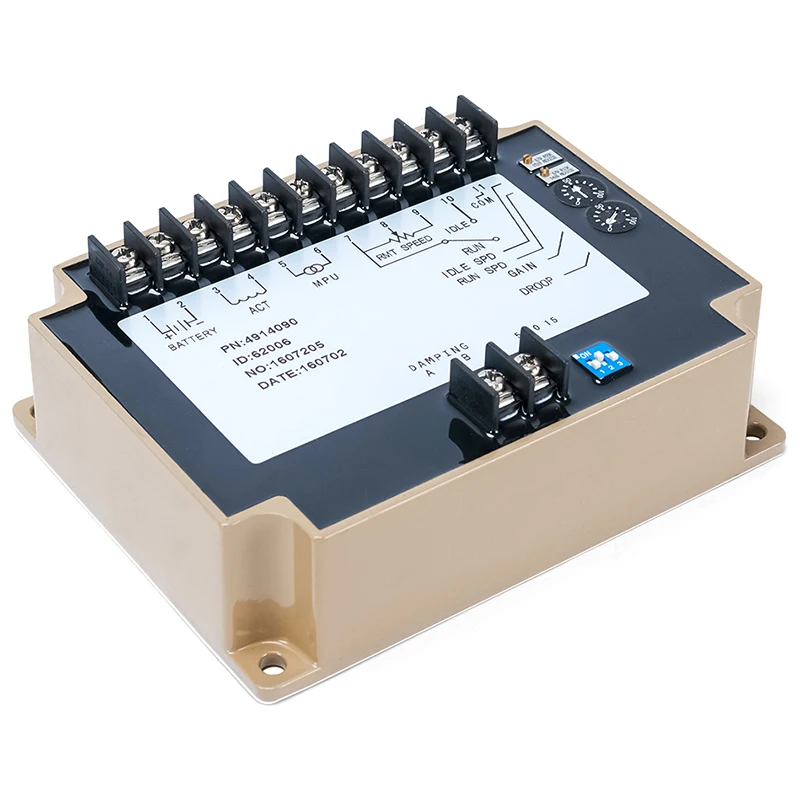

The 4914090 is suitable for generator sets with PT pumps up to 350 kW:
1. Increased smooth and slow start process control. This new function can solve the problem that the engine is not easy to start due to the rapid refueling during the start-up process, black smoke, reduce the starting noise, and the engine acceleration time can be 0 seconds, 5 seconds. , 10 seconds, 15 seconds, 20 seconds, 25 seconds, 30 seconds to choose between, the advantages in the use of automated generator sets outstanding;
2. The input short-circuit protection function is added, which has the effect of preventing the EFC output short-circuit and grounding problems;
3. The anti-high frequency interference circuit is added to make the control board work more stable.
Ambient temperature: -15 ~ +55 °C
Relative humidity: 0~95%
Vibration: 25 HZ 2 mm
Operating voltage: 24 ± 6 V DC
Grounding method: negative ground (body)
Maximum operating current: 2.5A, 24V
size:155*155*65mm
Material:metal
colour:black
Package Contents:
1 * Control module governor
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
