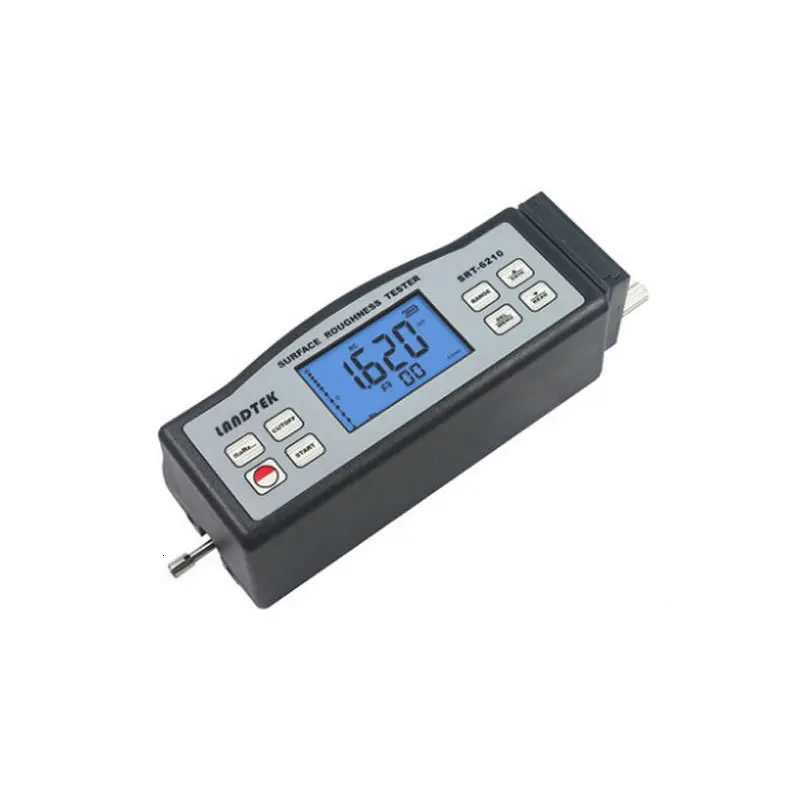

This instrument is compatible with four standards of site to measure surface roughness of various machinery-processed parts, calculate corresponding and clearly display all measurement parameters.

When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism by the sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes and calculates and then
outputs the measurement results on LCD.

* Multiple parameter measurement: Ra, Rz, Rq, Rt
* Highly sophisticated inductance sensor
* Four wave filtering methods : RC, PC-RC, GAUSS and D-P
* Built-in lithium ion rechargeable battery and control circuit with high capacity
* Small in size, light in weight and easy to use
* Can communicate with PC computer for statistics, printing and analyzing by the optional cable and the software for RS232C interface.
*Manual or automatic shut down. The tester can be switched off by pressing the Power key at any time. On the other hand, the tester will power itself off about 5 minutes after the last key operation.
*The tester can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.
*Metric /Imperial Conversion

Display

4 digits, 10 mm LCD, with blue backlight

Parameters

Ra, Rz, Rq, Rt

Measuring Range

Ra, Rq: 0.005-16.00um/0.020-629.9uinch
Rz,Rt: 0.020-160.0um/0.780-6299uinch

Accuracy

≤ ± 10%

Fluctuation of display value

Not more than 6%

Sensor

Test Principle

Inductance type

Radius of Probe Pin

5 um

Material of Probe Pin

Diamond

Dynamo-measurement of Probe

4 mN(0.4 gf)

Probe Angle

90°

Vertical Radius of Guiding Head

48 mm

Maximum driving stroke

17.5 mm / 0.7 inch

Cutoff length (l)

0.25 mm / 0.8 mm / 2.5 mm optional

Driving speed

Sampling

When Length = 0.25 mm, Vt = 0.135 mm/s

When Length = 0.8 mm, Vt = 0.5 mm/s

When Length = 2.5 mm, Vt = 1 mm/s

Returning

Vt = 1 mm/s

Resolution

0.001 um, if reading < 10um

0.01 um, if 10um ≤ reading ≤ 100um

0.1 um, if reading ≥ 100um

Evaluation length

5 L

Cut Off

Operating conditions

Temperature: 0~50 C   Humidity: < 80 %RH

Power Supply

Built-in rechargeable Li-ion battery

Dimensions

140x57x48 mm (5.5x2.2x1.9 inch)

Weight

420 g

Standard Accessories:

1. Main Unit

2. Small Screwdriver

3. Power Adapter

4. Standard Sample Plate

5. Standard Sensor

6. Adjustable Leg

7. Sheath of Sensor

8. Carrying Case

9. Instruction Manual
