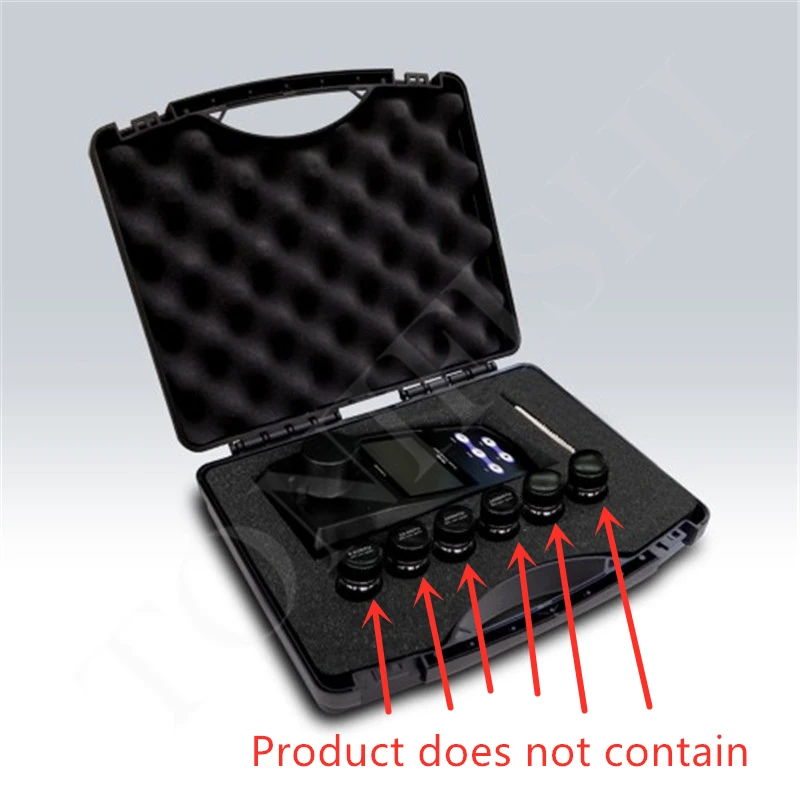

Note: For logistics reasons, the product does not contain batteries and liquids.

BANTE TB100 Portable Turbidimeter turbidity meter Tester analyzer USB DATA 2~5 points cal selectable

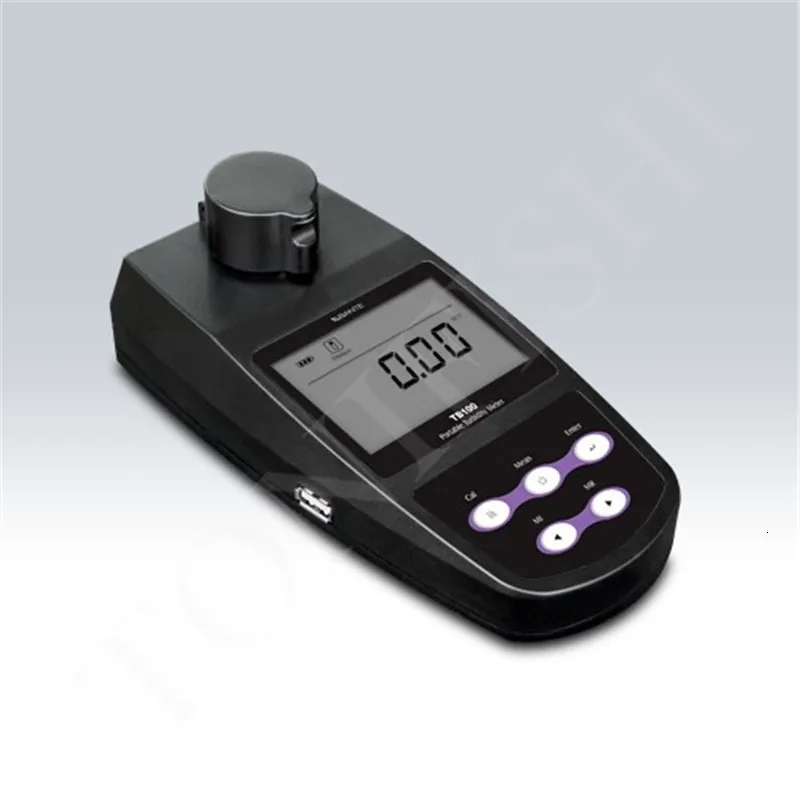

TB100 portable turbidity meter

High-performance portable turbidity meter, 2 to 5 points calibration, optional 4 measurement units, the meter has single and continuous measurement modes, suitable for process control and outdoor applications. Functional characteristics:

• Easy-to-use portable turbidimeter with large screen LCD display.

• 2 to 5 point calibration using formalin hydrazine standard.

• Choice of four turbidity units, including NTU (Scattering Turbidity Unit), FNU (Formazine Scattering Unit), EBC (European Winemaker

  Association units) and ASBC (American Winemakers Association unit).

• Single measurement mode automatically discriminates stable readings.

• Continuous measurement mode can be used to index or pair cuvettes.

• Automatic power off, effectively saving battery power.

• Built-in system menu, you can customize 7 function parameters such as calibration point, date and time, display resolution, etc.

• One-click reset to automatically restore the meter to factory default settings.

• Expansion memory can store up to 100 sets of measurement data.

• USB communication interface sends stored data to a personal computer.

• Multi-mode power supply scheme (power adapter, computer USB port) to ensure smooth application of the meter.

TB100

Measurement methods

ISO 7027 nephelometric method (90°)

Measuring range

0~1100 NTU/FNU, 0~275 EBC, 0~9999 ASBC

Resolution

0.01 (0~100 NTU), 0.1 (100~999 NTU), 1 (999~1100 NTU)

measurement accuracy

±2% (0~500 NTU), ±3% (501~1100 NTU)

Default calibration point

0.02, 10.00, 200, 500, 1000 NTU or custom

light source

Infrared light emitting diode

Detector

Silicon Photoelectric Receiver

Stray light

<0.02 NTU

Color bottle

60 (H) x 25 (Diameter) mm (For logistics reasons, the product does not contain liquid)

Shutdown mode

Manual or automatic (15 minutes after keyless operation)

data storage

100 groups

Communication output

USB

Operating temperature

0~60°C

Power type

9V Stacked Battery Section 1  (For logistics reasons, the product does not include batteries)

Dimensions

180 (long) × 85 (width) × 70 (high) mm

Instrument weight

300g
