DN50 pulse gas vortex flowmeter gas flowmeter steam compressed air liquid natural gas metering flowmeter DC24V without display

Main Technical Parameters >>>       (Whatsapp/Wechat/Skype: +86 152 1569 7991)

Size: DN25

Medium: steam  Flow range:8-50m3/H  Power supply: DC24V  Output:4-20MA 2 wire  Display: LCD;   Accuracy:±1.5%  Temperature range:50-+250C  Pressure:1.6Mpa  Connection: SS304 DIN flange  With temperature and pressure compensation ​ Notes: If any questions pls contact with sales before place the order.

>>>Contact Us<<<

Email : lee@huadianauto.com

WhatsApp/Skype/Wechat : +86 152 1569 7991

Intelligent Vortex Flow Meter >>>​​​​​​     (Email: Lee(@)huadianauto.com)

Gases : air/oxygen/natural gas/chemical gases etc

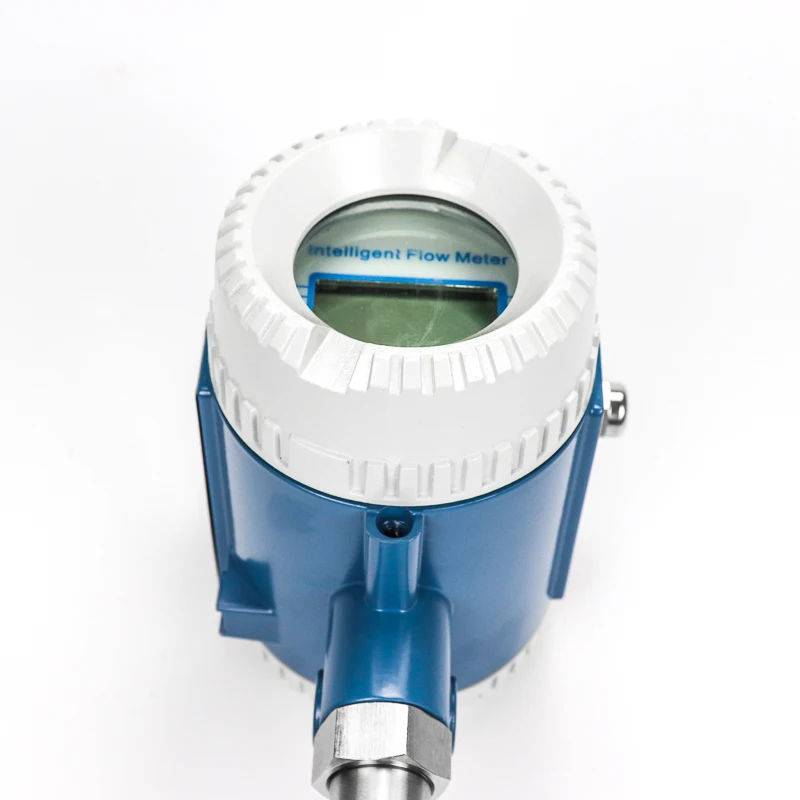

Liquids : water/oil etc  Steam : saturated steam/superheated steam etc   Intelligent LCD Display >>>

1) Working Volume & Instantaneous mass flow

2) Instantaneous Frequency (Hz) 3) Temperature (Deg.C) 4) Working pressure (Mpa) 5) Instantaneous standard traffic situation (Nm3/hr) Process Connection >>>



F- Flange Connection I - Insertion Type W - Wafer Type (Carbon Steel & Stainless Steel ) ​ Technical Parameters >>> Item  Vortex Flow Meter  Diameter 15, 25, 40, 80,100,150,200,300 (300-1000) Pressure  1.6Mpa-4.0Mpa Temperature  -40-350 Deg. C  Accuracy  1.0% F.S for liquids , 1.5%F.S for gas and steam  Power supply  24VDC , 220VAC , Battery operated  Output  4-20mA , Pulse , Hart , RS485  Tempearture and Pressure compensation  Yes, N/A  Medium  Gases , liquids , Steam  Protection  Grade  IP65 or IP68  Explosion Exd ⅡCT2T~5T GE or Exd ⅡCT2~CT5 Structure  Integrated Type   Remote Type   Installation  Wafer Type  Flangbe Type   Display  LCD Display , N/A



Flow range >>>



Instrument caliber(mm) liquid Gas    Measuring range(m3/h) Output frequency range(Hz) Measuring range(m3/h) Output frequency range(Hz) 15 0.3~5  24~400  4~20  352~1761 20 0.6~10  23~382  6~30  254~1273 25 1.2~16  21~320  8~55  161~1112 32 1.8~20  18~200  10~120   97~1172 40 2~40  10~190  27~205  134~1018 50 3~60  8~150  35~380  87~952 65 4~85  6~120  60~640  71~764 80 6.5~130  4.1~82  86~1100  54~696 100 15~220  4.7~69  133~1700  42~548 125 20~350  3.2~57  150~2000  26~346 150 30~450  2.8~43  347~4000  34~392 ......         300  95~2000  1.2~24  1360~18000

 16~216





Installation Instruction>>>



A. Installation requirements for the environment

1. Avoid strong electrical equipment and high-frequency equipment as much as possible, and avoid sharing power with this equipment.

2. Avoid high temperature, cold, corrosive or extremely humid environment.

3. When installing outdoors, it should be equipped with a protective cover to avoid sun and rain.

4. The installation position should be fully considered when installing the instrument, and leave appropriate space for maintenance and maintenance.



B. Installation requirements for the pipeline

1. The pipe structure should be fully considered when installing the instrument.

2. When installing the vortex street, the front and rear straight pipe sections should be fully reserved to avoid the error caused by the improper installation position of the instrument.
3. For more details about the installation, pls contact us for user manual.

Contact Us  Huaibei Huadian Automation Technology Co,.ltd Contact:David Lee Email: Lee(@)huadianauto.com Whatsapp/Wechat/Skype: +86 152 1569 7991 Factory address: 265 Suixi Road, Xiangshan District, Huaibei City, Anhui Province, China.
