Features:
Adopt the Direct Digital Synthesizer (DDS) technology and provide stable, precise, pure and low distortion signals.
2.4 inch TFT color LCD with 320*240 resolution, simultaneously display parameters and graphics of CH1 and CH2.
Adopt MagicPulse Technology, Low Jitter(RMS)<200ps.
The instrument uses 14-bit high-speed D/A converter chip (5Vpp output quantization error is less than 1mV), 250MSa/s sample rate, 14bits vertical resolution.
Can output up to 99 groups of functions / arbitrary waveform, contains 35 groups of preset waveforms and 64 groups of user-defined waveforms. Preset waveforms: Sine, Square (Duty Cycle adjustable), Pulse (Pulse width and cycle time can be set accurately), Triangle/Ramp, CMOS(0~12V), Four channels TTL, Exponential Rise, Exponential Fall, Noise, ECG, DC etc.
Enable to store 64 arbitrary waveform data files, each one of waveform storage depth 8192 points * 14bits; (The longer the waveform storage depth, the more detail the waveform is saved, and the signal details can be restored with high precision.)
Various modulation types: AM, FM, PM, ASK, FSK and PSK modulations.
Sweep Function: it can sweep 4 properties of signals including frequency, amplitude, offset and duty cycle; It has Linear and Logarithm two sweep types; 0.01S~999.99S sweep time; Up, Down and roundtrip sweep directions.
VCO Function (Voltage Control Output): can be achieved by an external input signal: voltage controlling frequency, voltage controlling amplitude, voltage controlling offset, voltage controlling duty cycle and PWM modulations.
Burst Output Function: there has Manual Trigger, internal CH2 Trigger, and External Trigger for your options. It can output 1~1048575 pulse trains.
100M Frequency Meter Function: it can measure frequency, period, pulse width and duty cycle. Max. frequency workable is 100MHz and Min. frequency workable is 0.01 Hz.
Counter Function: it has 2 coupling measure modes including DC coupling and AC coupling. This design can solve inaccuracy problem of AC coupling.
Standard dual full functional channels which are equivalent to two independent generators.
Channel SYNC Function: support waveform copy and state copy between channels.
Support two or more signal generators connected to achieve multi-channel output, the maximum support 16-channel synchronous output, the phase between each channel can be adjusted.
Precisely adjust the phases of the two channels. Precision can be 0.01°.
Min amplitude resolution can be up to 1mV. Amplitude range is 0~24Vpp.

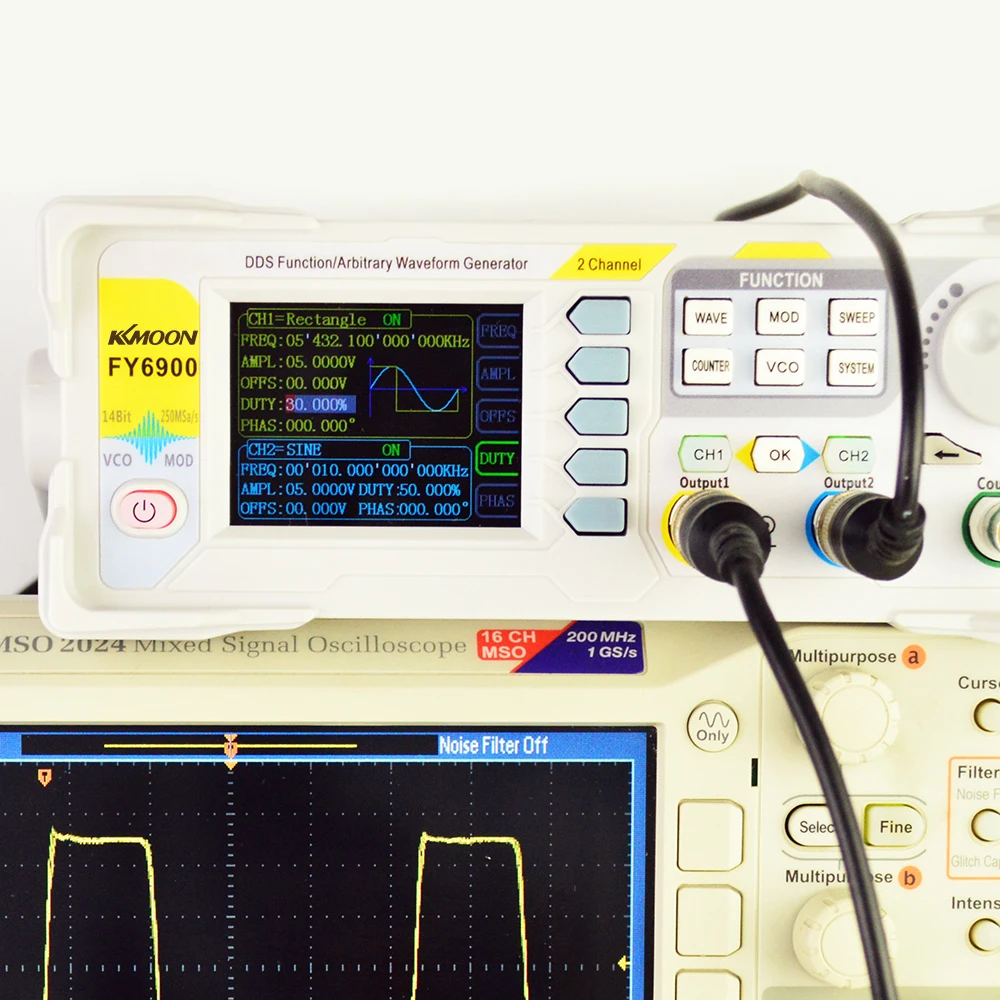

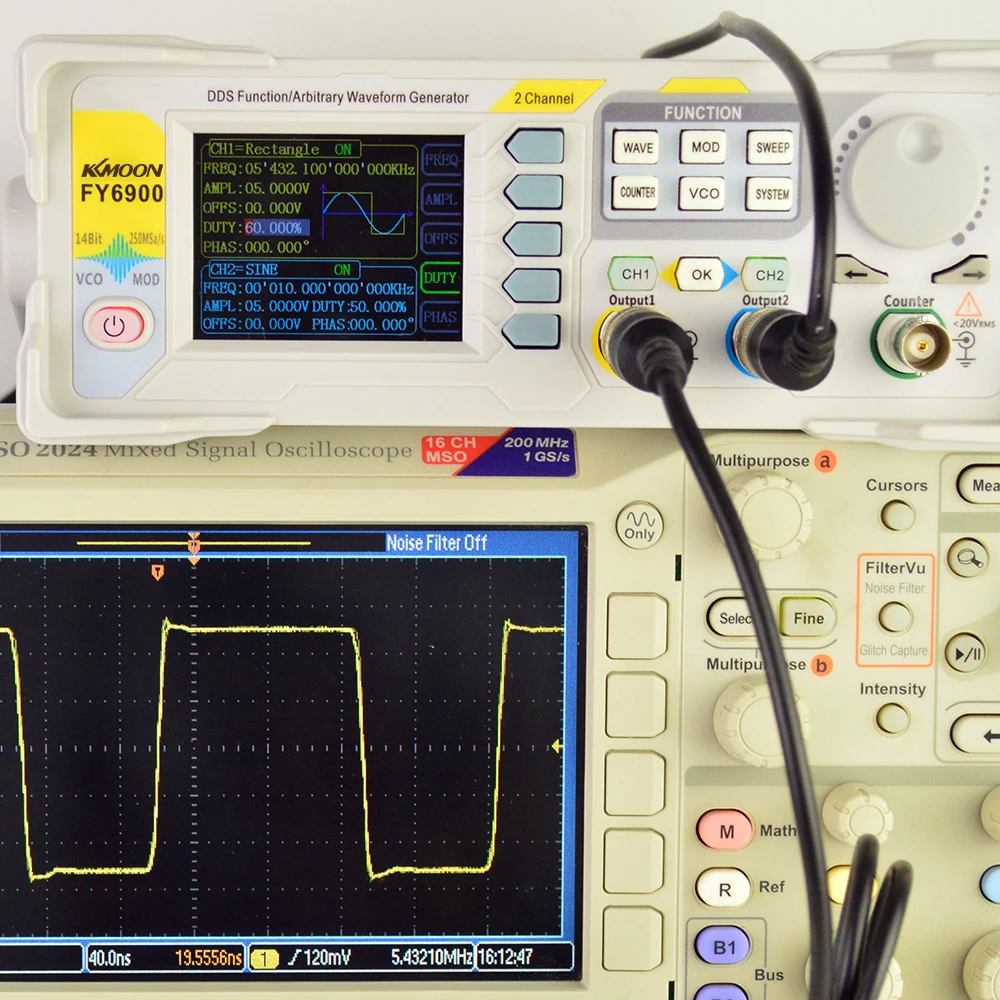

Duty-cycle of each channel can be adjusted independently 0.01%-99.99%, the adjusting resolution is 0.01%.
-12V~+12V DC Offset function. Resolution 0.001V.
Save Function: it can save 20 sets user-set parameters and can be loaded at any time.
Communicating Function: all functions can be controlled by PC program and the communication protocol is open for secondary development.
Output Short-circuit Protection: all channels can work more than 60 seconds when the load is short-circuited.
Provide powerful waveform editing PC software. Users can download arbitrary waveform to this instrument after edit through PC program which is included in user CD.
Adopt ABS plastic shell with table type design. Use 100-240V (AC) wide range voltage power supply.

Specification:

Frequency

Model

FY6900-60M

Sine

0~60MHz

Square

0~25MHz

Ramp, Triangle

0~10MHz

Pulse

0~10MHz

TTL/CMOS

0~10MHz

Arbitrary Waveform

0~10MHz

Minimum Pulse Width

20ns(All models of pulse wave minimum width can reach 20ns)

Min. Resolution on all frequency range

1μHz (Min. resolution can reach 1μHz on all frequency range to ensure adjusting accuracy under high frequency. For example, it can output 10.000000000001MHz signal).

Accuracy

±20ppm

Stability

±1ppm/ 3hours

Waveform Characteristics

Waveforms

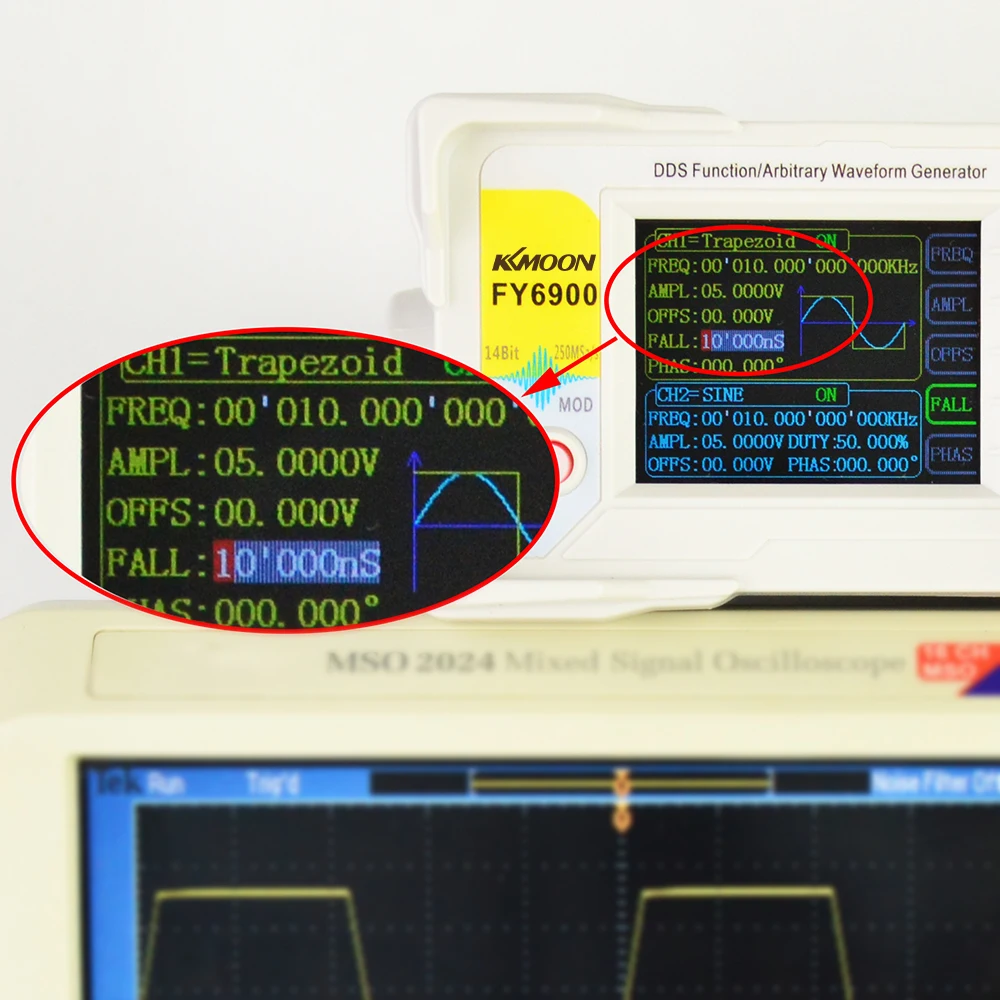

Sine, Square,Rectangle (Duty Cycle adjustable), Pulse (Pulse width and cycle time can be set accurately), Triangle/Ramp, Sawtooth Wave, CMOS, Four channels TTL, DC, Half wave, Full wave, Positive Step, Inverse Step, Positive Exponent, Inverse Exponent, Lorenz Pulse, Multitone, Noise, ECG, Trapezoidal Pulse, Sinc Pulse, Narrow Pulse, Gauss White Noise, AM, FM, and other 64 sets customer-defined waveform.

Non-Volatile Storage

Can store 64 user-defined arbitrary waveforms, (8K 14bits) * 64

Waveform Length

8192points * 14bits

Sampling Rate

250MSa/s

Vertical Resolution

14 bits

Sine

Harmonic Suppression

≥50dBc(<1MHz); ≥45dBc(1MHz~20MHz);

Total Harmonic Distortion

<0.5% (20Hz~20kHz,0dBm)

Rectangle

Rise/Fall Time

≤7ns (VPP<5V)

Overshoot

≤5%

Duty Cycle

0.01%~99.99% (Resolution 0.01%)

Sawtooth Wave

Linearity

>99% (0.01Hz~10kHz)

Output characteristics

Amplitude(VPP)

Frequency≤5MHz: 1mVpp~24Vpp;
5MHz<Frequency≤10MHz: 1mVpp~20Vpp;
10MHz<Frequency≤20MHz: 1mVpp~10Vpp;
Frequency>20MHz: 1mVpp~5Vpp;

Resolution

1mV

Amplitude Stability

±0.5%/ 5 Hours

Amplitude flatness

±2.5%(<10MHz);±5%(>10MHz)

Waveform Output

Impedance

50Ω±10%(Typical)

Protection

All channels can work more than 60 seconds when the load is short-circuited.

DC Offset

Offset Range

Frequency≤20MHz: ±12V;  Frequency>20MHz: ±2.5V;

Offset Resolution

1mV

Phase Feature

Phase range

0~359.99°

Phase resolution

0.01°

TTL Output

TTL Level Amplitude

>3Vpp

Fan-out

>8 TTL LOAD

Rise/Fall Time

≤10ns

CMOS Output

Low Electric Level

<0.3V

High Electric Level

1V~12V

Rise/Fall Time

≤18ns

External Measurement

Function

Frequency, Period, Positive/Negative Pulse Width, Duty Cycle

Input Voltage Range

1Vpp~20Vpp

Frequency Meter

Resolution

0.01Hz(Gate Time = 100S)

Range

0.01Hz~100MHz

Sensitivity

Gate Time 3 grades (1S, 10S, 100S) adjustable

Counter

Range

0-4294967295

Coupling

DC, AC

Working Mode

Manual

Period

Measurement Range

5ns ~ 20s

DC coupling measurement

Pulse Width

Measurement Range

0ns ~ 20s

Resolution

5ns

Duty Cycle

Range (Display)

0% ~ 100%

Sweep

Carrier Waveform

Sine, Square, Ramp, Arbitrary(except DC)

Sweep Type

Linear or Logarithm

Sweep Direction

Up, Down and roundtrip sweep directions

Sweep Objects

Frequency, Amplitude, Offset, Duty Cycle

Sweep Time

0.01S~999.99S/Step

Setting range

Starting position and Finishing position can be set arbitrarily.

Sweep Range

Decided by Parameters setting.

VCO (Voltage Control Output)

Modulation signal range to input

0~5V

VCO signal frequency range

0-2000Hz

VCO control object

voltage controlling frequency (VCF), voltage controlling amplitude (V CA), voltage controlling offset, voltage controlling duty cycle.

VCO special function

Can Amplitude Modulate (AM) or Frequency Modulate (FM) by external analog signal.

Modulation

Modulation Type

AM, FM, PM, ASK, FSK, PSK

Carrier Waveform

Sine, Square, Triangle, Ramp, Arbitrary waveform (Except DC)

AM

Source

Internal (CH2) / External (VCO IN Port)

Modulating Waveform

Sine, Square, Triangle, Ramp, Arbitrary waveform

Depth

0% to 120%

Modulating Frequency

Internal : 1μHz~1MHz;  External: 1μHz~2KHz;

FM

Source

Internal (CH2) / External (VCO IN Port)

Modulating Waveform

Sine, Square, Triangle, Ramp, Arbitrary waveform

Modulating Frequency

Internal : 1μHz~1MHz;  External: 1μHz~2KHz;

PM

Source

Internal (CH2) / External (VCO IN Port)

Modulating Waveform

Sine, Square, Triangle, Ramp, Arbitrary waveform

Phase Deviation

0° to 360°

Modulating Frequency

Internal : 1μHz~1MHz;  External: 1μHz~2KHz;

ASK

Source

Internal (CH2), External (ASK IN Port), Manual

Modulating Waveform

Square with 50% duty cycle.

Key Frequency

1μHz~10MHz

FSK

Source

Internal (CH2), External (FSK IN Port), Manual

Modulating Waveform

Square with 50% duty cycle.

Key Frequency

1μHz~10MHz

PSK

Source

Internal (CH2), External (PSK IN Port), Manual

Modulating Waveform

Square with 50% duty cycle.

Key Frequency

1μHz~10MHz

Burst Function

Carrier Waveform

Sine, Square, Ramp, Arbitrary(except DC)

Burst Count

1~1048575

Trigger Source

Manual, Internal, External (AC/DC)

General Specifications

Display

Type

2.4 inch, TFT Color Display.

Save & Load

Amount

20

Position

01 to 20 (01 for start default value)

Interface

Type

USB to Serial interface

Protocol

Command line mode, providing communication protocols.

Communicating Speed

9600bps (Industrial standard)

Power

Voltage Range

AC100V~240V

Technic

SMD, LSI, Reliable and durable

Buzzer

Can be turned on/off by setting.

Operation

Buttons and knob continuously.

Environment

Temp.: 0~40℃, Humidity: ﹤80%

Size

Approx.210mm * 195mm * 75mm / 8.27 * 7.68 * 2.96 (L * W * H)

Weight

Approx. 611g / 21.56oz

Package Size

Approx.27cm * 21cm * 9.5cm / 10.63 * 8.27 * 3.75(L * W * H)

Package Weight

Approx. 1065g / 37.51oz(Main engine, accessories and packing materials)

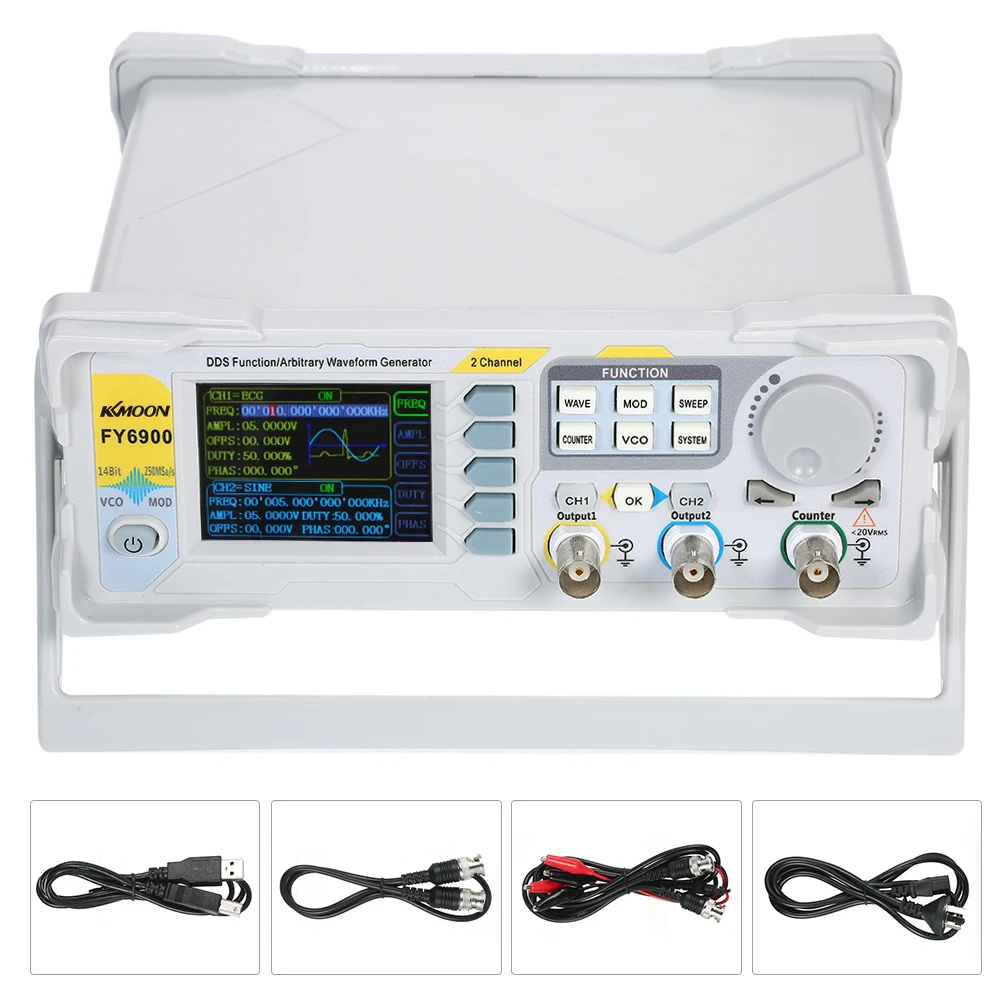

Package List:
1 * DDS Signal Generator
1 * Power Cable
1 * USB Data Cable
1 * BNC-BNC Cable
2 * BNC-Clip Cable
