4K UHD SONY IMX334 HDMI WIFI USB 3.0 GE Electronic Digital Video Microscope Camera 180X/300X C Mount Lens PCB Solder Repair Kit |

The HDMI 4K series camera is intended to be used for the acquisition of digital images from the stereo microscope, biological microscope or online interactive teaching. The basic characteristic is listed as below:


4K HDMI/GE/USB/WLAN multiple video outputs


Sony 8M, 1/1.8” 2.0um x 2.0um sensor


Double Cortes ARM 53 CPU processor, high performance and fast response video


H.265/H.264 codec


8G bit DDR4 running smoothly


4k/1080P switch adaptively, 60fps@4K


Embedded measurement functionsand meausurement objects can be exported to Excel or saved with the image data in layer mode or in burn in mode.


ToupView/ToupLite application for the PC


iOS/Android application which can be download from the APP store

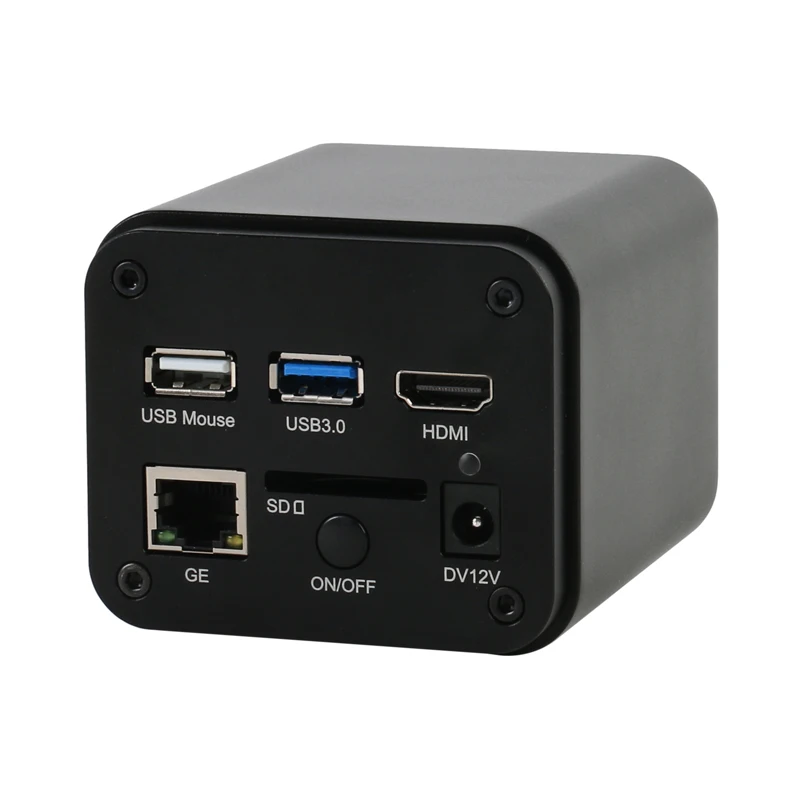

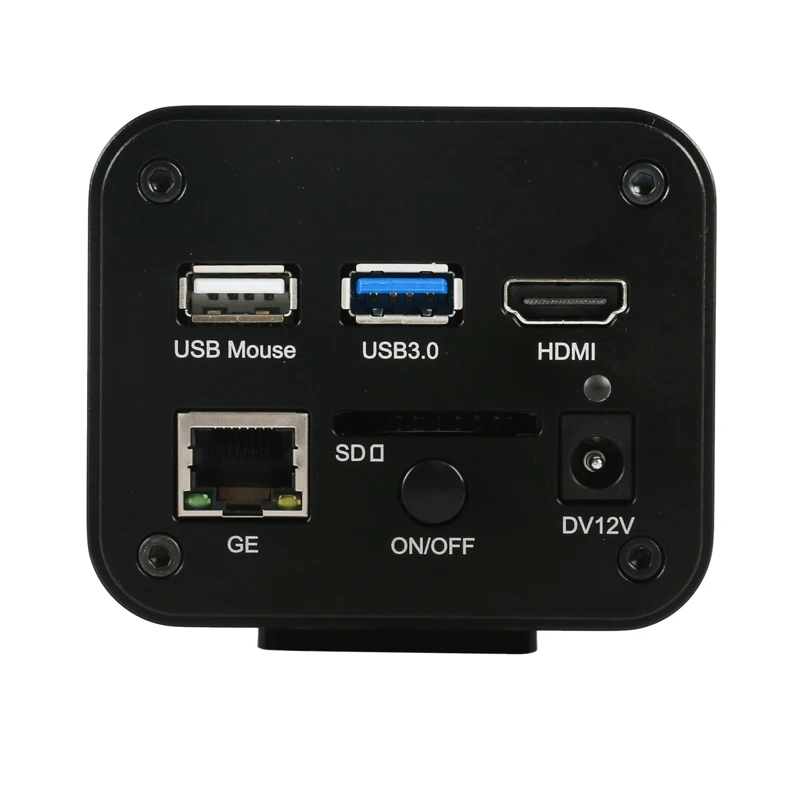

Interface

Function Description

USB Mouse

Connect USB mouse for easy operation with embedded XCamView software.

USB3.0

1. Connect USB flash drive to save pictures and videos.

2. Connect 5G WLAN modules to transfer video wirelessly in real time (Nor supported yet and will be supported in near future by updating firmware)；

3. Connect computer with USB connection to transfer video in real time (Nor supported yet and will be supported in near future by updating firmware)；

HDMI

Comply with HDMI2.0 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors.，

GE

Gigabit Ethernet port to connect router and switch to transfer video.

SD

Comply with SDIO3.0 standard and SD card could be inserted for video and images saving.

DC12V

Power Adapter Connection (12V).

ON/OFF

Power Switch.

LED

LED Status Indicator.

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

Dark Signal

FPS/Resolution

Binning

Exposure

(ms)

XCAM4K8MPA XP4K8MA

Sony IMX334(C)

1/1.8"(7.68x4.32)

2.0x2.0

505mv with 1/30s

0.1mv with 1/30s

3840*2160/60fps

1x1

0.04ms~1000ms

Video Output Interface

Function Description

HDMI Interface

1.          Comply with HDMI2.0 standard;

2.          60fps@4K or 60fps@1080P;

GE Interface

1.          60fps@4K resolution;

2.          H264 encoded video;

3.          Bandwidth adjustment in real time;

4.          unicast/multicast configuration;

5.          DHCP configuration or manual configuration;

WLAN Interface

Connecting 5G WLAN adapter via USB3.0 port (not supported yet and will be supported in near future by updating firmware).

USB3.0 Interface

1.        Connecting USB3.0 port of PC for video transfer (not supported yet and will be supported in near future by updating firmware).

2.        MJPEG format video.

1.1         Image Capture and Video Saving in SD card

Function Name

Function Description

Video Saving

1.          Video format：8M(3840*2160) H264 encoded MP4 file；

2.         Video saving frame rate：50~60fps(related to speed level of SD card and resolution of the video);

Image Capture

8M (3840*2160) JPEG image.

Measurement Saving

1.        Measurement information saved in different layer with image content。

2.        Measurement information is saved together with image content in burn in mode.

1.2         ISP Function

Function Name

Function Description

Exposure / Gain

Automatic / Manual Exposure

White Balance

Manual / Automatic / ROI Mode

Sharpening

Supported

3D Denoise

Supported

Saturation Adjustment

Supported

Contrast Adjustment

Supported

Brightness Adjustment

Supported

Gamma Adjustment

Supported

50HZ/60HZ Anti-flicker Function

Supported

1.3         Image Operation Function

Function Name

Function Description

Zoom In/Zoom Out

Up to 10X

Mirror/Flip

Supported

Freeze

Supported

Cross Line

Supported

PIP (Picture in Picture)

Supported

Compare

Comparison between real time video and images in SD card or USB flash drive

Embedded Files Browser

Supported

Video Playback

Supported

Measurement Function

Supported

1.4         Other Functions

Function Name

Function Description

Embedded RTC(Optional)

To support accurate time on board

Restore Factory Settings

Supported

Multiple Language Support

English / Simplified Chinese / Traditional Chinese / Korea / Thai / French / German / Japanese / Italian

A set Package:





1 x 4K Digital Video Camera


1 x HDMI Cable


1 x USB Mouse


1 x 5G WIFI Modules


1 x Power Adapter (EU / UK / AU Adapter for free)

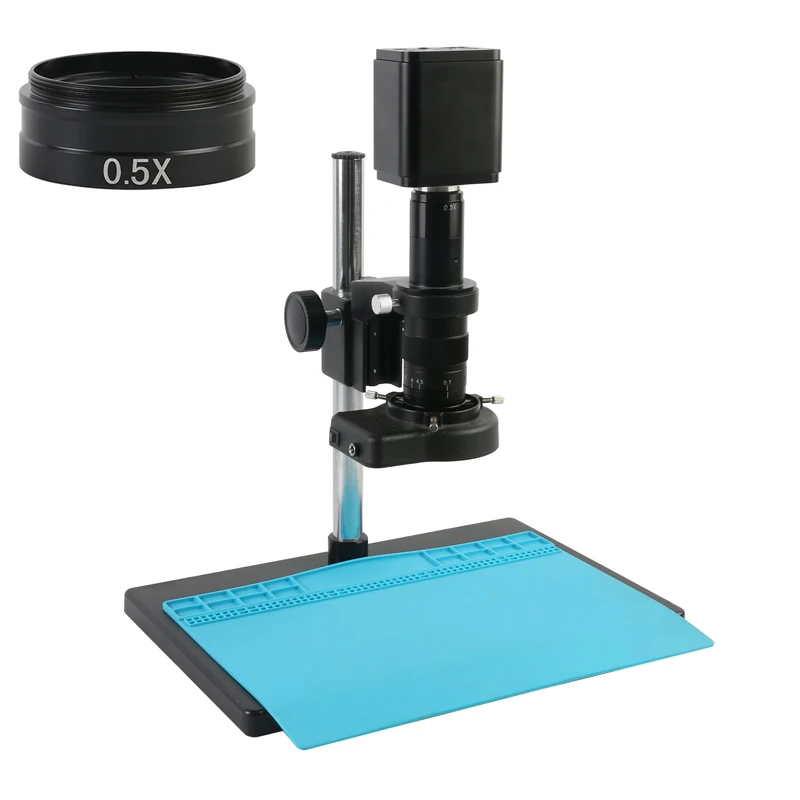

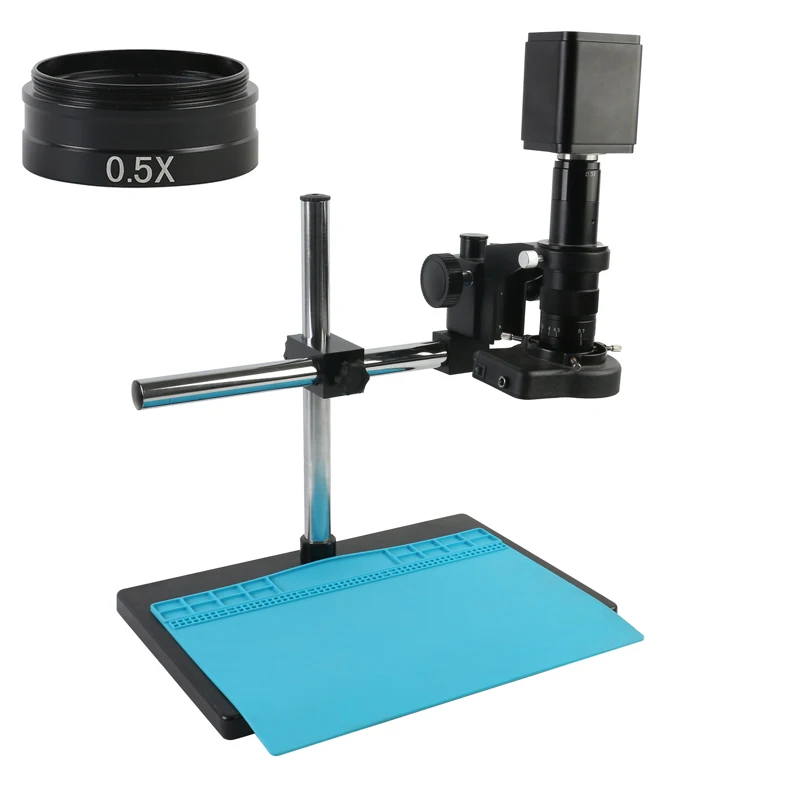

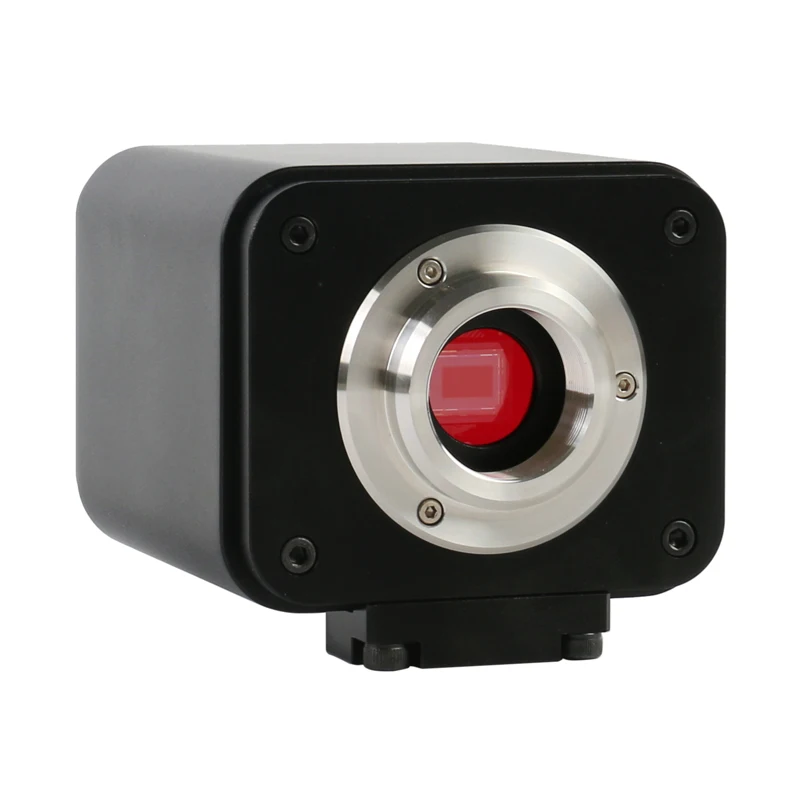

1 x C mount Lens （180X or 300X ）


1 x 0.5X Objective Lens


1 x Boom Arm Microscope Stand


1 x 144 LED Light


1 x Working Mat






B set Package:





1 x 4K Digital Video Camera


1 x HDMI Cable


1 x USB Mouse


1 x 5G WIFI Modules


1 x Power Adapter (EU / UK / AU Adapter for free)


1 x C mount Lens （180X or 300X ）


1 x 0.5X Objective Lens


1 x 25mm Pillar Microscope Stand


1 x 144 LED Light


1 x Working Mat
