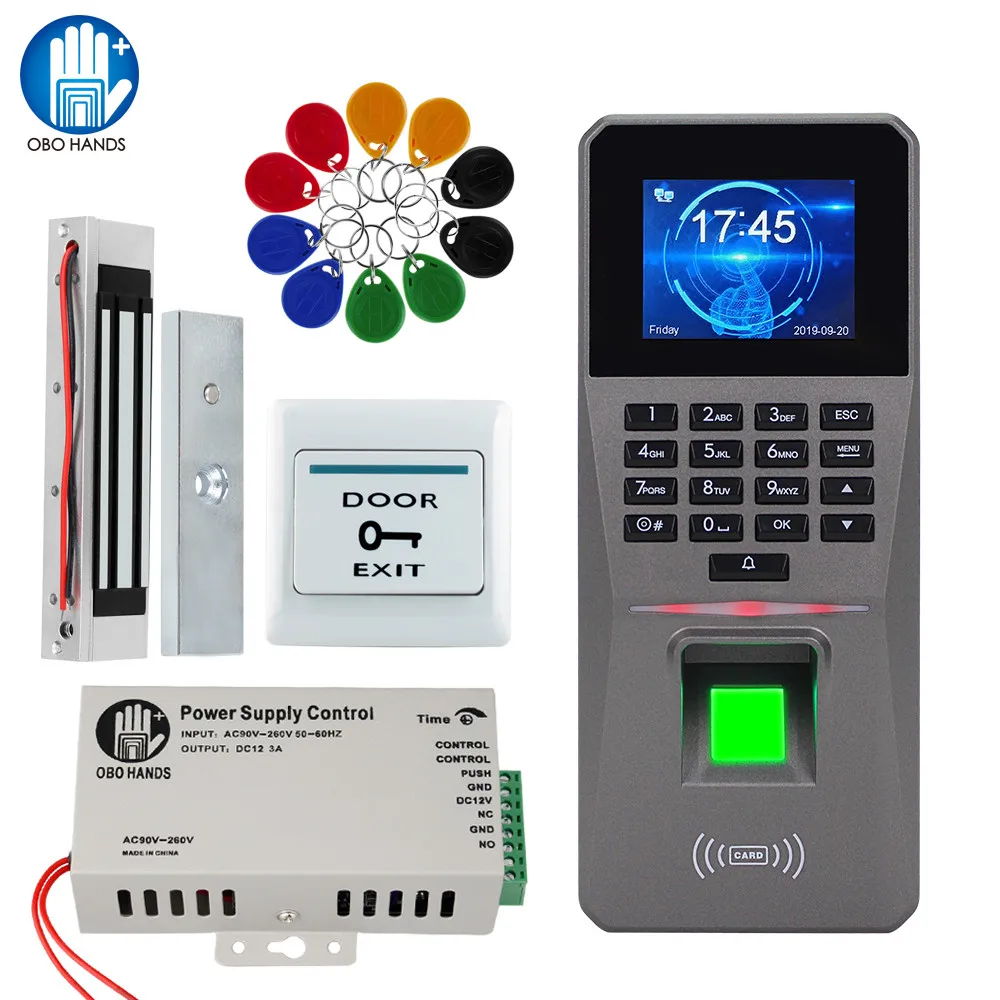

Note:A complete set of entrance guard system for wooden doors, iron doors and glass doors, which you can choose according to the type of your door. If you don't know how to choose, please contact us after taking a photo of the door, thank you.

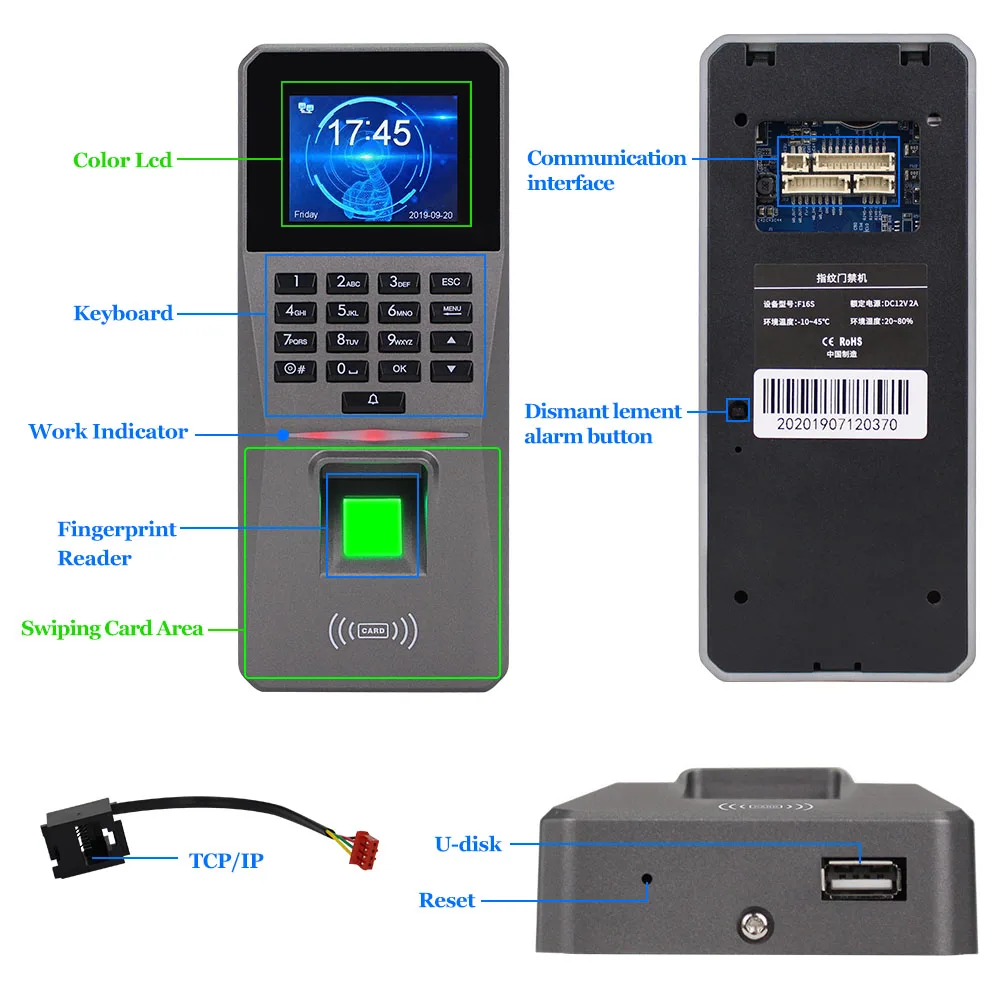

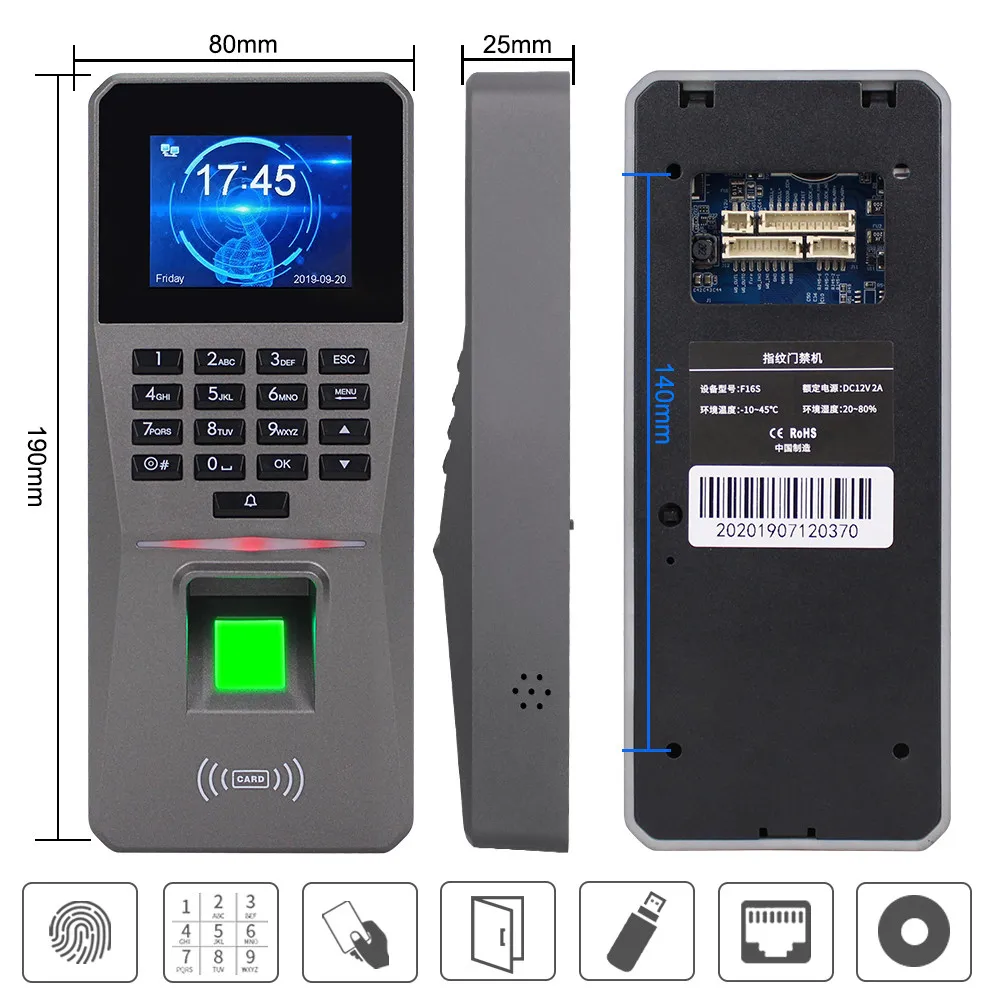

Product DescriptionFingerprint Access Controller1) 2.4inch TFT screen.2) Strictly follow the national security product standard.3) Adopting the Energy-saving fingerprint sensor and power management function, makes the product perfect.4) 3 methods to identify the attendance: Fingerprint, Password, RFID card.5) Support TCP/ IP/RS485/USB communication method. 6) Support USB Flash drive upload download.7) Humanized language indication reminder.8) Suitable for the entrances and exits of office, factory, hotel, school, etc.9) T9 input method editors, on the machine name, Department, frequency and other information, can be directly output attendance reports, user operation is simple10) Support English and Chinese language.11) Has Wiegand26/34 input/output, relay output, door bell button. Can be used as a standalone fingerprint time attendance machine and standalone access control keypad. 2.4inch Color TFT Screen

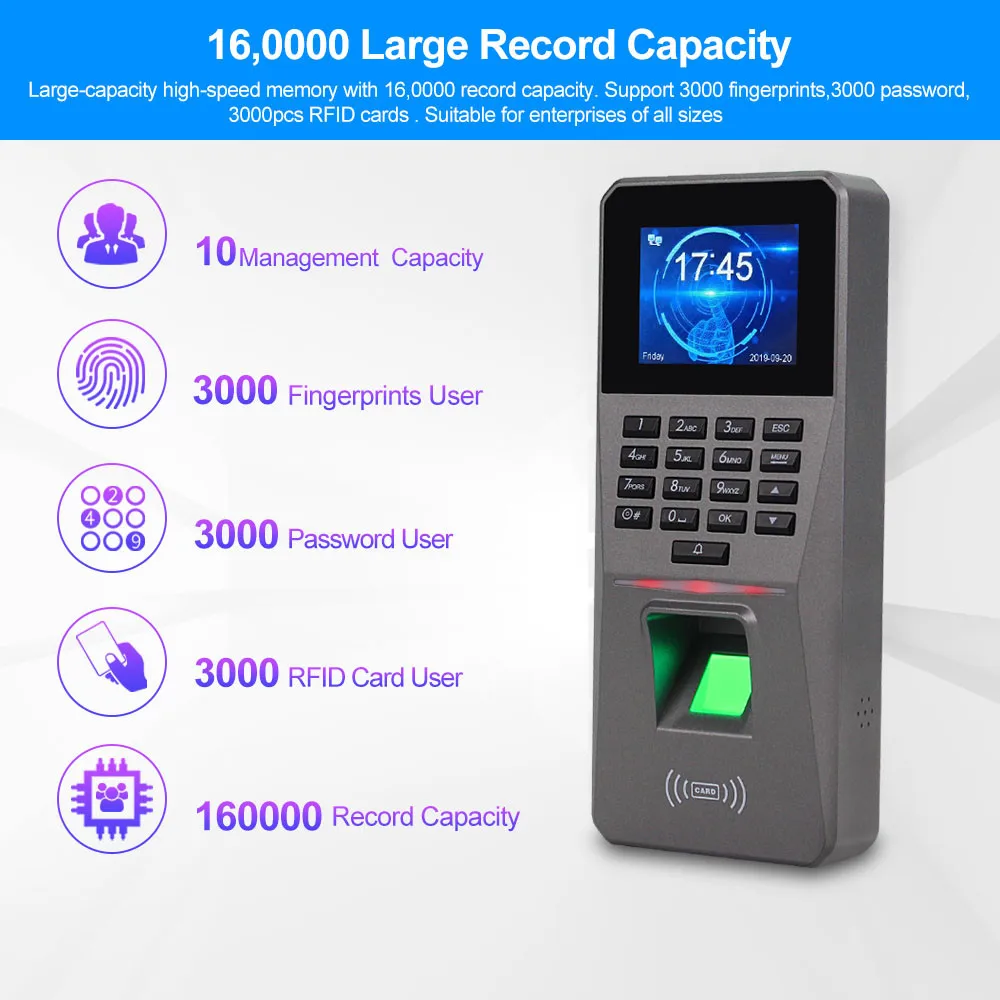

16,0000 Large Record Capacity Large-capacity high-speed memory with 16,0000 record capacity. Support 3000 fingerprints, 3000 password,3000pcs RFID cards. Suitable for enterprises of all sizes
Live voice prompt
Support Fingerprint, Password, RFID card verificationSupport smart sensing technology, identify sensitive, you can open the door with fingerprint, password, or RFID card convenient. Data can also be used for attendance, to achieve access control attendance dual function
Support Tamper Alarm FunctionThis function is based on the tamper alarm function has been opened. When someone violent demolition the device. The device will be out of the installation plate, then sounds a high decibels alarm.
Support off-line or TCP/IP using1, This device support to check-in to attendance without networking. Doesn't need to wiring and connect the network. Support to use U-disk to download and upload the attendance report data.
2, This device support to connect to any computer through the TCP/IP communication network, download the attendance report data in one click on the computer.

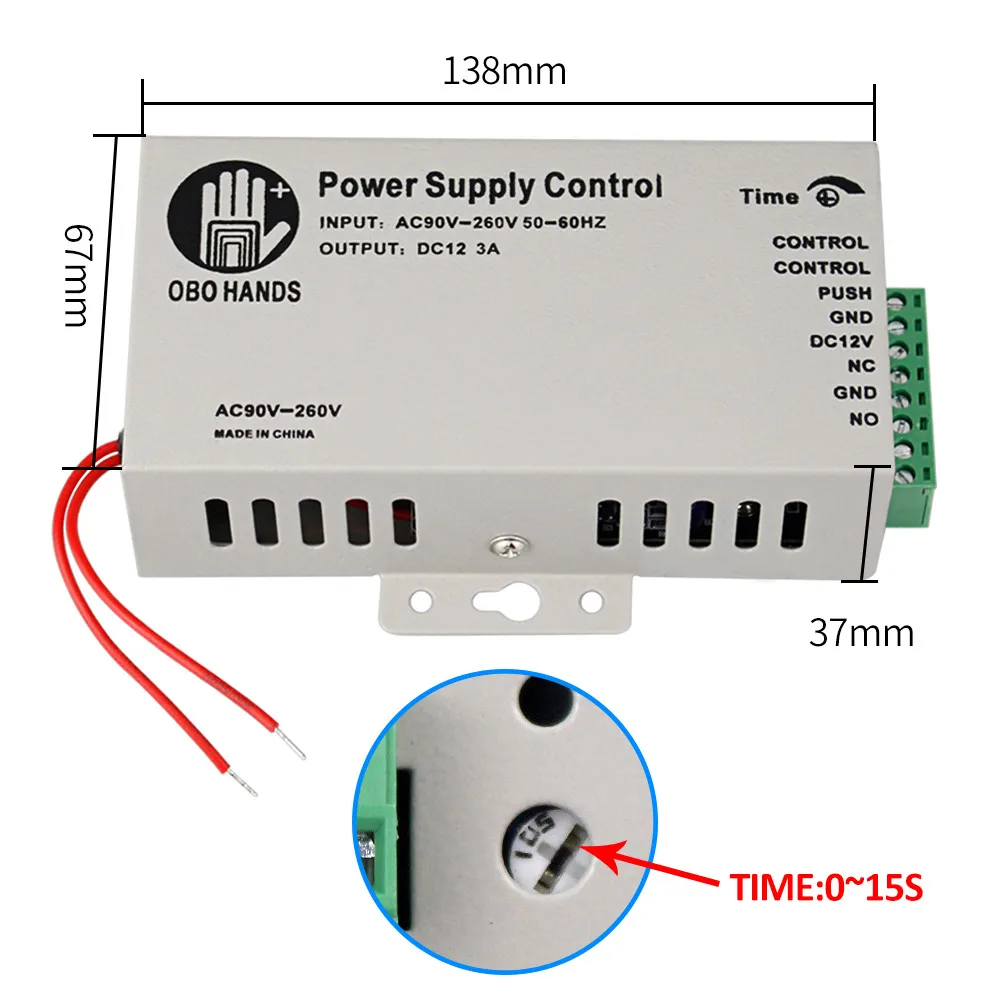

Power Supply Material: SteelOutput Power: 36WDurability Test: 500000 timesInput Frequency: 50-60HzInput Voltage: 110-260VACOutput Voltage: DC12V/3AWorking Temperature: -20 to +65Time Delay: 0-15 seconds adjustableRelative Humidity: 0%-90%Dimension: 100*65*32mm
Door Exit Button:Material:Hard PlasticMaximum Power Rating: 36V DC 3A-5A outputSupport both NC Mode (Fail Safe Mode) &NO Mode (Fail Secure Mode)Dimension:86X86MM ( L / W )
RFID Keyfobs:125KHz rfid frequency key cardOperating frequency: 125kHzDetection range: 0-10cmEach card pre programmed and has a unique identity number on it.Please Noted: There are 5 color of the RFID keyfobs for optional (blue, red, yellow, green, black). We will send mix color by default. If you need other color, please leave message to us.Package ListKit3: Suitable for wooden door, metal door. convenient and beautiful. No need bracketPackage including: Access Control keypad + Power supply + Electric Strike lock + Exit button + 10pcs KeyfobsNC model (Locked when power on, unlocked when power off). If you want NO type, please leave us a message. Working Voltage: 12V ± 10%Current: 200mA - 450mAHolding Force: 500kgSurface Temperature: Lower than room temperature +20Working Temperature: -30-+60 Celsius DegreeOperating Humidity: 0~90%(non-condensing)Feature:Fail secure (NO), Fail safe(NC)Material: Stainless steelNC type strike lock: Locked when power on, unlocked when power offNO type strike lock: Locked when power off, unlocked when power onSize: 150 x 28 × 34mm(L / W / H)
Kit4: Suitable for wooden, metal door. No need bracket.Package including: Access Control keypad + Power supply + Electric Drop bolt lock + Exit button + 10pcs Keyfobs Working voltage: 12VTime delay: 0s,3s,6s adjustable
Working current: Start state 1.2A ; Persistent state 120mA
Coil type: Continuous working
Security type: Electric power lock, unlock
Lock core: The diameter og 12.5MM stainless coer, exteding the lengh of 15MM
Locking mode: Magnetic induction
Unlock Mode: Fail Safe (Locked when power on, unlocked when power off)
Dimension: 150X34X28( L / W / H )
Kit5: Suitable for wooden, metal and glass frame door. No need bracket. Package including: Access Control keypad + Power supply + 180KG Electric Magnetic Lock + Exit button + 10pcs KeyfobsMaterial: Aluminum alloy shell + iron plate
Holding force: 180KG/350lbs
Working Voltage: DC12V
Working Current: 380-430mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: power-on to lock, power-off to unlock
Waterproof: Yes. Can be install outside
Kit6: Suitable for frameless glass door. Need U bracket.Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + U bracket + Exit button + 10pcs Keyfobs
If your door is frameless glass door, then will need a U bracket
Size of U Bracket: 130* 33 * 26mm (L/W/H) ![]()
Kit7:Suitable for wooden, metal door. Need L bracket.Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + L bracket + Exit button + 10pcs Keyfobslook at the door from the indoor, if the door is flat or the door to door frame is less than 3cm, you need to add the L bracket.![]()
Kit8: Suitable for wooden, metal, glass door. Need ZL bracket. Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + ZL bracket + Exit button + 10pcs Keyfobs If your door is open from indoor, then need to add the ZL bracket.Size of L Bracket: 170*34*25mm (L/W/H) Size of Z Bracket: 138*45*45mm (L/W/H)
Kit9: Suitable for wooden, metal and glass frame door. No need bracket. Package including: Access Control keypad + Power supply + Embedded 180KG Electric Magnetic Lock + Exit button + 10pcs KeyfobsSize of the Lock: 192Lx33Wx20H(mm)
Size of Armature Plate: 139Lx32x11H(mm)
Holding Force: 180kg(350Lbs)
Input Voltage: 12VDC
Current: 12V/120mA
Wiring Diagram![]()
