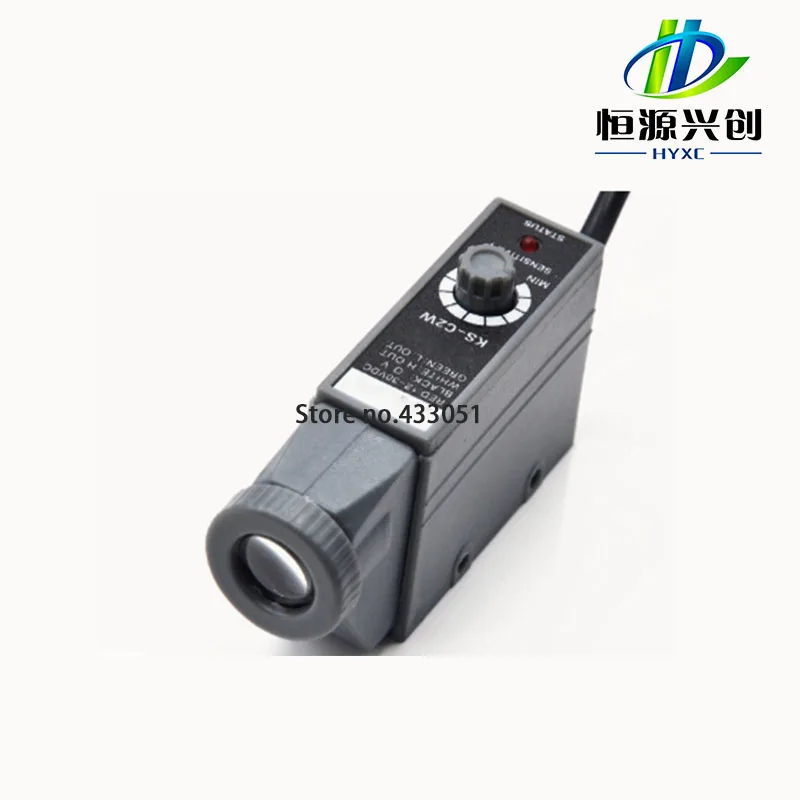

Color-coded sensor Photoelectric eye switch NPN Suitable for packaging Positioning Tracking Bag making machine | Обустройство дома

Color-coded sensor Photoelectric eye switch NPN Suitable for packaging Positioning Tracking Bag making machine | Обустройство дома

Description

Detection method: coaxial reflection type

Detection distance: 10mm ± 2mm

Supply voltage: DC10-30V ±10% ripple <10%

Current consumption: <45mA

Source Chromatography: Red White Green Blue

Photoelectric: Φ0.5-Φ1.5 or strip

Detection angle: The light is perpendicular to the surface of the object to be measured. The deviation is ±15°.

Response time 0.1-1ms

Output method: NPN NO

Output indication: red LED

Output voltage: High level Vs-(≤1.5) Low level (≤1.2V)

Load current 200mA(max)

Protection level (IP67)

Ambient temperature -15°C-65°C
