Brand NamekebiduModel NumberWireless 433Mhz Remote ControlOriginMainland ChinaUseUniversalCertificationCEPackageNoFrequency433 MHzChannel1Wireless CommunicationRFSupport APPNoMeasurement unitpiece/piecesEach pack1447,30 ₽-3%447,30 ₽-3%433,80 ₽433,80 ₽
there are seller's coupons
Add to CartBuy now433,80 ₽loaderDescription

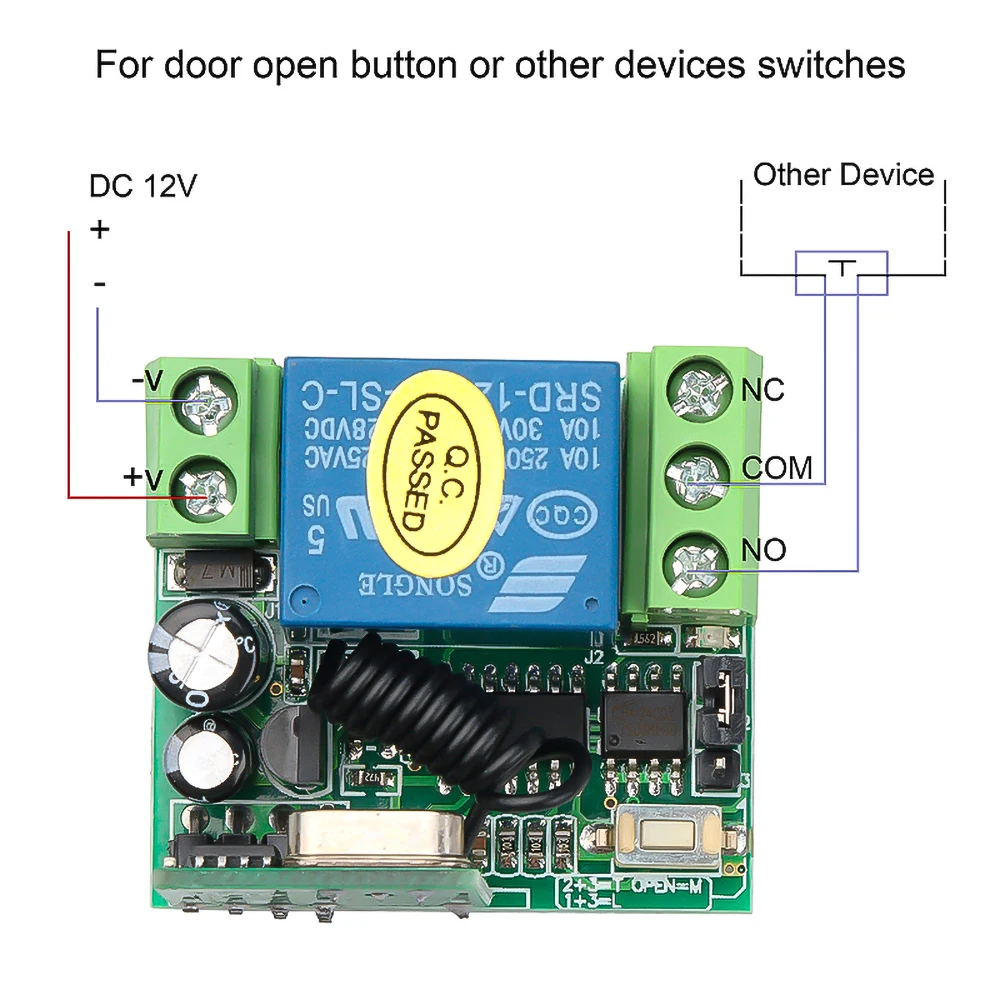

Technical Data:Input Power:DC10V-14VStandby Current:<5MARF Frequency:315M or 433MRF working mode:superheterodyneReceive sensitivity: >97dbmTransmitting distance: 20 meters aboveDecoding mode:MCU software decodingRemote storage: 25 pcsSupport remote type: Learning code, Fixed code(Rolling code can be design)Working mode:Momentary, Toggle, Latching Time delay (5s ,10s ,15s )Wiring type:fixed terminalOutput Terminal :NO , NC , COMDimension of PCB:35*30*18mm (L,W,H)Wiring diagram 1: +V : 12V + input ;- V: 12V - input ;NO: Output , normal open;COM:Output , common ;NC: Output , normal close;About Working mode:Momentary: Push the remote button , the relay connects, release the remote button , the relay dis-connects.Toggle: Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects .Latching: Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.Time delay mode :Push the remote control button , the relay connects , from when release the remote button , after 5s or 10s or 15s , the relay disconnect automatically .Clearing the code :Push the learning button on the receivers for 8 times , the codes will be cleaned .After clearning the code, all the remote control cannot work any more.Learning the code : (momentary)Push the learning key on the receiver once time , it comes into momentary setting mode .Wait for a moment , the LED will be off , it comes into learning state .Push the remote button , LED indicator on the receiver board will flash then come off .After 3 seconds, the LED indicator will be on again , learning successfully .Learning the code : ( Toggle )Push the learning key on the receiver twice time , it comes into toggle setting modeWait for a moment , the LED will be off , it comes into learning state .Push the remote button,LED indicator on the receiver board will flash then come off.After 3 seconds , the LED indicator will be on again , learning successfully .Learning the code : ( Latching )Note: When you choose for latching mode , in order to learn more remote control , you need to learn two different button , the first time learnt is for ''ON'', the second time learnt for ''OFF''.For example : button A = ON , button B = OFFPush the learning key on the receiver triple time , it comes into latching mode .Wait for a moment , the LED indicator on the receiver board will flash then come off.Push the remote button A .LED flash for 5 times .Push the remote button B .Led flash for 5 times .After 3 seconds , the LED indicator will be on again , learning successfully.A = ON , B = OFF .Learning the code : ( Time delay mode )Push the learning key on the receiver forth time , the time dealy for 5 seconds .Push the learning key on the receiver fifth time , the time delay for 10 seconds .Push the learning key on the receiver sixth time , the time delay for 15 seconds .The LED indicator will be off .Push the remote button , LED flashes and off .After 3 seconds , the LED indicator will be on again , learning successfully .NOTE: The system can store for 25 pcs of remotes , if the remote get more than 25 pcs , the initial remote control will be lost or not working. ![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
