Support Dropshipping and Wholesaling.

100% Original and Good Quality with Free After-sale Warranty.

Maximum Power Per Channel: Above 200W
Model Number: TAS5630
Channels: 2 (2.0)
Package: Yes
Color: yellow
Material: metal + pc
Max output:300W * 2
Product description:
Product parameter :
DC=50V, R=4Ω, THD+N=10%, P=300W
DC=50V, R=6Ω, THD+N=10%, P=210W
DC=50V, R=8Ω, THD+N=10%, P=160W
DC=50V, R=4Ω, P=240W when THD+N=1%
DC=50V, R=6Ω, THD+N=1%, P=160W
DC=50V, R=8Ω, when THD+N=1%, P=125W

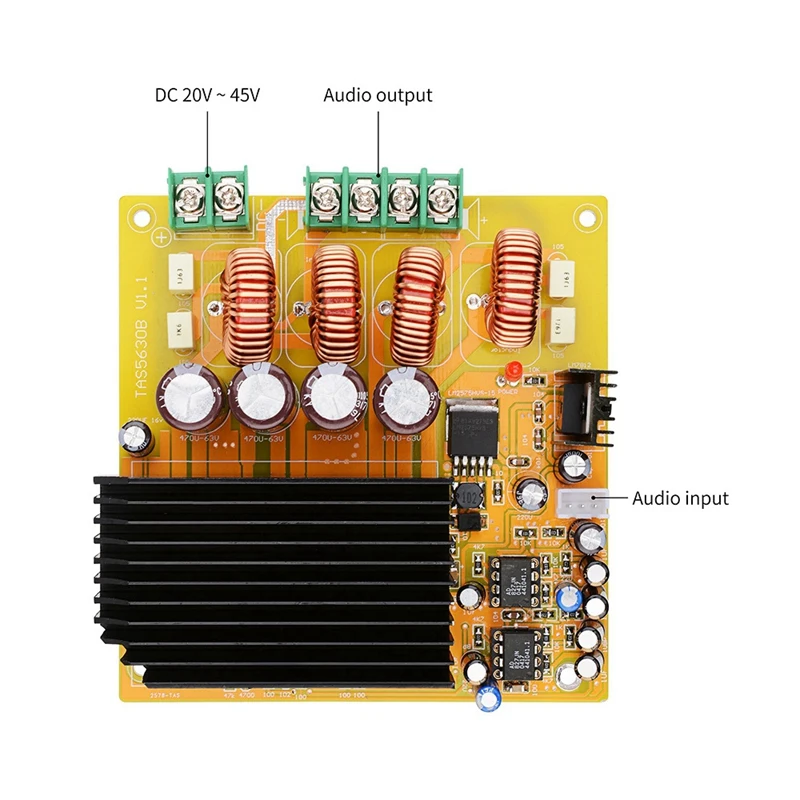

Amplifier chip: TAS5630
Number of channels: Dual channels
Outout power:2 * 300W (max power)
Total Harmonic Distortion (THD+N): less than 1%
Signal to Noise Ratio(SNR): Greater than 100dB
Input impedance: 20KΩ
Output offset voltage: less than 150mV
Voltage gain: adjustable
Conversion Rate (SR): 50V/us
Frequency Response Range: 20Hz--20kHz
Power supply range: DC20--50V

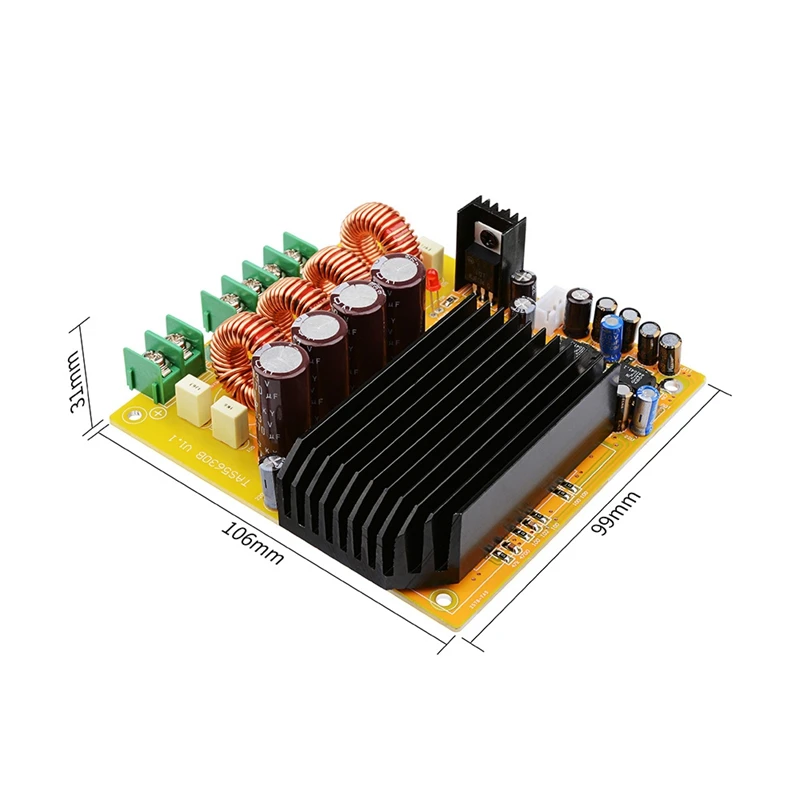

PCB size: 101.6 * 98.5
Features:
Using the AD827 op amp as preamplifier, the dynamics and details are excellent, and the subtle notes are also revealed.The ELNA Brown God series capacitors are used for coupling.
Use cautions:

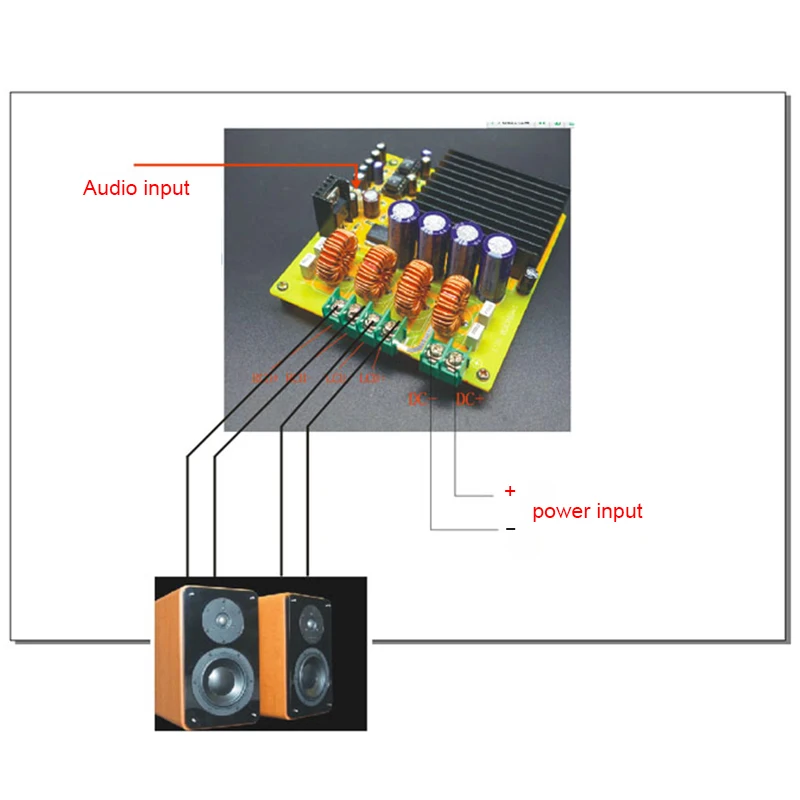

The board is a DC power supply. Do not input AC directly. Use an AC transformer, externally connect a rectifier bridge and filter capacitor. In addition, the DC power supply should not exceed 50V and it should not be lower than 20V.If it is less than 20V,it will not start.In addition,there is a relationship between the output power and the power of the power supply. The 50V power will be 4 times larger than the power at 20V.
Package included:
1 * TAS5630 Power Amplifier Audio Board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
