Hot 3C-3.2Inch Nextion Enhanced HMI Intelligent Smart USART UART Serial Contact TFT LCD Module Display Panel for Raspberry Pi AR |

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; }

Support Dropshipping and Wholesaling.

100% Original and Good Quality with Free After-sale Warranty.

The Nextion Enhanced versions are more powerful. Compare to the basic Nextion displays, the new ones have added some new functions: support built-in RTC, support save data to Flash, support GPIO, larger flash capacity and larger CPU clock
SD Card interface: support max max 32G Micro-TF/SD card (FAT32 file format)
Flash data storage space: 16MB
EEPROM: 1024 byte
RAM: 3584 byte
Instruction buffer: 1024 byte
Color:65K (65536) colors
Resolution:400×240 pixel
Adjustable Brightness:0-180 nit, the interval of adjustment is 1%
Visual Area:69.60mm(L)×41.76mm(W)
Layout size:95(L)×47.6(W)×5.55(H)
Contact type: Resistive
Backlight:LED
Backlight lifetime (Average): more than 30,000 Hours
Net Weight: 42.5 g
Recommended power supply: 5V 500mA DC
colour:black
Material:glass

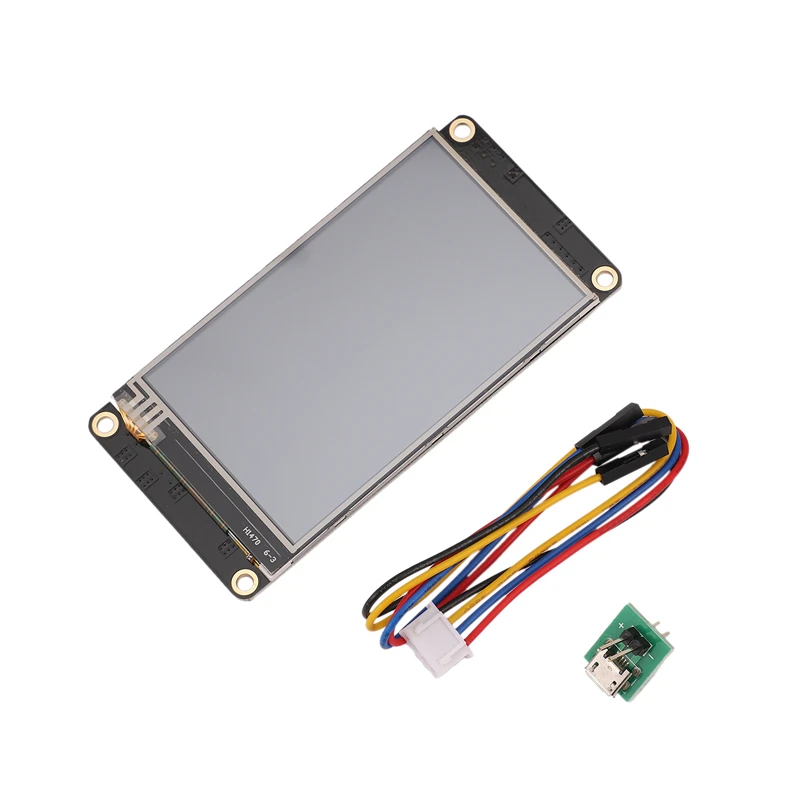

Package Contents:
1 * 3.2 Inch Nextion Enhanced HMI Display
1 * power supply test board
1 * 4-pin grove cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
