LONG WEI PS-3010DF Adjustable LED Digital Display DC Power Supply 110V/220V 30V 10A Switching Regulated 5V 2A USB | Обустройство дома

LONG WEI PS-3010DF Adjustable LED Digital Display DC Power Supply 110V/220V 30V 10A Switching Regulated 5V 2A USB | Обустройство дома

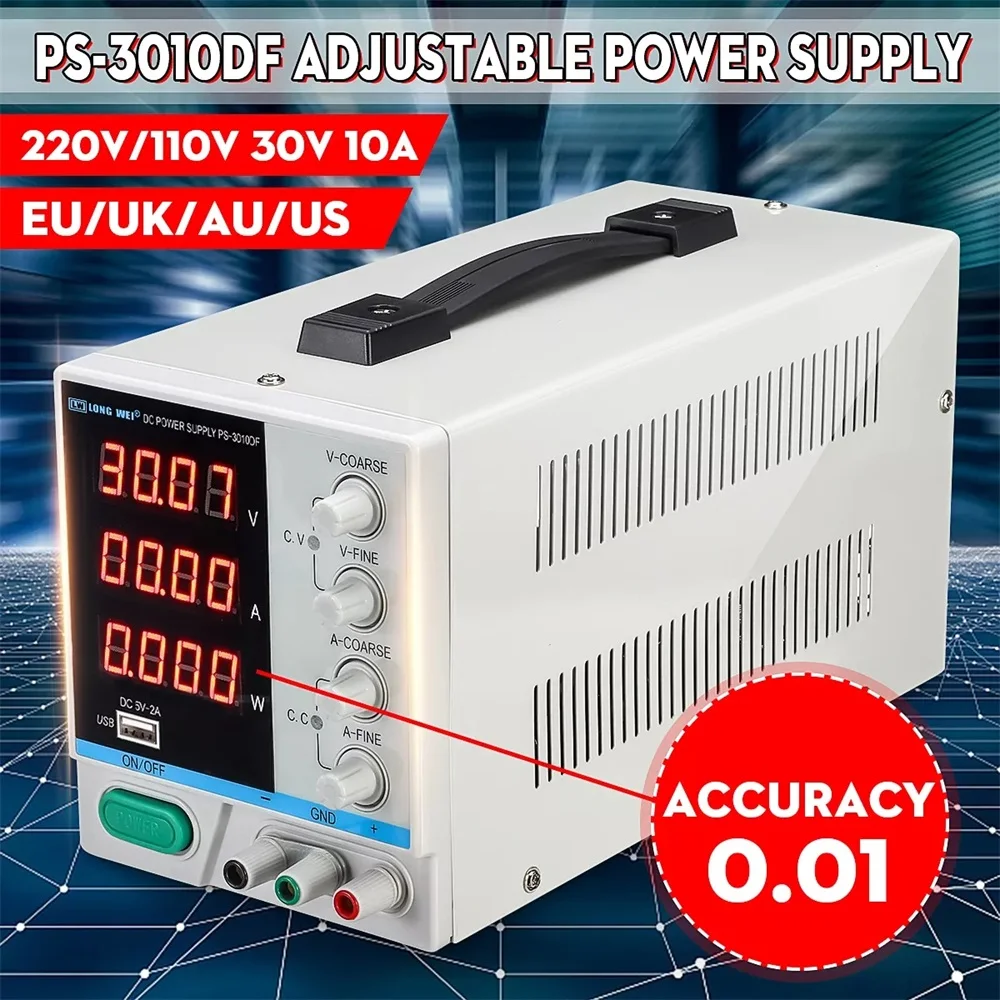

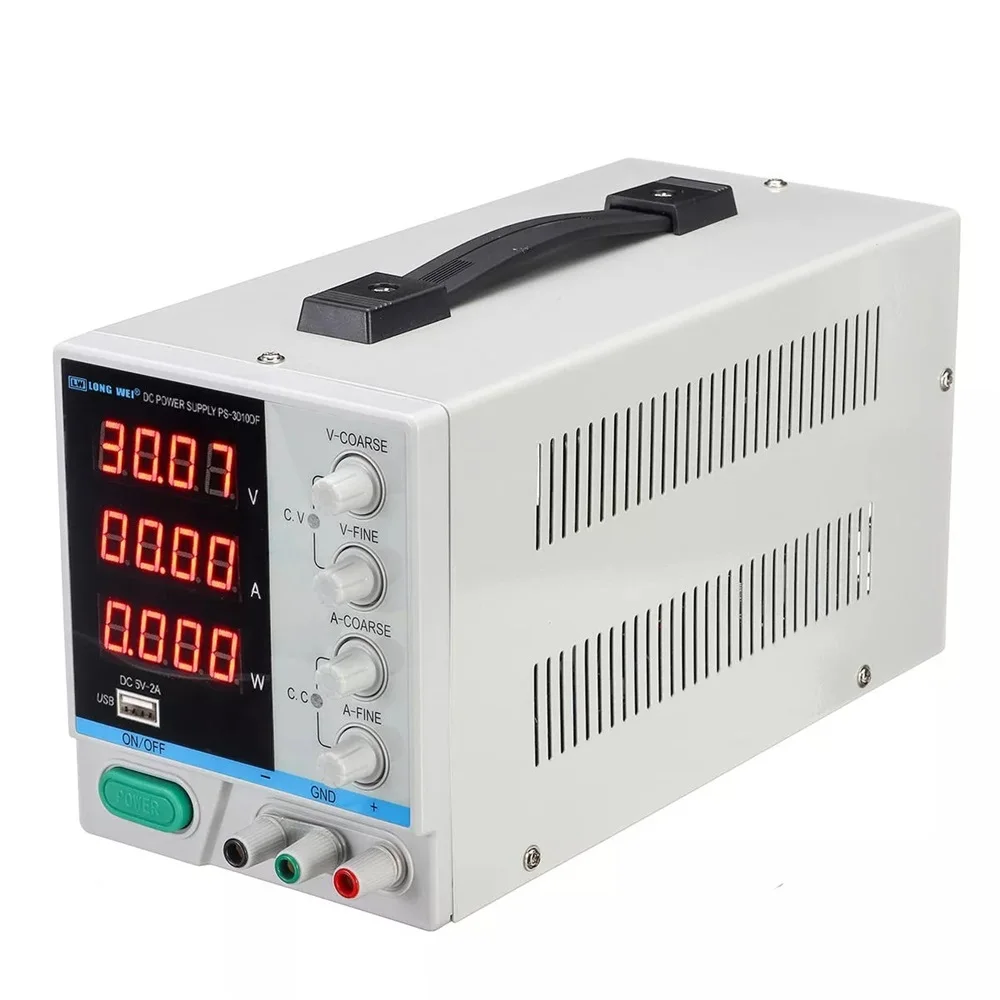

This mini DC power supply is a single set of output, high precision LED display switching DC power supply. With overload protection and constant voltage/current features. Application areas: Charge the battery, Car DVD, car audio, product aging, such as resistors, capacitors, relays, DC motors, LEDs, etc.

Features:
Single phase, single output, low ripple and noise.

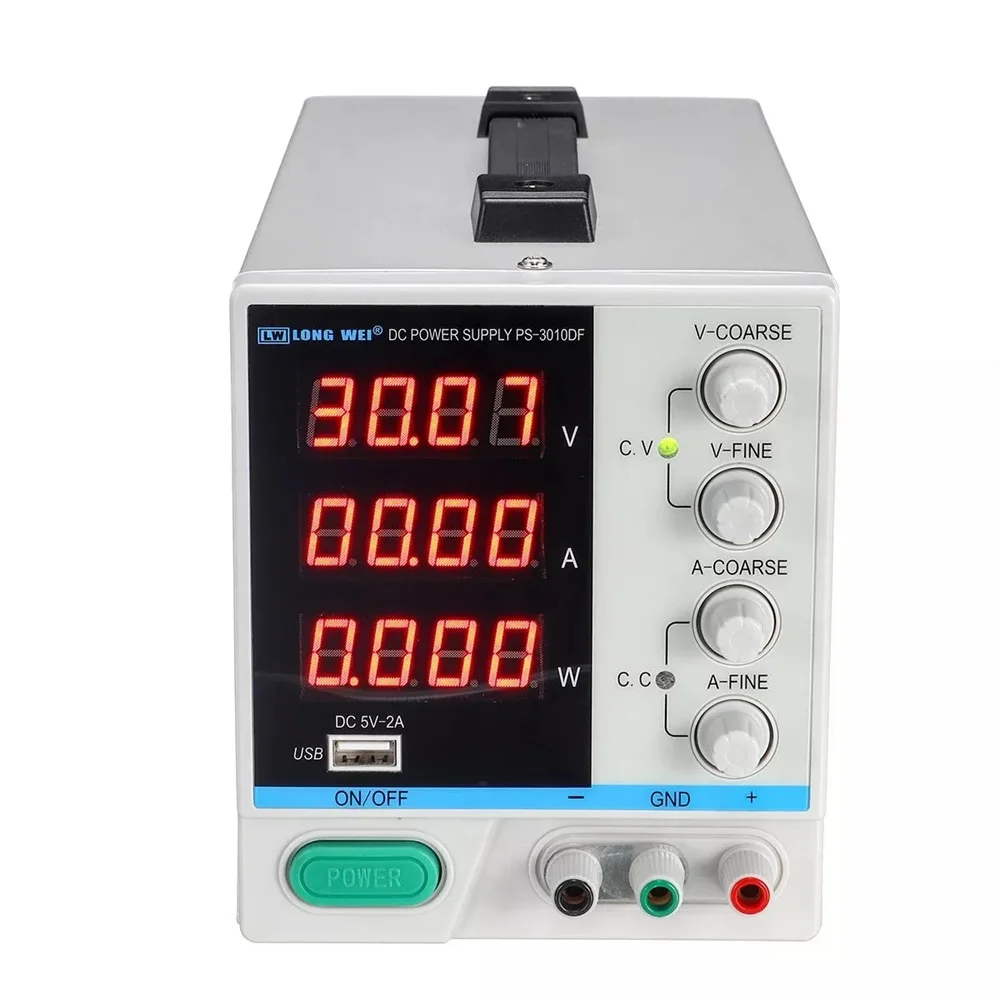

High-precision three-group four-and-a-half LED digital display: current + voltage + power, intuitive and clear.
Intelligent fan, excellent heat dissipation, effectively extending fan life and reducing noise.

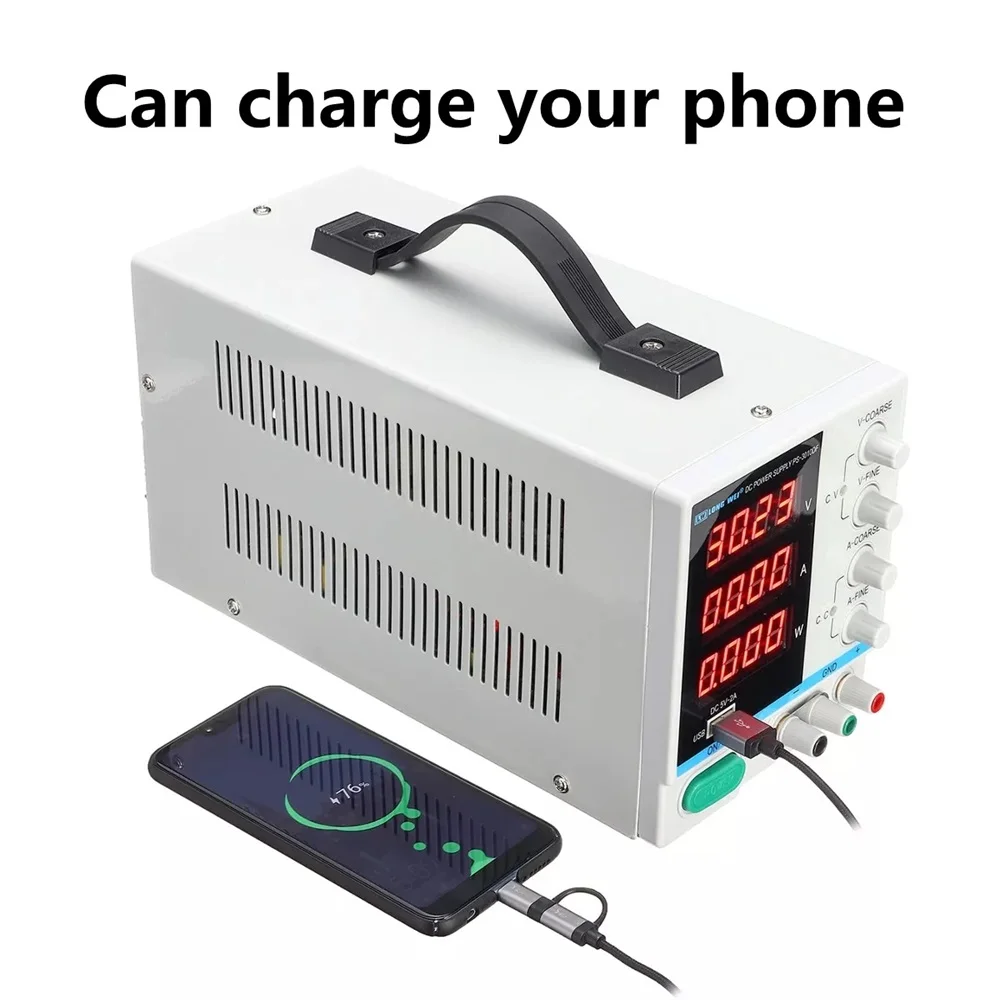

USB interface, 5V/2A output.

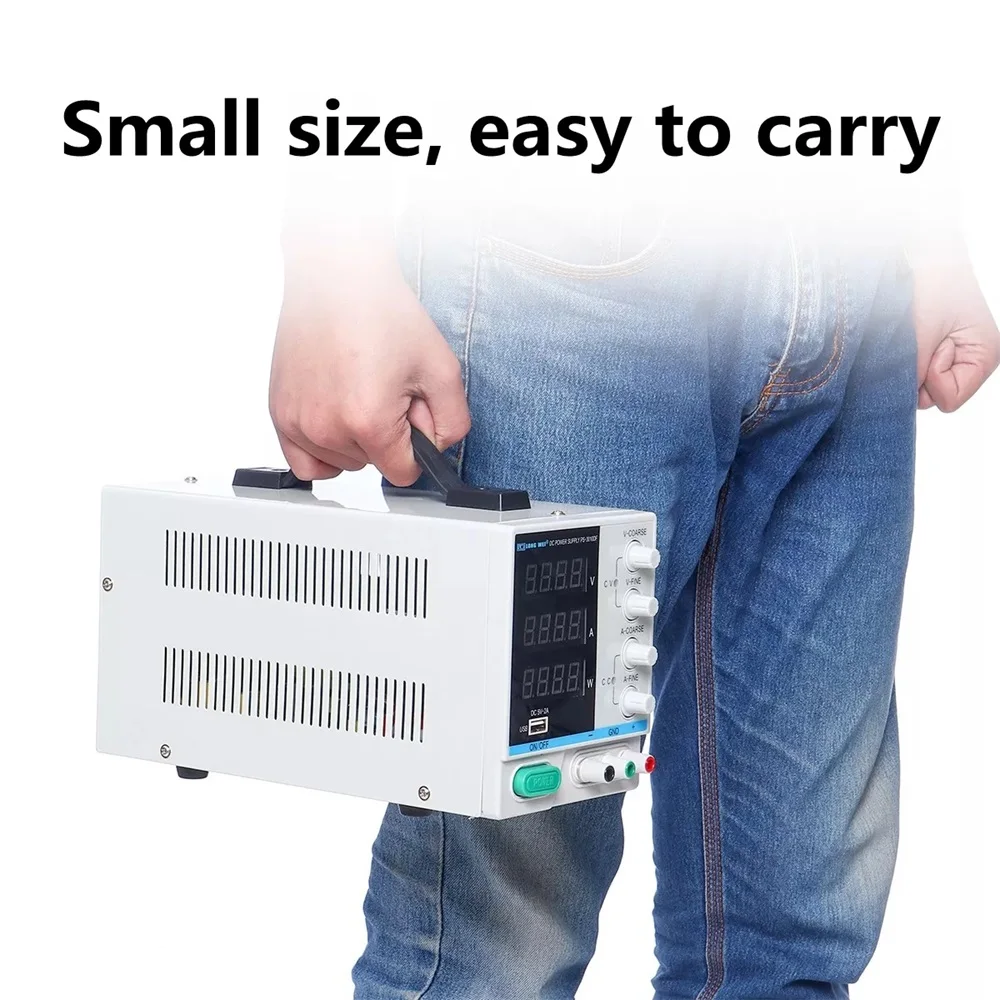

Adopt advanced technology, effectively reduce the weight of the power supply, lengthen the handle design, and facilitate the power movement.
Regulated steady current constant current constant voltage multiple modes can be switched.

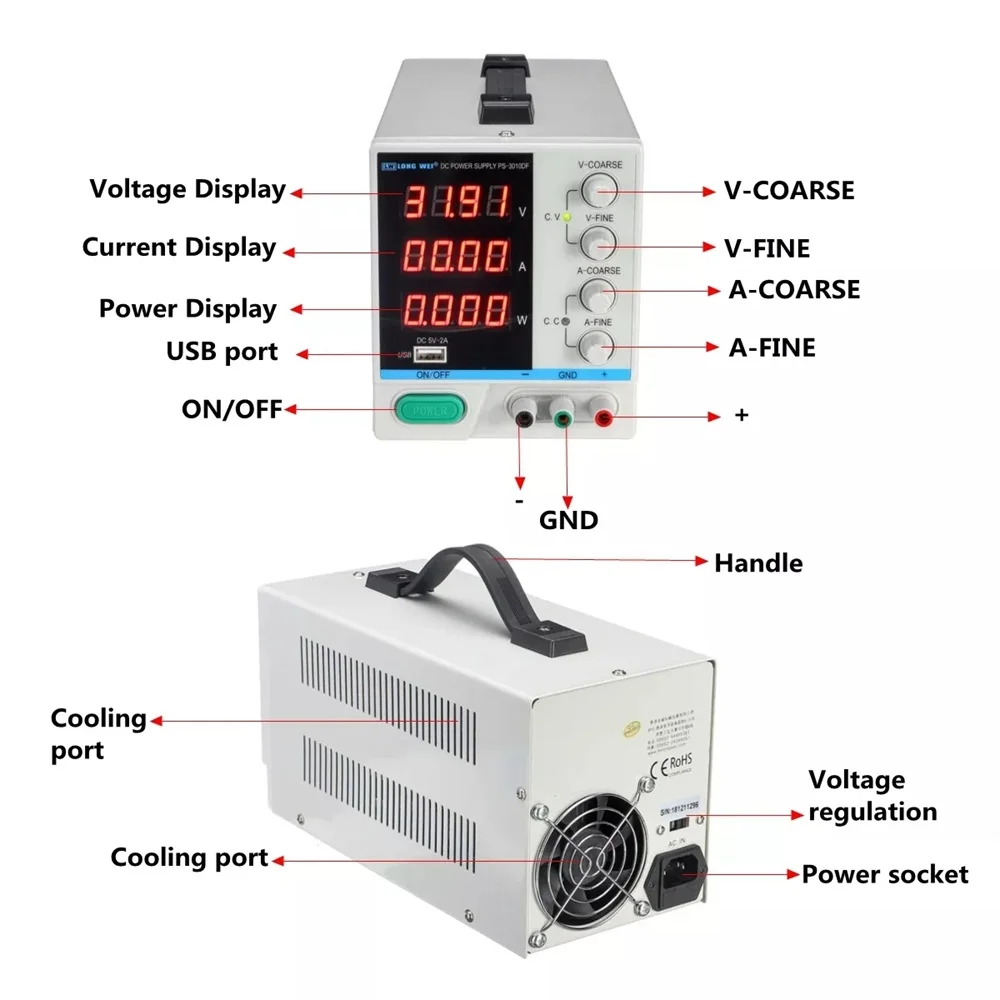

Set the coarse and fine adjustment knobs for voltage and current to make the setting more precise.
Multiple protection functions, current limit protection (OCP), over temperature protection (OTP), over power protection (OPP).
Application areas: Laboratory, factory, maintenance power supply, product aging, such as resistors, capacitors, relays, DC motors, LEDs, etc.

Specifications:
Material: ABS
Plug: US, EU, UK, AU
Input voltage: 220V±10% @50Hz±5Hz 110V±10% @60Hz±5Hz (switching or single voltage input)
Output voltage: 0-30V continuously adjustable
Output current: 0-10A continuously adjustable
Display accuracy: 4-digit LED digital display, display accuracy ±0.1% ± 1 word
Power supply effect: CV≤0.1%+10mV CC≤0.1%+10mA
Load effect: CV≤0.1%+5mV CC≤0.1%+10mV
Ripple and noise: CV≤10mV r.m.s. CC≤20mA r.m.s.
Machine efficiency: ≥80% (tested under full load)
Working environment: -10 °C - +40 °C Relative humidity 20% -80% (non-condensing)
Storage environment: -20°C- +80°C Relative humidity 20%-70% (non-condensing)
Package size: 37*21*18cm/14.56*8.26*7.08in
Package weight: 2400g
Pressure test:
Input-output: 1.5KVAC/1 minute
Input - Housing: 1.5KVAC / 1 minute
Output - Housing: 500VAC / 1 minute
Grounding resistance: <20mΩ
Appearance size: length 285mm* width 128mm* height 145mm (excluding protruding parts)

Note:
Item color may show sight aberration due to different shooting light and monitor display.

Packing list:
1* Adjustable Power Supply
1* User Manual
1* Power Adaptor
