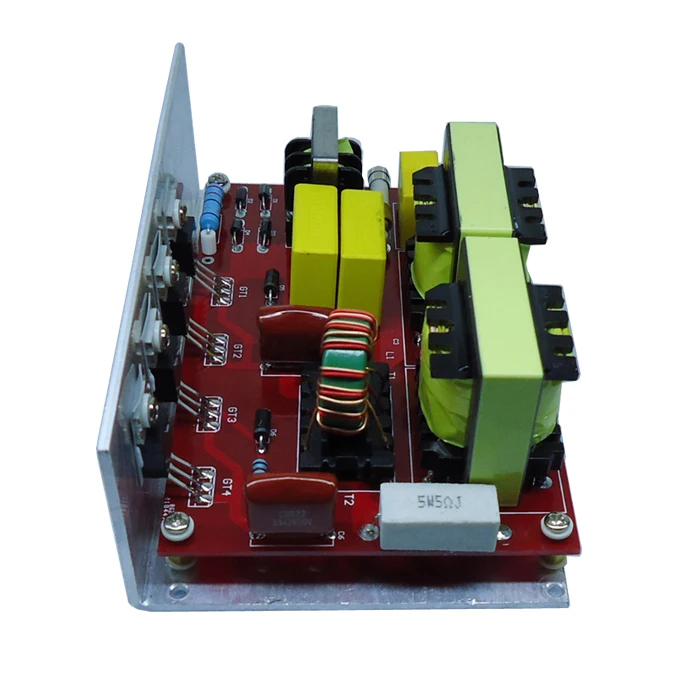

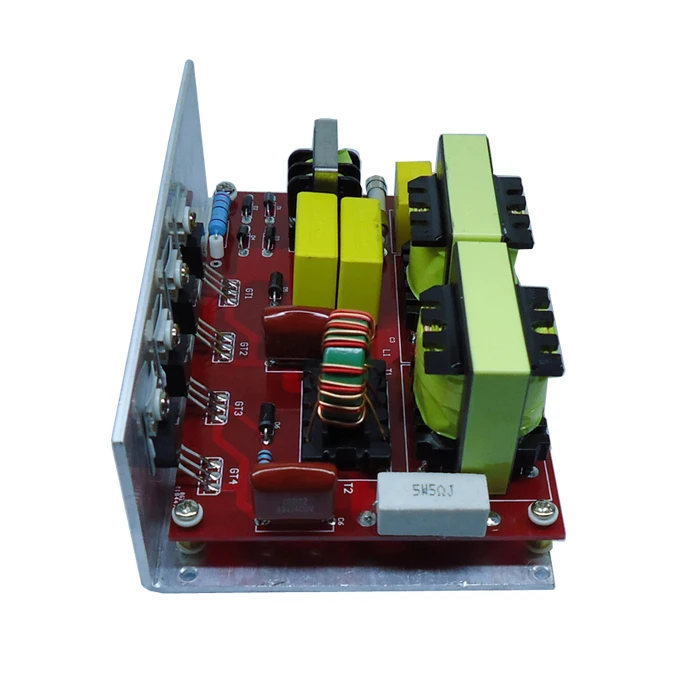

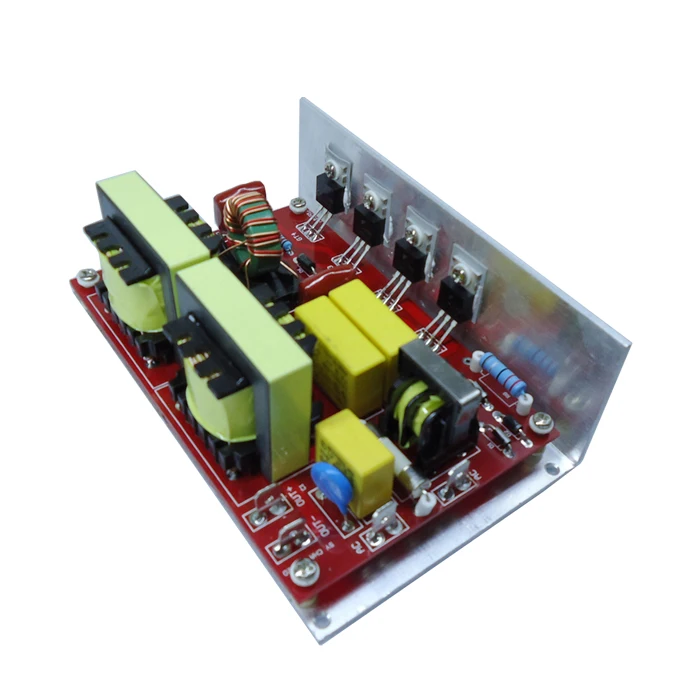

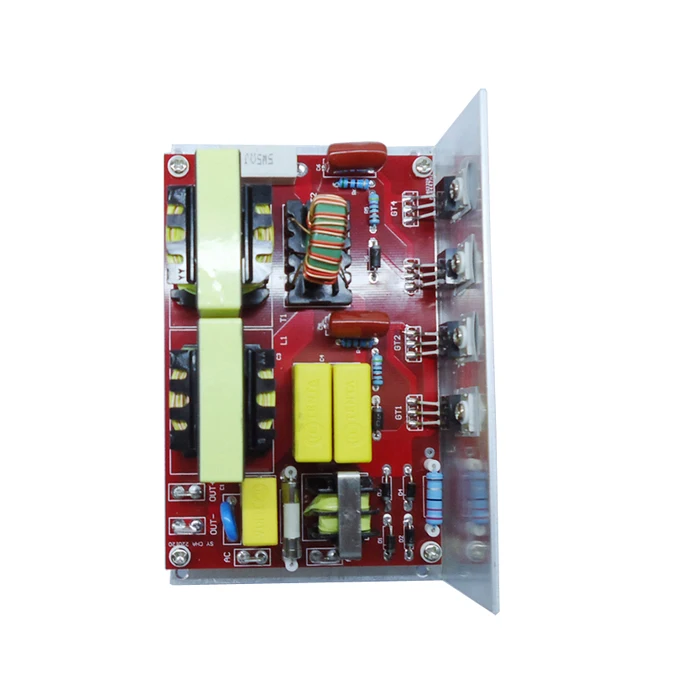

Ultrasonic Circuit Board 100W 30khz 110V or 220V Including Transducers | Инструменты

Ultrasonic Circuit Board 100W 30khz 110V or 220V Including Transducers | Инструменты

Wiring instructions for circuit board and shock head (ceramic plate transducer) :

1. Circuit board cannot be energized without load;

2. Installation of cleaning in the absence of any cleaning fluid can not be powered;

3. Shock head two wiring, two ceramic pieces of the middle of the wiring piece for the positive pole, by the upper and lower metal column for the negative pole, remember not to connect the reverse;

4. The silver-coated side of the ceramic plate of the transducer is a negative electrode, while the larger side of the other two silver layers is a positive electrode, and the smaller side is a negative plate. When welding the power cord, it must be welded on the side with two silver layers, and the other side is a vibrating surface, which can be pasted under the washing basin (this is the component description of the ceramic plate transducer purchased). The silver layer on the ceramic plate is not resistant to high temperature. When welding the power line, the temperature of the soldering iron shall not exceed 280 degrees. It is better to use the constant temperature soldering iron and set the soldering iron temperature as 250 degrees.

5. The larger side of the shock head (with a screw hole) is the shock surface that can be glued to the bottom of the cleaning basin. The cleaning basin should be grounded reliably.

6. Shock head or transducer ceramic plate application shock head glue firm paste on the bottom of the cleaning basin, can also be used AB adhesive paste, but the effect is slightly poor, such as using epoxy resin ratio of 10:4 can be;

7. Two shock heads are connected to the junction post of the circuit board. A circuit board shall have two shock heads at most, or it can be matched with one shock head.

\\
