AXK1730 + 2AS Thrust Needle Roller Bearing With Two AS1730 Washers 17*30*4mm ( 10 Pcs) AXK1103 889103 NTB1730 Bearings | Обустройство

LOAD RATINGS

needle roller thrust bearings are fitted with a shaped cage that securely holds and guides a large number of needle rollers. Needle thrust bearings provide very high stiffness in a very small axial space. In applications where the surface of adjacent machine components can be used as raceways, the needle thrust bearing takes up less space than conventional thrust washers.

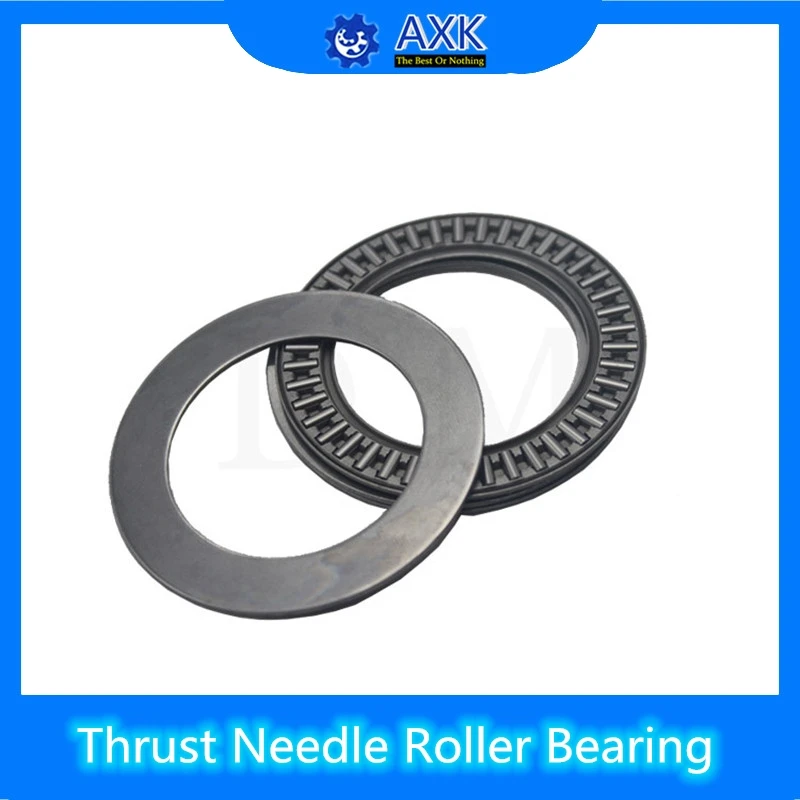

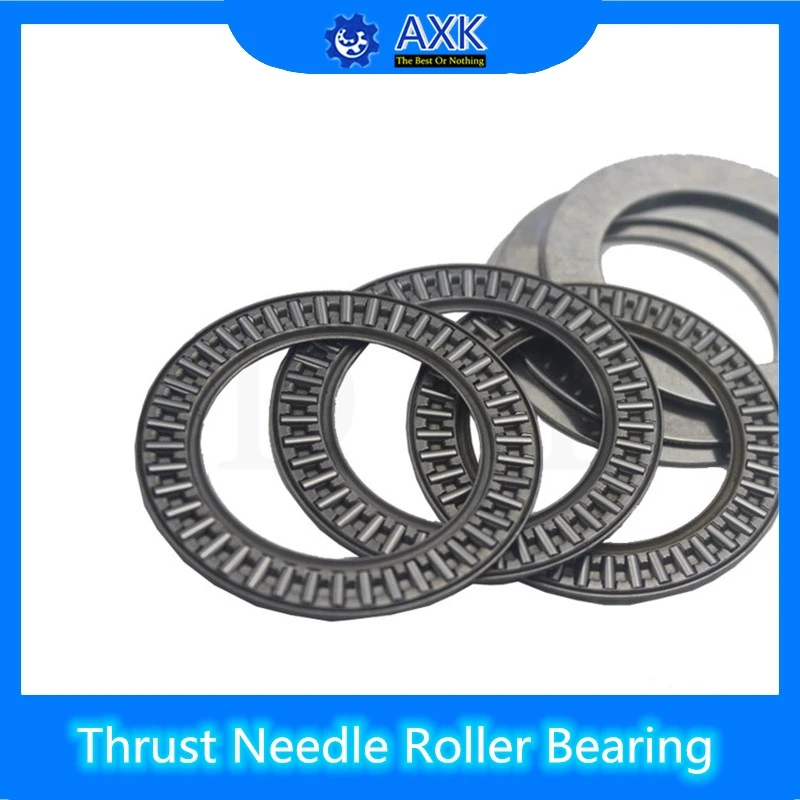

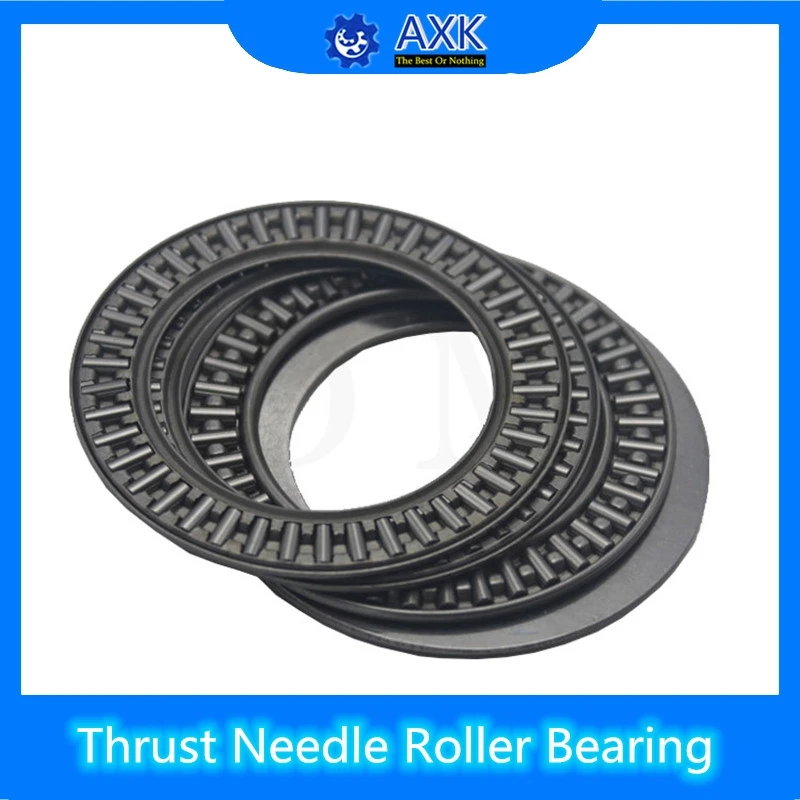

Thrust Needle Roller Bearing AXK Series,

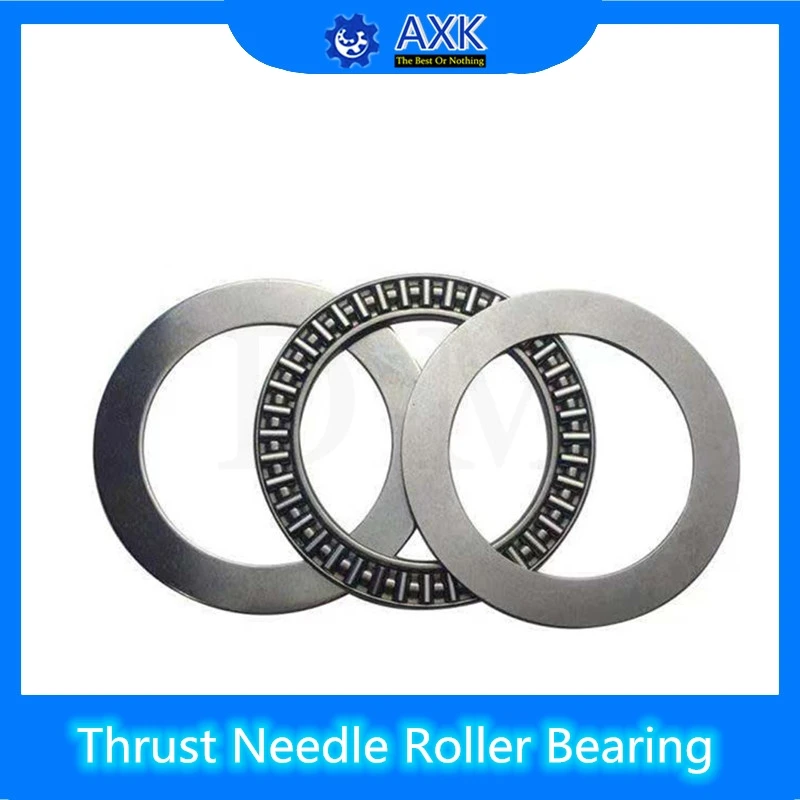

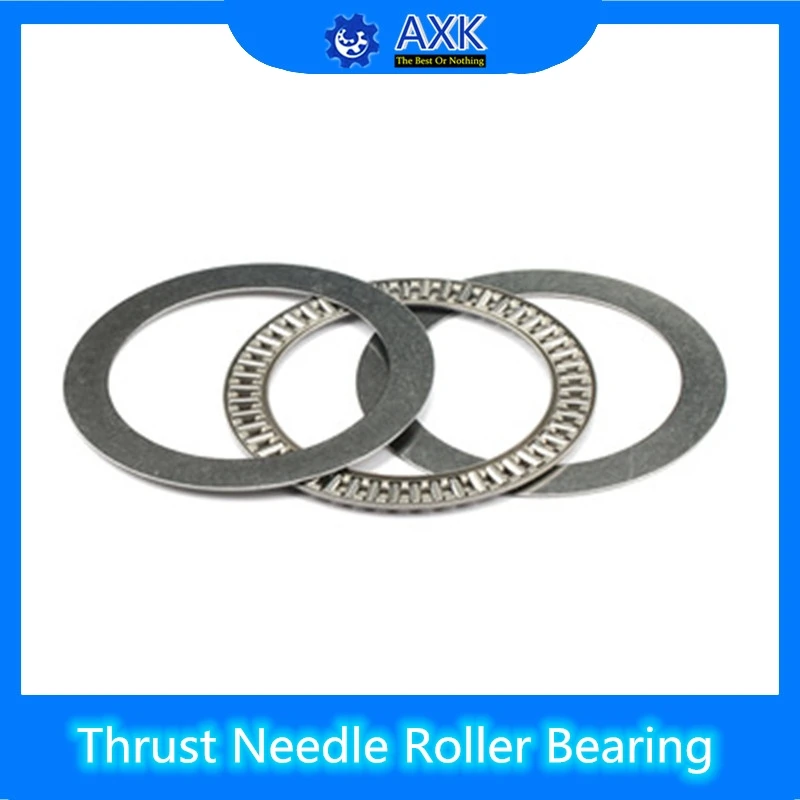

Structure A Set Of Thrust Bearing Containing Two Washers,

Item: AXK1730 Thrust Needle Bearing ; Size: 17mm x 30mm x 2mm,

Item: AS1730 Washers ; Size: 17mm x 30mm x 1mm,

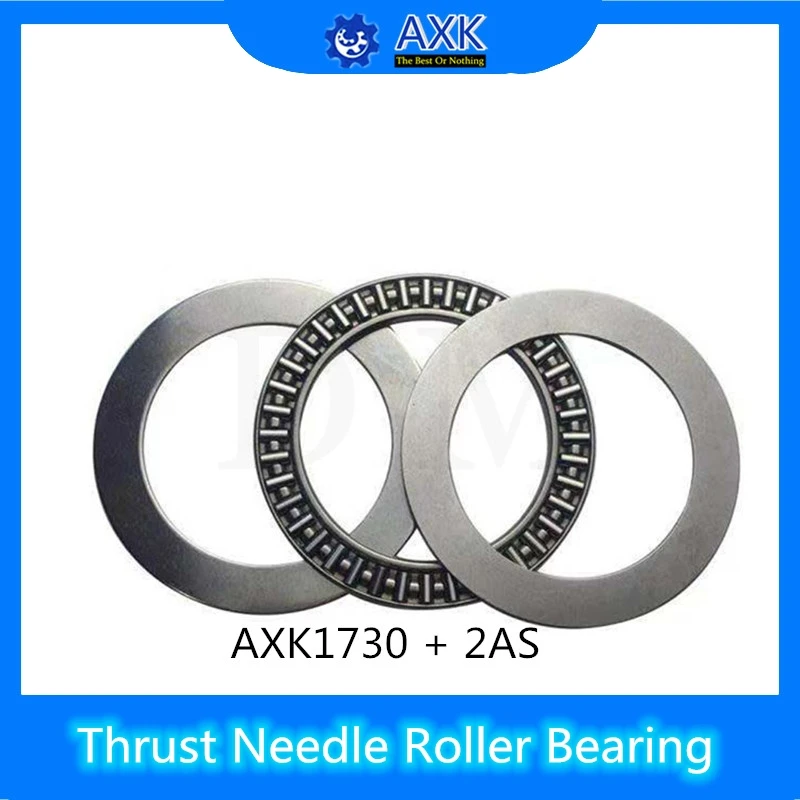

AXK1730+2AS Bearing Total Thickness 4mm, Size: 17mm x 30mm x4mm.

MINIMUM AXIAL LOAD

Slippage can occur if the applied axial load is too light and the operating speed

of the thrust needle roller and cage assembly is high - particularly if accompanied by

 inadequate lubrication. For satisfactory operation, a certain minimum load must be

 applied to a thrust needle roller and cage assembly which can be calculated from: Fa min = C0a/2200 [KN]

Where: C0a = static load rating [KN]  Fa min = minimum axial load [KN]
