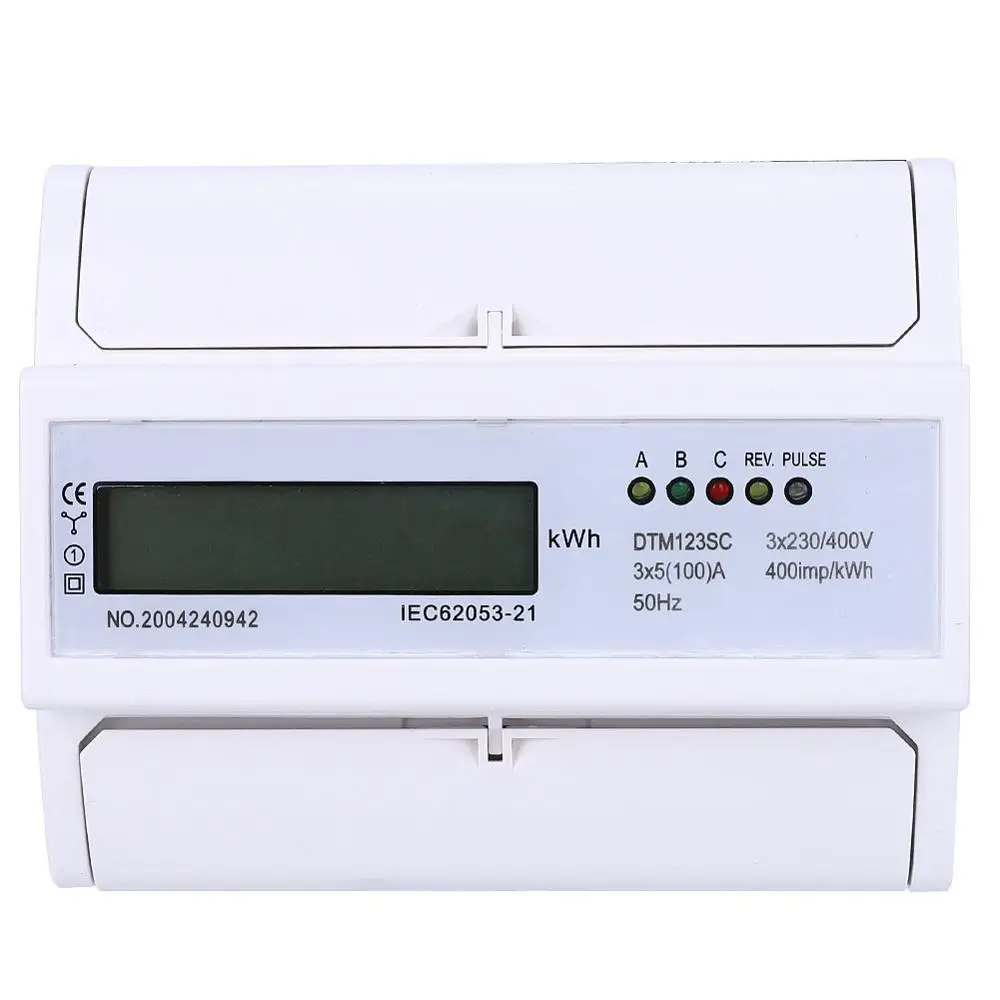

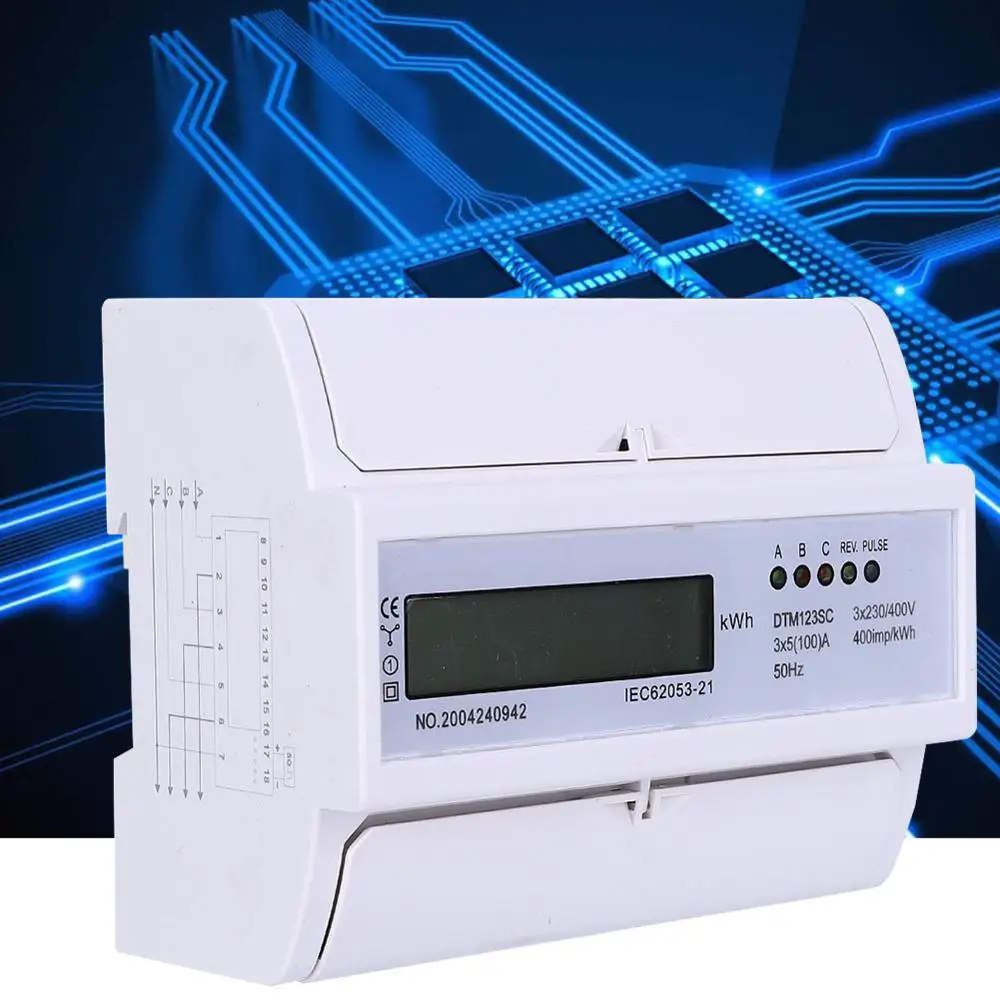

230/400V 5-100A Energy Consumption Digital Electric Power Meter 3 Phase KWh Meter with LCD

Feature:

DTM123SC three-phase electronic power meter is a new generation of smart meter which is made of large integrated circuit, advanced digital technology and SMT technology.

The technical performance of the product meets the requirements of Class 1 active watt-hour meter in the international standard IEC 62053-21.

35mm standard DIN - track installation, in line with the standard DIN EN50022.

6  width (modulus 12.5 mm), in line with DIN43880 standard.

Standard configuration 6+1 backlight LCD (9999999.1KWh).

Standard configuration pulse output passivity (polarity), can choose far pulse output passivity (non-polarity), and easy contact with various AMR systems, in line with the standard IEC 62053-31 and DIN 43864.

Dual-color LED indicates power status (green) and energy pulse signal (red).

Direction measurement AC has functional consumption. This is independent of the direction of the load current. It meets the standard IEC 62053-21.

Direct connection operation, you can choose two connection modes. Standard configuration S-type wiring, -type wiring can be selected.

Specification:
Model: DTM123SC
Accuracy: Level 1
Voltage specification: 3x230V/400V  50Hz
Current specification: 3x5(100)A  (referencecurrent, current)
Insulation performance: AC voltage 4KV, 1 minute, 1.2/50us waveform impulse voltage 6KV
Display mode: LCD display

Installation method: Rail type installation (35mm)

Weight: 481g / 17.0oz

Package list:

Note:
The actual product color may deviate from the photo due to light.
There may be a slight deviation in the measurement of product.
