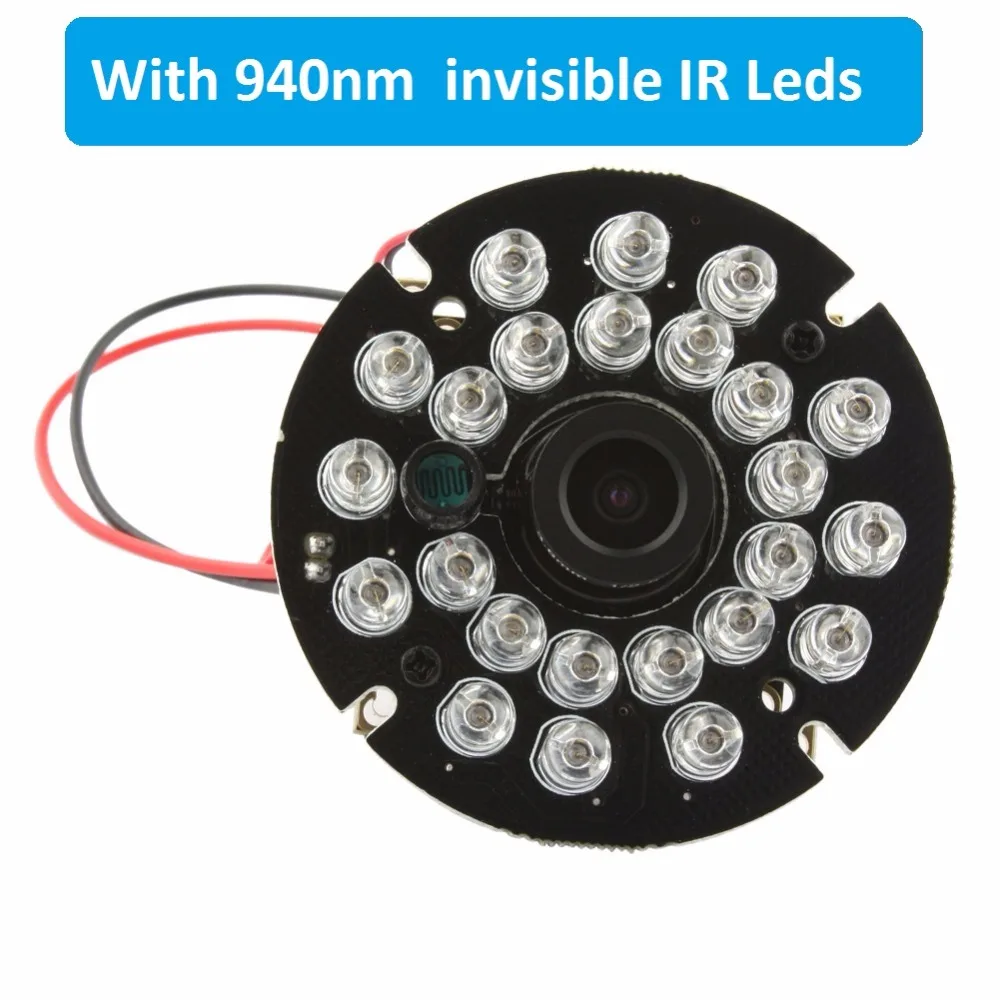

ELP 3MP WDR MICRON AR0331 CMOS H.264 MJPEG Audio MIC HD USB2.0 Night Vision IR Infrared Camera module with 940nm invisible IR light

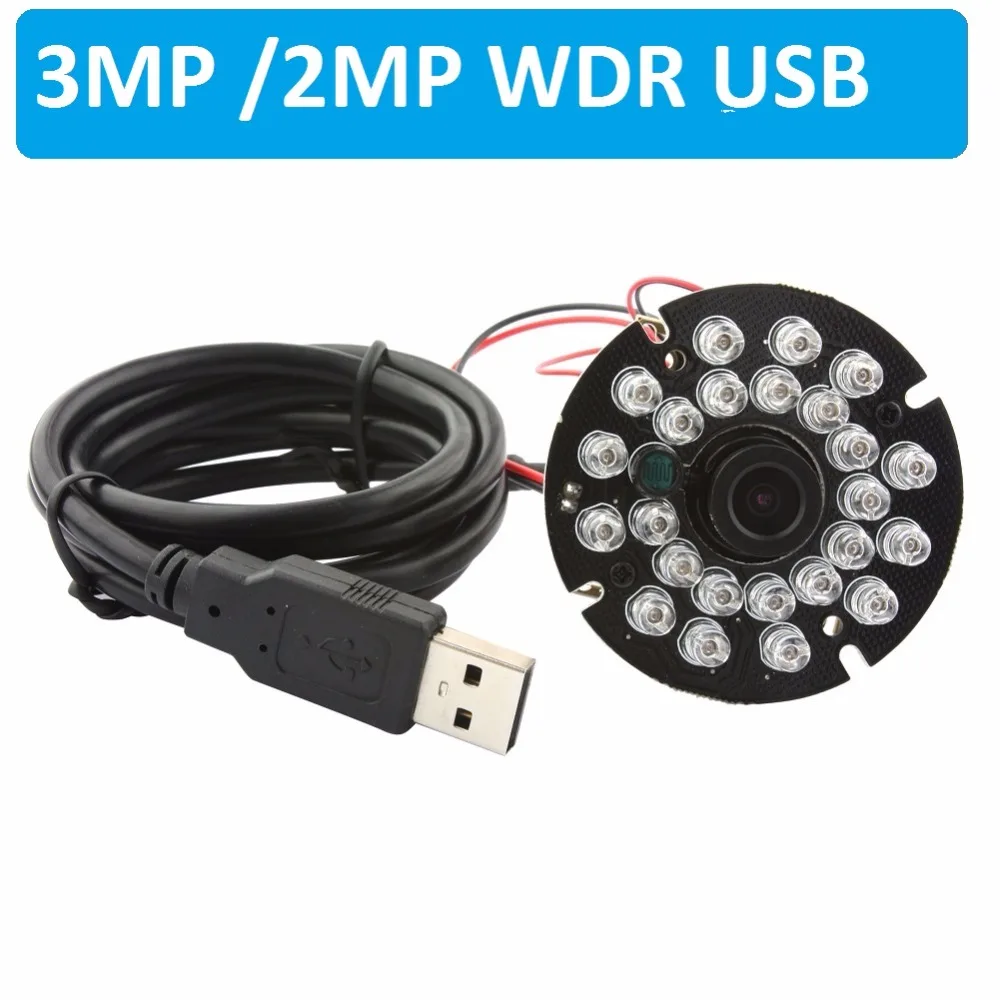

ELP-USB3MP01H is a WDR(Wide Dynamic Range) USB camera, it can view clear image under very strong light or very low light, such as the car front light is very strong, while the WDR camera can capture the clear image too)

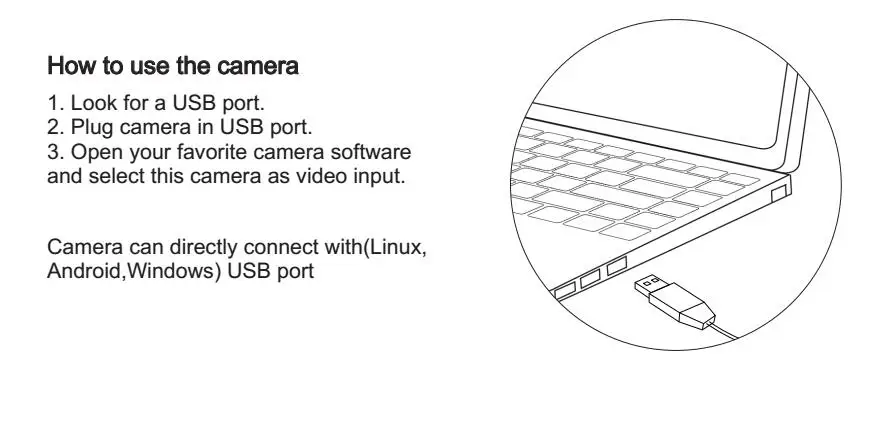

WDR camera very newly used in USB cameras, with USB port easy to plug and play installation, widely used in all kinds of industrial or personal home security, equiped with WDR perfect to use in any light condition.



Package includes:





1) 1PC 3mp usb camera module with one M12 lens (2.8/3.6/6/8mm lens optional)



2) 1PC 1m usb cable(2/3/5m usb cable optional)

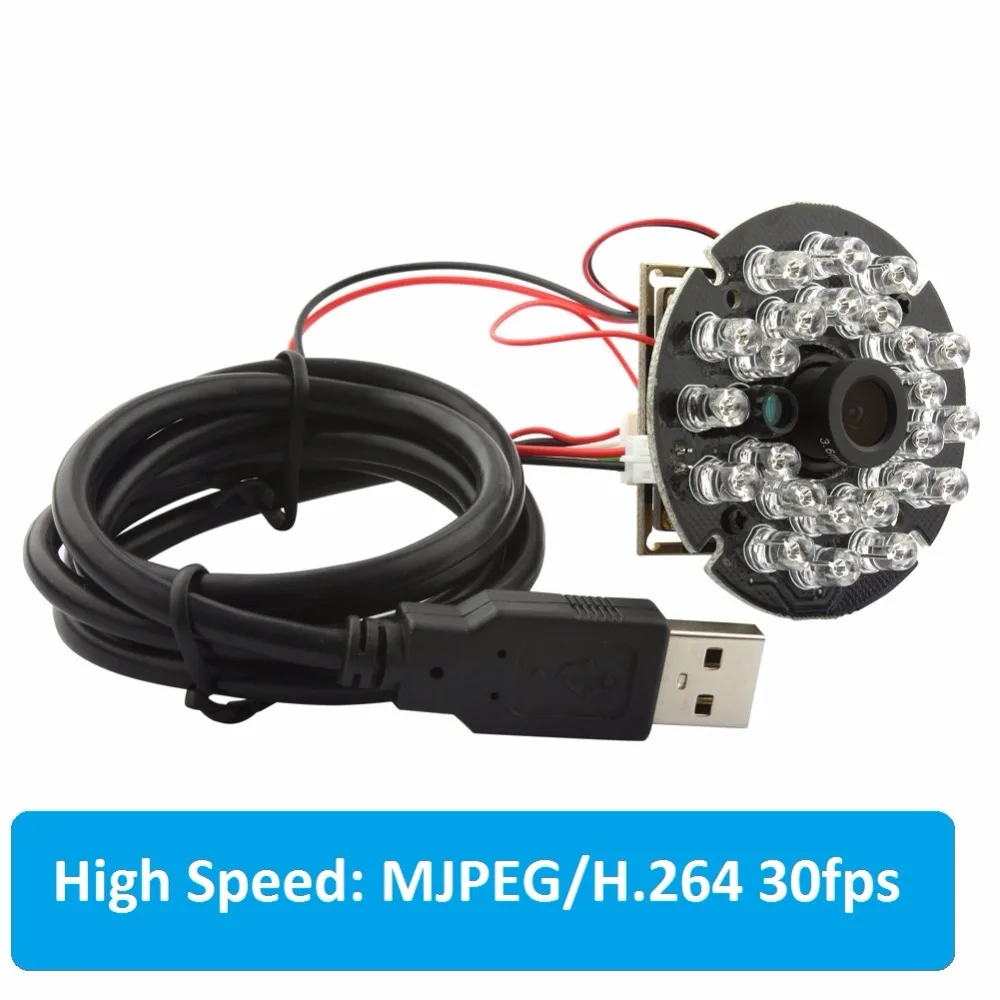

*High Speed 1080P HD USB Camera*Equiped with M12 lens *Can drive 640X360@ 30fps /1280X720@ 30fps /1920X1080@ 30fps *CMOS 1080P sensor for high quality  sharp image . *High speed USB 2.0 interface for high resolution PC camera interface. *Super small outline and thin profile for embedded applications *High quality lens, true and undistorted color image. *Low power consumption – ideal for portable equipment. *UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above. *Camera with UVC. * work in both Day Mode and Night Vision Mode *WDR usb camera, H.264, MICRON AR0331 sensor, Dynamic Range up to 100 dB, Support IRCUT， Microphone





    Model   ELP-USB3MP01H-RL  Sensor   AR0331  Lens Size 1/3 inch Pixel Size 2.2μmX2.2μm Max. Resolution 1920(H)x1080(V) Compression format H264 /MJPEG / YUV2（YUYV） Resolution & frame H264: 640X360@ 30fps /1280X720@ 30fps /1920X1080@ 30fps MJPEG:640X480@ 30fps /800X600@ 30fps/1280X720@30fps/1280X1024@
30fps/1920X1080@ 30fps /1600X1200@ 15fps /2048X1536@ 15fps YUV:640X480@ 30fps /800X600@ 20fps /1280X720@ 5fps/1280X1024@

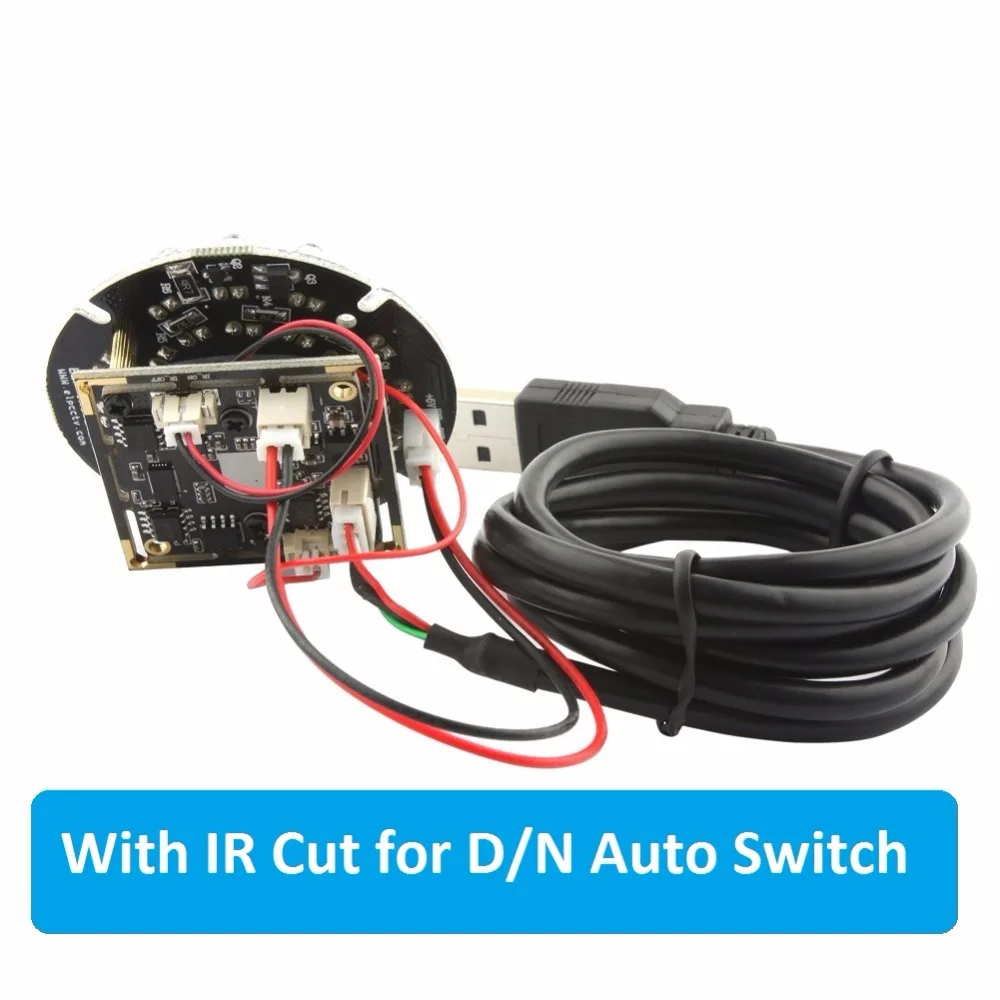

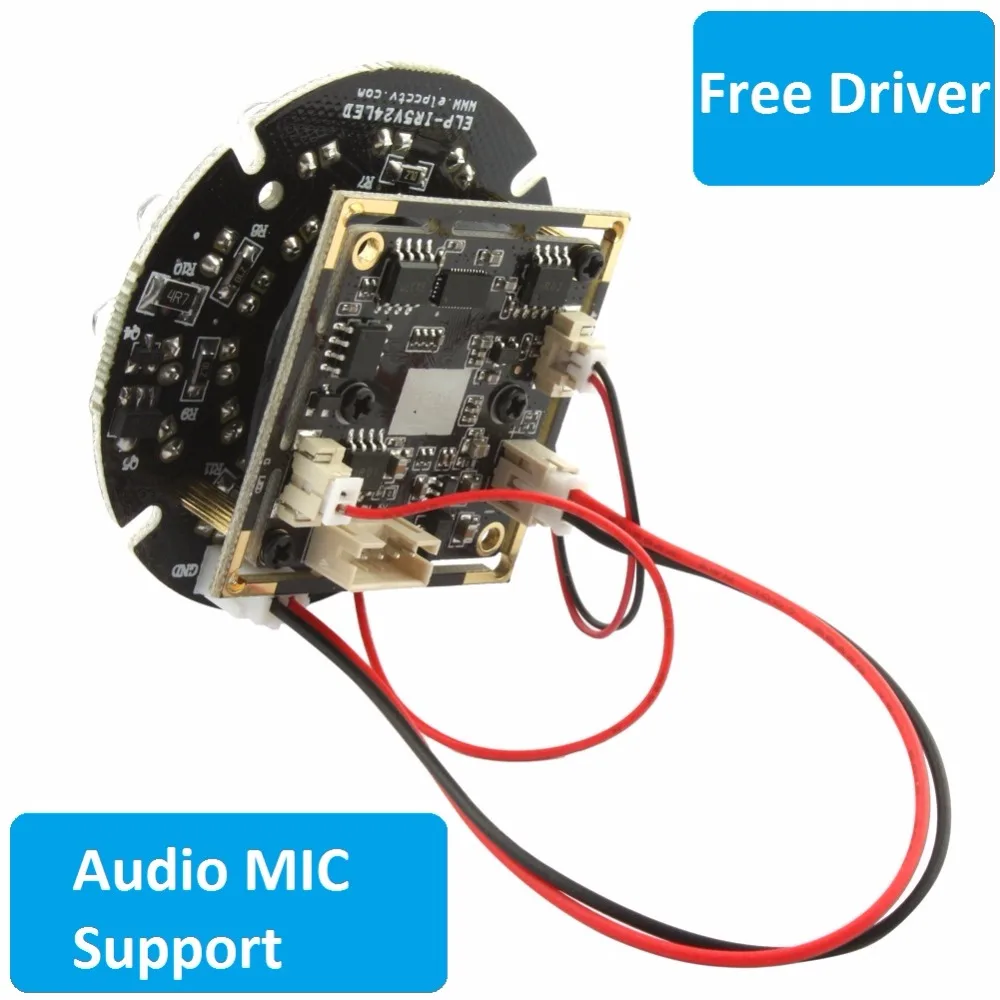

5fps/1920X1080@5fps /1600X1200@ 5fps /2048X1536@ 3fps S/N Ratio 39dB Dynamic Range Up to 100dB Responsivity 2.0V/lux-sec Mini illumination 0. 05 lux Shutter Type Electronic rolling shutter / GRR Connecting Port type USB2.0 High Speed Free Drive Protocol USB Video Class（UVC） Support OTG Protocol USB2.0 OTG AEC Support AEB Support AGC Support Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure Lens Parameter 2.8/3.6/6/8mm megapixel lens optional Digital audio High quality digital MIC,support single,dual channel IR CUT Connector Support 2P-1.25mm socket LED board power connector Support  2P-2.0mm socket Power supply USB BUS POWER  4P-2.0mm socket Power supply DC5V Operating Voltage 140mA~200mA Working current -10～70℃ Working temperature -20～85℃ Board size /Weight 38X38mm/ about 30g Cable   Standard  1M / optional 2M,3M,5M  Operating system request Win7 Win8 Linux 2.6 or above Android 4.0 or above





  Typical application   1: ATM,Kiosk,POS,TV box         2: advertising cameras       3: one camera        4: Smart TV built-in camera 5: Construction Equipment        6: Banking equipment         7: body switch         8: Scanner 9: a mobile terminal device           10: Medical diagnostic image acquisition        11: fingerprints, palm prints image acquisition      12:video door phone          13:HD surveillance











Effect picture captured by our customer : )
