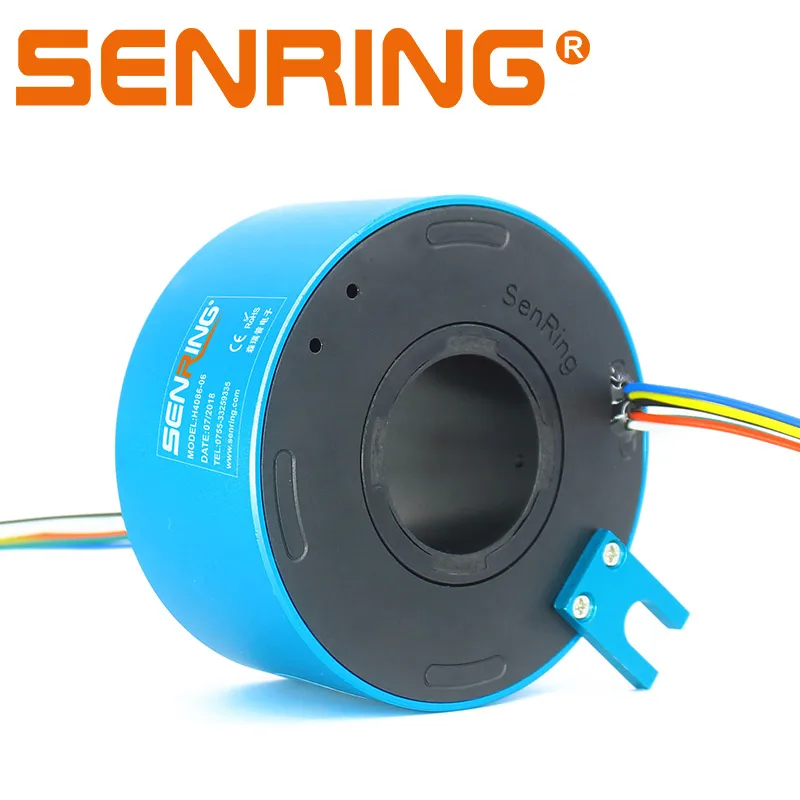

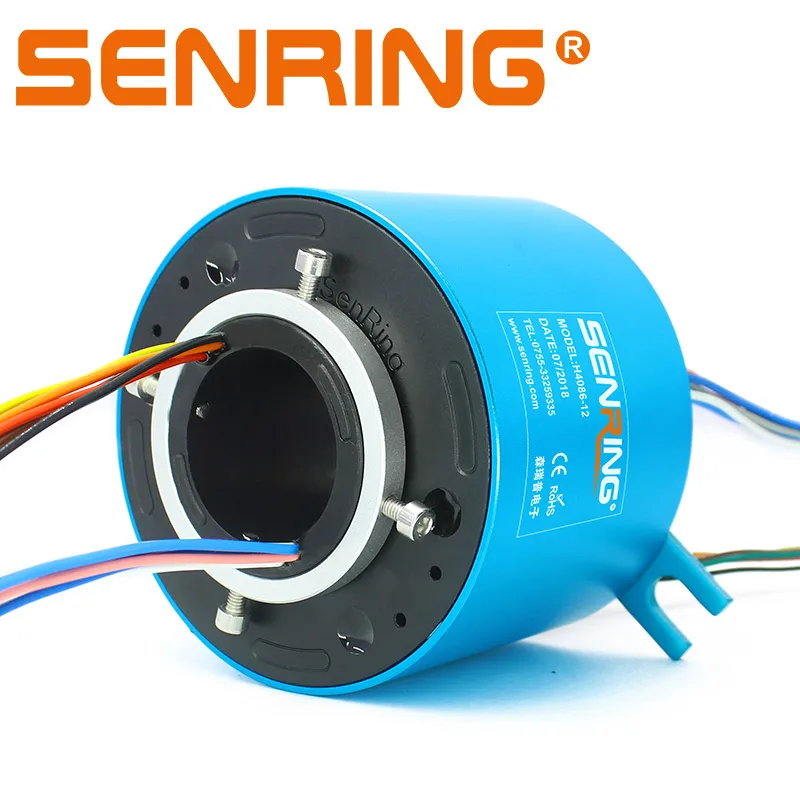

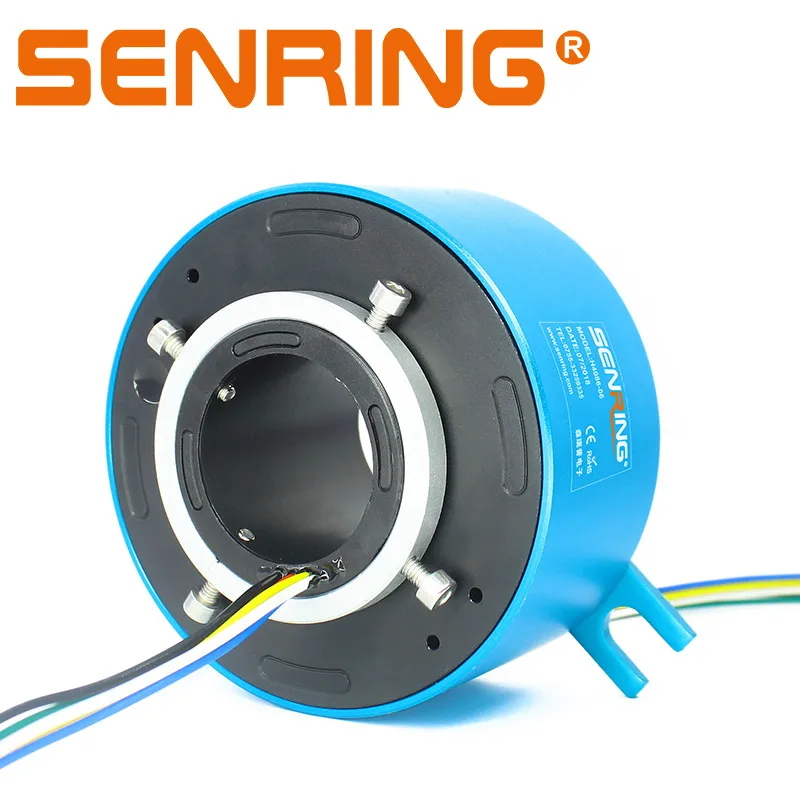

New through bore ID 40mm slip ring 6 wires/12 wires each 10A with OD 86mm senring | Parts & Accs

New through bore ID 40mm slip ring 6 wires/12 wires each 10A with OD 86mm senring | Parts & Accs

Description

Slip rings can be designed in a variety of configurations.  For example they can provide an open through-bore to accommodate other components such as a fluid joint or a wave guide.  Instead of a drum the rings can be configured in a platter or pancake.  This is appropriate if the space available for the slip ring is short and wide instead of tall and narrow.

Slip rings are commonly used to transfer electrical signals and power to a rotating shaft.

Feature

     Below 3D drawing for installation guide,for example ,mounting a slip ring to A equipment:

       1.Mounting the slip  ring to the shaft;

       2.Fix rotor to the rotating Axis with 4pcs screw;

       3.Fix the anti-rotation tab with screw,make sure the slip ring smooth rotatingly.

​

    SenRing general slip ring models are applied in many applications and equipments,provide system solutions for worldwide.

    It involves wind power,controller,and industrial turntable,robot,engineering machinery,CCTV video mornitoring,medical   equipment,military radar and so on...
