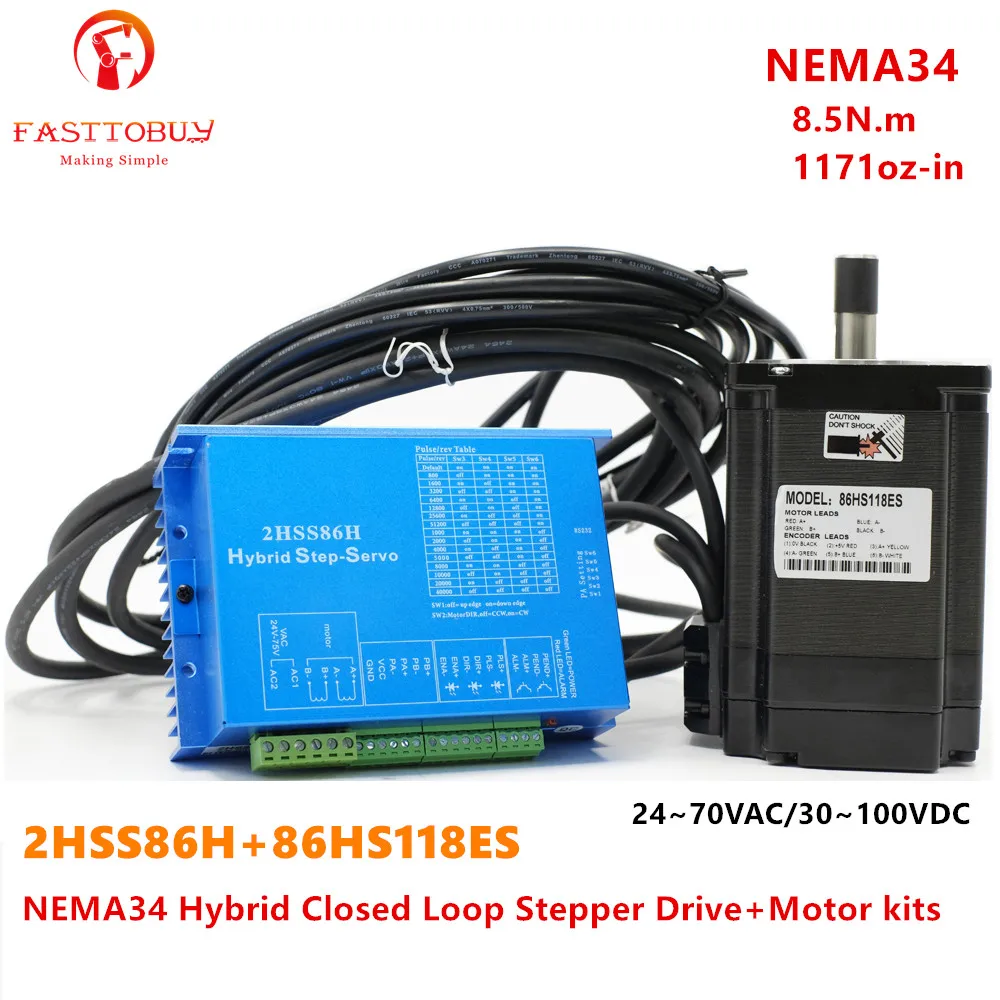

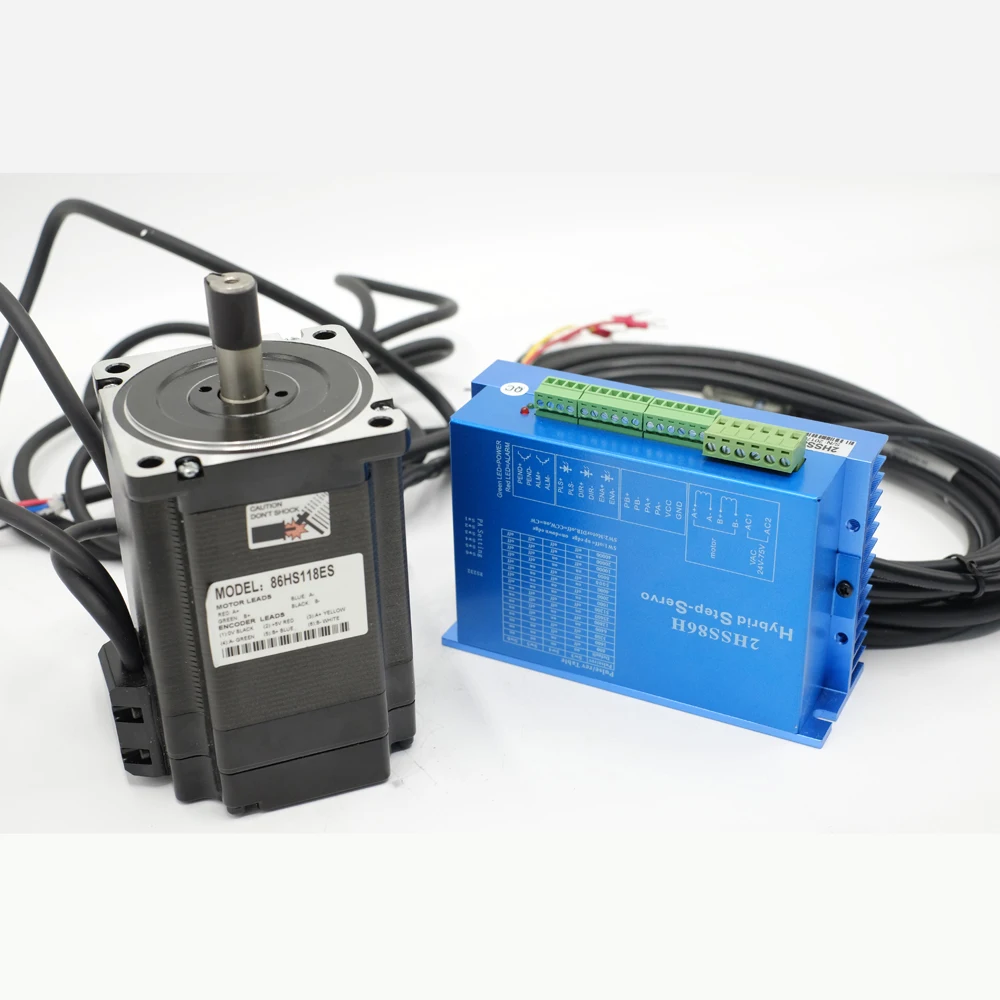

NEMA34 8.5Nm 1171oz-in Hybrid Closed Loop Stepper Drive+Motor kits PUL+DIR Control mode 3.2Kg.cm2 for CNC Router/Laser Machine |

NEMA34 8.5Nm 1171oz-in Hybrid Closed Loop Stepper Drive+Motor kits PUL+DIR Control mode 3.2Kg.cm2 for CNC Router/Laser Machine |

1 Kit

Hybrid Closed Loop Stepper Drive+Motor

1 PC

3M Encoder Cable

1PC

3M Power Cable

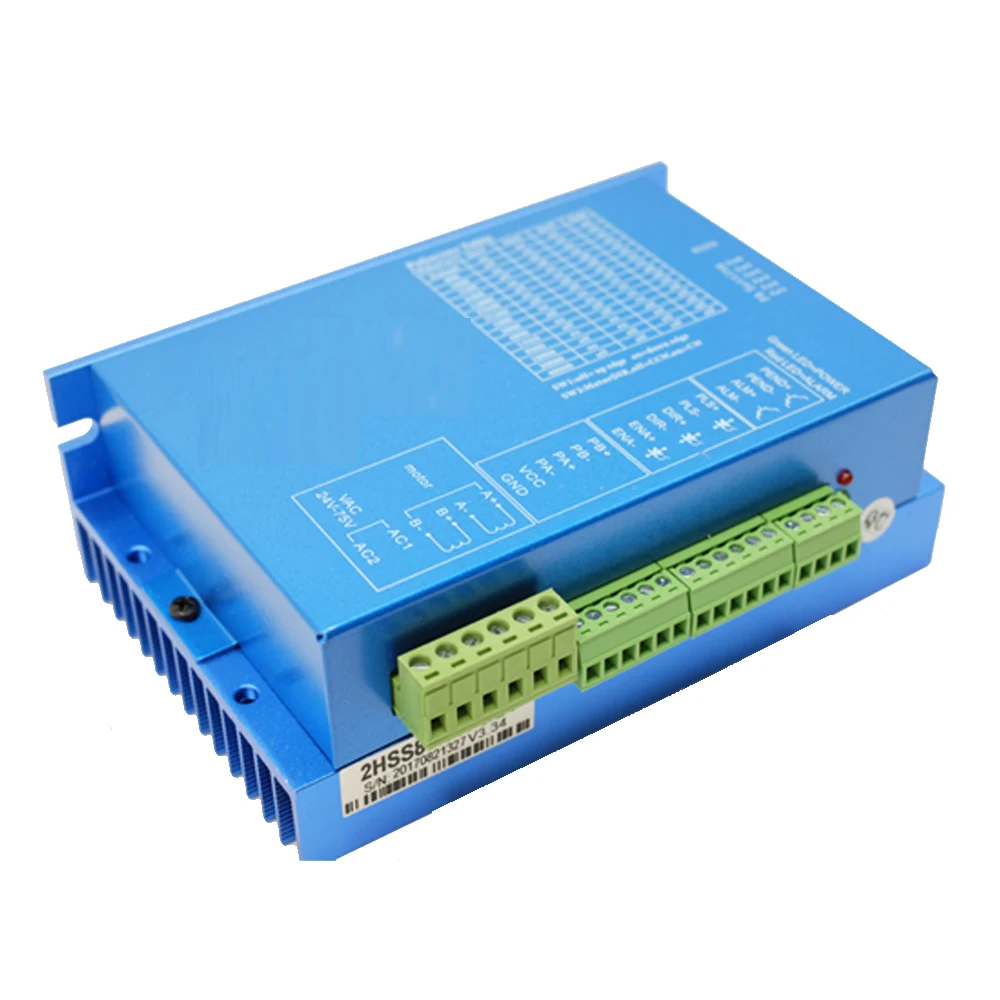

Input voltage

24~70VAC/30~100VDC

Continuous current

7.5A

Maximum pulse frequency

200K

Default communication rate

57.6Kbps

Protection

Over current action value 10.8~13.2A

Over voltage action value 13VDC

Boundary dimension(mm)

150*97.5*53

Weight

580g

Service environment

Occasion

Avoid oil mist, dust and corrosive gases

Working temperature

0~7 Degree Celsius

Storage temperature

-20~+80 Degree Celsius

Humidity

40~90%RH

Cooling way

Natural cooling or forced cooling

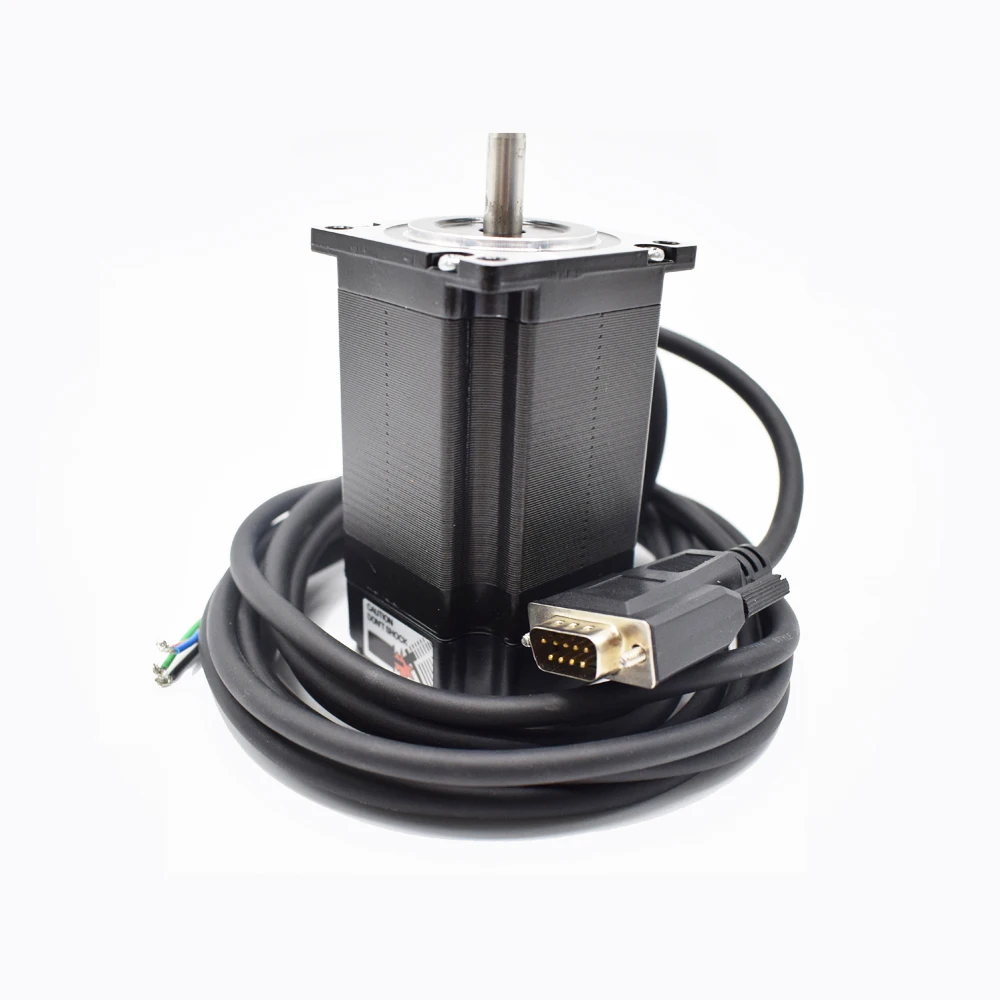

Model

86HS80ES

86HS118ES

86HS156ES

Step angle

1.8*

1.8*

1.8*

Position accuracy

1.71~1.89*

1.71~1.89*

1.71~1.89*

Number of phase

2

2

2

Temp rise(Max)

80 Degree Celsius

80 Degree Celsius

80 Degree Celsius

Dielectric strength

500VDC

500VDC

500VDC

Insulation resistance

100MOhm(500VDC)

100MOhm(500VDC)

100MOhm(500VDC)

Radial play

Max 0.025mm(Load 450g)

Max 0.025mm(Load 450g)

Max 0.025mm(Load 450g)

Axial play

Max 0.075mm(Load 920g)

Max 0.075mm(Load 920g)

Max 0.075mm(Load 920g)

Insulation class

B

B

B

Current/phase:A

6

6

6

DC resistance:Ω

0.27~0.33

0.522~0.638

0.675~0.825

Inductance /phase:mH

3.12~4.68

3.92~5.88

9.6~1.44

Holding torque:N.m

4.5

8.5

12.5

Inertia:Kg.cm2

4.5

3.2

12

Weight:Kg

3.6

4.3

5.1

It has the advantages of greater torque, lower heating and better operation stability. This series of closed-loop stepper motors are more stable and reliable, and have better performance parameter batch consistency because of the large scale automatic production line and strict quality management system.

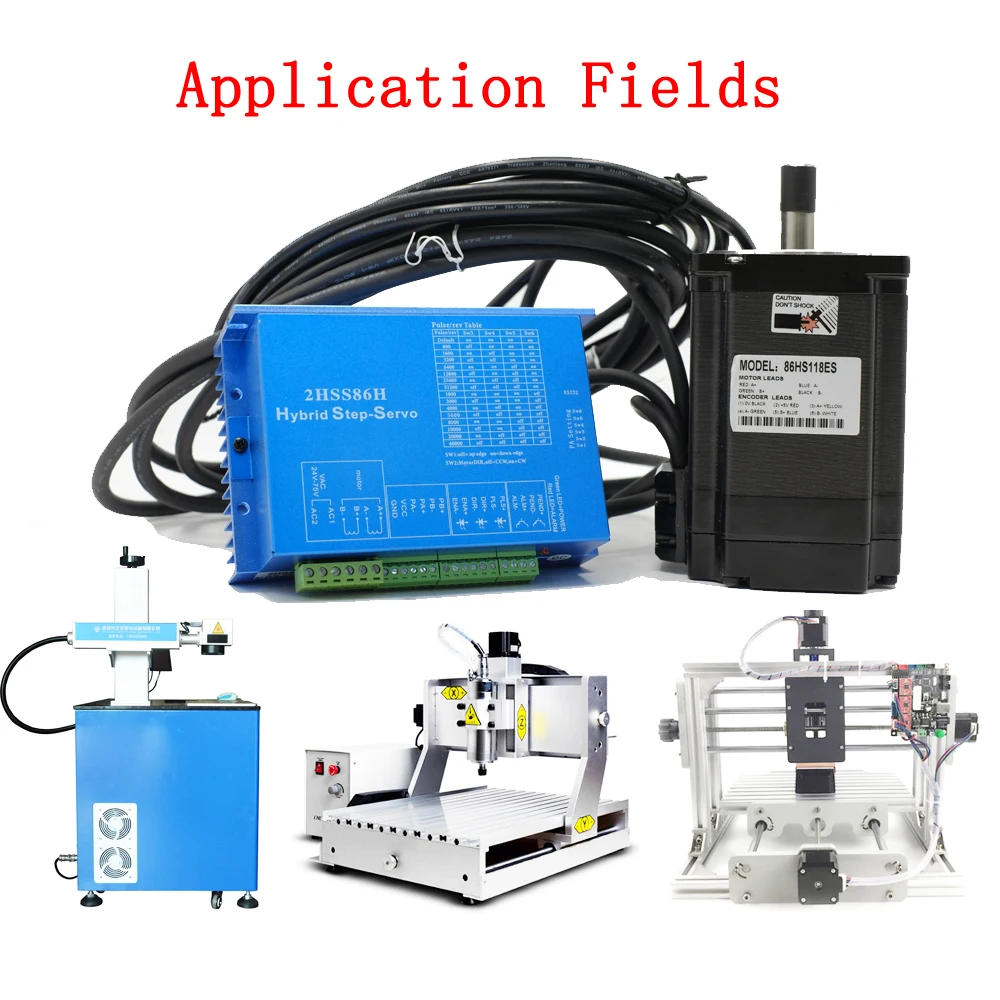

Widely used in engraving machines, laser machines, CNC machine tools, medical equipment, electronic processing equipment, automatic production lines, lithium production equipment, textile machinery, clothing and other automation equipment.

All Products from the factory will be provided for one year warranty after sales and lifetime technical support.
