ELM327 V1.5 USB Switch PIC18F25K80 + FTDI Chip ELM 327 HS CAN/MS CAN For Forscan OBD2 Diagnostic Tool Code Scanner Free shipping

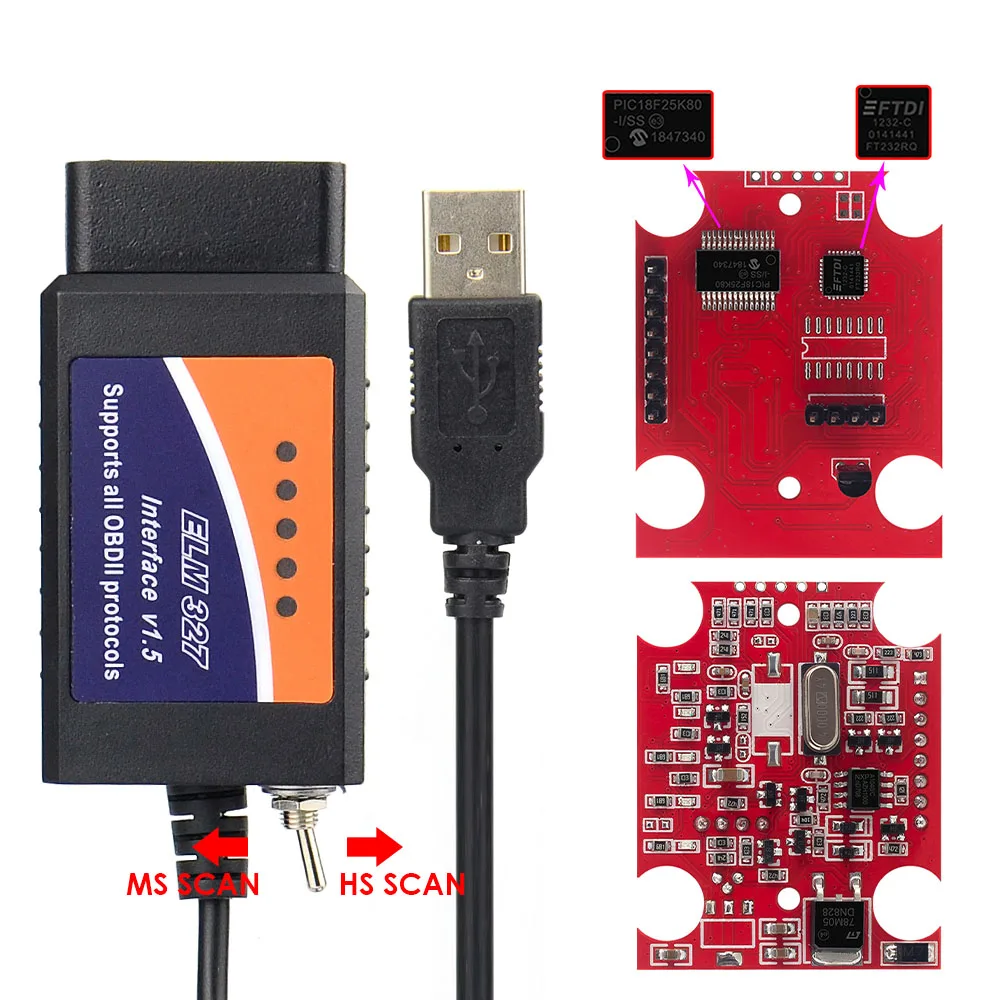

ELM327 USB FTDI chip for F-o-r-d with HS CAN/MS CAN switch

*This ELM327 only supports 12v Cars(including petrol and diesel cars),can't support for 24V or 15V vehicles.

*Please use 16pin OBD II adapter cars,we dont suggest to use it on non-16pin cars,even with a xpin to 16Pin extended cable.

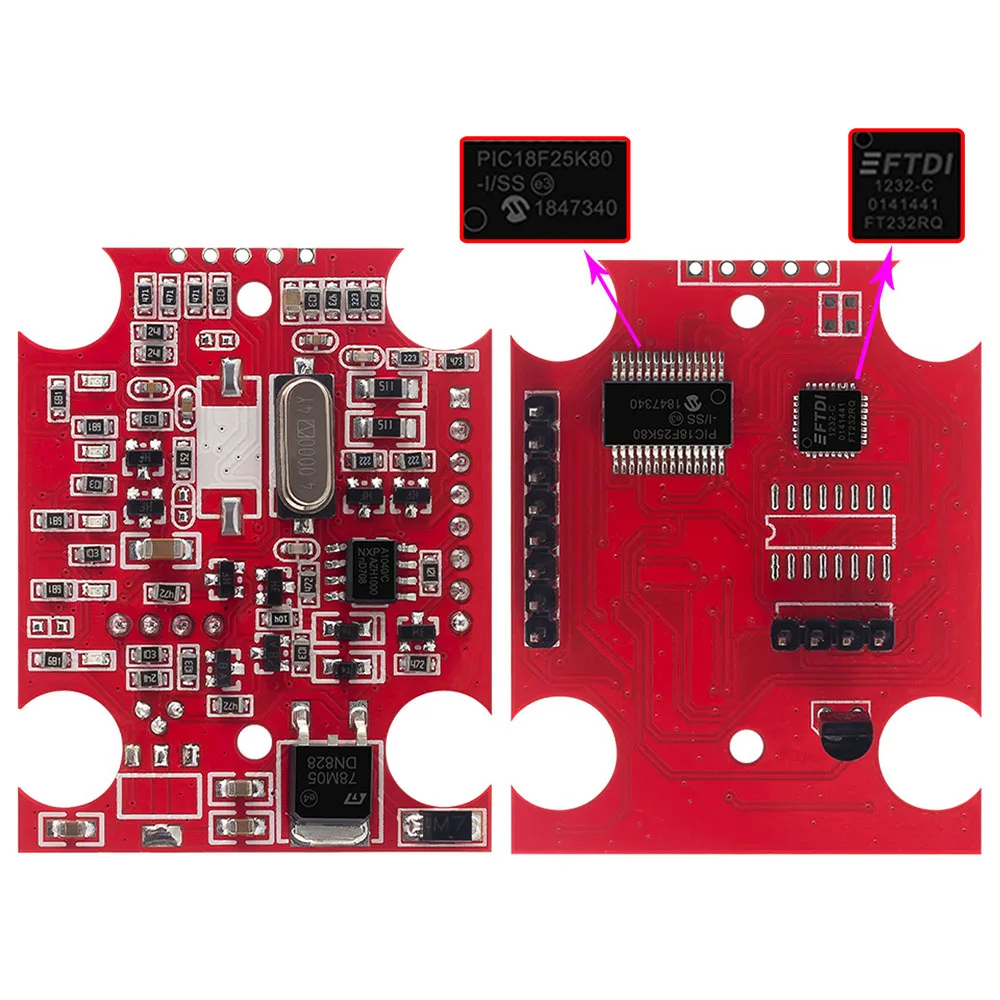

The picture of board:

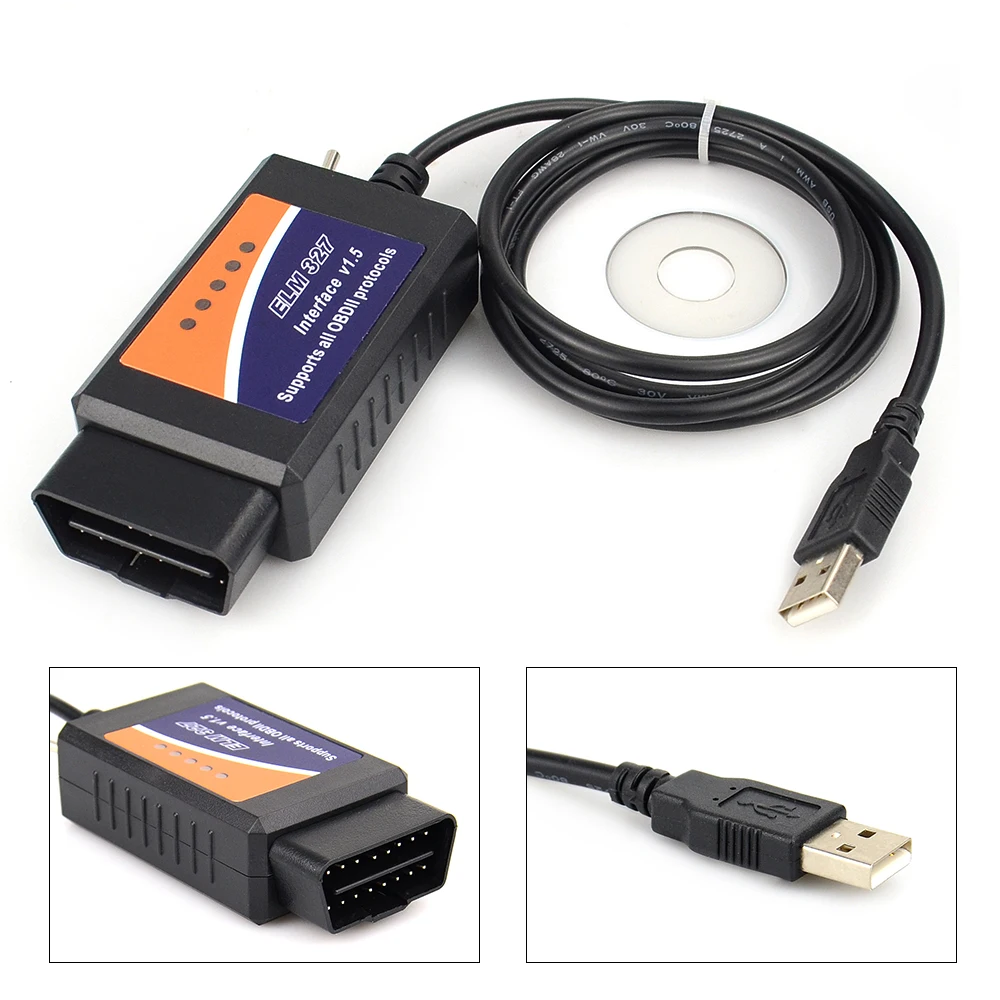

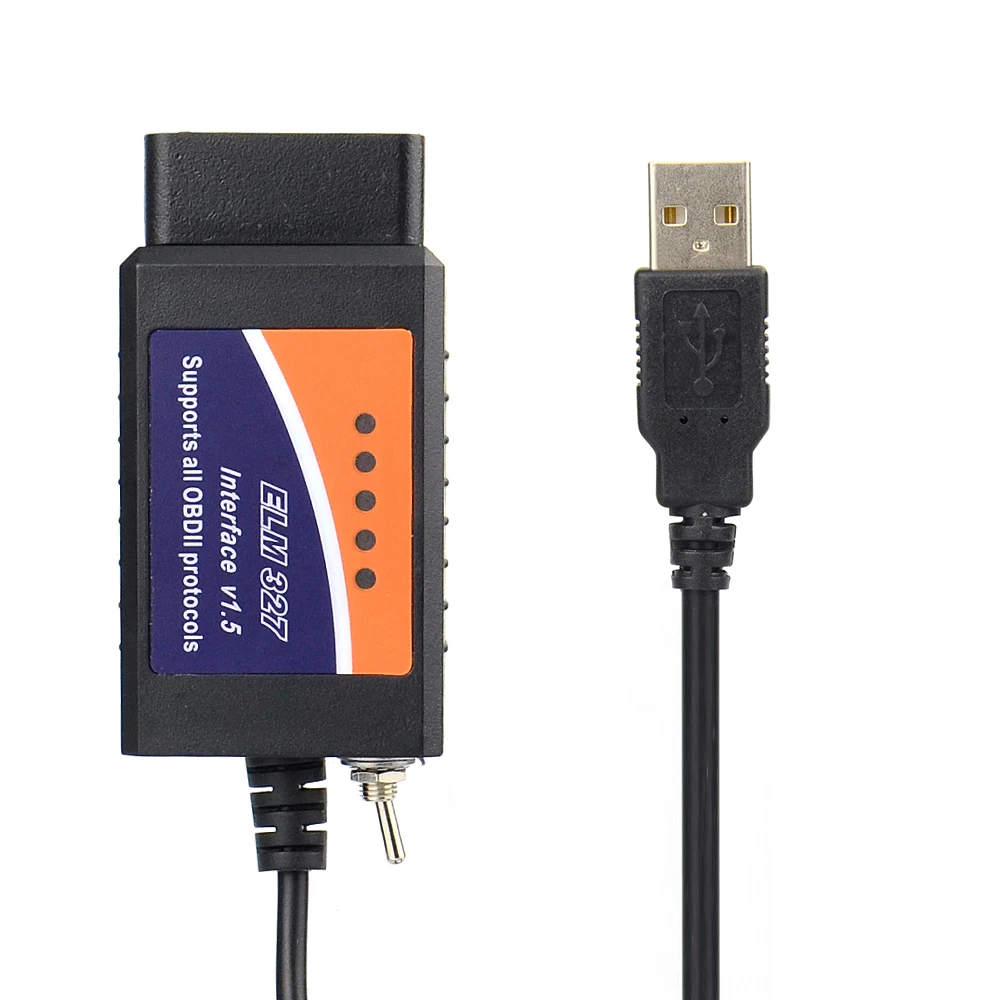

USB version

Bluetooth version

Technical Details:

1Latest ELM327 version for greater F.o.r.d compatibility

2Manufactured modification to include a switch to connect to different CAN buses

3Designed for FORScan software

4Compatible with software venders; FORScan, Elmconfig, FF2 and FoCCCus, plus more

4MS CAN bus and HS CAN bus support

5Drivers and instructions included

Product Introduction:

One ELM327 OBDII OBD2 USB with switch. Designed for communicating with F.o.r.d, Maz-da, Lin-coln and Mercury vehicles. With this cable and the one of the supported software vendors you can detected modules which are not visible for regular

OBD2 scanners. This includes showing you trouble codes, PIDs, running tests and services procedures which are never displayed by other OBD2 scanners and a standard ELM327.

Basic Features:

Reset fault /trouble codes / parameter ids (PIDs)

Change car configuration data

Run tests

Services procedures

Program certain models

Pin Configurations:

Switch position one: HS CAN - Occupies pins 6 and 14

Switch position two: MS CAN - Occupies pins 3 and 11

Supported Software:

FORScan

Elmconfig

FoCCCus

FF2

Plus more

Modified EML:

Please note that many F.o.r.d and Mazda models (approximately since 2003-2004) are equipped with MS CAN bus, in addition to the regular HS CAN bus. In contrast to HS CAN bus, MS CAN bus is not supported by the stock ELM327, because MS CAN

is a manufacturer-specific solution and located on non-OBD2 pins. This ELM327 has been modified to allow it to implement the MS CAN bus.

ELM327 supports HS CAN from the stock, because for F.o.r.d HS CAN completely matches to the OBD2 standards. It occupies pins 6 and 14. MS CAN bus occupies pins 3 and 11.

Supported Vehicles:

All for For-d, for Ma-zda, for Lin-coln, for Mercury vehicles that can be addressed using an ELM via an OBDII connector.

Supported Protocols:

for F.O.R.D HS CAN

for F.O.R.D MS CAN

Other Details:

Cables fully tested on supported model before shipping.

No responsibility can be accepted for any damage caused by the lead.

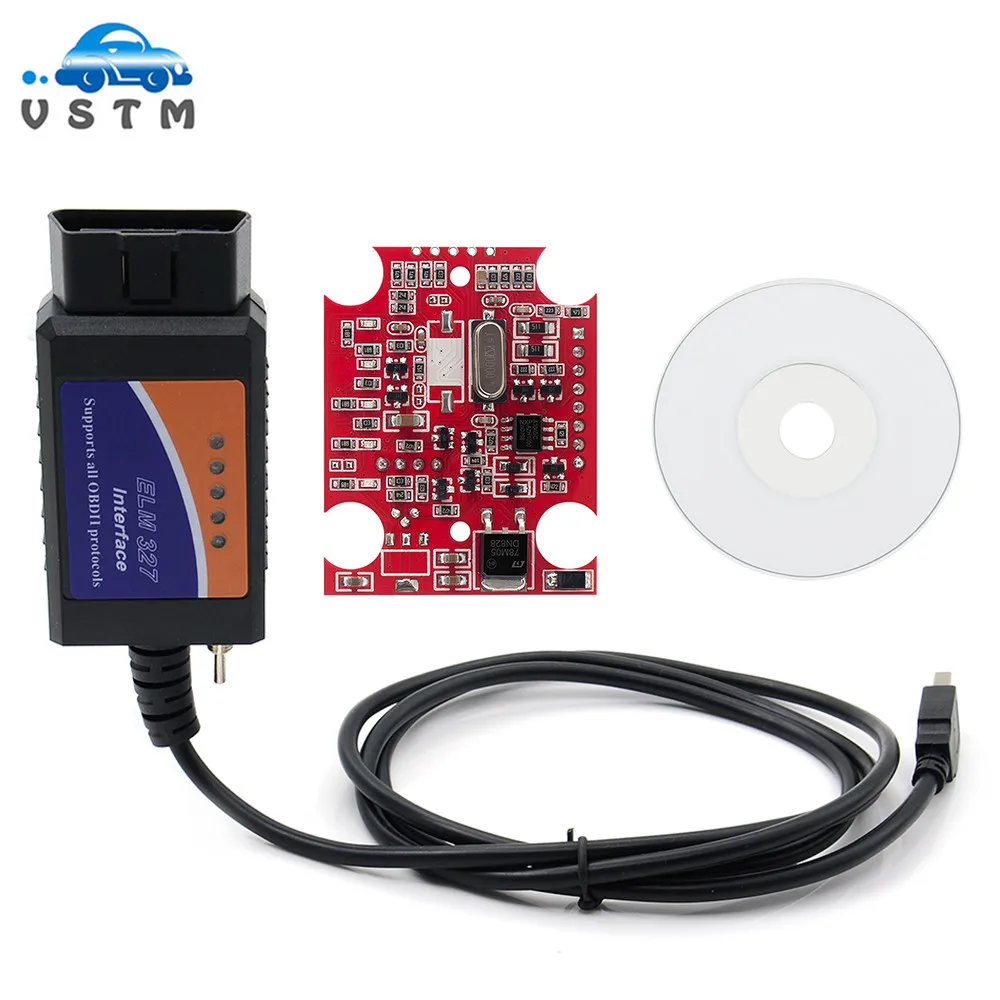

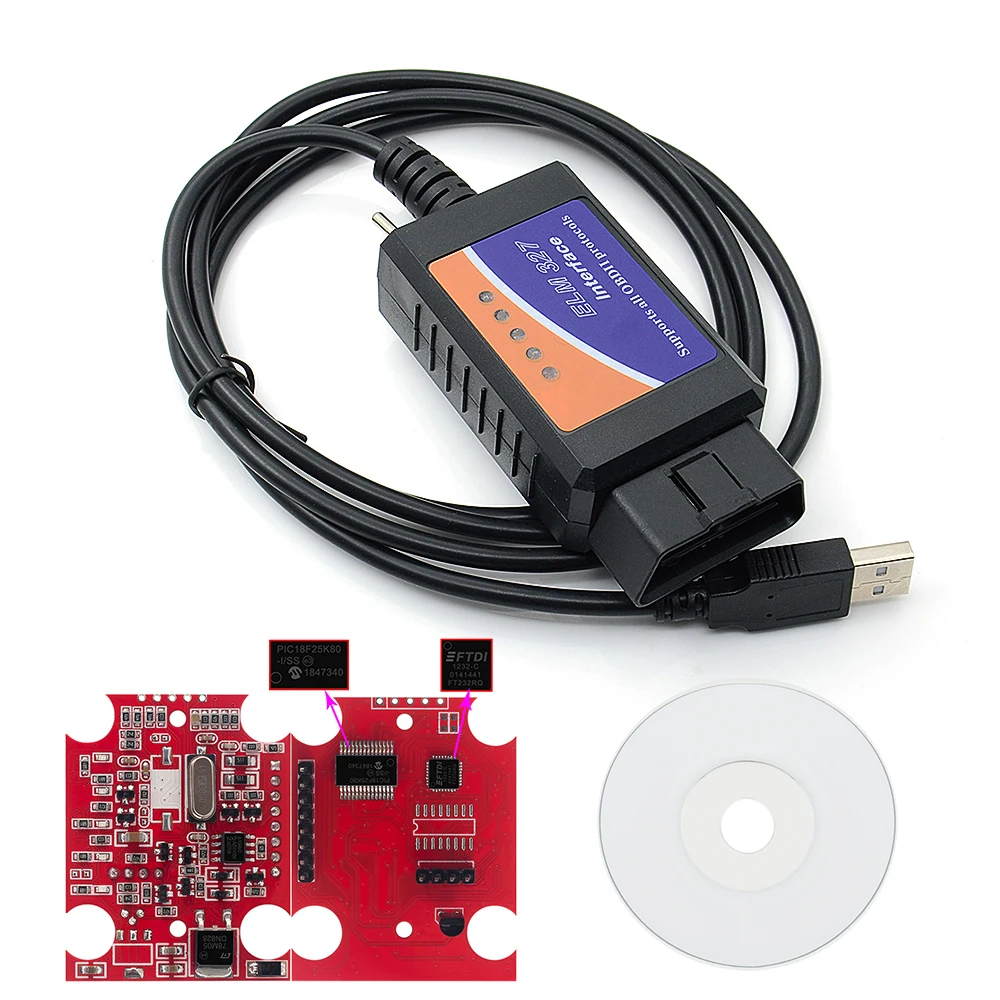

Packing List:

1 * ELM327 diagnostic interface
